2021 FORD MUSTANG remote start

SWITCHING THE HEATED
STEERING WHEEL SETTINGS ON
AND OFF
1. Using the information display controls
on the steering wheel, select Settings.
2. Select Vehicle.
3. Select
Remote Start.
4. Select
Front Seats & Wheel.
5. Select
Auto or Off.
Note: If you switch the heated steering
wheel settings on, the heated steering wheel
turns on during cold weather.
Note: You cannot adjust the heated
steering wheel settings when you have
remotely started the engine.
SETTING THE REMOTE START
DURATION
You can set a duration for the vehicle to
run.
Note: Wait a few seconds before remotely
starting the engine after the engine stops
running.
1. Using the information display controls on the steering wheel, select Settings.
2. Select
Vehicle.
3. Select
Remote Start.
4. Select
Duration.
126
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Remote Start
(If Equipped)

1. Remove the rubber covering (A) in the
cupholder.
2. Place the remote in the backup slot (B)
with the buttons facing up and the
keyring toward the front of the vehicle.
3. With the key in this position, press the brake pedal (automatic transmission)
or clutch pedal (manual transmission),
then the START button to switch the
ignition on and start your vehicle.
Fast Restart
The fast restart feature allows you to
restart the engine within 20 seconds of
switching it off, even if a valid key is not
present.
Within 20 seconds of switching the engine
off, press the brake pedal (automatic
transmission) or clutch pedal (manual
transmission) and press the button. After
20 seconds have expired, you can no
longer restart the engine without the key
present inside your vehicle.
Once the engine has started, it remains
running until you press the button, even if
the system does not detect a valid key. If
you open and close a door while the engine
is running, the system searches for a valid
key. You cannot restart the engine if the
system does not detect a valid key within
20 seconds. Failure to Start
If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:
1. If your vehicle is equipped with an
automatic transmission, fully press the
brake pedal. If your vehicle is equipped
with a manual transmission, fully press
the clutch pedal and apply the
handbrake.
2. Move the transmission selector lever to park (P) (automatic transmission)
or neutral (manual transmission).
3. Fully press the accelerator pedal and hold it there.
4. Start the engine.
Automatic Engine Shutdown
Your vehicle is equipped with a feature that
automatically shuts down the engine if it
has been idling for an extended period. The
ignition also turns off in order to save
battery power. Before the engine shuts
down, a message appears in the
information display showing a timer
counting down from 30 seconds. If you do
not intervene within 30 seconds, the engine
shuts down. Another message appears in
the information display to inform you that
the engine has shut down in order to save
fuel. Start your vehicle as you normally do.
Automatic Engine Shutdown Override
Note: You cannot permanently switch off
the automatic engine shutdown feature.
When you switch it off temporarily, it turns
on at the next ignition cycle.
You can stop the engine shutdown, or reset
the timer, at any point before the
30-second countdown has expired by
doing any of the following:
149
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Starting and Stopping the EngineE174956

Protected Component
Fuse Rating
Fuse or Relay
Number
Right-hand rear-window power (base).
30A
28
Not used (GT500).
—
Gateway module (base).
15A
29
Not used (spare) (GT500).
Not used (spare)
5A
30
Remote keyless entry.
10A
31
Audio unit.
20A
32
Not used.
—
33
Run/start bus.
30A
34
Power distribution box run/start relay
(base).
5A
35
Not used (GT500).
—
Front camera (base).
15A
36
Not used (GT500).
—
Heated steering wheel module (base).
20A
37
Not used (GT500).
—
Note: Spare fuse amperage may vary.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
254
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing FusesE217331

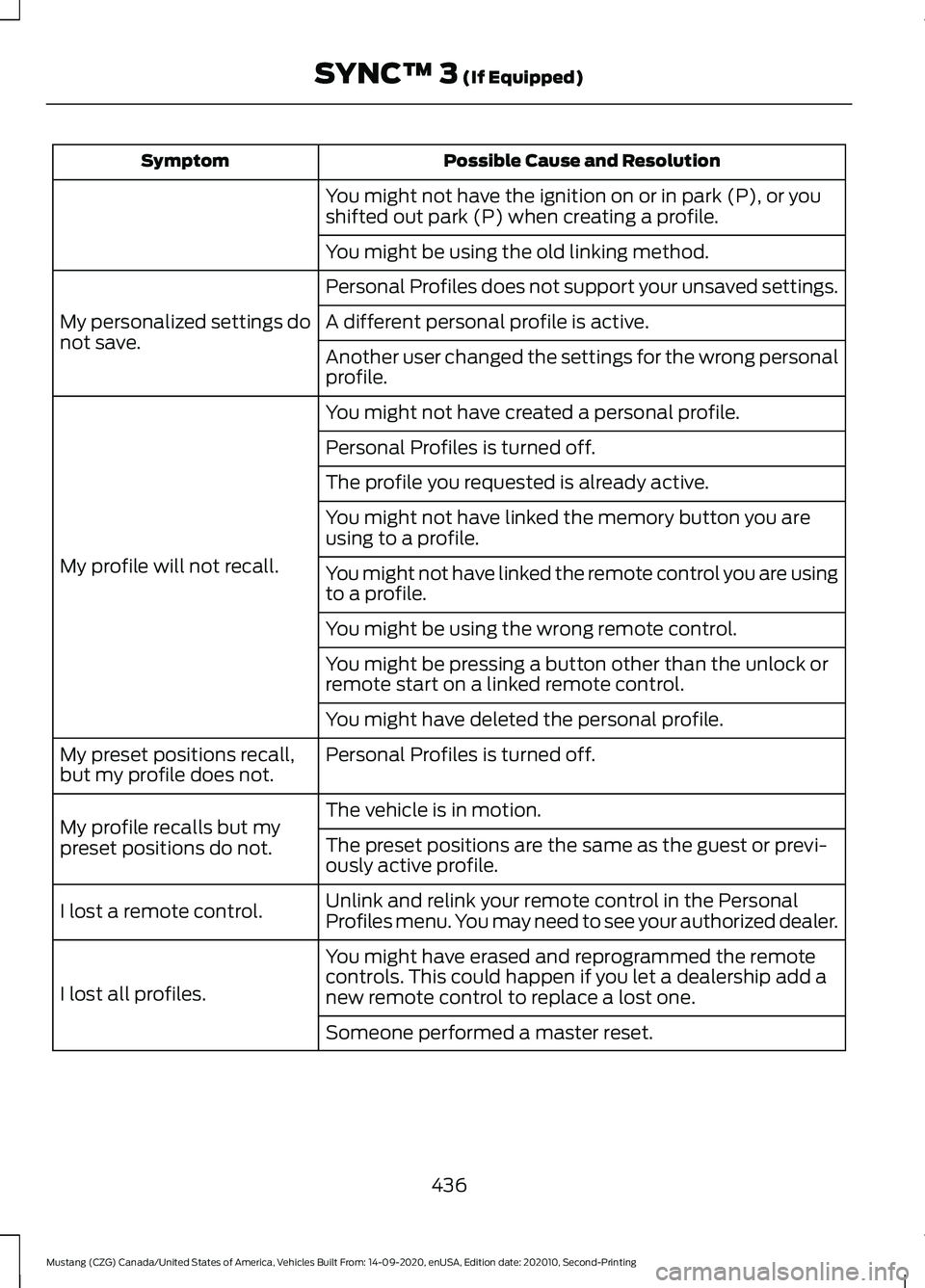

Possible Cause and Resolution
Symptom
You might not have the ignition on or in park (P), or you
shifted out park (P) when creating a profile.
You might be using the old linking method.
Personal Profiles does not support your unsaved settings.
My personalized settings do
not save. A different personal profile is active.
Another user changed the settings for the wrong personal
profile.
You might not have created a personal profile.
My profile will not recall. Personal Profiles is turned off.
The profile you requested is already active.
You might not have linked the memory button you are
using to a profile.
You might not have linked the remote control you are using
to a profile.
You might be using the wrong remote control.
You might be pressing a button other than the unlock or
remote start on a linked remote control.
You might have deleted the personal profile.
Personal Profiles is turned off.
My preset positions recall,
but my profile does not.
The vehicle is in motion.
My profile recalls but my
preset positions do not. The preset positions are the same as the guest or previ-
ously active profile.
Unlink and relink your remote control in the Personal
Profiles menu. You may need to see your authorized dealer.
I lost a remote control.
You might have erased and reprogrammed the remote
controls. This could happen if you let a dealership add a
new remote control to replace a lost one.
I lost all profiles.
Someone performed a master reset.
436
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing SYNC™ 3 (If Equipped)

Rev Match............................................................
208
Selectable Drive Modes.................................. 206
Selectable Steering.......................................... 208
Driver Alert.......................................................191
Using Driver Alert................................................. 191
Driver and Passenger Airbags...................49 Children and Airbags.......................................... 50
Proper Driver and Front Passenger Seating Adjustment........................................................ 49
Driver and Passenger Knee Airbags........54
Driving Aids
......................................................191
Driving at High Speed.................................333
Driving Hints...................................................229
Driving Through Water
...............................230
DRL See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running
Lamps.................................................................. 82
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)................82
E
Economical Driving
.....................................229
Electromagnetic Compatibility..............483
Emission Law.................................................160 Tampering With a Noise Control
System.............................................................. 160
Enabling Remote Start
...............................124
End User License Agreement.................486 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 486
Engine Block Heater....................................150 Using the Engine Block Heater....................... 151
Engine Coolant Check
...............................264
Adding Coolant.................................................. 264
Coolant Change................................................. 266
Engine Coolant Temperature Management.................................................. 267
Fail-Safe Cooling............................................... 266
Recycled Coolant............................................... 265
Severe Climates................................................. 266
Engine Emission Control...........................160
Engine Immobilizer See: Passive Anti-Theft System.....................73
Engine Oil Check...........................................261 Adding Engine Oil............................................... 261
Engine Oil Dipstick
.......................................261 Engine Specifications - 2.3L
EcoBoost™.................................................335
Drivebelt Routing............................................... 335
Engine Specifications - 5.0L, Mach 1........................................................................\
335
Drivebelt Routing............................................... 336
Engine Specifications - 5.0L....................337 Drivebelt Routing................................................ 337
Entertainment...............................................401 AM/FM Radio...................................................... 402
Apps........................................................................\
410
CD........................................................................\
... 408
HD Radio ™ Information (If
Available)........................................................ 405
SiriusXM® Satellite Radio (If Activated)....................................................... 403
Sources.................................................................. 401
Stereo or USB..................................................... 409
Supported Media Players, Formats and Metadata Information................................. 410
USB Ports.............................................................. 410
Environment.....................................................22
Essential Towing Checks..........................220 Before Towing a Trailer.................................... 220
Hitches................................................................... 220
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 221
Safety Chains...................................................... 220
Trailer Brakes....................................................... 220
Trailer Lamps....................................................... 220
When Towing a Trailer....................................... 221
Event Data Recording See: Data Recording............................................. 15
Export Unique Options
..................................21
Extending the Remote Start Duration.........................................................124
Exterior Mirrors
................................................87
Blind Spot Monitor.............................................. 88
Fold-Away Exterior Mirrors............................... 87
Heated Exterior Mirrors...................................... 87
Integrated Blind Spot Mirrors........................... 87
Memory Mirrors..................................................... 87
Power Exterior Mirrors........................................ 87
Projection Lights................................................... 87
Signal Indicator Mirrors...................................... 87
517
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index

Headlamp Adjusting
See: Adjusting the Headlamps...................... 272
Headlamp Exit Delay.....................................81
Headrest See: Head Restraints......................................... 134
Head Restraints.............................................134 Adjusting the Head Restraint......................... 135
Front Seat Non-Adjustable Head Restraints ........................................................................\
...... 135
Tilting Head Restraints .................................... 136
Heated Exterior Mirrors...............................132
Heated Rear Window..................................132
Heating See: Climate Control.......................................... 127
Hill Start Assist
..............................................173
Switching the System On and Off................173
Using Hill Start Assist........................................ 173
Hints on Controlling the Interior Climate - Vehicles With: Automatic
Temperature Control
.................................131
Defogging the Side Windows in Cold
Weather............................................................. 132
General Hints......................................................... 131
Quickly Cooling the Interior.............................. 131
Quickly Heating the Interior............................. 131
Recommended Settings for Cooling............131
Recommended Settings for Heating............131
Hints on Controlling the Interior Climate - Vehicles With: Manual Temperature
Control...........................................................130
Defogging the Side Windows in Cold Weather.............................................................. 131
General Hints....................................................... 130
Quickly Cooling the Interior............................ 130
Quickly Heating the Interior............................ 130
Recommended Settings for Cooling..........130
Recommended Settings for Heating..........130
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................. 130
Hints on Driving With Anti-Lock Brakes..............................................................171
Hood Lock See: Opening and Closing the Hood..........256
Horn
......................................................................77
How Does the Garage Door Opener Work................................................................141 I
In California (U.S. Only)
............................239
Information Display Control - Vehicles With: SYNC 3.................................................76
Quick Action Menus............................................. 77
Information Display Control - Vehicles With: SYNC....................................................76
Information Displays....................................99 General Information - Mach 1.......................... 99
General Information - Vehicles With: 12.3 Inch Instrument Cluster Display
Screen............................................................... 109
General Information - Vehicles With: 4.2 Inch Instrument Cluster Display
Screen................................................................ 103
Information Messages
.................................113
Adaptive Cruise Control.................................... 113
Airbag....................................................................... 114
Alarm........................................................................\
114
Battery and Charging System......................... 114
Blind Spot Information and Cross Traffic Alert System..................................................... 115
Doors and Locks.................................................. 116
Drive Control.......................................................... 116
Electronic Stability Control.............................. 116
Engine...................................................................... 116
Exhaust Mode........................................................ 117
Fuel........................................................................\
.... 117
Hill Start Assist...................................................... 117
Keys and Passive Key.......................................... 117
Maintenance......................................................... 118
MyKey....................................................................... 119
Park Aid................................................................... 119
Park Brake............................................................. 120
Pre-Collision Assist............................................ 120
Rear Axle................................................................ 120
Remote Start........................................................ 120
Seats........................................................................\
. 121
Starting System ................................................... 121
Steering System.................................................. 122
Suspension System........................................... 122
Tire Mobility Kit.................................................... 122
Tire Pressure Monitoring System.................. 123
Traction Control................................................... 123
Transmission.........................................................123
Installing Child Restraints - Mach 1..........27 Rear Seat Delete................................................... 27
519
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index

Installing Child Restraints - Vehicles
With: SVT Performance Package.........34
Rear Seat Delete................................................... 34
Installing Child Restraints - Vehicles Without: SVT Performance
Package..........................................................28
Child Seats.............................................................. 28
Using Lap and Shoulder Belts......................... 28
Using Lower Anchors and Tethers for CHildren (LATCH)............................................. 31
Using Tether Straps............................................. 32
Instrument Cluster
........................................90
Instrument Lighting Dimmer......................81
Instrument Panel
............................................23
Interior Air Quality.........................................133
Interior Lamps
.................................................83
Interior Luggage Compartment Release............................................................72
Interior Mirror...................................................88 Auto-Dimming Mirror......................................... 88
Introduction........................................................9
J
Jump Starting the Vehicle........................234 Connecting the Jumper Cables.................... 234
Installing the Battery Shield.......................... 236
Preparing Your Vehicle..................................... 234
Removing the Battery Shield........................ 234
Removing the Jumper Cables....................... 235
Starting the Engine........................................... 235
K
Keyless Starting
.............................................147
Ignition Modes...................................................... 147
Keys and Remote Controls.........................58
L
Lane Keeping System.................................192 Switching the System On and Off...............193
Lighting Control
..............................................80
Flashing the Headlamp High Beam...............81
Headlamp High Beam....................................... 80
Lighting
..............................................................80
General Information........................................... 80Limited Slip Differential.............................170
Traction-Lok ™ and TORSEN™ Axles.........170
Load Carrying.................................................213
Load Limit........................................................213 Special Loading Instructions - for all
vehicles............................................................... 217
Vehicle Loading - with and without a Trailer.................................................................. 213
Locating the Cabin Air Filter.....................133
Locking and Unlocking.................................67 Activating Intelligent Access........................... 68
Autolock.................................................................. 69
Battery Saver.......................................................... 72
Illuminated Entry.................................................... 71
Illuminated Exit...................................................... 72
Locking and Unlocking the Doors with the Key Blade............................................................ 70
Opening the Luggage Compartment.............71
Power Door Locks................................................. 67
Remote Control..................................................... 67
Smart Unlocks...................................................... 69
Lug Nuts See: Changing a Road Wheel....................... 328
M
Maintenance.................................................256 General Information......................................... 256
Manual Climate Control
.............................127
Directing the Airflow........................................... 127
Setting the Blower Motor Speed...................127
Setting the Temperature.................................. 127
Switching Maximum Air Conditioning On and Off............................................................... 128
Switching Maximum Defrost On and Off........................................................................\
128
Switching Recirculated Air On and Off........................................................................\
128
Switching the Air Conditioning On and Off........................................................................\
127
Switching the Climate Control On and Off........................................................................\
128
Manual Seats
.................................................136
Manual Transmission Fluid Check - 6-Speed Manual Transmission –
3160...............................................................268
520
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index

Power Seats....................................................137
Power Lumbar...................................................... 137
Power Steering Fluid Check
.....................270
Power Windows.............................................86
Accessory Delay................................................... 86
Bounce-Back......................................................... 86
One-Touch Down................................................ 86
One-Touch Up...................................................... 86
Pre-Collision Assist
.....................................202
Adjusting Pre-Collision Assist
Settings............................................................ 204
Blocked Sensors................................................ 204
Distance Indication and Alert....................... 203
Using the Pre-Collision Assist System.............................................................. 203
Programming a MyKey
................................64
Programming the Garage Door Opener to Your Garage Door Opener
Motor..............................................................142
Programming the Garage Door Opener to Your Gate Opener Motor
....................143
Gate Operator / Canadian
Programming.................................................. 143
Programming the Garage Door Opener to Your Hand-Held Transmitter............142
Protecting the Environment.......................22
Puncture See: Changing a Road Wheel....................... 328
R
Radio Frequency Certification Labels
.............................................................451
Blind Spot Information System
Sensors.............................................................. 451
Body Control Module........................................ 457
Cruise Control Module..................................... 459
Garage Door Opener........................................ 463
Keys and Remote Controls............................ 463
Radio Transceiver Module............................. 469
SYNC....................................................................... 473
Tire Pressure Monitoring System Sensors.............................................................. 477
Rear Axle..........................................................170
Rear Parking Aid............................................179 Object Distance Indicator............................... 180
Rear Seats.......................................................139 Accessing the Rear Seats................................ 139Second Row Split-Folding Rear Seat ........139
Rear View Camera.......................................180 Using the Rear View Camera System..........181
Rear View Camera See: Rear View Camera................................... 180
Recommended Towing Weights............219
Reduced Engine Performance
................229
Reduced Vehicle Top Speed.......................... 229
Refueling..........................................................156 Refueling System Overview........................... 156
Refueling System Warning............................. 158
Refueling Your Vehicle...................................... 156
Remote Control..............................................58 Car Finder................................................................ 62
Intelligent Access Key........................................ 58
Memory Feature................................................... 62
Replacing the Battery........................................ 60
Sounding the Panic Alarm................................ 62
Using the Key Blade............................................ 59
Remotely Starting the Engine..................124
Remotely Stopping the Engine................125
Remote Start Limitations..........................124
Remote Start Remote Control Indicators......................................................125
Remote Control Feedback.............................. 125
Remote Start
..................................................124
Remote Start Settings...................................... 125
Remote Start Settings................................125 Setting the Remote Start Duration..............126
Switching Climate Control Auto Mode On
and Off............................................................... 125
Switching Climate Control Last Settings On and Off........................................................ 125
Switching the Heated Seat Settings On and Off........................................................................\
125
Switching the Heated Steering Wheel Settings On and Off...................................... 126
Repairing Minor Paint Damage..............296
Replacement Parts Recommendation........................................19
Collision Repairs.................................................... 19
Scheduled Maintenance and Mechanical Repairs................................................................. 19
Warranty on Replacement Parts..................... 19
Replacing a Lost Key or Remote Control.............................................................62
Replacing the Cabin Air Filter...................133
522
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
