11.
Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label, affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver seating position or
Tire Label located on the B-Pillar or
the edge of the driver door.
Performing the System Reset Procedure
- Dual Rear Wheel
For further information see
Understanding Your Tire Pressure
Monitoring System and refer to Dual
Rear Wheel, earlier in this section.
Read the entire procedure before
attempting.
1. Drive the vehicle above
20 mph
(32 km/h) for at least two minutes,
then park in a safe location where you
can easily get to all six tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition.
3. Cycle the ignition to the on position with the engine off.
4. Turn the hazard flashers on then off three times. You must accomplish this
within 10 seconds. If you successfully
enter the reset mode, the horn sounds
once, the system indicator flashes and
a message shows in the information
display. If this does not occur, please
try again starting at step 2. If after
repeated attempts to enter the reset
mode, the horn does not sound, the
system indicator does not flash and no
message shows in the information
display, seek service from your
authorized dealer. 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following order: Left front - driver side
front tire, Right front - passenger side
front tire, Right outer rear -passenger
side rear outer tire, Right inner rear -
passenger side rear inner tire, Left outer
rear - driver side rear outer tire, Left
inner rear - driver side rear inner tire.
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The single horn chirp confirms that
the sensor identification code has been
learned by the module for this position. If a
double horn is heard, the reset procedure
was unsuccessful, and you must repeat it.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve stem on the right outer rear tire.
Decrease the air pressure until the horn
sounds.
9. Remove the valve cap from the valve stem on the right inner rear tire.
Decrease the air pressure until the horn
sounds.
10. Remove the valve cap from the valve
stem on the left outer rear tire.
Decrease the air pressure until the
horn sounds.
11. Remove the valve cap from the valve
stem on the left inner rear tire.
Decrease the air pressure until the
horn sounds. Training is complete
after the horn sounds for the last tire
trained, the system indicator stops
flashing, and a message is shown in
the information display.
427
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and Tires

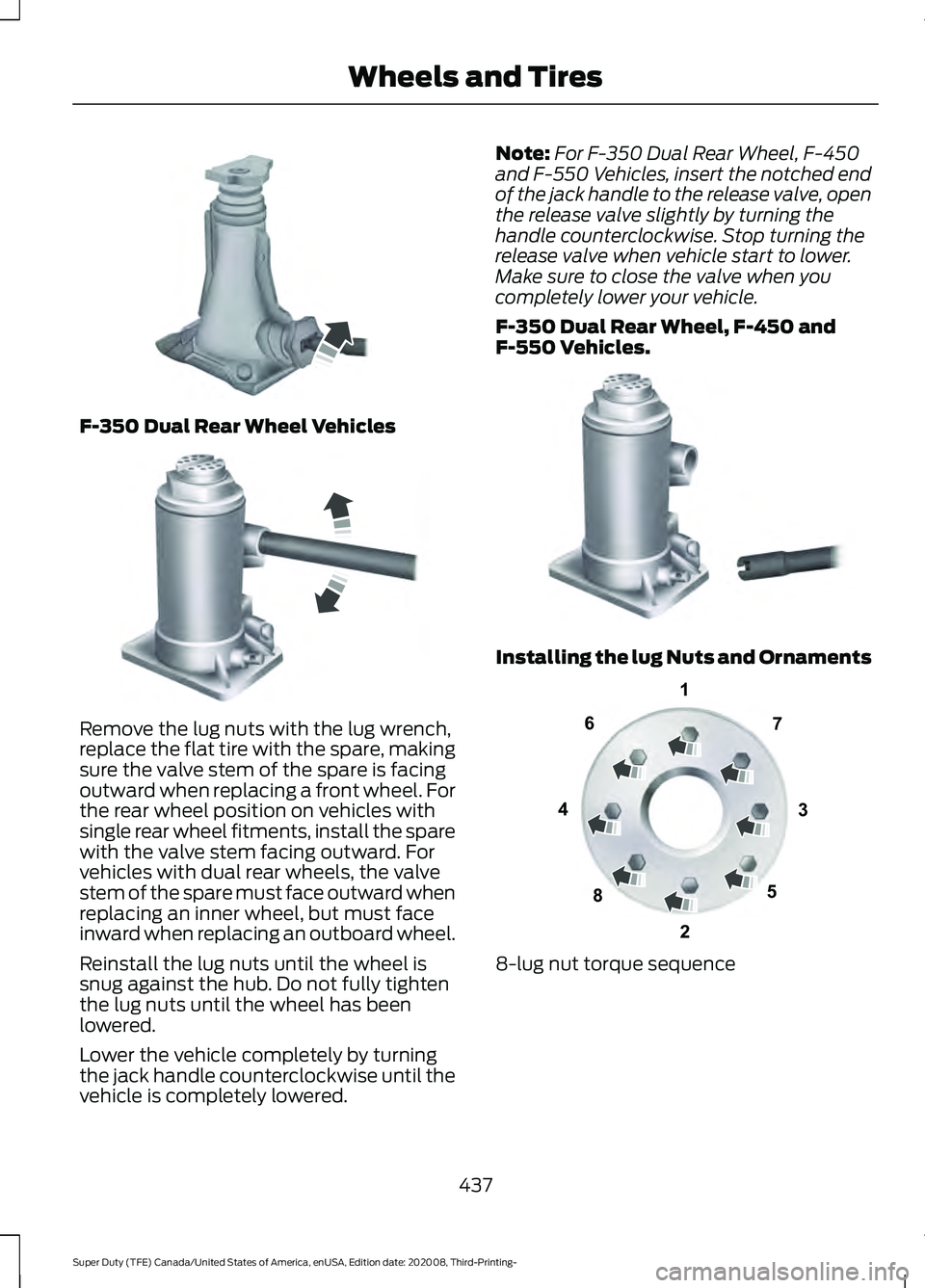

F-350 Dual Rear Wheel Vehicles
Remove the lug nuts with the lug wrench,
replace the flat tire with the spare, making
sure the valve stem of the spare is facing
outward when replacing a front wheel. For
the rear wheel position on vehicles with
single rear wheel fitments, install the spare
with the valve stem facing outward. For
vehicles with dual rear wheels, the valve
stem of the spare must face outward when
replacing an inner wheel, but must face
inward when replacing an outboard wheel.
Reinstall the lug nuts until the wheel is
snug against the hub. Do not fully tighten
the lug nuts until the wheel has been
lowered.
Lower the vehicle completely by turning
the jack handle counterclockwise until the
vehicle is completely lowered. Note:
For F-350 Dual Rear Wheel, F-450
and F-550 Vehicles, insert the notched end
of the jack handle to the release valve, open
the release valve slightly by turning the
handle counterclockwise. Stop turning the
release valve when vehicle start to lower.
Make sure to close the valve when you
completely lower your vehicle.
F-350 Dual Rear Wheel, F-450 and
F-550 Vehicles. Installing the lug Nuts and Ornaments
8-lug nut torque sequence
437
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and TiresE162811 E162819 E162812 13
4
27
6
5
8E161441

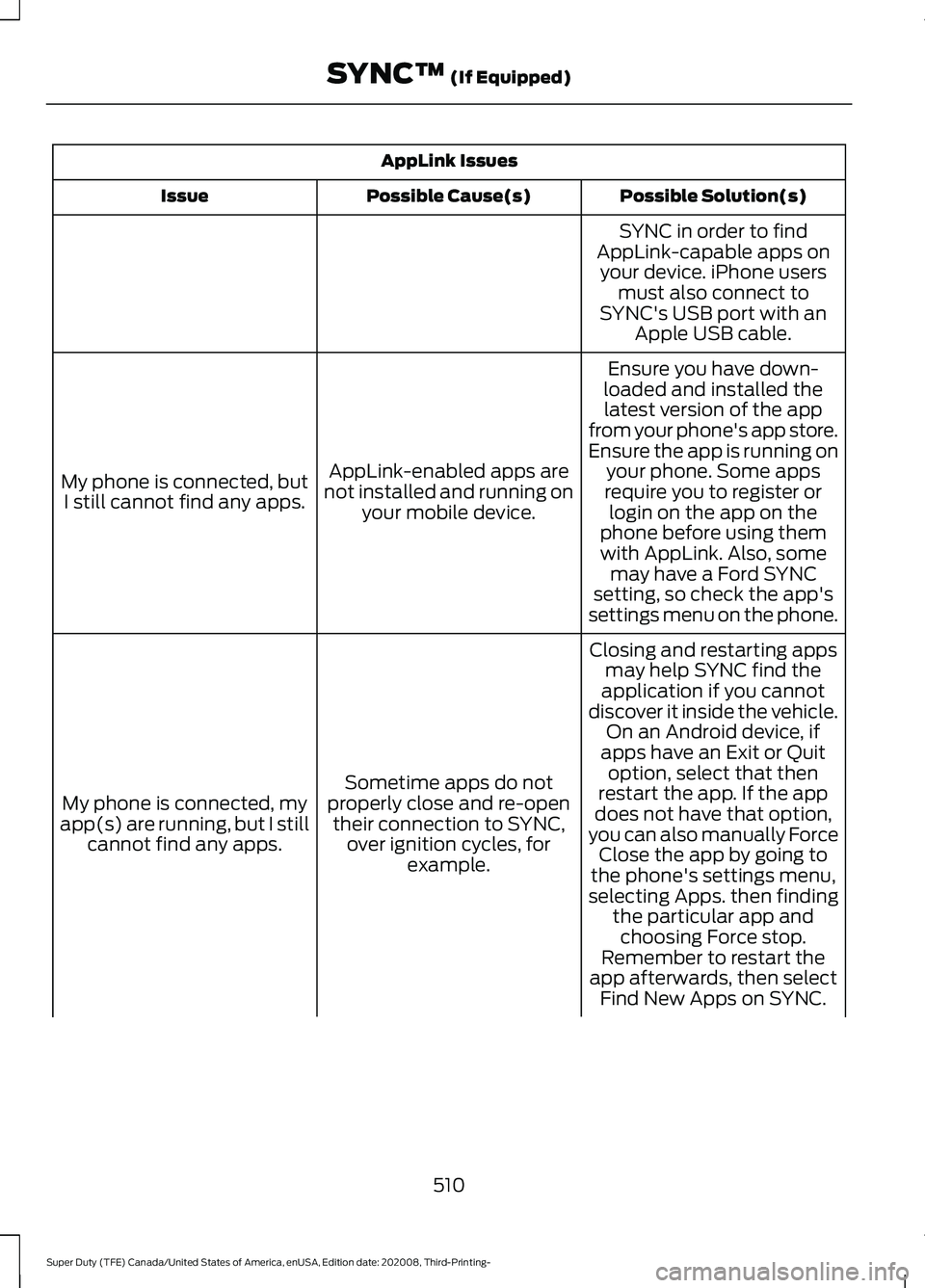

AppLink Issues
Possible Solution(s)
Possible Cause(s)
Issue
SYNC in order to find
AppLink-capable apps on your device. iPhone users must also connect to
SYNC's USB port with an Apple USB cable.
Ensure you have down-
loaded and installed the latest version of the app
from your phone's app store.
Ensure the app is running on your phone. Some apps
AppLink-enabled apps are
not installed and running on your mobile device.
My phone is connected, but
I still cannot find any apps. require you to register or
login on the app on the
phone before using them with AppLink. Also, some may have a Ford SYNC
setting, so check the app's
settings menu on the phone.
Closing and restarting apps may help SYNC find the
application if you cannot
discover it inside the vehicle. On an Android device, if
apps have an Exit or Quit
Sometime apps do not
properly close and re-open their connection to SYNC, over ignition cycles, for example.
My phone is connected, my
app(s) are running, but I still cannot find any apps. option, select that then
restart the app. If the app
does not have that option,
you can also manually Force Close the app by going to
the phone's settings menu,
selecting Apps. then finding the particular app andchoosing Force stop.
Remember to restart the
app afterwards, then select Find New Apps on SYNC.
510
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- SYNC™ (If Equipped)

Action and Description
Menu Item
Select to choose from a listing of
weather locations.
Area
Touch this button to view scores and schedules from a variety
of sports. You can also save up to 10 favorite teams for easier
access. The score automatically refreshes when a game is in
progress.
Sports Info
Touch this button to view ski conditions for a specific area.
Ski Conditions
SETTINGS Press the button to enter the
settings menu.
Once you select a tile, press the
button next to a menu item to
view an explanation of the
feature or setting.
Sound
Select this tile to adjust the sound settings.
Clock
Select this tile to adjust the clock settings.
Bluetooth®
Select this tile to switch Bluetooth® on
and off and adjust the settings.
Phone
Select this tile to connect, disconnect, and
manage the connected device settings.
Audio
Select this tile to adjust the audio settings. Driver Assist
(If Equipped)
Select this tile to adjust Driver Assist
features like Parking Aids, Lane Keeping
System, Pedestrian Detection, and
Auto-Start-Stop.
Vehicle
Select this tile to adjust vehicle settings
like windows, alarm, lighting, and MyKey
settings.
FordPass
Select this tile to adjust the FordPass
settings.
General
Select this tile to adjust settings like
language, measurement units, or to reset
the system.
911 Assist
(If Equipped)
Select this tile to switch 911 Assist on and
off.
Automatic Updates
Select this tile to adjust the automatic
update settings.
Mobile Apps
Select this tile to adjust permissions,
enable, disable, and update mobile apps.
543
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- SYNC™ 3
(If Equipped)E280315 E268570

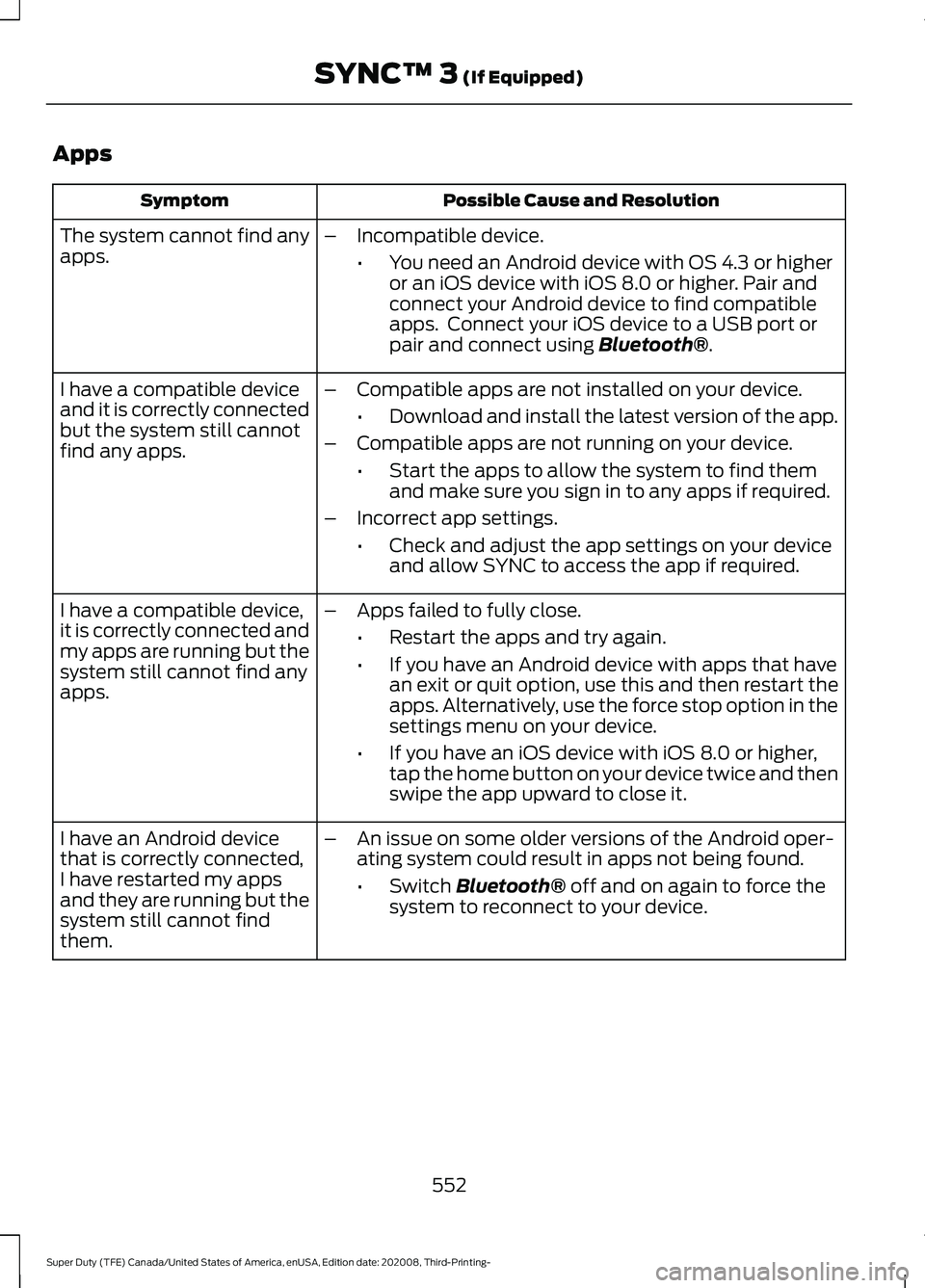

Apps
Possible Cause and Resolution
Symptom
The system cannot find any
apps. –
Incompatible device.
•You need an Android device with OS 4.3 or higher
or an iOS device with iOS 8.0 or higher. Pair and
connect your Android device to find compatible
apps. Connect your iOS device to a USB port or
pair and connect using Bluetooth®.
I have a compatible device
and it is correctly connected
but the system still cannot
find any apps. –
Compatible apps are not installed on your device.
•Download and install the latest version of the app.
– Compatible apps are not running on your device.
•Start the apps to allow the system to find them
and make sure you sign in to any apps if required.
– Incorrect app settings.
•Check and adjust the app settings on your device
and allow SYNC to access the app if required.
I have a compatible device,
it is correctly connected and
my apps are running but the
system still cannot find any
apps. –
Apps failed to fully close.
•Restart the apps and try again.
• If you have an Android device with apps that have
an exit or quit option, use this and then restart the
apps. Alternatively, use the force stop option in the
settings menu on your device.
• If you have an iOS device with iOS 8.0 or higher,
tap the home button on your device twice and then
swipe the app upward to close it.
I have an Android device
that is correctly connected,
I have restarted my apps
and they are running but the
system still cannot find
them. –
An issue on some older versions of the Android oper-
ating system could result in apps not being found.
•Switch
Bluetooth® off and on again to force the
system to reconnect to your device.
552
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- SYNC™ 3
(If Equipped)

Pre-Collision Assist.....................................264
Adjusting the Pre-Collision Assist
Settings............................................................ 266
Blocked Sensors................................................. 267
Distance Indication and Alert....................... 265
Using the Pre-Collision Assist System.............................................................. 264
Protecting the Environment
........................19
Puncture See: Changing a Road Wheel....................... 429
R
Radio Frequency Certification Labels...........................................................584
Blind Spot Information System Sensors............................................................ 584
Body Control Module....................................... 587
Cruise Control Module.................................... 590
Keys and Remote Controls............................ 594
Passive Anti-Theft System............................ 598
Radio Transceiver Module............................. 602
SYNC...................................................................... 605
Tire Pressure Monitoring System Sensors............................................................ 609
Wireless Accessory Charging Module.........613
Rear Axle Fluid Capacity and Specification - Diesel..............................467
Rear Axle - 10.5................................................... 467
Rear Axle - 10.8.................................................. 468
Rear Axle - 11.8 .................................................. 468
Rear Axle Fluid Capacity and Specification - Gasoline........................469
Rear Axle - 10.5.................................................. 469
Rear Axle - 10.8................................................... 470
Rear Axle - 11.8 ................................................... 470
Rear Axle - 11.8 (With Heavy Duty Tow Option)............................................................... 471
Rear Axle
..........................................................221
Rear Occupant Alert System Audible Warnings.......................................................163
Rear Occupant Alert System Indicators - Vehicles With: SYNC 3..........................163
Rear Occupant Alert System Indicators - Vehicles With: SYNC..............................163
Rear Occupant Alert System Limitations...................................................162 Rear Occupant Alert System
Precautions..................................................162
Rear Occupant Alert System...................162
Rear Parking Aid
...........................................234
Obstacle Distance Indicator.......................... 235
Rear Seats
.......................................................158
Folding Up the Rear Seat Cushion ..............158
Rear Under Seat Storage................................. 159
Returning the Seat to the Seating Position.............................................................. 159
Rear View Camera
.......................................235
Camera Guidelines............................................ 236
Obstacle Distance Indicator........................... 237
Rear Camera Delay............................................ 237
Using the Rear View Camera System........236
Rear View Camera See: Rear View Camera................................... 235
Recommended Towing Weights...........300 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle.............................. 304
Refueling - Diesel
.........................................190
Dual Fuel Tanks................................................... 192
Fueling Tips............................................................ 191
Refueling................................................................. 191
Refueling - Gasoline
....................................189
Fuel Filler Cap...................................................... 190
Remote Control..............................................55 Car Finder............................................................... 60
Integrated Keyhead Transmitter..................... 55
Intelligent Access Key.........................................56
Memory Feature................................................... 59
Replacing the Battery......................................... 57
Sounding the Panic Alarm............................... 60
Remotely Starting the Engine
.................140
Remotely Stopping the Engine................141
Remote Start Limitations.........................140
Remote Start Remote Control Indicators.......................................................141
Remote Control Feedback............................... 141
Remote Start
.................................................140
Remote Start Settings....................................... 141
Remote Start Settings
.................................141
Setting the Remote Start Duration..............142
Switching Climate Control Auto Mode On
and Off................................................................ 141
Switching Climate Control Last Settings On and Off......................................................... 141
657
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Index

Sliding Windows............................................99
Power Sliding Back Window........................... 99
Snow Chains See: Using Snow Chains................................. 420
Snow Plowing................................................321
Engine temperature while plowing.............323
Installing the Snowplow.................................. 321
Operating the Vehicle with the Snowplow Attached........................................................... 322
Snowplowing with your Airbag Equipped Vehicle............................................................... 322
Transmission operation while plowing............................................................. 323
Spare Wheel See: Changing a Road Wheel....................... 429
Special Notices
................................................16
New Vehicle Limited Warranty........................ 16
On Board Diagnostics Data Link Connector........................................................... 16
Special Instructions............................................. 16
Using a Slide-In Camper..................................... 17
Using your Vehicle as an Ambulance.............17
Using your Vehicle as a Stationary Power Source................................................................... 17
Using your Vehicle With a Snowplow............17
Special Operating Conditions Scheduled Maintenance...............................................574
Diesel Engine........................................................ 577
Exceptions............................................................ 582
Gasoline Engine.................................................. 574
Speed Control See: Cruise Control............................................ 242
Spot Lamps.....................................................90
Spring U-Bolt Check - F-600.................389 U-bolt Nut Torque............................................. 390
Stability Control
...........................................228
Principle of Operation...................................... 228
Starter Switch See: Ignition Switch............................................ 174
Starting a Diesel Engine - 6.7L Diesel...............................................................177
Automatic Engine Shutdown......................... 179
Cold Weather Operation.................................. 179
Cold Weather Starting...................................... 179
Diesel Engine Fast Start Glow Plug System............................................................... 178
Vehicles with an Ignition Key.......................... 178
Vehicles with Keyless Start............................. 178Starting a Gasoline Engine - 6.2L/
7.3L...................................................................175
Automatic Engine Shutdown......................... 176
Cold Weather Starting (Flexible Fuel Vehicles Only).................................................. 177
Failure to Start..................................................... 176
Guarding Against Exhaust Fumes.................177
Important Ventilating Information................177
Stopping the Engine When Your Vehicle is Moving................................................................ 176
Stopping the Engine When Your Vehicle is Stationary......................................................... 176
Vehicles with an Ignition Key.......................... 175
Vehicles with Keyless Start............................. 176
Starting and Stopping the Engine..........174 General Information........................................... 174
Steering...........................................................262 Adaptive Learning............................................. 263
Adaptive Steering.............................................. 263
Electronic Torque Overlay Steering............262
Hydraulic Power Steering............................... 262
Steering Wheel
...............................................80
Storage Compartments..............................171
Sunroof See: Moonroof..................................................... 100
Sun Visors
.......................................................100
Illuminated Vanity Mirror................................. 100
Supplementary Restraints System.........45 Principle of Operation........................................ 45
Switching Air Conditioning On and Off....................................................................143
Switching Automatic High Beam Control On and Off.....................................................93
Activating the Automatic High Beam Control ................................................................. 93
Switching Climate Control On and Off....................................................................143
Switching Cruise Control On and Off
...................................................................242
Switching Cruise Control Off......................... 242
Switching Cruise Control On......................... 242
Switching Maximum Cooling On and Off....................................................................143
Switching Maximum Defrost On and Off....................................................................143
Switching Off the Engine - 6.7L Diesel..............................................................182
659
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Index
