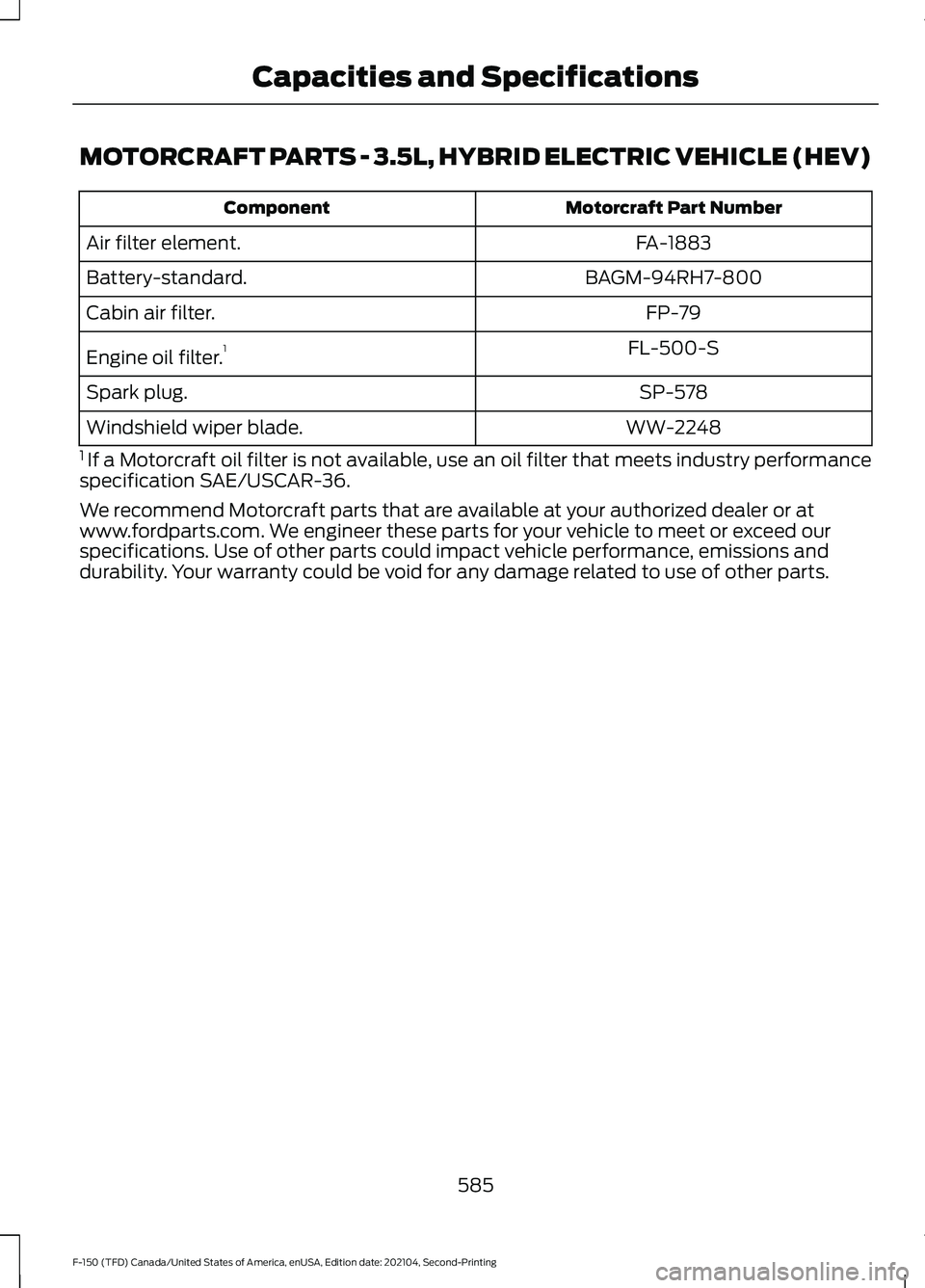

MOTORCRAFT PARTS - 3.5L, HYBRID ELECTRIC VEHICLE (HEV)
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-94RH7-800
Battery-standard.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-578
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
585
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

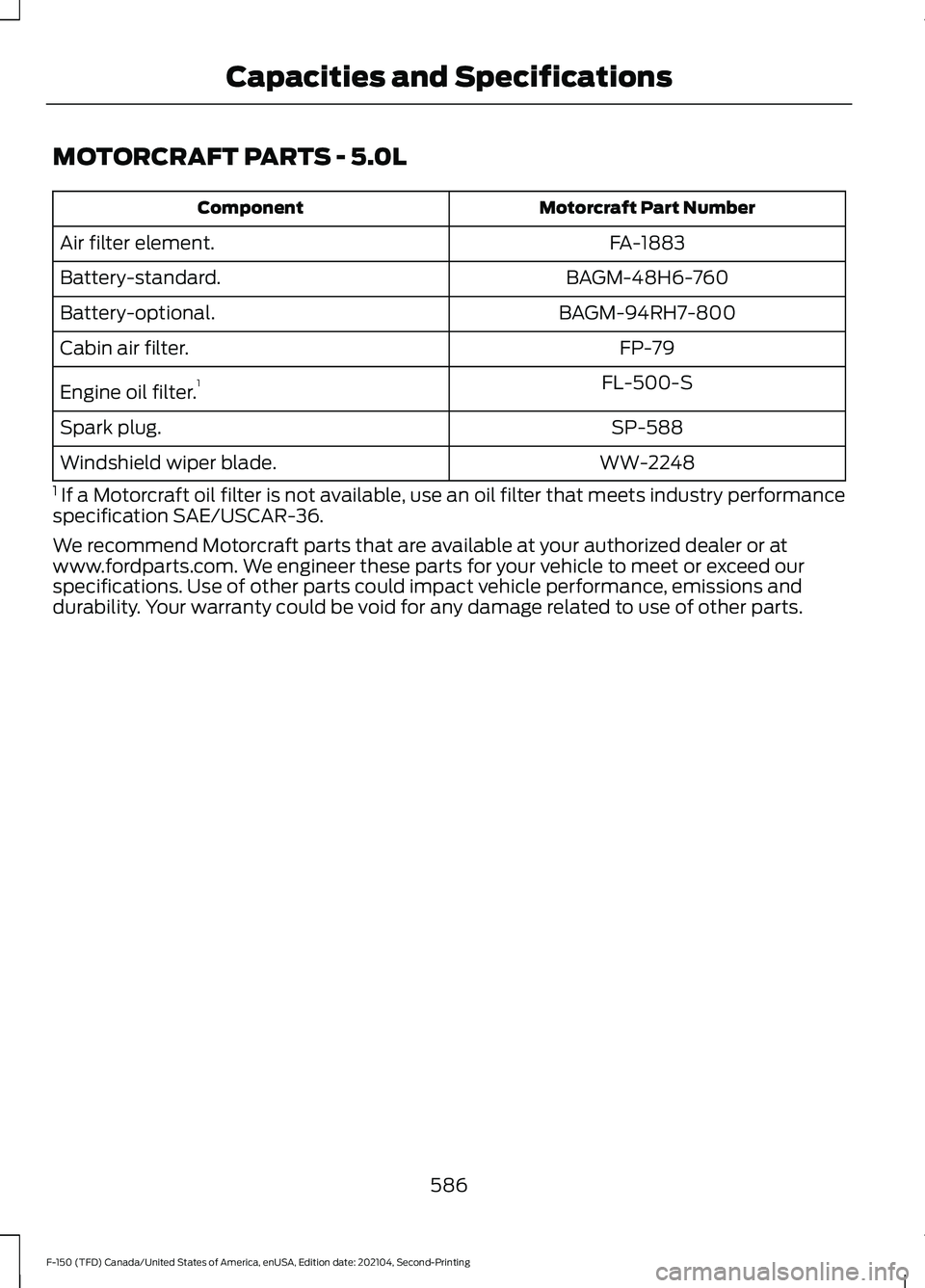

MOTORCRAFT PARTS - 5.0L
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery-standard.
BAGM-94RH7-800
Battery-optional.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-588
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
586
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

Less Cost to Properly Maintain Your
Vehicle
The Ford Protect extended service plan
also offers a Premium Maintenance Plan
that covers all scheduled maintenance,
and selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) for electric
vehicles only.
Interest Free Finance Options
Just a 5% down payment provides you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (Canada Only)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of Canada
and the United States are not eligible for
Ford Protect extended service plan
coverage.
This information is subject to change. Visit
your local Ford of Canada dealer or
www.ford.ca to find the Ford Protect
extended service plan that is right for you.
663
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Ford Protect

Brake Fluid Maintenance
1
Change the brake fluid. 2
Every 3 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for
the interval.
2 Brake fluid servicing requires special equipment available at your authorized dealer. Other Maintenance Items
1
Replace the cabin air filter.
Every 20,000 mi
(32,000 km)
Replace the engine air filter.
Every
30,000 mi
(48,000 km) Replace the engine-mounted and frame-mounted fuel
filters.
Replace the spark plugs.2
Every
60,000 mi
(96,600 km)
Inspect the accessory drive belt(s). 2
Every
60,000 mi
(96,600 km)
Replace the accessory drive belt(s). 2
Every
100,000 mi
(160,000 km)
Replace the spark plugs.
Every
100,000 mi
(160,000 km) Inspect the accessory drive belt(s). 3
Change the automatic transmission fluid and filter.
Every
150,000 mi
(240,000 km) Change the front axle fluid.
4
Change the rear axle fluid.
Change the transfer case fluid. 4
669
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Scheduled Maintenance

Rear Parking Aid...........................................334
Locating the Rear Parking Aid
Sensors............................................................. 335
Rear Parking Aid Audible Warnings............335
Rear Parking Aid Limitations......................... 334
What is the Rear Parking Aid......................... 334
Rear Seats......................................................204 Heated Seats...................................................... 205
Manual Seats...................................................... 204
Rear View Camera Guide Lines.............340
Rear View Camera Precautions
.............339
Rear View Camera......................................339
Rear View Camera Settings.......................... 340
Rear View Camera Settings
....................340
Switching Rear View Camera Delay On and
Off........................................................................\
341
Switching the Rear View Camera View.................................................................... 341
Zooming the Rear View Camera In and Out..................................................................... 340
Rebooting the Center Display................639
Recalling a Preset Position
......................209
Recovery Towing.........................................488 Accessing the Front Towing Point..............488
Recreationally Towing Your Vehicle - 4x2
..................................................................492
Recreationally Towing Your Vehicle - 4x4.................................................................490
Refueling..........................................................261 Manually Opening the Fuel Filler
Door................................................................... 265
Refueling System Overview............................ 261
Refueling Your Vehicle..................................... 262
Releasing the Electric Parking Brake if the Vehicle Battery Has Run Out of
Charge............................................................312
Remote Control Limitations......................89
Remotely Starting and Stopping the Vehicle...........................................................183
Remote Start Limitations
..........................183
Remote Start Precautions........................183
Remote Start Remote Control Indicators......................................................184
Remote Start
.................................................183
Remote Start Settings..................................... 184
Remote Start Settings
...............................184
Setting the Remote Start Duration.............185 Switching Climate Control Auto Mode On
and Off.............................................................. 184
Switching Climate Control Last Settings On and Off....................................................... 184
Switching the Heated Seat Settings On and Off....................................................................... 185
Switching the Heated Steering Wheel Settings On and Off..................................... 185
Removing and Installing the Tailgate...........................................................113
Removing the Key Blade..............................91
Removing Your Vehicle From Storage..........................................................541
Repairing Minor Paint Damage..............539
Replacement Parts Recommendation.....................................734
Replacing a Lost Key or Remote Control............................................................95
Replacing the Cabin Air Filter..................194
Replacing the Front Wiper Blades.........144
Reporting Safety Defects in Canada
.........................................................685
Reporting Safety Defects in the United States...........................................................685
Reprogramming the Garage Door Opener...........................................................213
Resetting Ground Fault Detection
........220
Resetting the Circuit Breaker - Vehicles With: 7.2kW
...................................................221
Resetting the Stopping Position - Vehicles With: Power Adjustable
Steering Column.........................................141
Resetting Tire Pressure Monitoring System...........................................................561
Restarting the Engine.................................252
Resuming the Set Speed
...........................351
Reverse Braking Assist Indicators...........315
Reverse Braking Assist Precautions..................................................314
Reverse Braking Assist................................314 Reverse Braking Assist –
Troubleshooting............................................. 315
Reverse Braking Assist – Troubleshooting
.........................................315
Reverse Braking Assist – Frequently Asked
Questions......................................................... 316
Reverse Braking Assist – Information Messages.......................................................... 315
784
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Index

V
Vehicle Care...................................................534
Cleaning the Exterior........................................ 535
Cleaning the Interior.......................................... 537
Vehicle Identification Number................619 Locating the Vehicle Identification
Number............................................................. 619
Vehicle Identification Number Overview........................................................... 619
Vehicle Identification..................................619
Vehicle Identification Number......................619
Vehicle Interior - Police Responder.........42
Vehicle Interior - Raptor................................41
Vehicle Interior
................................................40
Vehicle System Updates..........................656
Vehicle Wi-Fi Hotspot................................624
Ventilated Seats
..........................................203
Switching the Ventilated Seats On and
Off...................................................................... 203
Ventilated Seat Precautions.........................203
Ventilation See: Climate Control - Vehicles With:
Automatic Temperature Control.............186
See: Climate Control - Vehicles With: Manual Temperature Control..................................... 191
Venting the Moonroof
.................................167
Viewing the Tire Pressures........................561
Visual Search
...................................................34
Voice Interaction Examples....................640
Voice Interaction
.........................................640
W
Warranty Terms and Conditions
............661
Washer Fluid Specification.......................612
Washers...........................................................145 Adding Washer Fluid......................................... 145
Switching the Courtesy Wipe On and Off........................................................................\
145
Using the Windshield Washer........................ 145
Washer Fluid Specification............................. 145
Washer Precautions.......................................... 145
Washers See: Wipers and Washers................................ 143
Waxing Your Vehicle...................................539
Waypoints......................................................654 Adding a Waypoint........................................... 654Editing Waypoints.............................................
654
What Are the Auxiliary Switches...........659
What Are the Instrument Cluster Indicators.......................................................174
What Are the Instrument Cluster Warning Lamps
...........................................172
What Is 911 Assist...........................................87
What Is a Connected Vehicle.................620
What Is Active Park Assist.......................346
What is a Hybrid Electric Vehicle...........249
What Is Auto-Start-Stop..........................252
What Is Blind Spot Information System.........................................................389
What Is BlueCruise......................................365
What Is Brake Coach....................................181
What Is Cross Traffic Alert.......................393
What Is Cruise Control..............................350
What Is Drive Mode Control......................371
What Is Driver Alert
.....................................407
What Is Ford Protect..................................662
What Is Generator Mode
..........................220
What Is Hill Descent Control...................330
What Is Hill Start Assist
..............................317
What Is MyKey................................................98
What Is On-Board Scale..........................444
What Is Pre-Collision Assist....................396
What Is Remote Start.................................183
What Is Reverse Braking Assist
...............314
What Is Smart Hitch...................................442
What Is Speed Sign Recognition..........409
What Is the 360 Degree Camera...........342
What Is the Cabin Air Filter.......................194
What Is the Catalytic Converter
.............279
What Is the Diesel Particulate Filter...............................................................268
What Is the Electric Parking Brake..........311
What Is the Electronic Locking Differential...................................................301
What Is the Garage Door Opener...........210
What Is the Gross Axle Weight Rating.............................................................413
What Is the Gross Combined Weight Rating.............................................................414
What Is the Gross Vehicle Weight Rating.............................................................413
What Is the High Voltage Battery.........280
What Is the Integrated Trailer Brake Controller.....................................................434
791
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Index
