2021 FORD E SERIES fuse

Protected Component
Fuse
Rating
Fuse
Number
Trailer tow park lamps.
30 A
53
Upfitter 2 relay (cutaway).
40 A
54
Not used (spare) (stripped chassis).
Upfitter 3 relay (cutaway).
20 A
55
Not used (spare) (stripped chassis).
Power point 2 prep B-pillar connector.
20 A
56
USB smart charger.
5 A
58
Park lamps 1 (special order vehicle).
10 A
59
Not used.
—
60
Not used.
—
61
Not used.
—
62
Not used.
—
63
Not used.
—
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
Not used.
—
69
Inverter.
40 A
70
Anti-lock brake system valves.
30 A
71
Brake on and off switch.
10 A
72
Not used.
—
73
Not used.
—
74
Not used.
—
75
Anti-lock brake system pump.
60 A
76
Voltage quality module power - body control module.
30 A
77
Trailer tow stop lamps.
10 A
78
Not used.
—
79
154
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Number
Trailer tow backup lamps.
10 A
80
Not used.
—
81
Run/start fuse - upfitter relays (cutaway).
5 A
82
B+ fuse - upfitter relay.
Not used.
—
83
Not used.
—
84
Not used.
—
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
Not used.
—
89
B-pillar (cutaway).
40 A
91
Instrument panel (stripped chassis).
Park lamps 3 (special order vehicle).
10 A
93
Park lamps 2 (special order vehicle).
10 A
94
Stop lamp relay.
20 A
95
Not used.
—
96
Engine.
50 A
97
B-pillar vehicle connector.
Instrument panel.
Trailer tow battery charge.
30 A
98
Instrument panel connector.
40 A
99
Not used.
—
100
Not used.
—
101
Not used.
—
102
Not used.
—
103
155
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
104
Trailer tow right-hand and left-hand stop and direction indicator relay
power.
15 A
105
Note: Spare fuse amperage may vary. Protected Component
Fuse Rating
Relay Number
Powertrain control module.
—
R02
Power relay.
Not used.
—
R05
Passenger Compartment Fuse Box WARNING: Always disconnect the
battery before servicing high current
fuses.
Note: If your vehicle has dual batteries,
disconnecting the primary under hood
battery does not remove power from all
circuits. The fuse panel is to the left-hand side of
the brake pedal and mounted onto the
lower left-hand cowl panel. Remove the
fuse panel cover to access the fuses.
To remove a fuse, use the fuse puller tool
provided on the inside of the fuse panel
cover.
Replace fuses with the same type and
rating. See
Changing a Fuse (page 159).
156
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
1
Left-hand front and right-hand front door lock switch (cutaway).
10 A
2
Inverter (cutaway).
Connector (stripped chassis).
Power mirror switch (cutaway).
7.5 A
3
Not used (stripped chassis).
—
Trailer brake control.
20 A
4
Not used (spare).
20 A
5
Not used (spare).
10 A
6
Not used (spare).
10 A
7
Not used (spare).
10 A
8
Not used (spare).
10 A
9
Not used.
—
10
Not used.
—
11
Smart datalink connector.
7.5 A
12
157
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing FusesE145984

Protected Component
Fuse
Rating
Fuse
Number
Enterprise wired-in-device.
Cluster.
7.5 A
13
Steering column control module.
Not used (spare).
15 A
14
Not used (spare).
15 A
15
Not used.
—
16
Not used.
7.5 A
17
Climate mode switch.
7.5 A
18
Radio transceiver module.
5 A
19
Ignition switch.
5 A
20
Not used.
5 A
21
Body builder B-pillar connector (cutaway).
5 A
22
Not used (stripped chassis).
5 A
Not used (spare).
30 A
23
Not used (spare).
30 A
24
Not used (spare).
20 A
25
Not used (spare).
30 A
26
Not used (spare).
30 A
27
Not used (spare).
30 A
28
Upfitter interface module (cutaway).
15 A
29
Not used (stripped chassis).
—
Not used (spare).
5 A
30
Smart datalink connector.
10 A
31
Radio.
20 A
32
Not used.
—
33
Not used (spare).
30 A
34
Tow haul switch.
5 A
35
158
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing Fuses

Protected Component
Fuse
Rating
Fuse
Number
Rear view mirror (cutaway).
15 A
36
Rear view camera (cutaway).
Not used (stripped chassis).
—
Not used (spare).
20 A
37
Rear window switches and motors (cutaway).
30 A
38
Not used (stripped chassis).
—
Note: Spare fuse amperage may vary.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
159
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing FusesE217331

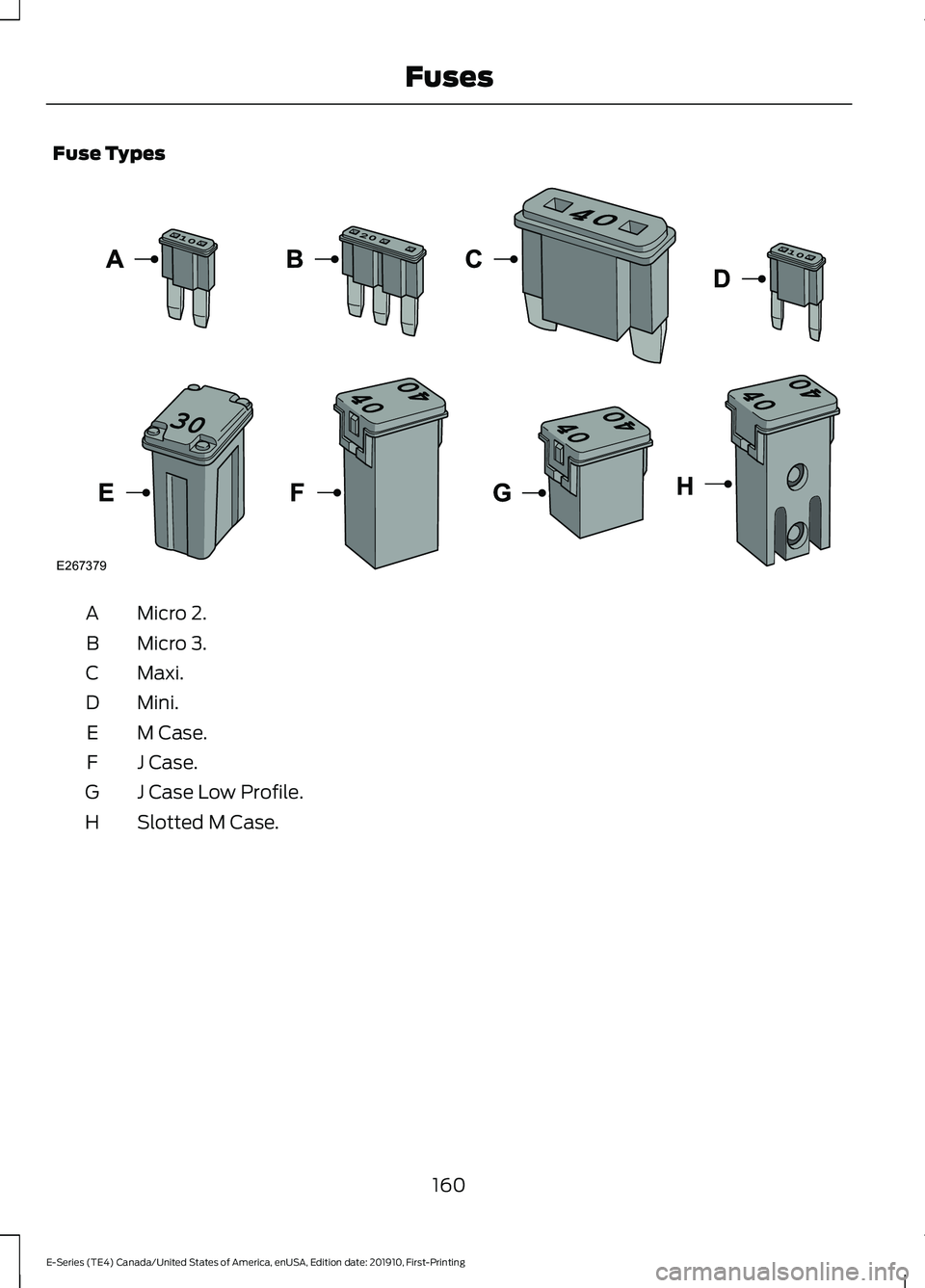

Fuse Types
Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
160
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201910, First-Printing FusesE267379

UNDER HOOD OVERVIEW
Windshield washer fluid reservoir. See Washer Fluid Check (page 173).
A
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 169).
B
Engine oil dipstick.
See Engine Oil Dipstick (page 163).
C
Air cleaner assembly. See
Changing the Engine Air Filter (page 178).
D
Engine oil filler cap.
See Engine Oil Check (page 163).
E
Brake fluid reservoir. See
Brake Fluid Check (page 171).
F
Engine coolant reservoir. See
Engine Coolant Check (page 165).
G
Engine compartment fuse box. See
Fuses (page 151).
H
Power steering fluid reservoir. See
Power Steering Fluid Check (page 172).
I
Battery.
See Changing the 12V Battery (page 173).
J
162
