Apps
Possible Cause and Resolution
Symptom
The system cannot find any
apps. –
Incompatible device.
•You will need an Android device with OS 4.3 or
higher or an iOS device with iOS 8.0 or higher. Pair
and connect your Android device to find AppLink
compatible apps. Connect your iOS device to a
USB port or pair and connect using Bluetooth.
I have a compatible device
and it is correctly connected
but the system still cannot
find any apps. –
AppLink compatible apps not installed on your device.
•Download and install the latest version of the app.
– AppLink compatible apps not running on your device.
•Start the apps to allow the system to find them
and make sure you sign in to any apps if required.
– Incorrect app settings.
•Check and adjust the app settings on your device
and allow SYNC to access the app if required.
I have a compatible device,
it is correctly connected and
my apps are running but the
system still cannot find any
apps. –
Apps failed to fully close.
•Restart the apps and try again.
• If you have an Android device with apps that have
an exit or quit option, use this and then restart the
apps. Alternatively, use the force stop option in the
settings menu on your device.
• If you have an iOS device with iOS 7.0 or higher, tap
the home button on your device twice and then
swipe the app upward to close it.
I have an Android device
that is correctly connected,
I have restarted my apps
and they are running but the
system still cannot find
them. –
An issue on some older versions of the Android oper-
ating system could result in apps not being found.
•Switch Bluetooth off and on again to force the
system to reconnect to your device.
387
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing SYNC™ 3

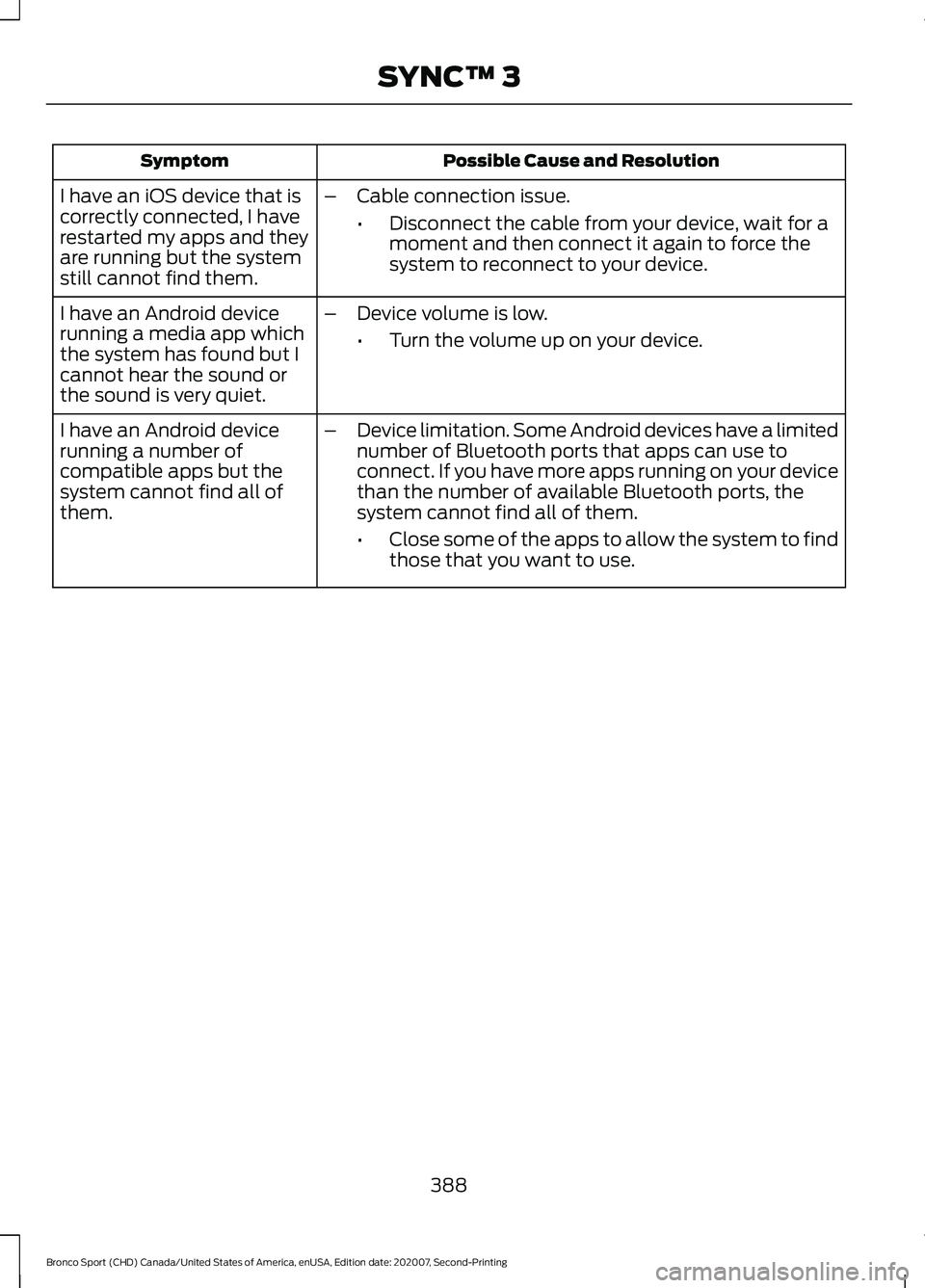

Possible Cause and Resolution
Symptom
I have an iOS device that is
correctly connected, I have
restarted my apps and they
are running but the system
still cannot find them. –
Cable connection issue.
•Disconnect the cable from your device, wait for a
moment and then connect it again to force the
system to reconnect to your device.
I have an Android device
running a media app which
the system has found but I
cannot hear the sound or
the sound is very quiet. –
Device volume is low.
•Turn the volume up on your device.
I have an Android device
running a number of
compatible apps but the
system cannot find all of
them. –
Device limitation. Some Android devices have a limited
number of Bluetooth ports that apps can use to
connect. If you have more apps running on your device
than the number of available Bluetooth ports, the
system cannot find all of them.
•Close some of the apps to allow the system to find
those that you want to use.
388
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing SYNC™ 3

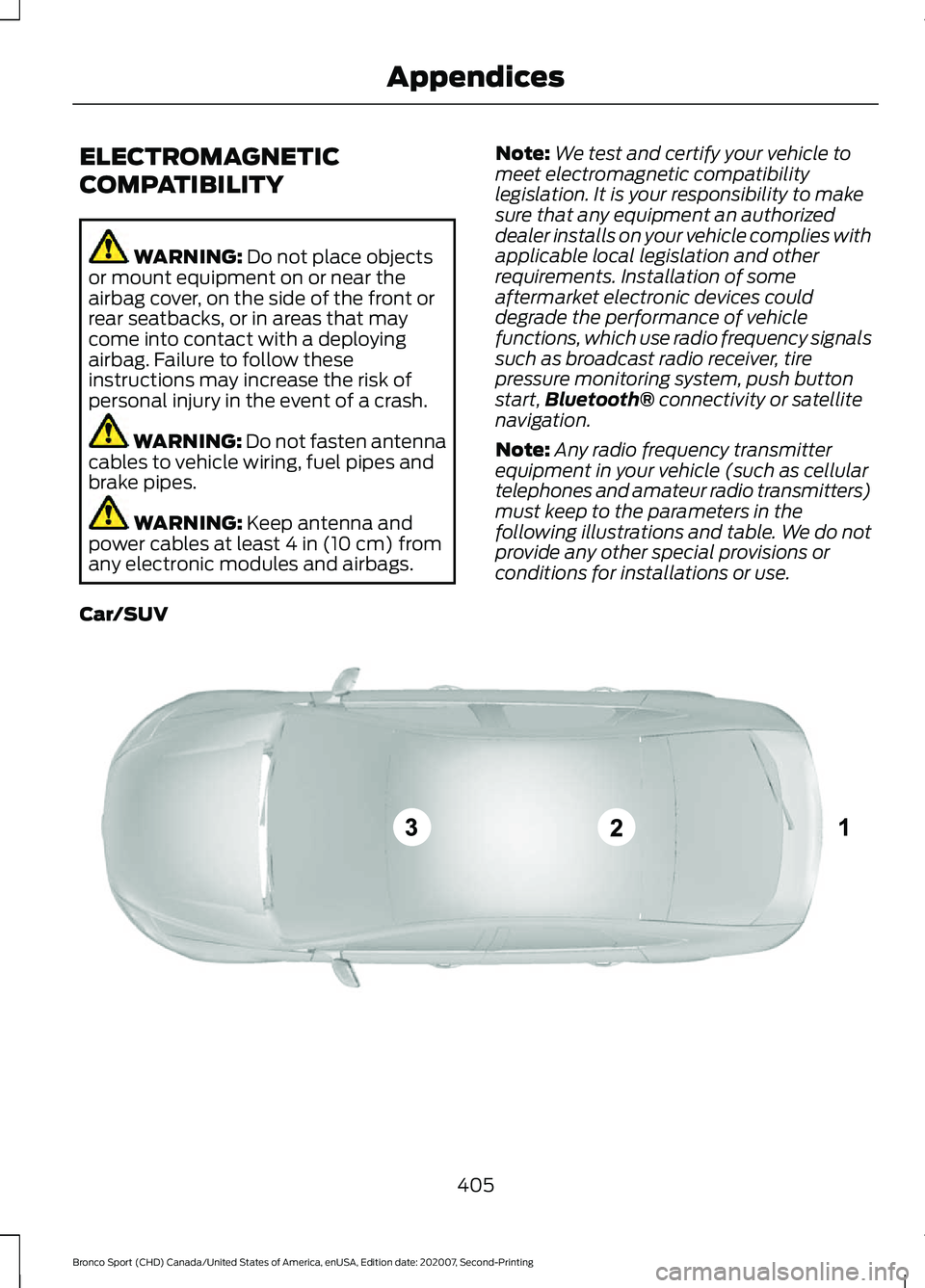

ELECTROMAGNETIC
COMPATIBILITY
WARNING: Do not place objects
or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash. WARNING: Do not fasten antenna
cables to vehicle wiring, fuel pipes and
brake pipes. WARNING:
Keep antenna and
power cables at least 4 in (10 cm) from
any electronic modules and airbags. Note:
We test and certify your vehicle to
meet electromagnetic compatibility
legislation. It is your responsibility to make
sure that any equipment an authorized
dealer installs on your vehicle complies with
applicable local legislation and other
requirements. Installation of some
aftermarket electronic devices could
degrade the performance of vehicle
functions, which use radio frequency signals
such as broadcast radio receiver, tire
pressure monitoring system, push button
start, Bluetooth®
connectivity or satellite
navigation.
Note: Any radio frequency transmitter
equipment in your vehicle (such as cellular
telephones and amateur radio transmitters)
must keep to the parameters in the
following illustrations and table. We do not
provide any other special provisions or
conditions for installations or use.
Car/SUV 405
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing AppendicesE239120

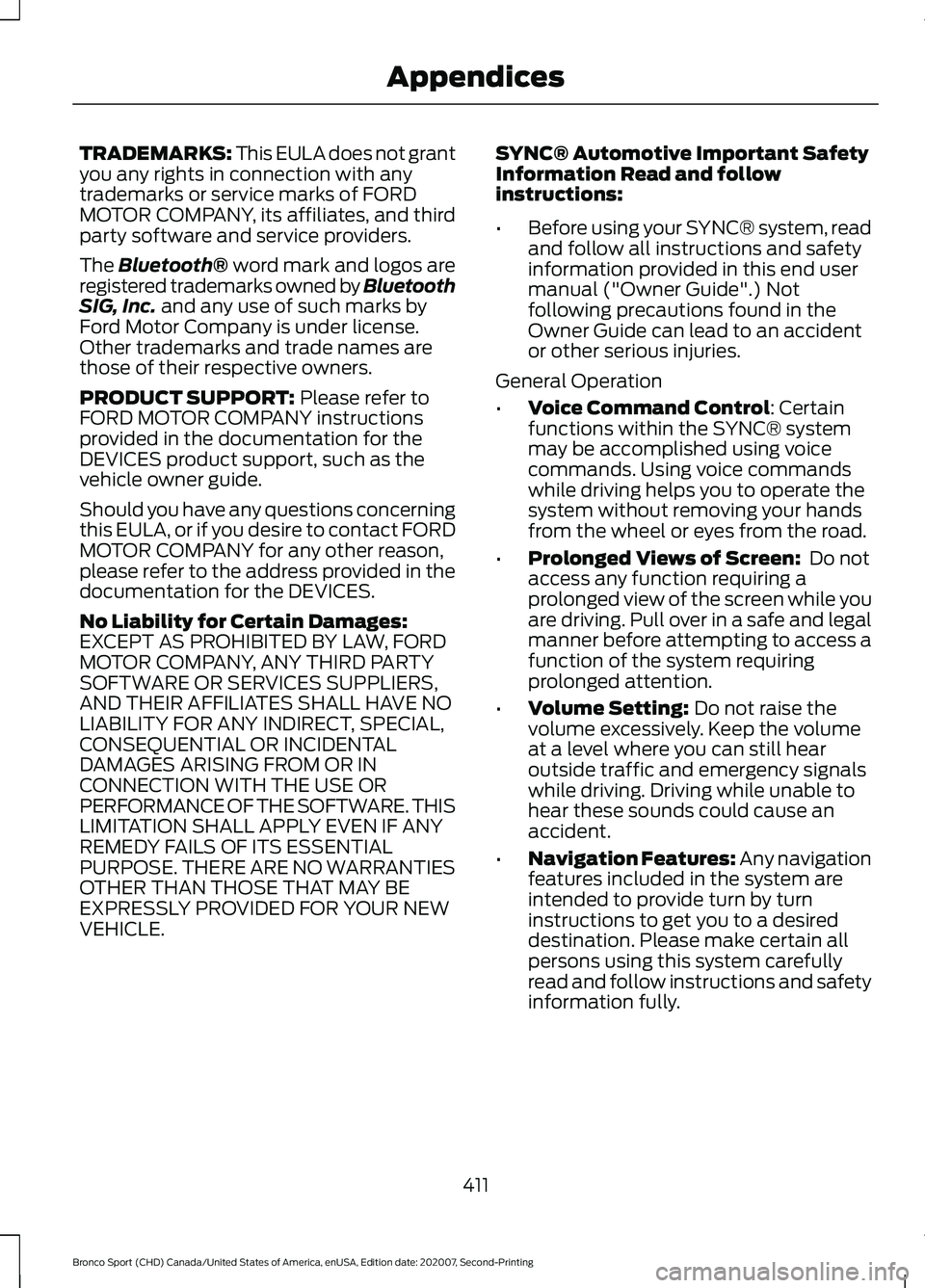

TRADEMARKS: This EULA does not grant
you any rights in connection with any
trademarks or service marks of FORD
MOTOR COMPANY, its affiliates, and third
party software and service providers.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
Ford Motor Company is under license.
Other trademarks and trade names are
those of their respective owners.
PRODUCT SUPPORT:
Please refer to
FORD MOTOR COMPANY instructions
provided in the documentation for the
DEVICES product support, such as the
vehicle owner guide.
Should you have any questions concerning
this EULA, or if you desire to contact FORD
MOTOR COMPANY for any other reason,
please refer to the address provided in the
documentation for the DEVICES.
No Liability for Certain Damages:
EXCEPT AS PROHIBITED BY LAW, FORD
MOTOR COMPANY, ANY THIRD PARTY
SOFTWARE OR SERVICES SUPPLIERS,
AND THEIR AFFILIATES SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THE SOFTWARE. THIS
LIMITATION SHALL APPLY EVEN IF ANY
REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. THERE ARE NO WARRANTIES
OTHER THAN THOSE THAT MAY BE
EXPRESSLY PROVIDED FOR YOUR NEW
VEHICLE. SYNC® Automotive Important Safety
Information Read and follow
instructions:
•
Before using your SYNC® system, read
and follow all instructions and safety
information provided in this end user
manual ("Owner Guide".) Not
following precautions found in the
Owner Guide can lead to an accident
or other serious injuries.
General Operation
• Voice Command Control: Certain
functions within the SYNC® system
may be accomplished using voice
commands. Using voice commands
while driving helps you to operate the
system without removing your hands
from the wheel or eyes from the road.
• Prolonged Views of Screen:
Do not
access any function requiring a
prolonged view of the screen while you
are driving. Pull over in a safe and legal
manner before attempting to access a
function of the system requiring
prolonged attention.
• Volume Setting:
Do not raise the
volume excessively. Keep the volume
at a level where you can still hear
outside traffic and emergency signals
while driving. Driving while unable to
hear these sounds could cause an
accident.
• Navigation Features:
Any navigation
features included in the system are
intended to provide turn by turn
instructions to get you to a desired
destination. Please make certain all
persons using this system carefully
read and follow instructions and safety
information fully.
411
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Appendices

DRL
See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running
Lamps.................................................................. 82
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)................82
E
Electric Parking Brake..................................177 Applying the Electric Parking Brake..............177
Automatically Releasing the Electric
Parking Brake................................................... 178
Manually Releasing the Electric Parking Brake.................................................................... 177
Releasing the Electric Parking Brake if the Vehicle Battery is Running Out of
Charge................................................................ 178
Electromagnetic Compatibility..............405
Emergency Call Limitations.......................52
Emergency Call Requirements..................51
Emission Law
.................................................162
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........163
Tampering With a Noise Control System............................................................... 162
Enabling Remote Start
................................118
End User License Agreement.................408 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 408
Engine Block Heater
.....................................151
Using the Engine Block Heater...................... 152
Engine Coolant Check
................................277
Adding Coolant.................................................... 277
Coolant Change.................................................. 279
Engine Coolant Temperature Management................................................. 280
Fail-Safe Cooling................................................ 279
Recycled Coolant............................................... 278
Severe Climates.................................................. 279
Engine Emission Control............................162
Engine Immobilizer See: Passive Anti-Theft System...................... 72
Engine Oil Capacity and Specification - 1.5L EcoBoost™........................................329
Alternative Engine Oil for Extremely Cold Climates........................................................... 330Engine Oil Capacity and Specification -
2.0L EcoBoost™.......................................328
Alternative Engine Oil for Extremely Cold Climates........................................................... 329
Engine Oil Check
...........................................274
Adding Engine Oil............................................... 274
Engine Oil Dipstick.......................................274
Engine Specifications - 1.5L EcoBoost™.................................................323
Drivebelt Routing............................................... 323
Engine Specifications - 2.0L EcoBoost™.................................................323
Drivebelt Routing............................................... 324
Entertainment..............................................359 AM/FM Radio...................................................... 360
Apps....................................................................... 368
Bluetooth Stereo or USB................................. 367
CD........................................................................\
.... 366
HD Radio ™ Information (If
Available)........................................................ 363
SiriusXM® Satellite Radio (If Activated)......................................................... 361
Sources.................................................................. 359
Supported Media Players, Formats and Metadata Information................................ 368
USB Ports............................................................. 368
Environment.....................................................19
EPB See: Electric Parking Brake.............................. 177
Essential Towing Checks...........................237 Before Towing a Trailer.................................... 239
Hitches................................................................... 238
Launching or Retrieving a Boat or Personal Watercraft (PWC)........................................ 239
Safety Chains...................................................... 238
Trailer Brakes....................................................... 238
Trailer Lamps....................................................... 239
Trailer Towing Connector................................ 238
When Towing a Trailer..................................... 239
Event Data Recording See: Data Recording.............................................. 11
Export Unique Options
.................................18
Extending the Remote Start Duration.........................................................118
Exterior Mirrors
................................................89
Blind Spot Monitor.............................................. 90
Fold-Away Exterior Mirrors.............................. 90
Power Exterior Mirrors........................................ 89
457
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Satellite Radio..............................................346
Satellite Radio Electronic Serial Number
(ESN)................................................................. 347
Satellite Radio Reception Factors...............347
SiriusXM Satellite Radio Service.................. 347
Troubleshooting ................................................. 348
Scheduled Maintenance..........................396
Seatbelt Extensions......................................40
Seatbelt Height Adjustment......................37
Seatbelt Reminder........................................38
Seatbelt Status..................................................... 39
Seatbelts...........................................................34 Principle of Operation........................................ 34
Seatbelt Warning Lamp and Indicator Chime..............................................................38
Conditions of operation..................................... 38
Seats..................................................................133
Security
...............................................................72
Selecting a Drive Mode - 1.5L EcoBoost™.................................................223
Selecting a Drive Mode - 2.0L EcoBoost™.................................................224
Settings...........................................................378 911 Assist............................................................... 379
Ambient Lighting............................................... 379
Audio....................................................................... 378
Automatic Updates........................................... 379
Bluetooth.............................................................. 378
Charge Settings.................................................. 379
Clock....................................................................... 378
Display.................................................................... 379
Driver Assist......................................................... 379
FordPass................................................................ 379
General.................................................................. 379
Message Center.................................................. 379
Mobile Apps......................................................... 379
Multi Contour Seats.......................................... 379
Navigation ............................................................. 379
Personal Profiles................................................ 379
Phone..................................................................... 378
Seats....................................................................... 379
Sound..................................................................... 378
Valet Mode........................................................... 379
Vehicle.................................................................... 379
Voice Control....................................................... 379
Setting the Adaptive Cruise Control Gap................................................................200
Following a Vehicle.......................................... 200Setting the Adaptive Cruise Control
Speed.............................................................199
Manually Changing the Set Speed..............199
Setting the Adaptive Cruise Speed from a Complete Stop............................................... 199
Setting the Blower Motor Speed............122
Setting the Cruise Control Speed..........193 Changing the Set Speed.................................. 193
Setting the Temperature
............................122
Setting the Trail Control Speed..............184
Side Airbags
.....................................................46
Sitting in the Correct Position..................133
Snow Chains See: Using Snow Chains.................................. 312
Spare Wheel See: Changing a Road Wheel........................ 316
Special Notices
................................................16
New Vehicle Limited Warranty........................ 16
Notice to Owners of Pickup Trucks and Utility Type Vehicles......................................... 17
On Board Diagnostics Data Link Connector............................................................ 17
Special Instructions............................................. 16
Using Your Vehicle as an Ambulance.............17
Using Your Vehicle With a Snowplow............17
Special Operating Conditions Scheduled Maintenance..............................................402
Exceptions........................................................... 403
Speed Control See: Cruise Control............................................ 193
Speed Sign Recognition
.............................216
Principle of Operation....................................... 216
Using Speed Sign Recognition....................... 217
Stability Control............................................182 Principle of Operation....................................... 182
Starter Switch See: Ignition Switch........................................... 148
Starting a Gasoline Engine.......................149 Automatic Engine Shutdown........................ 150
Failure to Start..................................................... 150
Guarding Against Exhaust Fumes.................151
Important Ventilating Information................151
Stopping the Engine When Your Vehicle is Moving................................................................. 151
Stopping the Engine When Your Vehicle is Stationary.......................................................... 151
Vehicles with an Ignition Key......................... 149
Vehicles with Keyless Start............................. 149
463
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Starting and Stopping the Engine.........148
General Information.......................................... 148
Steering............................................................218 Electric Power Steering.................................... 218
Steering Wheel
................................................74
Storage.............................................................146 Cup Holders.......................................................... 146
Glasses Holder.................................................... 146
Map Pocket........................................................... 146
Under Seat Storage........................................... 146
Sunroof See: Moonroof........................................................ 91
Sun Visors.........................................................90 Illuminated Vanity Mirror.................................... 91
Supplementary Restraints System
.........42
Principle of Operation......................................... 42
Switching Adaptive Cruise Control On and Off
..........................................................198
Automatic Cancellation or
Deactivation.................................................... 199
Switching Adaptive Cruise Control Off....................................................................... 199
Switching Adaptive Cruise Control On........................................................................\
199
Switching Air Conditioning On and Off.....................................................................121
Switching Automatic High Beam Control On and Off.....................................................86
Activating the Automatic High Beam Control................................................................ 86
Switching Climate Control On and Off.....................................................................121
Switching Cruise Control On and Off...................................................................193
Switching Cruise Control Off.......................... 193
Switching Cruise Control On.......................... 193
Switching From Adaptive Cruise Control to Cruise Control
.......................................202
Switching Intelligent Mode On and Off..................................................................203
Changing the Set Speed with Intelligent Adaptive Cruise Control............................. 204
Switching Lane Centering On and Off..................................................................202
Activating Lane Centering.............................. 203
System Alerts and Automatic Cancellation................................................... 203Switching Maximum Cooling On and
Off.....................................................................121
Switching Maximum Defrost On and Off.....................................................................121
Switching Rear Occupant Alert System On and Off...................................................140
Semiannual Reminder..................................... 140
Switching Recirculated Air On and Off.....................................................................121
Switching the Heated Mirrors On and Off
....................................................................122
Switching the Heated Rear Window On and Off
...........................................................122
Switching the Heated Steering Wheel On and Off.....................................................76
Switching the Heated Wiper Park On and Off
....................................................................122
Switching Trail Control On and Off.......184
Symbols Glossary
.............................................9
SYNC™ 3........................................................350
General Information......................................... 350
SYNC™ 3 Troubleshooting.....................380 Additional Information and
Assistance....................................................... 392
Apps........................................................................\
387
Navigation............................................................ 386
Personal Profiles............................................... 390
Phone..................................................................... 384
Resetting the System....................................... 392
USB and Bluetooth Audio............................... 381
Voice Recognition............................................. 380
Wi-Fi Connectivity............................................. 389
T
Technical Specifications See: Capacities and Specifications............323
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................257
Tire Care..........................................................299 Glossary of Tire Terminology........................ 300
Information About Uniform Tire Quality Grading............................................................. 299
Information Contained on the Tire Sidewall............................................................ 301
Temperature A B C........................................... 300
Traction AA A B C.............................................. 299
Treadwear............................................................ 299
464
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
