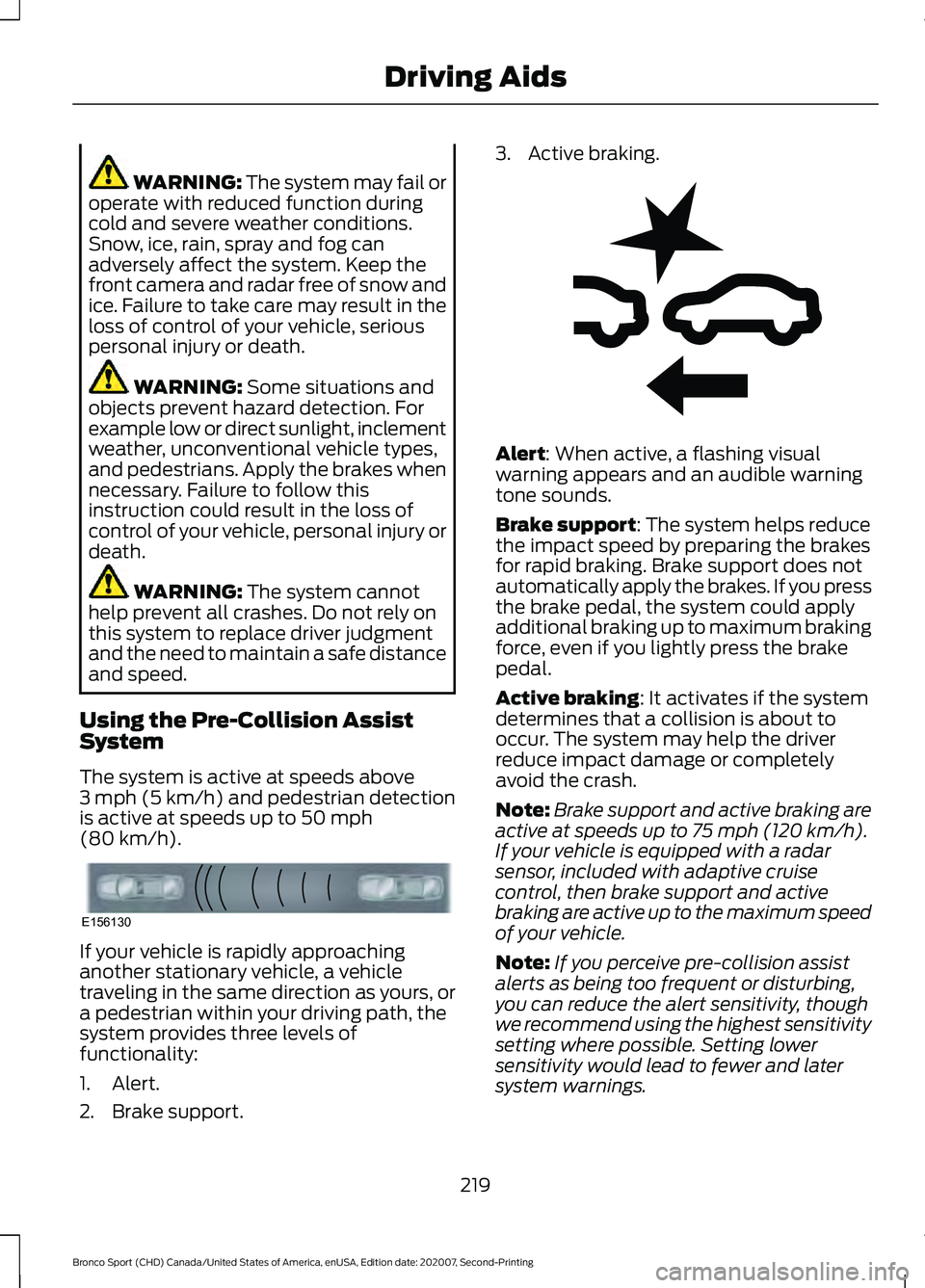

WARNING: The system may fail or
operate with reduced function during
cold and severe weather conditions.
Snow, ice, rain, spray and fog can
adversely affect the system. Keep the
front camera and radar free of snow and
ice. Failure to take care may result in the
loss of control of your vehicle, serious
personal injury or death. WARNING: Some situations and
objects prevent hazard detection. For
example low or direct sunlight, inclement
weather, unconventional vehicle types,
and pedestrians. Apply the brakes when
necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death. WARNING:
The system cannot
help prevent all crashes. Do not rely on
this system to replace driver judgment
and the need to maintain a safe distance
and speed.
Using the Pre-Collision Assist
System
The system is active at speeds above
3 mph (5 km/h) and pedestrian detection
is active at speeds up to
50 mph
(80 km/h). If your vehicle is rapidly approaching
another stationary vehicle, a vehicle
traveling in the same direction as yours, or
a pedestrian within your driving path, the
system provides three levels of
functionality:
1. Alert.
2. Brake support. 3. Active braking.
Alert
: When active, a flashing visual
warning appears and an audible warning
tone sounds.
Brake support
: The system helps reduce
the impact speed by preparing the brakes
for rapid braking. Brake support does not
automatically apply the brakes. If you press
the brake pedal, the system could apply
additional braking up to maximum braking
force, even if you lightly press the brake
pedal.
Active braking
: It activates if the system
determines that a collision is about to
occur. The system may help the driver
reduce impact damage or completely
avoid the crash.
Note: Brake support and active braking are
active at speeds up to
75 mph (120 km/h).
If your vehicle is equipped with a radar
sensor, included with adaptive cruise
control, then brake support and active
braking are active up to the maximum speed
of your vehicle.
Note: If you perceive pre-collision assist
alerts as being too frequent or disturbing,
you can reduce the alert sensitivity, though
we recommend using the highest sensitivity
setting where possible. Setting lower
sensitivity would lead to fewer and later
system warnings.
219
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Driving AidsE156130 E255268
Page 223 of 471

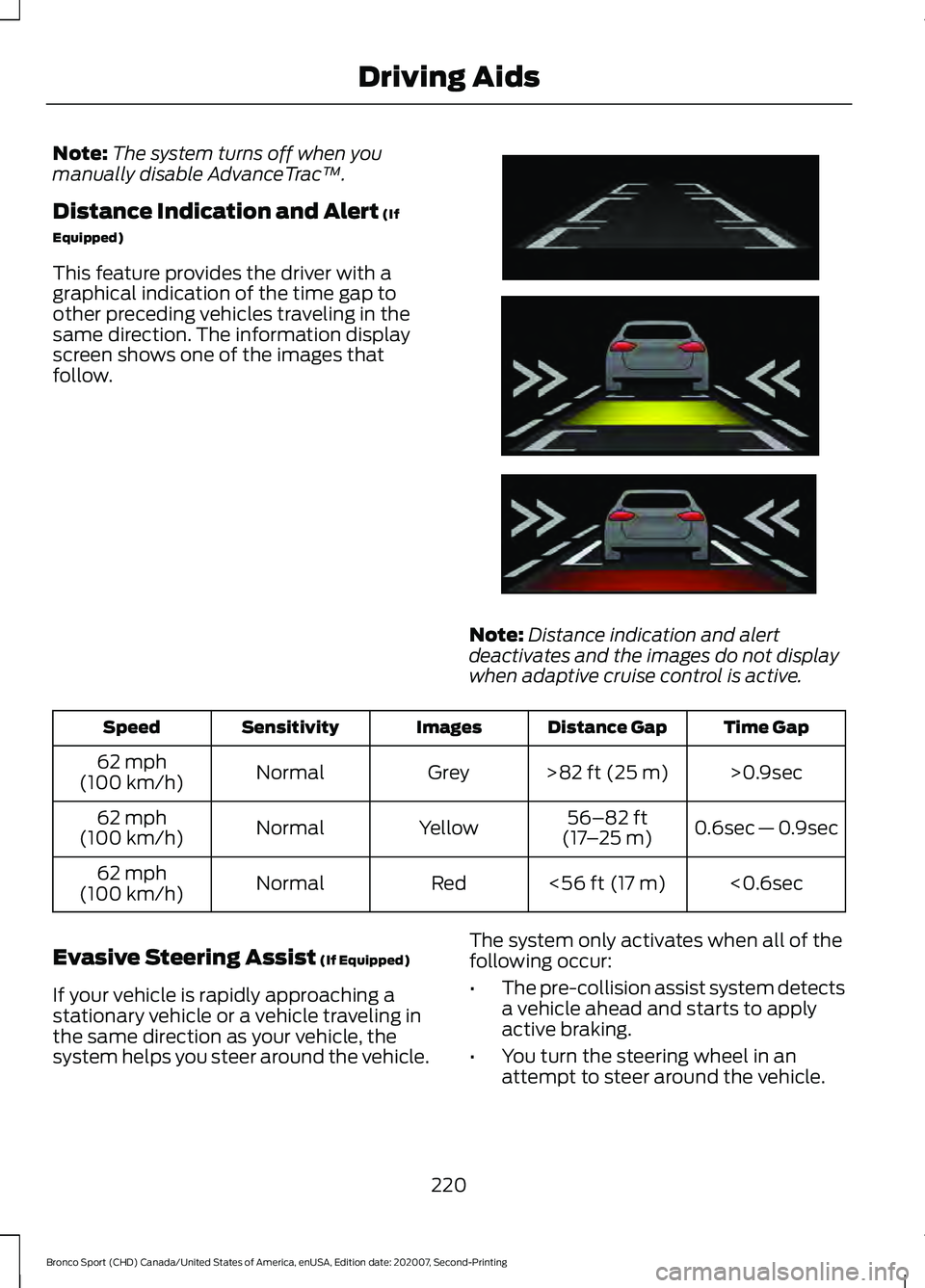

Note:
The system turns off when you
manually disable AdvanceTrac ™.
Distance Indication and Alert (If
Equipped)
This feature provides the driver with a
graphical indication of the time gap to
other preceding vehicles traveling in the
same direction. The information display
screen shows one of the images that
follow. Note:
Distance indication and alert
deactivates and the images do not display
when adaptive cruise control is active. Time Gap
Distance Gap
Images
Sensitivity
Speed
>0.9sec
>
82 ft (25 m)
Grey
Normal
62 mph
(100 km/h)
0.6sec — 0.9sec
56–82 ft
(17 –25 m)
Yellow
Normal
62 mph
(100 km/h)
<0.6sec
<
56 ft (17 m)
Red
Normal
62 mph
(100 km/h)
Evasive Steering Assist
(If Equipped)
If your vehicle is rapidly approaching a
stationary vehicle or a vehicle traveling in
the same direction as your vehicle, the
system helps you steer around the vehicle. The system only activates when all of the
following occur:
•
The pre-collision assist system detects
a vehicle ahead and starts to apply
active braking.
• You turn the steering wheel in an
attempt to steer around the vehicle.
220
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Driving AidsE254791
Page 286 of 471
The battery is in the engine compartment.
See Under Hood Overview (page 272).
Your vehicle has a maintenance-free
battery. It does not require additional
water during service.
If the vehicle battery has a cover, make
sure you correctly install it after cleaning
or replacing the battery.
For longer, trouble-free operation, keep the
top of the battery clean and dry and the
battery cables tightly fastened to the
battery terminals. If any corrosion is
present on the battery or terminals, remove
the cables from the terminals and clean
with a wire brush. You can neutralize the
acid with a solution of baking soda and
water.
We recommend that you disconnect the
negative battery cable terminal from the
battery if you plan to store your vehicle for
an extended period.
Note: If you only disconnect the negative
battery cable terminal, make sure it is
isolated or placed away from the battery
terminal to avoid unintended connection or
arcing.
To maintain correct operation of the
battery management system, if you add
any electrical devices to your vehicle, do
not connect the ground connection directly
to the negative battery terminal. A
connection at the negative battery terminal
can cause inaccurate measurements of
the battery condition and potential
incorrect system operation.
Note: If you add electrical accessories or
components to your vehicle this may
adversely affect battery performance,
durability and the performance of other
electrical systems on your vehicle.
If you replace the battery make sure it
matches the electrical requirements of
your vehicle. If you disconnect or replace the battery
and your vehicle has an automatic
transmission, it must relearn its adaptive
strategy. Because of this, the transmission
may shift firmly when first driven. This is
normal operation while the transmission
fully updates its operation to optimum
shift feel.
Remove and Reinstall the Battery
To disconnect or remove the battery, do
the following:
1.
Apply the parking brake and switch the
ignition off.
2. Switch all electrical equipment off, for
example lights and radio.
3. Wait a minimum of two minutes before
disconnecting the battery.
Note: The engine management system has
a power hold function and remains powered
for a period of time after you switch the
ignition off. This is to allow diagnostic and
adaptive tables to be stored. Disconnecting
the battery without waiting can cause
damage not covered by the vehicle
Warranty.
4. Disconnect the negative battery cable terminal.
5. Disconnect the positive battery cable terminal.
6. Remove the battery securing clamp.
7. Remove the battery.
8. To install, reverse the removal procedure.
Note: Before reconnecting the battery,
make sure the ignition remains switched off.
Note: Make sure the battery cable terminals
are fully tightened.
283
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Maintenance
Page 456 of 471
1
180 Degree Camera......................................191
Camera Views...................................................... 192
Using the System................................................ 192
4
4WD See: Four-Wheel Drive...................................... 172
9
911 Assist.............................................................51
A
A/C See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)................................................................ 121
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC)................................................................ 125
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 129
About This Manual...........................................9
ABS See: Brakes............................................................ 176
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 176
Accessories....................................................393
Accessories See: Replacement Parts
Recommendation............................................ 16
Adaptive Cruise Control
.............................195
Adaptive Cruise Control –
Troubleshooting............................................ 204
Adaptive Cruise Control Indicators........201 Intelligent Adaptive Cruise Control
Indicators......................................................... 202
Lane Centering Indicators............................... 201
Adaptive Cruise Control Limitations...................................................196
Lane Centering Limitations............................ 198
Sensor Limitations............................................. 196Adaptive Cruise Control
Precautions..................................................195
Hilly Condition Usage....................................... 196
Lane Centering Precautions........................... 196
When Following a Vehicle............................... 196
Adaptive Cruise Control – Troubleshooting
........................................204
Adaptive Cruise Control – Information
Messages......................................................... 204
Adjusting the Headlamps
........................284
Horizontal Aim Adjustment........................... 285
Vertical Aim Adjustment................................ 284
Adjusting the Luggage Compartment Divider...........................................................233
Divider Position................................................... 234
Folded Shelf Position....................................... 233
Full Shelf Position.............................................. 233
Storage Position................................................. 234
Table Position...................................................... 233
Adjusting the Luggage Compartment Load Floor
....................................................233
Adjusting the Set Speed Tolerance.....................................................204
Adjusting the Steering Wheel....................74
Airbag Disposal..............................................50
Air Conditioning See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)................................................................ 121
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC)................................................................ 125
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 129
Air Conditioning System Capacity and Specification - 1.5L EcoBoost™..........334
Air Conditioning System Capacity and Specification - 2.0L EcoBoost™.........333
Air Filter See: Changing the Engine Air Filter.............276
Alarm See: Anti-Theft Alarm......................................... 72
Ambient Lighting...........................................85 Adjusting the Brightness................................... 85
Switching Ambient Lighting Off..................... 85
Switching Ambient Lighting On..................... 85
Anti-Theft Alarm
.............................................72
Arming the Alarm................................................. 73
453
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
Page 462 of 471
Head Restraints.............................................133
Folding the Head Restraint............................. 135
Front Seat Head Restraints............................ 134
Installing the Head Restraint.......................... 135
Lowering the Head Restraint.......................... 134
Raising the Head Restraint............................. 134
Removing the Head Restraint........................ 135
Removing the Head Restraints..................... 134
Tilting the Front Seat Head Restraint.........135
Heated Seats
.................................................139
Heating See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)................................................................ 121
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC)................................................................ 125
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 129
Hill Start Assist
..............................................178
Switching the System On and Off................179
Using Hill Start Assist........................................ 179
Hints on Driving With Anti-Lock Brakes.............................................................176
Hood Lock See: Opening and Closing the Hood............271
Horn.....................................................................75
How Does Adaptive Cruise Control With Stop and Go Work
.....................................195
How Does the Rear Occupant Alert System Work
...............................................140
I
Identifying the Climate Control Unit.......121
Ignition Switch...............................................148
In California (U.S. Only)............................256
Information Display Control
.......................75
Information Displays....................................99 General Information........................................... 99
Information Messages
...............................104
Adaptive Cruise Control................................... 104
AdvanceTrac ™ and Traction Control.........105
Alarm...................................................................... 105
Auto-Start-Stop................................................. 105
Battery and Charging System....................... 106
Blind Spot Information and Cross Traffic Alert System.................................................... 107Doors and Locks..................................................
107
Driver Alert............................................................ 108
Four-Wheel Drive............................................... 108
Fuel........................................................................\
.. 109
Hill Start Assist................................................... 109
Keys and Intelligent Access............................ 109
Lane Keeping System........................................ 110
Maintenance........................................................... 111
MyKey....................................................................... 112
Park Aid.................................................................... 113
Park Brake............................................................... 113
Power Steering..................................................... 114
Pre-Collision Assist............................................. 114
Remote Start......................................................... 114
Seats........................................................................\
. 115
Starting System ................................................... 115
Tire Pressure Monitoring System................... 115
Trailer........................................................................\
116
Transmission......................................................... 116
Installing Child Restraints...........................23 Child Restraints..................................................... 23
Using Lap and Shoulder Belts......................... 23
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 25
Using Tether Straps............................................. 27
Instrument Cluster
.........................................92
Instrument Lighting Dimmer......................81
Instrument Panel
...........................................20
Interior Air Quality.........................................132
Interior Lamps
.................................................84
Interior Lamp Function...................................... 84
Switching All of the Interior Lamps Off........................................................................\
. 84
Switching All of the Interior Lamps On........................................................................\
. 84
Switching the Front Interior Lamps On and Off........................................................................\
. 84
Switching the Rear Interior Lamps On and Off........................................................................\
. 85
Interior Mirror...................................................90 Automatic Dimming Mirror.............................. 90
Manual Dimming Mirror.................................... 90
Introduction........................................................9
J
Jump Starting the Vehicle........................252 To Connect the Booster Cables.................... 252
459
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
Page 466 of 471
Satellite Radio..............................................346
Satellite Radio Electronic Serial Number
(ESN)................................................................. 347
Satellite Radio Reception Factors...............347
SiriusXM Satellite Radio Service.................. 347
Troubleshooting ................................................. 348
Scheduled Maintenance..........................396
Seatbelt Extensions......................................40
Seatbelt Height Adjustment......................37
Seatbelt Reminder........................................38
Seatbelt Status..................................................... 39
Seatbelts...........................................................34 Principle of Operation........................................ 34
Seatbelt Warning Lamp and Indicator Chime..............................................................38
Conditions of operation..................................... 38
Seats..................................................................133
Security
...............................................................72
Selecting a Drive Mode - 1.5L EcoBoost™.................................................223
Selecting a Drive Mode - 2.0L EcoBoost™.................................................224
Settings...........................................................378 911 Assist............................................................... 379
Ambient Lighting............................................... 379
Audio....................................................................... 378
Automatic Updates........................................... 379
Bluetooth.............................................................. 378
Charge Settings.................................................. 379
Clock....................................................................... 378
Display.................................................................... 379
Driver Assist......................................................... 379
FordPass................................................................ 379
General.................................................................. 379
Message Center.................................................. 379
Mobile Apps......................................................... 379
Multi Contour Seats.......................................... 379
Navigation ............................................................. 379
Personal Profiles................................................ 379
Phone..................................................................... 378
Seats....................................................................... 379
Sound..................................................................... 378
Valet Mode........................................................... 379
Vehicle.................................................................... 379
Voice Control....................................................... 379
Setting the Adaptive Cruise Control Gap................................................................200
Following a Vehicle.......................................... 200Setting the Adaptive Cruise Control
Speed.............................................................199
Manually Changing the Set Speed..............199
Setting the Adaptive Cruise Speed from a Complete Stop............................................... 199
Setting the Blower Motor Speed............122
Setting the Cruise Control Speed..........193 Changing the Set Speed.................................. 193
Setting the Temperature
............................122
Setting the Trail Control Speed..............184
Side Airbags
.....................................................46
Sitting in the Correct Position..................133
Snow Chains See: Using Snow Chains.................................. 312
Spare Wheel See: Changing a Road Wheel........................ 316
Special Notices
................................................16
New Vehicle Limited Warranty........................ 16
Notice to Owners of Pickup Trucks and Utility Type Vehicles......................................... 17
On Board Diagnostics Data Link Connector............................................................ 17
Special Instructions............................................. 16
Using Your Vehicle as an Ambulance.............17
Using Your Vehicle With a Snowplow............17
Special Operating Conditions Scheduled Maintenance..............................................402
Exceptions........................................................... 403
Speed Control See: Cruise Control............................................ 193
Speed Sign Recognition
.............................216
Principle of Operation....................................... 216
Using Speed Sign Recognition....................... 217
Stability Control............................................182 Principle of Operation....................................... 182
Starter Switch See: Ignition Switch........................................... 148
Starting a Gasoline Engine.......................149 Automatic Engine Shutdown........................ 150
Failure to Start..................................................... 150
Guarding Against Exhaust Fumes.................151
Important Ventilating Information................151
Stopping the Engine When Your Vehicle is Moving................................................................. 151
Stopping the Engine When Your Vehicle is Stationary.......................................................... 151
Vehicles with an Ignition Key......................... 149
Vehicles with Keyless Start............................. 149
463
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
Page 467 of 471
Starting and Stopping the Engine.........148
General Information.......................................... 148
Steering............................................................218 Electric Power Steering.................................... 218
Steering Wheel
................................................74
Storage.............................................................146 Cup Holders.......................................................... 146
Glasses Holder.................................................... 146
Map Pocket........................................................... 146
Under Seat Storage........................................... 146
Sunroof See: Moonroof........................................................ 91
Sun Visors.........................................................90 Illuminated Vanity Mirror.................................... 91
Supplementary Restraints System
.........42
Principle of Operation......................................... 42
Switching Adaptive Cruise Control On and Off
..........................................................198
Automatic Cancellation or
Deactivation.................................................... 199
Switching Adaptive Cruise Control Off....................................................................... 199
Switching Adaptive Cruise Control On........................................................................\
199
Switching Air Conditioning On and Off.....................................................................121
Switching Automatic High Beam Control On and Off.....................................................86
Activating the Automatic High Beam Control................................................................ 86
Switching Climate Control On and Off.....................................................................121
Switching Cruise Control On and Off...................................................................193
Switching Cruise Control Off.......................... 193
Switching Cruise Control On.......................... 193
Switching From Adaptive Cruise Control to Cruise Control
.......................................202
Switching Intelligent Mode On and Off..................................................................203
Changing the Set Speed with Intelligent Adaptive Cruise Control............................. 204
Switching Lane Centering On and Off..................................................................202
Activating Lane Centering.............................. 203
System Alerts and Automatic Cancellation................................................... 203Switching Maximum Cooling On and
Off.....................................................................121
Switching Maximum Defrost On and Off.....................................................................121
Switching Rear Occupant Alert System On and Off...................................................140
Semiannual Reminder..................................... 140
Switching Recirculated Air On and Off.....................................................................121
Switching the Heated Mirrors On and Off
....................................................................122
Switching the Heated Rear Window On and Off
...........................................................122
Switching the Heated Steering Wheel On and Off.....................................................76
Switching the Heated Wiper Park On and Off
....................................................................122
Switching Trail Control On and Off.......184
Symbols Glossary
.............................................9
SYNC™ 3........................................................350
General Information......................................... 350
SYNC™ 3 Troubleshooting.....................380 Additional Information and
Assistance....................................................... 392
Apps........................................................................\
387
Navigation............................................................ 386
Personal Profiles............................................... 390
Phone..................................................................... 384
Resetting the System....................................... 392
USB and Bluetooth Audio............................... 381
Voice Recognition............................................. 380
Wi-Fi Connectivity............................................. 389
T
Technical Specifications See: Capacities and Specifications............323
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................257
Tire Care..........................................................299 Glossary of Tire Terminology........................ 300
Information About Uniform Tire Quality Grading............................................................. 299
Information Contained on the Tire Sidewall............................................................ 301
Temperature A B C........................................... 300
Traction AA A B C.............................................. 299
Treadwear............................................................ 299
464
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
Page 469 of 471
V
Vehicle Care...................................................289
General Information......................................... 289
Vehicle Dimensions.....................................324
Vehicle Identification Number................336 Locating the Vehicle Identification
Number............................................................ 336
Vehicle Identification Number Overview.......................................................... 336
Vehicle Identification
.................................336
Vehicle Identification Number...................... 336
Vehicle Storage............................................294 Body....................................................................... 294
Brakes.................................................................... 295
Cooling system................................................... 295
Disconnecting Your 12 Volt Battery.............295
Engine.................................................................... 295
Fuel system.......................................................... 295
General.................................................................. 294
Miscellaneous..................................................... 295
Removing Vehicle From Storage.................295
Tires........................................................................\
295
Vehicle Wi-Fi Hotspot.................................341
Ventilation See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)................................................................ 121
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC)................................................................ 125
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 129
Voice Control....................................................75
W
Warning Lamps and Indicators
................95
4WD Lock............................................................... 98
Adaptive Cruise Control.................................... 95
Anti-Lock Braking System................................ 95
Auto Hold Active.................................................. 95
Auto Hold Unavailable....................................... 95
Automatic High Beam Control........................ 95
Auto-Start-Stop................................................... 95
Battery...................................................................... 95
Blind Spot Monitor.............................................. 95
Brake System Warning Lamp.......................... 96Cruise Control.......................................................
96
Direction Indicator............................................... 96
Door Ajar................................................................. 96
Electric Park Brake............................................... 96
Engine Coolant Temperature Warning Lamp.................................................................... 96
Engine Oil................................................................ 96
Fasten Rear Seatbelt.......................................... 97
Fasten Seatbelt.................................................... 96
Front Airbag............................................................ 97
Front Fog Lamps................................................... 97
High Beam............................................................... 97
Hood Ajar................................................................. 97
Lamps On................................................................ 97
Liftgate Ajar............................................................ 97
Low Beam Warning............................................. 97
Low Fuel Level....................................................... 97
Low Tire Pressure Warning............................... 97
Low Washer Fluid................................................. 97
Malfunction Indicator Lamp............................. 97
Powertrain Fault................................................... 98
Rear Differential Lock......................................... 98
Stability Control................................................... 98
Stability Control Off............................................ 98
Trail Control........................................................... 98
Washer Fluid Check....................................285
Washer Fluid Specification......................334
Washers See: Cleaning the Exterior.............................. 290
See: Wipers and Washers.................................. 77
Waxing..............................................................291
What Is 911 Assist............................................51
What Is a Connected Vehicle
...................337
What Is Adaptive Cruise Control With Lane Centering
...........................................195
What Is Automatic High Beam Control
............................................................86
What Is Cruise Control................................193 Requirements....................................................... 193
What Is Drive Mode Control.....................223
What Is Intelligent Adaptive Cruise Control...........................................................195
What Is Remote Start..................................118
What Is the Cabin Air Filter........................132
What Is the Power Outlet..........................142
What is the Rear Occupant Alert System..........................................................140
466
Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
