2021 CITROEN C4 AIRCROSS keyless

65
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Alarm*System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:
- perimeter
The system checks for any opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
- volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition (OFF mode if your
vehicle has the Keyless Entry and Starting
syste m).
F

R
emove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.
F

L
eave the vehicle, and close all the doors
and the bonnet.
F

P
ress the locking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.
Deactivation
Do one of the the following to deactivate the
alarm:
F

P
ress the unlocking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.
F

S
witch on the ignition (ON mode if your
vehicle has the "Keyless Entry and
Starting" system).
F

O
pen a door or the boot while the system is
being activated.
The alarm system is deactivated: the indicator
lamp A goes off.
The alarm is being activated: the indicator
lamp
A flashes rapidly accompanied by
an intermittent audible signal for about
20
s
econds.
Once the 20 seconds have expired, the
system is active . The audible signal stops and
the indicator lamp in the button flashes slowly.
* According to equipment.
2
Access

66
Locking the vehicle with
perimeter monitoring only
Deactivate the interior volumetric and tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases, such as:
-
a
n animal left in the vehicle,
-

a w
indow left partly open,
-

w
ashing your vehicle.Deactivation of the interior
volumetric and tilt monitoring
Raise and hold the wiper control stalk in
the "MIST " position for about three seconds to
activate them again, the audible signal
sounds twice.
F
S
witch off the ignition and remove the
key from the ignition switch (OFF mode if
your vehicle has the "Keyless Entry and
Starting" system).
F

R

aise and hold the wiper control stalk in
the "MIST" position for about 3 seconds.
F

T

he audible signal sounds once and the
interior volumetric and tilt monitoring are
deactivated.
Access

67
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
A message then appears in the instrument
panel screen while the siren is operating.
When the ignition is next switched on (ON
mode if your vehicle has the "Keyless Entry
and Starting" system), an audible signal sounds
four times to inform you that the alarm was
triggered during your absence.
Complete deactivation of
the alarm
F Switch off the ignition (OFF mode if your vehicle has the "Keyless Entry and
Starting" system).
F

R
emove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.
F

O
pen the driver's door.
F

P
lace the lighting control stalk in
the " OFF"
position.
F

P
ull the wiper control stalk towards you
and hold.
A

fter about ten seconds there is an audible
signal.
F

W
hen the audible signal stops, continue to
hold the wiper stalk pulled towards you and
press the remote control locking button.
You can completely deactivate the alarm
system. To do this, proceed as follows:
F T he state of the system is then signalled to
you by the number of beeps:
O

ne beep: the alarm system is completely
deactivated.
T

wo beeps: the alarm system is activated.
E

ach new press of the remote control
locking button changes the state of the
system.
2
Access

78
Electric folding / unfolding
From the outside:
F b y locking or unlocking the vehicle,
using the remote control or the locking /
unlocking buttons (for vehicles fitted with
the "Keyless Entry and Starting" system). If you have folded the mirrors using the
control C
, you must use this control to
unfold them, other wise the mirrors will
not be lock in place correctly.
The mirrors can also be folded
manually.
From inside:
-
w
ith the ignition switch in the "ON" or
"ACC" position, by pressing the control C ,
-

w

ith the ignition switch in the "LOCK"
position, by pressing control C , within
30


seconds .
Comfort

91
Mat
When removing the mat on the driver's side,
move back the seat as far as possible and
remove the fixings.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat is
secured firmly.
To prevent any risk of jamming under the
pedals:
-
o
nly use mats suited to the fixings already
present in the vehicle; it is imperative that
these fixings are used.
-

n
ever fit one mat on top of another.
Sun visor Glove box
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
F

T
o open the glove box, raise the handle.
It is illuminated when the lid is opened.
It houses the front passenger airbag
deactivation switch A.
If the vehicle is fitted with air conditioning,
it has a ventilation nozzle B , distributing the
same conditioned air as the vents in the
passenger compartment.
If your vehicle is fitted with the "Keyless Entry
and Starting" system, it contains the back-up
starting unit C .
The sun visors fold for wards, and to the side
when they are unhooked.
They are fitted with a courtesy mirror and a
ticket holder.
3
Comfort

99
Changing the mode of
the vehicle
With the electronic key inside the vehicle; each
press on the "START/STOP " button, with no
action on the pedals , changes the vehicle's
mode:
F

F
irst press (ACC mode), the button's
warning lamp comes on in orange.
T

he accessories (radio, 12V socket...) can
be used.
F

S
econd press (ON mode), the button's
warning lamp comes on in green.
S

witching on the ignition.
F

T
hird press (OFF mode), the warning lamp
in the button goes off. If you use the accessories for a
prolonged period with the ignition
switch in position 2 (ACC)
, you risk
discharging the battery. Starting your
vehicle will then no longer be possible.
Ta k e c a r e .
See the "Automatic power cut-off to
accessories" section.
Starting - stopping the engine with the Keyless Entry and
Starting system
If the warning lamp flashes orange,
contact a CITROËN dealer or a
qualified workshop as soon as possible.
F

P
ress and release the "S TA R T/
STOP " button.
F

W
ith the electronic key inside the vehicle,
depress the clutch pedal fully on vehicles
with a manual gearbox or press the brake
pedal on vehicles with a CVT gearbox.
Starting using the
electronic key
For vehicles fitted with a manual gearbox, put
the gear lever in neutral.
For vehicles fitted with a
CVT gearbox, put the
gear lever in P .
4
Driving

109
Emergency release
If the battery is discharged or if the gear lever
locking mechanism is damaged, it is possible
for the gear lever to be locked in position P,
even when you press the brake pedal firmly. However, if you have to move the vehicle,
release the gear lever using the following
procedure:
F

A
pply the parking brake.
F

S
witch off the engine if necessary.
F

R
emove the cap A, using a flat screwdriver
covered with a cloth.
F

P
ress the brake pedal firmly.
F

P
ut the ignition switch into position ACC
(ACC mode, if you vehicle has the Keyless
Entry and Starting system).
F

I
nsert the screwdriver into the aperture.
F

W
hile pushing the screwdriver downwards,
move the gear lever to position N .
You must contact a CITROËN dealer
or a qualified workshop to have the
system checked
.
4
Driving

131
Switching off
The manual guide-me-home lighting switches
off immediately if you.
-
f
lash the headlamps again,
-

p
lace the lighting control stalk in another
position,
-

s
witch the ignition on (or select "ON" mode
for vehicle with the "Keyless Entry and
Starting" system).

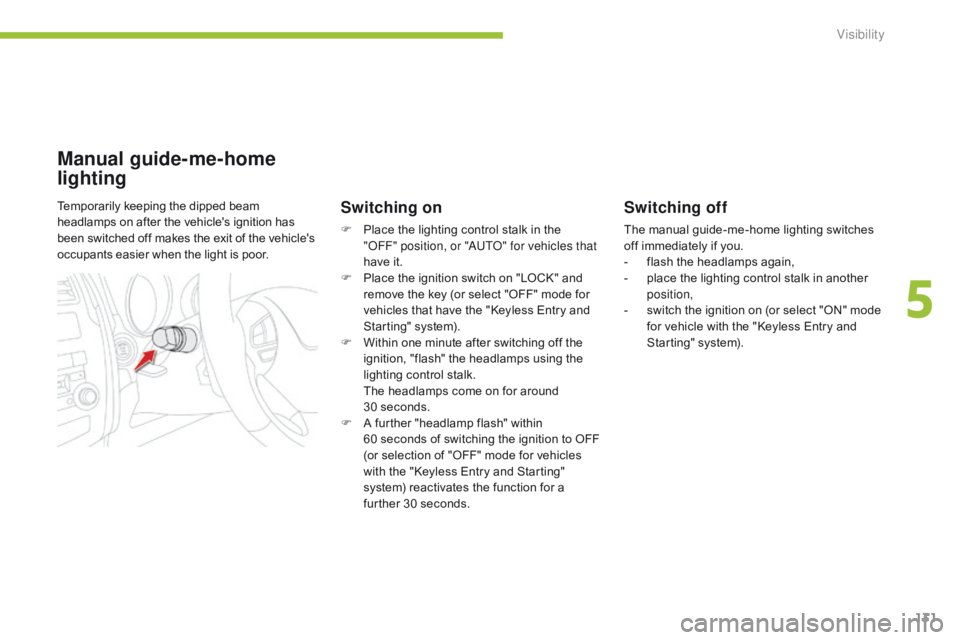

Manual guide-me-home
lighting
Switching on
F Place the lighting control stalk in the "oF F" position, or "aU To" f or vehicles that
have
it.
F

P
lace the ignition switch on "LOCK" and
remove the key (or select "OFF" mode for
vehicles that have the "Keyless Entry and
Starting" system).
F

W
ithin one minute after switching off the
ignition, "flash" the headlamps using the
lighting control stalk.
T

he headlamps come on for around
30
seconds.
F

A f
urther "headlamp flash" within
60
seconds of switching the ignition to OFF
(or selection of "OFF" mode for vehicles
with the "Keyless Entry and Starting"
system) reactivates the function for a
further 30 seconds.
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the exit of the vehicle's
occupants easier when the light is poor.
5
Visibility
