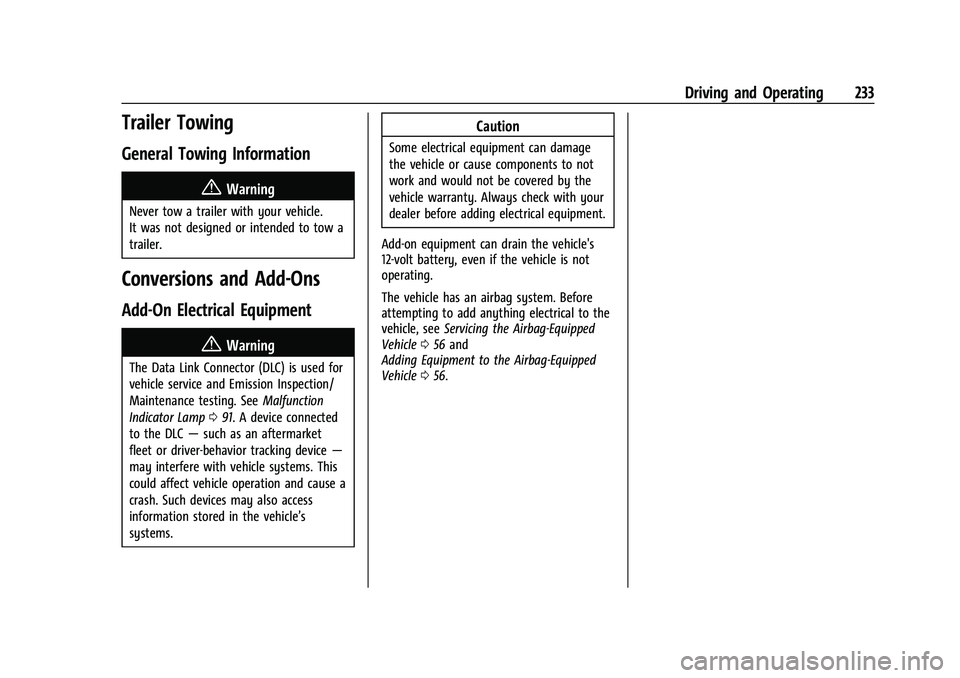

Driving and Operating 233
Trailer Towing
General Towing Information
{Warning
Never tow a trailer with your vehicle.
It was not designed or intended to tow a
trailer.
Conversions and Add-Ons
Add-On Electrical Equipment
{Warning
The Data Link Connector (DLC) is used for
vehicle service and Emission Inspection/
Maintenance testing. SeeMalfunction
Indicator Lamp 091. A device connected
to the DLC —such as an aftermarket
fleet or driver-behavior tracking device —
may interfere with vehicle systems. This
could affect vehicle operation and cause a
crash. Such devices may also access
information stored in the vehicle’s
systems.
Caution
Some electrical equipment can damage
the vehicle or cause components to not
work and would not be covered by the
vehicle warranty. Always check with your
dealer before adding electrical equipment.
Add-on equipment can drain the vehicle's
12-volt battery, even if the vehicle is not
operating.
The vehicle has an airbag system. Before
attempting to add anything electrical to the
vehicle, see Servicing the Airbag-Equipped
Vehicle 056 and
Adding Equipment to the Airbag-Equipped
Vehicle 056.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
252 Vehicle Care
If the coolant still is not at the proper levels
when the system cools down again, see
your dealer.
Engine Overheating
The vehicle has several indicators to warn of
the engine overheating.
There is an engine coolant temperature
gauge on the instrument cluster. SeeEngine
Coolant Temperature Gauge 088. The
vehicle may also display a message on the
Driver Information Center (DIC).
If the decision is made not to lift the hood
when this warning appears, get service help
right away. See Roadside Assistance Program
0 326.
If the decision is made to lift the hood,
make sure the vehicle is parked on a level
surface.
Then check to see if the engine cooling fan
is running. If the engine is overheating, the
fan should be running. If it is not, do not
continue to run the engine. Have the vehicle
serviced.
Caution
Do not run the engine if there is a leak
in the engine cooling system. This can
cause a loss of all coolant and can
damage the system and vehicle. Have
any leaks fixed right away.
If Steam Is Coming from the Engine
Compartment
{Warning
Steam and scalding liquids from a hot
cooling system are under pressure.
Turning the pressure cap, even a little,
can cause them to come out at high
speed and you could be burned. Never
turn the cap when the cooling system,
including the pressure cap, is hot. Wait
for the cooling system and pressure cap
to cool.
If Steam Is Coming from the Engine
Compartment with no Overheat Warning
The hood extractor, if equipped, is
functional. It will allow water from rain and
car washes to enter the engine
compartment and contact hot surfaces. If steam is coming from the hood extractor
with no accompanying overheat warning, no
service is needed.
If No Steam Is Coming from the Engine
Compartment
If an engine overheat warning is displayed
but no steam can be seen or heard, the
problem may not be too serious. Sometimes
the engine can get a little too hot when the
vehicle:
.Climbs a long hill on a hot day
.Stops after high-speed driving
.Idles for long periods in traffic
If the overheat warning is displayed with no
sign of steam: 1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and to the highest fan
speed. Open the windows as necessary.
3. When it is safe to do so, pull off the road, shift to P (Park) or N (Neutral) for
an automatic transmission or Neutral for
a manual transmission, and let the
engine idle.
If the engine coolant temperature gauge is
no longer in the overheated area, the
vehicle can be driven. Continue to drive the

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Vehicle Care 253
vehicle slowly for about 10 minutes. Keep a
safe vehicle distance from the vehicle in
front. If the warning does not come back on,
continue to drive normally and have the
cooling system checked for proper fill and
function.
If the warning continues, pull over, stop, and
park the vehicle right away.
If there is no sign of steam, idle the engine
for three minutes while parked. If the
warning is still displayed, turn off the
engine until it cools down.
Washer Fluid
What to Use
When windshield washer fluid is needed, be
sure to read the manufacturer's instructions
before use. If operating the vehicle in an
area where the temperature can fall below
freezing, use a fluid that has sufficient
protection against freezing.
Adding Washer Fluid
Open the cap with the washer symbol on it.
Add washer fluid until the reservoir is full.
SeeEngine Compartment Overview 0238 for
reservoir location.
Caution
.Do not use washer fluid that contains
any type of water repellent coating.
This can cause the wiper blades to
chatter or skip.
.Do not use engine coolant (antifreeze)
in the windshield washer. It can
damage the windshield washer system
and paint.
.Do not mix water with ready-to-use
washer fluid. Water can cause the
solution to freeze and damage the
washer fluid tank and other parts of
the washer system.
(Continued)
Caution (Continued)
.When using concentrated washer fluid,
follow the manufacturer instructions
for adding water.
.Fill the washer fluid tank only
three-quarters full when it is very cold.
This allows for fluid expansion if
freezing occurs, which could damage
the tank if it is completely full.
Brakes
Disc brake linings have built-in wear
indicators that make a high-pitched warning
sound when the brake linings are worn and
new linings are needed. The sound can come
and go or can be heard all the time when
the vehicle is moving, except when applying
the brake pedal firmly.
{Warning
The brake wear warning sound means
that soon the brakes will not work well.
That could lead to a crash. When the
brake wear warning sound is heard, have
the vehicle serviced.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Service and Maintenance 311
.Trained dealer technicians have the
diagnostic equipment to test the battery
and ensure that the connections and
cables are corrosion-free.
Belts
.Belts may need replacing if they squeak
or show signs of cracking or splitting.
.Trained dealer technicians have access to
tools and equipment to inspect the belts
and recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are crucial to
safe driving.
.Signs of brake wear may include chirping,
grinding, or squealing noises, or difficulty
stopping.
.Trained dealer technicians have access to
tools and equipment to inspect the brakes
and recommend quality parts engineered
for the vehicle. Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See
Recommended Fluids and
Lubricants 0313 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed.
Lamps
Properly working headlamps, taillamps, and
brake lamps are important to see and be
seen on the road.
.Signs that the headlamps need attention
include dimming, failure to light, cracking,
or damage. The brake lamps need to be
checked periodically to ensure that they
light when braking.
.With a multi-point inspection, your dealer
can check the lamps and note any
concerns.
Shocks and Struts
Shocks and struts help aid in control for a
smoother ride.
.Signs of wear may include steering wheel
vibration, bounce/sway while braking,
longer stopping distance, or uneven
tire wear.
.As part of the multi-point inspection,
trained dealer technicians can visually
inspect the shocks and struts for signs of
leaking, blown seals, or damage, and can
advise when service is needed.
Tires
Tires need to be properly inflated, rotated,
and balanced. Maintaining the tires can save
money and fuel, and can reduce the risk of
tire failure.
.Signs that the tires need to be replaced
include three or more visible treadwear
indicators; cord or fabric showing through
the rubber; cracks or cuts in the tread or
sidewall; or a bulge or split in the tire.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Index 345
Electrical System (cont'd)Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Rear Compartment Fuse Block . . . . . . . . . 265
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 246
Check Light (Malfunction Indicator) . . . . . 91
Compartment Overview . . . . . . . . . . . . . . . . 238
Coolant Temperature Gauge . . . . . . . . . . . . 88
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 248
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 322
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 244
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . . 87
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 96
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Power Messages . . . . . . . . . . . . . . . . . . . . . . . 103
Running While Parked . . . . . . . . . . . . . . . . . 206
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Engine Air Filter Life System . . . . . . . . . . . . . 246
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 333
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 205
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 46
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . 108 Exterior Lighting Battery Saver . . . . . . . . . . . 113
F
Filter,
Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 246
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Flashers, Hazard Warning . . . . . . . . . . . . . . . . .110
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Fluid Automatic Transmission . . . . . . . . . . . . . . . 245
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Forward Collision Alert (FCA) System . . . . 226
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Heated and Ventilated . . . . . . . . . . . . . . . . . . 39
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Economy, Driving for Better . . . . . . . . . . . 182
Filling a Portable Fuel Container . . . . . . . 232
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 231
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 231
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Low Fuel Warning Light . . . . . . . . . . . . . . . . 96
Management, Active . . . . . . . . . . . . . . . . . . . 205 Fuel (cont'd)
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 230
Recommended . . . . . . . . . . . . . . . . . . . . 229, 230
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Fuses Engine Compartment Fuse Block . . . . . . . 261
Fuses and Circuit Breakers . . . . . . . . . . . . . 261
Rear Compartment Fuse Block . . . . . . . . . 265
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
GaugesBoost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Engine Coolant Temperature . . . . . . . . . . . . 88
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 87
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Warning Lights and Indicators . . . . . . . . . . 81
General Information Service and Maintenance . . . . . . . . . . . . . . 303
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Global Positioning System (GPS) . . . . . . . . . 139
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
346 Index
GM Mobility ReimbursementProgram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Guidance Problems with the Route . . . . . . . . . . . . . . 139
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Hazard Warning Flashers . . . . . . . . . . . . . . . . .110
HD Radio Technology . . . . . . . . . . . . . . . . . . . . . 122
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Head-up Display . . . . . . . . . . . . . . . . . . . . . . . . . 100
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 259
Daytime Running Lamps (DRL) . . . . . . . . . 109
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
High Intensity Discharge (HID)Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 97
High/Low Beam Changer . . . . . . . . . . . . . . 108
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 97
Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 77
Heated and Ventilated Front Seats . . . . . . . 39
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173, 176
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 97
High-Speed Operation . . . . . . . . . . . . . . . . . . . 274
Hill and Mountain Roads . . . . . . . . . . . . . . . . 194
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . .214
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
How to Wear Seat Belts Properly . . . . . . . . . 42
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173, 176
Hydraulic Clutch . . . . . . . . . . . . . . . . . . . . . . . . . 245
I
If the System Needs Service . . . . . . . . . . . . . 140
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 199
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Infants and Young Children, Restraints . . . . 59
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 330
Infotainment System . . . . . . . . . . . . . . . . . . . . 333
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . 82
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . .23
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .1, 114
J
Jack
Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Jump Starting - North America . . . . . . . . . . . 291
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . . . . . 7
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 269
Lamps Daytime Running (DRL) . . . . . . . . . . . . . . . . 109
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 108
Exterior Lighting Battery Saver . . . . . . . . . 113
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Malfunction Indicator (Check Engine) . . . 91
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . 228
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 43
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 69
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Latches, Seatback . . . . . . . . . . . . . . . . . . . . . . . . . 39
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Index 347
LightPerformance Shifting . . . . . . . . . . . . . . . . . . . 94
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Illumination Control . . . . . . . . . . . . . . . . . . . . 111
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Theater Dimming . . . . . . . . . . . . . . . . . . . . . . . 112
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 90
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Brake System Warning . . . . . . . . . . . . . . . . . 93
Charging System . . . . . . . . . . . . . . . . . . . . . . . 91
Check Engine (Malfunction Indicator) . . . 91
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 93
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 96
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 97
High/Low Beam Changer . . . . . . . . . . . . . . 108
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 96
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 89
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Service Electric Parking Brake . . . . . . . . . . . 93
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Lights (cont'd)
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 95
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Limited-Slip Rear Axle . . . . . . . . . . . . . . . . . . . . 220
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . . 17
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . 96
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . . . . . . 269
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 64
M
Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 304 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Malfunction Indicator Lamp . . . . . . . . . . . . . . . .91
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Manual Transmission . . . . . . . . . . . . . . . . . . . . 209 Manual Transmission (cont'd)
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . 140
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Matching Active Rev . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Media
Avoiding Untrusted Devices . . . . . . . . . . . . 124
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Mirrors
Automatic Dimming . . . . . . . . . . . . . . . . . . . . 23
Automatic Dimming Rearview . . . . . . . . . . 23
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 23
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . .23
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 216
Monitor System, Tire Pressure . . . . . . . . . . . 275
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . .124

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
348 Index
N
NavigationConnected Services . . . . . . . . . . . . . . . . . . . . 339
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Using the System . . . . . . . . . . . . . . . . . . . . . . 129
Navigation Symbols . . . . . . . . . . . . . . . . . . . . . . 132
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . .75
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 199
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Engine Oil Life System . . . . . . . . . . . . . . . . . 244
Engine Oil Pressure Gauge . . . . . . . . . . . . . . 87
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Older Children, Restraints . . . . . . . . . . . . . . . . . 58
Online Owner Center . . . . . . . . . . . . . . . . . . . . 325
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
OnStar Additional Information . . . . . . . . . . . 335
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 335
OnStar Overview . . . . . . . . . . . . . . . . . . . . . . . . . 334
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 335
OnStar System . . . . . . . . . . . . . . . . . . . . . . 128, 138 Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 252
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 4
P
ParkShifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 204
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Over Things That Burn . . . . . . . . . . . . . . . . . 205
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . . . . . . 224
Passenger Airbag Status Indicator . . . . . . . . . 90
Passenger Compartment Air Filter . . . . . . . 179
Passenger Sensing System . . . . . . . . . . . . . . . . .53
Perchlorate Materials Requirements, California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Performance Data Recorder (PDR) . . . . . . . . 146
Performance Shifting Light . . . . . . . . . . . . . . . . 94
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Phone
Apple CarPlay and Android Auto . . . . . . . 154
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 150, 151
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Positioning Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Protection, Battery . . . . . . . . . . . . . . . . . . . . . . 113
Retained Accessory (RAP) . . . . . . . . . . . . . . 203
Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 35
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . 45
Privacy
Vehicle Data Recording . . . . . . . . . . . . . . . . 332
Problems with Route Guidance . . . . . . . . . . 139
Program Courtesy Transportation . . . . . . . . . . . . . . . 328
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . 230
Proposition 65 Warning, California . . . . . . . . . . . . . . . . . . . . .235, 255, 291, Back Cover
Publication Ordering Information . . . . . . . . 330
