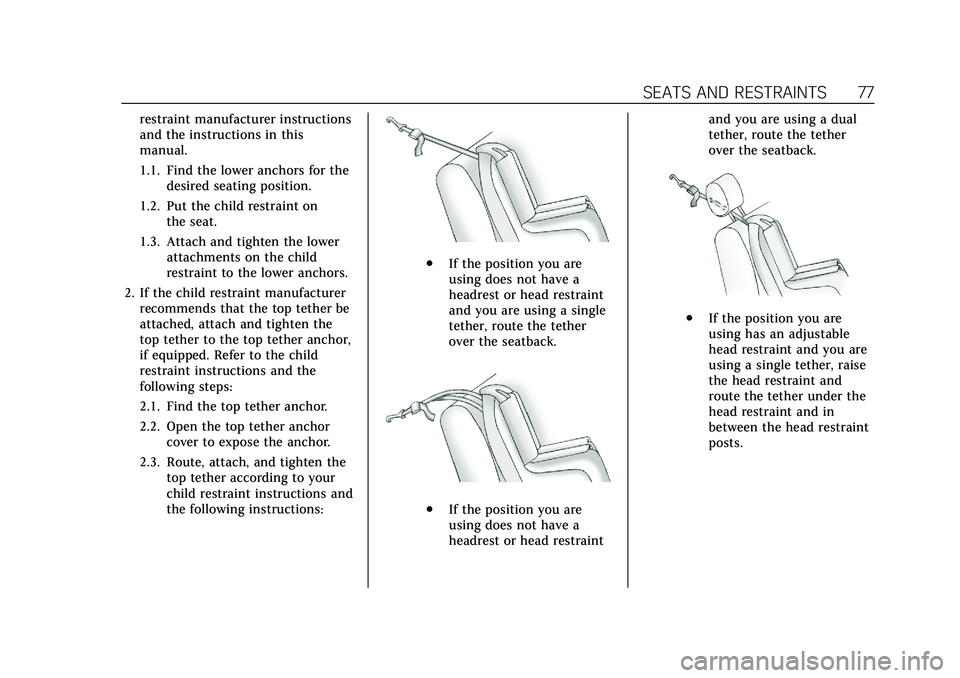

SEATS AND RESTRAINTS 77
restraint manufacturer instructions
and the instructions in this
manual.
1.1. Find the lower anchors for thedesired seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower attachments on the child
restraint to the lower anchors.
2. If the child restraint manufacturer recommends that the top tether be
attached, attach and tighten the
top tether to the top tether anchor,
if equipped. Refer to the child
restraint instructions and the
following steps:
2.1. Find the top tether anchor.
2.2. Open the top tether anchor cover to expose the anchor.
2.3. Route, attach, and tighten the top tether according to your
child restraint instructions and
the following instructions:
.If the position you are
using does not have a
headrest or head restraint
and you are using a single
tether, route the tether
over the seatback.
.If the position you are
using does not have a
headrest or head restraint and you are using a dual
tether, route the tether
over the seatback.
.If the position you are
using has an adjustable
head restraint and you are
using a single tether, raise
the head restraint and
route the tether under the
head restraint and in
between the head restraint
posts.
