Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-14584312) -
2021 - CRC - 11/23/20

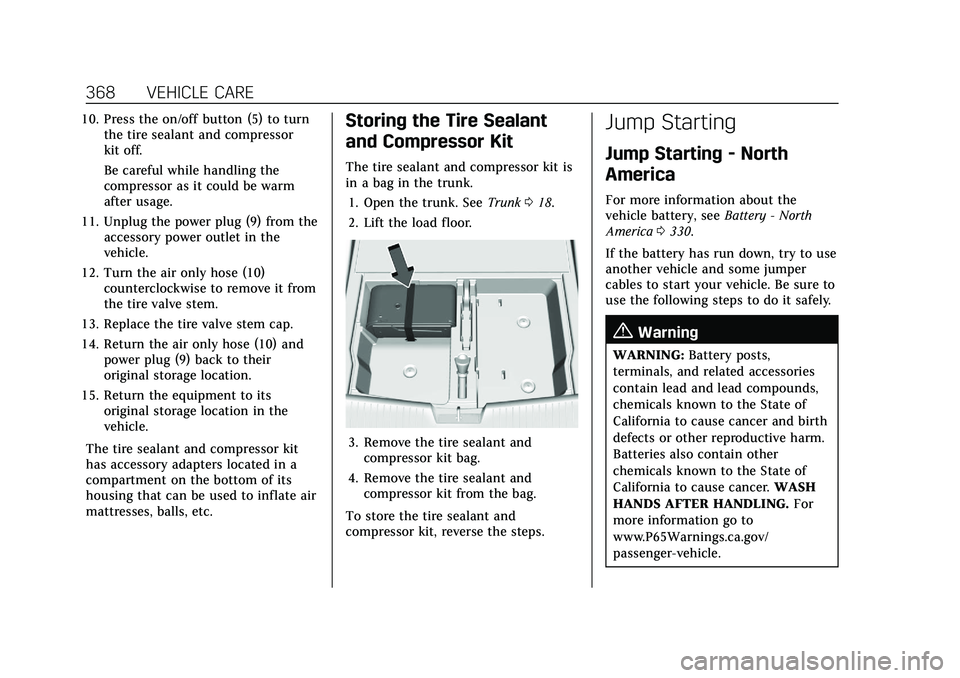

368 VEHICLE CARE
10. Press the on/off button (5) to turnthe tire sealant and compressor
kit off.
Be careful while handling the
compressor as it could be warm
after usage.
11. Unplug the power plug (9) from the accessory power outlet in the
vehicle.
12. Turn the air only hose (10) counterclockwise to remove it from
the tire valve stem.
13. Replace the tire valve stem cap.
14. Return the air only hose (10) and power plug (9) back to their
original storage location.
15. Return the equipment to its original storage location in the
vehicle.
The tire sealant and compressor kit
has accessory adapters located in a
compartment on the bottom of its
housing that can be used to inflate air
mattresses, balls, etc.Storing the Tire Sealant
and Compressor Kit
The tire sealant and compressor kit is
in a bag in the trunk. 1. Open the trunk. See Trunk018.
2. Lift the load floor.
3. Remove the tire sealant and compressor kit bag.
4. Remove the tire sealant and compressor kit from the bag.
To store the tire sealant and
compressor kit, reverse the steps.
Jump Starting
Jump Starting - North
America
For more information about the
vehicle battery, see Battery - North
America 0330.
If the battery has run down, try to use
another vehicle and some jumper
cables to start your vehicle. Be sure to
use the following steps to do it safely.
{Warning
WARNING: Battery posts,
terminals, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Batteries also contain other
chemicals known to the State of
California to cause cancer. WASH
HANDS AFTER HANDLING. For
more information go to
www.P65Warnings.ca.gov/
passenger-vehicle.
Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-14584312) -
2021 - CRC - 11/23/20
424 INDEX
CheckEngine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 103
Child Restraints Infants and Young Children . . . . . . . 67
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . . . . . 72
Older Children . . . . . . . . . . . . . . . . . . . . . 65
Securing . . . . . . . . . . . . . . . . . . . . . . . . 78, 80
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 334
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . 372
Interior Care . . . . . . . . . . . . . . . . . . . . . . 377
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . . . . . 202
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Cluster, Instrument . . . . . . . . . . . . . . 94, 96
Collision Damage Repair . . . . . . . . . . . 408
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Competitive Driving Mode . . . . . . . . . 247
Composite Materials . . . . . . . . . . . . . . . . 223
Compressor Kit, Tire Sealant . . . . . . . 362
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . 420
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 421 Connected Services (cont'd)
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 419
Connections Connected Services . . . . . . . . . . . . . . . 420
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Control of a Vehicle . . . . . . . . . . . . . . . . 210
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . 143
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . 26
Coolant Engine TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . 100, 101
Engine Temperature Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Cooling System . . . . . . . . . . . . . . . . . . . . . 322
Cornering Lamps . . . . . . . . . . . . . . . . . . . 136
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . 136
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Coverage Explanations . . . . . . . . . . . . . 169
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 249 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Cruise Control, Adaptive . . . . . . . . . . . 251
Cruise Control, Super . . . . . . . . . . . . . . . 260
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Customer Assistance . . . . . . . . . . . . . . . 403
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Text Telephone (TTY) Users . . . . . 403
Customer Information Publications OrderingInformation . . . . . . . . . . . . . . . . . . . . . . 410
Customer Satisfaction
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . 412
D
Damage Repair, Collision . . . . . . . . . . . 408
Danger, Warning, and Caution . . . . . . . . 2
Data Collection Infotainment System . . . . . . . . . . . . . 413
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Data Recorders, Event . . . . . . . . . . . . . . 412
Database Coverage
Explanations . . . . . . . . . . . . . . . . . . . . . . 169
Daytime Running Lamps (DRL) . . . 134
Defensive Driving . . . . . . . . . . . . . . . . . . . 210
Delayed Locking . . . . . . . . . . . . . . . . . . . . . 17
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Diagnostics Connected Services . . . . . . . . . . . . . . . 421
Differential, Limited-Slip . . . . . . . . . . . 249
Distracted Driving . . . . . . . . . . . . . . . . . . 209
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 136
