2021 BUICK ENCORE navigation system

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
296 OnStar
Reactivation for Subsequent Owners
PressQand follow the prompts to speak to
an Advisor as soon as possible. The Advisor
will update vehicle records and explain
OnStar or connected service options.
How OnStar Service Works
Automatic Crash Response, Emergency
Services, Crisis Assist, Stolen Vehicle
Assistance, Remote Services, and Roadside
Assistance are available on most vehicles.
Not all OnStar services are available
everywhere or on all vehicles. For more
information, a full description of OnStar
services, system limitations, and OnStar User
Terms, Privacy Statement, and Software
Terms:
.Call 1-888-4ONSTAR (1-888-466-7827).
.See www.onstar.com (U.S.).
.See www.onstar.ca (Canada).
.Call TTY 1-877-248-2080.
.PressQto speak with an Advisor.
OnStar or connected services cannot work
unless the vehicle is in a place where OnStar
has an agreement with a wireless service
provider for service in that area. The
wireless service provider must also have
coverage, network capacity, reception, and technology compatible with OnStar or
connected services. Service involving location
information about the vehicle cannot work
unless GPS signals are available,
unobstructed, and compatible with the
OnStar hardware. OnStar or connected
services may not work if the OnStar
equipment is not properly installed or it has
not been properly maintained. If equipment
or software is added, connected,
or modified, OnStar or connected services
may not work. Other problems beyond the
control of OnStar
—such as hills, tall
buildings, tunnels, weather, electrical system
design and architecture of the vehicle,
damage to the vehicle in a crash, or wireless
phone network congestion or jamming —
may prevent service.
See Radio Frequency Statement 0290.
Services for People with Disabilities
Advisors provide services to help with
physical disabilities and medical conditions.
Press
Qto help:
.Locate a gas station with an attendant to
pump gas.
.Find a hotel, restaurant, etc., that meets
accessibility needs.
.Provide directions to the closest hospital
or pharmacy in urgent situations.
TTY Users
OnStar has the ability to communicate to
deaf, hard-of-hearing, or speech-impaired
customers while in the vehicle. The available
dealer-installed TTY system can provide
in-vehicle access to all OnStar services,
except Virtual Advisor and OnStar
Turn-by-Turn Navigation.
If equipped, TTY mode can be turned on or
off by touching Settings, then Apps, and
then Phone. When TTY mode is on, phone
calls can be made or received with OnStar
using the infotainment display.
OnStar Personal Identification
Number (PIN)
A PIN is needed to access some OnStar
services. The PIN will need to be changed
the first time when speaking with an
Advisor. To change the OnStar PIN, contact
an OnStar Advisor by pressing
Qor calling
1-888-4ONSTAR.
Warranty
OnStar equipment may be warranted as part
of the vehicle warranty.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
OnStar 297
Languages
The vehicle can be programmed to respond
in multiple languages. Press
Qand ask for
an Advisor. Advisors are available in English,
Spanish, and French. Available languages
may vary by country.
Potential Issues
OnStar cannot perform Remote Door Unlock
or Stolen Vehicle Assistance after the vehicle
has been off continuously for 10 days
without an ignition cycle. If the vehicle has
not been started for 10 days, OnStar can
contact Roadside Assistance or a locksmith
to help gain access to the vehicle.
Global Positioning System (GPS)
.Obstruction of the GPS can occur in a
large city with tall buildings; in parking
garages; around airports; in tunnels and
underpasses; or in an area with very
dense trees. If GPS signals are not
available, the OnStar system should still
operate to call OnStar. However, OnStar
could have difficulty identifying the exact
location.
.In emergency situations, OnStar can use
the last stored GPS location to send to
emergency responders. A temporary loss of GPS can cause loss of
the ability to send a Turn-by-Turn
Navigation route. The Advisor may give a
verbal route or may ask for a call back after
the vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for OnStar to
send remote signals to the vehicle. Do not
place items over or near the antenna to
prevent blocking cellular and GPS signal
reception.
Unable to Connect to OnStar Message
If there is limited cellular coverage or the
cellular network has reached maximum
capacity, this message may come on. Press
Qto try the call again or try again after
driving a few miles into another
cellular area.
Vehicle and Power Issues
OnStar services require a vehicle electrical
system, wireless service, and GPS satellite
technologies to be available and operating
for features to function properly. These
systems may not operate if the battery is
discharged or disconnected.
Add-on Electrical Equipment
The OnStar system is integrated into the
electrical architecture of the vehicle. Do not
add any electrical equipment. See Add-On
Electrical Equipment 0200. Added electrical
equipment may interfere with the operation
of the OnStar system and cause it to not
operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the vehicle
without further notice or consent. These
updates or changes may enhance or
maintain safety, security, or the operation
of the vehicle or the vehicle systems.
Software updates or changes may affect or
erase data or settings that are stored in the
vehicle, such as saved navigation
destinations or pre-set radio stations.
Neither OnStar nor GM is responsible for
any affected or erased data or settings.
These updates or changes may also collect
personal information. Such collection is
described in the OnStar privacy statement or
separately disclosed at the time of
installation. These updates or changes may
also cause a system to automatically
communicate with GM servers to collect
information about vehicle system status,

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
Connected Services 299
Connected Services
Connected Services
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Connected Services
Navigation
Navigation requires a specific OnStar or
connected service plan.
Press
Qto receive Turn-by-Turn directions
or have them sent to the vehicle’s
navigation screen, if equipped.
Turn-by-Turn Navigation
1. PressQto connect to an Advisor.
2. Request directions to be downloaded to the vehicle.
3. Follow the voice-guided commands.
Using Voice Commands During a
Planned Route
Functionality of the Voice Command button,
if equipped, may vary by vehicle and region.
For some vehicles, press
=to open the
OnStar app on the infotainment display. For
other vehicles press
=as follows.
Cancel Route 1. Press
=. System responds: “OnStar
ready,” then a tone. 2. Say
“Cancel route.” System responds:
“Do you want to cancel directions?”
3. Say “Yes.”System responds: “OK, request
completed, thank you, goodbye.”
Route Preview
1. Press
=. System responds: “OnStar
ready,” then a tone.
2. Say “Route preview.” System responds
with the next three maneuvers.
Repeat
1. Press
=. System responds: “OnStar
ready,” then a tone.
2. Say “Repeat.” System responds with the
last direction given, then responds with
“OnStar ready,” then a tone.
Get My Destination
1. Press
=. System responds: “OnStar
ready,” then a tone.
2. Say “Get my destination.” System
responds with the address and distance
to the destination, then responds with
“OnStar ready,” then a tone.
Send Destination to Vehicle
Directions can be sent to the vehicle’s
navigation screen, if equipped.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
300 Connected Services
PressQ, then ask the Advisor to download
directions to the vehicle’s navigation system,
if equipped. After the call ends, the
navigation screen will provide prompts to
begin driving directions. Routes that are sent
to the navigation screen can only be
canceled through the navigation system.
See www.onstar.com (U.S.) or www.onstar.ca
(Canada).
Connections
The following services help with staying
connected.
For coverage maps, see www.onstar.com
(U.S.) or www.onstar.ca (Canada).
Ensuring Security
.Change the default passwords for the
Wi-Fi hotspot and myBuick mobile
application. Make these passwords
different from each other and use a
combination of letters and numbers to
increase the security.
.Change the default name of the SSID
(Service Set Identifier). This is your
network’s name that is visible to other
wireless devices. Choose a unique name
and avoid family names or vehicle
descriptions. Wi-Fi Hotspot (If Equipped)
The vehicle may have a built-in Wi-Fi
hotspot that provides access to the Internet
and web content at 4G LTE speed. Up to
seven mobile devices can be connected.
A data plan is required. Use the in-vehicle
controls only when it is safe to do so.
1. To retrieve Wi-Fi hotspot information, press
=to open the OnStar app on the
infotainment display, then select Wi-Fi
Hotspot. On some vehicles, touch Wi-Fi
or Wi-Fi Settings on the screen.
2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID), password, and on
some vehicles, the connection type (no
Internet connection, 3G, 4G, 4G LTE), and
signal quality (poor, good, excellent). The
LTE icon shows connection to Wi-Fi. It is
possible that the icon may not illuminate
even though the vehicle has an active
connection.
3. To change the SSID or password, press
Qor call 1-888-4ONSTAR to connect
with an Advisor. On some vehicles, the
SSID and password can be changed in
the Wi-Fi Hotspot menu. After initial set-up, your vehicle’s Wi-Fi
hotspot will connect automatically to your
mobile devices. Manage data usage by
turning Wi-Fi on or off on your mobile
device, by using the myBuick mobile app,
or by contacting an OnStar Advisor. On
some vehicles, Wi-Fi can also be managed
from the Wi-Fi Hotspot menu.
MyBuick Mobile App (If Available)
Download the myBuick mobile app to
compatible Apple and Android smartphones.
Buick users can access the following services
from a smartphone:
.Remotely start/stop the vehicle,
if factory-equipped.
.Lock/unlock doors, if equipped with
automatic locks.
.Activate the horn and lamps.
.Check the vehicle’s fuel level, oil life,
or tire pressure, if factory-equipped with
the Tire Pressure Monitor System.
.Send destinations to the vehicle.
.Locate the vehicle on a map (U.S.
market only).
.Turn the vehicle's Wi-Fi hotspot on/off,
manage settings, and monitor data
consumption, if equipped.
.Locate a dealer and schedule service.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20

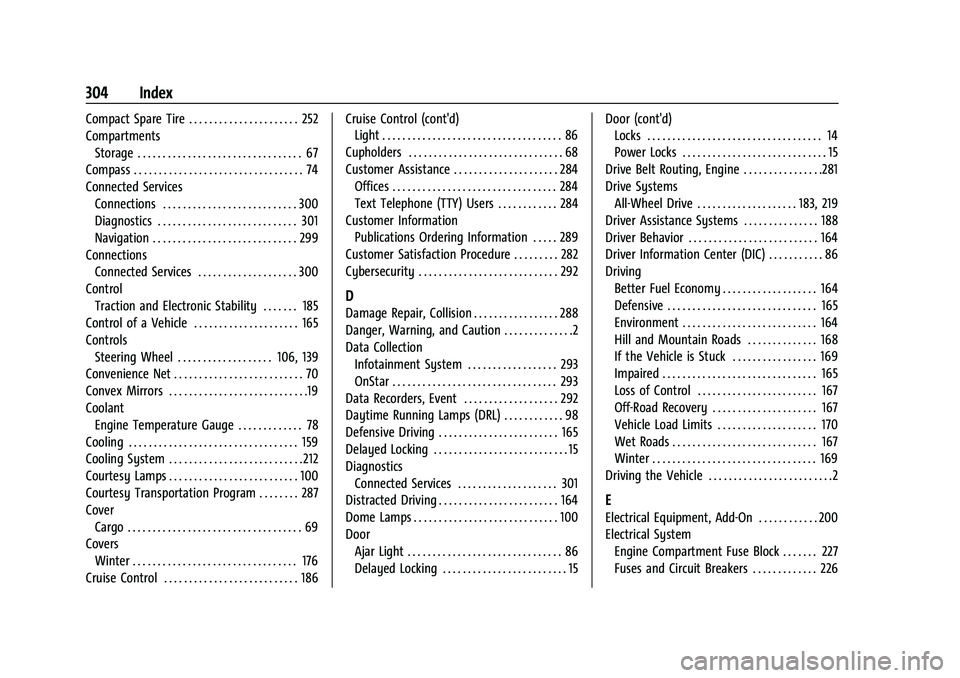

304 Index
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 252
CompartmentsStorage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 300
Control
Traction and Electronic Stability . . . . . . . 185
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 165
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . 106, 139
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Coolant
Engine Temperature Gauge . . . . . . . . . . . . . 78
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Courtesy Transportation Program . . . . . . . . 287
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Covers Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Cruise Control (cont'd)
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 284 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Text Telephone (TTY) Users . . . . . . . . . . . . 284
Customer Information
Publications Ordering Information . . . . . 289
Customer Satisfaction Procedure . . . . . . . . . 282
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 288
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 293
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 292
Daytime Running Lamps (DRL) . . . . . . . . . . . . 98
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . 165
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 301
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 164
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 15 Door (cont'd)
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Drive Belt Routing, Engine . . . . . . . . . . . . . . . .281
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . . . . . . . 183, 219
Driver Assistance Systems . . . . . . . . . . . . . . . 188
Driver Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Driver Information Center (DIC) . . . . . . . . . . . 86
Driving
Better Fuel Economy . . . . . . . . . . . . . . . . . . . 164
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Hill and Mountain Roads . . . . . . . . . . . . . . 168
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 169
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 167
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 167
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 170
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Driving the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . .2
E
Electrical Equipment, Add-On . . . . . . . . . . . . 200
Electrical System Engine Compartment Fuse Block . . . . . . . 227
Fuses and Circuit Breakers . . . . . . . . . . . . . 226

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
Index 307
Lights (cont'd)Antilock Brake System (ABS)
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Brake System Warning . . . . . . . . . . . . . . . . . 82
Charging System . . . . . . . . . . . . . . . . . . . . . . . 80
Check Engine (Malfunction Indicator) . . . 81
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 85
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 86
High/Low Beam Changer . . . . . . . . . . . . . . . 97
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Lane Departure Warning . . . . . . . . . . . . . . . . 83
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 85
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 79
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 84
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 16
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . 85
Lower Anchors and Tethers for
Children (LATCH System) . . . . . . . . . . . . . . . . 54
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 26 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 267 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Malfunction Indicator Lamp . . . . . . . . . . . . . . . .81
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .183
Media Avoiding Untrusted Devices . . . . . . . . 113, 144
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Messaging Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Mirrors
Automatic Dimming Rearview . . . . . . . . . . 20
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Mirrors (cont'd)
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 20
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . 20
Monitor System, Tire Pressure . . . . . . . . . . . 239
Multi-band Antenna . . . . . . . . . . . . . . . . . 113, 144
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 299
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . 70
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . . 173
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Engine Oil Life System . . . . . . . . . . . . . . . . . 210
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Older Children, Restraints . . . . . . . . . . . . . . . . . 48
Online Owner Center . . . . . . . . . . . . . . . . . . . . 284
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
OnStar Additional Information . . . . . . . . . . . 295
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 295
