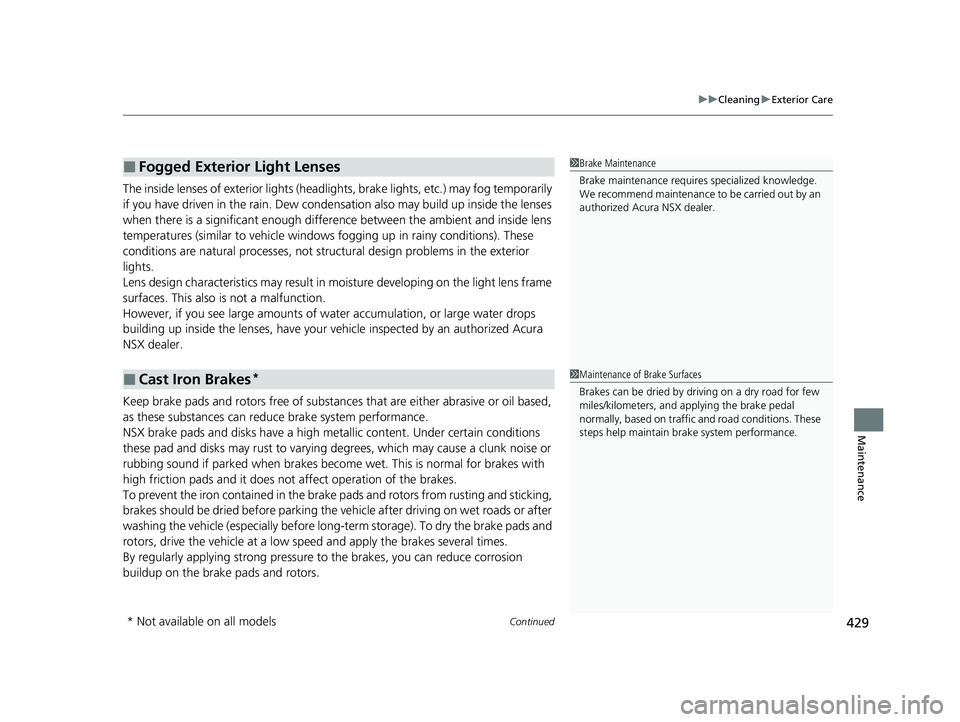

2021 ACURA NSX ECO mode

Continued429
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain. Dew condensation also may build up inside the lenses
when there is a significant enough differe nce between the ambient and inside lens
temperatures (similar to vehicle windows fogging up in rainy conditions). These
conditions are natural processes, not structural design problems in the exterior
lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Acura
NSX dealer.
Keep brake pads and rotors free of substances that are either abrasive or oil based,
as these substances can reduce brake system performance.
NSX brake pads and disks have a high meta llic content. Under certain conditions
these pad and disks may rust to varying degrees, which may cause a clunk noise or
rubbing sound if parked when brakes become wet. This is normal for brakes with
high friction pads and it does not affect operation of the brakes.
To prevent the iron contained in the brake pa ds and rotors from rusting and sticking,
brakes should be dried before parking the ve hicle after driving on wet roads or after
washing the vehicle (especially before long-term storage). To dry the brake pads and
rotors, drive the vehicle at a low sp eed and apply the brakes several times.
By regularly applying str ong pressure to the brakes, you can reduce corrosion
buildup on the brake pads and rotors.
■Fogged Exterior Light Lenses
■Cast Iron Brakes*
1 Brake Maintenance
Brake maintenance require s specialized knowledge.
We recommend maintenance to be carried out by an
authorized Acura NSX dealer.
1 Maintenance of Brake Surfaces
Brakes can be dried by driv ing on a dry road for few
miles/kilometers, and a pplying the brake pedal
normally, based on traffic and road conditions. These
steps help maintain br ake system performance.
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 429 ページ ２０２０年１０月８日　木曜日　午後３時７分

450
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the ENGINE START/STOP button flashes, and the READY
indicator does not come on.
The To Start, Hold Remote Near Start Button message appears on the driver
information interface.
Turn on the power system as follows. 1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the ENGINE START/
STOP button is flashing. The buttons on
the keyless access remo te should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
21 ACURA NSX PMC-31T6N6400.book 450 ページ ２０２０年１０月８日　木曜日　午後３時７分

451
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The ENGINE START/STOP button may be used to turn the power system off due to
an emergency situation even while driving. If you must turn the power system off,
do either of the following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the ENGINE START/STOP button while
driving unless it is absolutely necessary for the power
system to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
21 ACURA NSX PMC-31T6N6400.book 451 ページ ２０２０年１０月８日　木曜日　午後３時７分

477Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see an authorized Acura NSX dealer.
21 ACURA NSX PMC-31T6N6400.book 477 ページ ２０２０年１０月８日　木曜日　午後３時７分

Index
484
Index
Index
Numbers
12-Volt Battery Charging System Indicator ............................................ 79, 456
A
AAC............................................................ 212
ABS (Anti-lock Brake System) ................... 366
Accessories and Modifications ................. 431
Accessory Power Socket ........................... 157
Acoustic Vehicle Alerting System ............ 339
Active Damper System Indicator ................ 78
AcuraLink .................................................. 308
Adding the Coolant .................................. 401
Additives Coolant ........................................... 400, 402
Washer .................................................... 404
Adjusting
Mirrors .................................................... 145
Seats ....................................................... 148
Steering Wheel ........................................ 144
Temperature ............................................ 104
Agile Handling Assist System ................... 354
Air Conditioning System (Climate Control
System) .................................................... 159
Changing the Mode ................................ 160
Defrosting the Windshield and
Windows ....................................... 161, 162
Dust and Pollen Filters.............................. 423
Recirculation/Fresh Air Mode ................... 160 Sensors ................................................... 163
Using Automatic Climate Control ............ 159
Air Pressure ....................................... 412, 473
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
Airbag Care............................................... 60
Driver’s Knee Airbag.................................. 52
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator.............................................. 57, 82
Passenger Airbag Off Indicator .................. 58
Sensors ..................................................... 45
Side Airbags .............................................. 54
Side Curtain Airbags.................................. 56
Android Auto
TM........................................ 223
Anti-lock Brake System (ABS) .................. 366
Indicator.................................................... 82
Apple CarPlay
TM........................................ 220
Audio Remote Controls ........................... 169
Audio System ............................................ 166
Adjusting the Sound................................ 185
Changing the Home Screen Icon Layout .. 174
Closing Apps ........................................... 184
Error Messages ........................................ 227
General Information ................................ 230
Home Screen........................................... 177
iPod ........................................................ 203
Limitations for Manual Operation ............ 187
MP3/WMA/AAC ...................................... 212
Reactivating ............................................ 168 Recommended Devices ........................... 231
Remote Controls ..................................... 169
Security Code ......................................... 168
Selecting an Audio Source ...................... 187
Status Area ............................................. 183
Theft Protection ...................................... 168
USB Flash Drives...................................... 231
USB Ports ................................................ 167
Wallpaper Setup ..................................... 175
Audio/Information Screen ....................... 171
Authorized Manuals ................................ 482
Auto Door Locking/Unlocking ................ 122
Auto Engine Stop/Start .............................. 15
Automatic Brake Hold ............................. 364
Indicator ........................................... 76, 364
Automatic Brake Hold System Indicator ........................................... 76, 364
Automatic Operation (automatic lighting control) ................................................... 136
Average Fuel Economy ............................ 105
Average Speed ......................................... 105
B
Battery
12-Volt ................................................... 421
12-Volt Battery Charging System
Indicator ......................................... 79, 456
Charging (AGM Battery) ......................... 421
High Voltage........................................... 360
21 ACURA NSX PMC-31T6N6400.book 484 ページ ２０２０年１０月８日　木曜日　午後３時７分

488
Index
Gear Position ............................................. 80
High Beam................................................. 85
Immobilizer System .................................... 85
Keyless Access System ............................... 86
Lights On ................................................... 85
Low Fuel .................................................... 81
Low Oil Pressure ........................................ 74
Low Tire Pressure/TPMS ..... 84, 356, 358, 459
Malfunction Indicator Lamp ............... 79, 456
POWER SYSTEM ........................................ 78
READY....................................................... 78
Seat Belt Reminder .............................. 39, 81
Security System Alarm ............................... 86
Supplemental Restraint System ............ 57, 82
System Message ........................................ 84
Transmission System .................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist
TM (VSA®)
System ............................................. 83, 350
VSA ® OFF .......................................... 83, 351
Information ............................................... 471
Instant Fuel Economy ............................... 105
Instrument Panel ........................................ 73
Integrated Dynamics System .................... 340
QUIET Mode ............................................ 343
SPORT Mode ........................................... 343
SPORT+ Mode ......................................... 344
TRACK Mode........................................... 344
Interior Lights ........................................... 153
Interior Rearview Mirror .......................... 145
Inverter Coolant ................................ 402, 473
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 109
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Remote Transmitter ................................. 116
Kickdown (Dual Clutch Transmission) ..... 329
L
Language (HFL)........................................ 276
Launch Control ......................................... 345
Lights ................................................. 135, 405
Automatic Operation (automatic lighting
control) ................................................. 136
Bulb Replacement ................................... 405
Daytime Running Lights........................... 138
High Beam Indicator .................................. 85
Interior .................................................... 153
Light Switches ......................................... 135
Lights On Indicator .................................... 85
Turn Signals ............................................ 134
Load Limits ................................................ 317
Locking/Unlocking .................................... 109
Auto Door Locking/Unlocking.................. 122
From Inside ............................................. 119
From Outside .......................................... 111
Keys ........................................................ 109
Using a Key ............................................. 118 Lockout Prevention System
..................... 118
Low Battery Charge (12-Volt) ................. 456
Low Fuel Indicator ..................................... 81
Low Keyless Access Remote Signal Strength .................................................. 110
Low Oil Level ............................................ 460
Low Oil Pressure Indicator ......................... 74
Luggage (Maximum Load Limit) ............. 317
Lumbar Support ....................................... 149
M
Maintenance............................................ 379
12-Volt Battery ....................................... 421
Brake Fluid .............................................. 404
Cleaning ................................................. 424
Climate Control System .......................... 423
Coolant .......................................... 400, 402
Cooling System ....................................... 400
Inverter Coolant ...................................... 402
Maintenance Minder
TM............................ 383
Oil .......................................................... 395
Precautions ............................................. 380
Remote Transmitter ................................ 422
Replacing Light Bulbs .............................. 405
Safety ..................................................... 381
Service Items ........................................... 386
Tires........................................................ 411
Transmission Fluids ................................. 403
Under the Hood and Hatch ..................... 389
Malfunction Indicator Lamp ............. 79, 456
21 ACURA NSX PMC-31T6N6400.book 488 ページ ２０２０年１０月８日　木曜日　午後３時７分

489
Index
Map Lights................................................ 154
Maximum Load Limit ............................... 317
Meters, Gauges .......................................... 99
Mirrors ...................................................... 145
Adjusting ................................................ 145
Door ....................................................... 146
Exterior ................................................... 146
Interior Rearview ..................................... 145
Modifications (and Accessories) .............. 431
MP3 ........................................................... 212
Multi-View Rear Camera ......................... 373
N
Numbers (Identification)......................... 474
O
Odometer................................................. 104
Oil (Engine) ...................................... 394, 473
Adding ................................................... 398
Checking ................................................ 395
Displaying Oil Life ................................... 384
Low Oil Level Symbol .............................. 460
Low Oil Pressure Indicator ......................... 74
Recommended Engine Oil ............... 394, 473
Viscosity.......................................... 394, 473
Open Source Licenses .............................. 246
Opening
Hatch...................................... 123, 391, 468 Opening/Closing
Hatch .............................................. 123, 391
Hood ....................................................... 392
Power Windows ...................................... 129
Operating the Switches Around the Steering
Wheel ...................................................... 131
Outside Temperature Display .................. 104
Overheating .............................................. 454
P
Paddle Shifters (Sequential Mode) .......... 338
Pandora® ................................................. 210
Panic Mode ............................................... 128
Parking ...................................................... 368
Parking Brake ........................................... 361
Parking Sensor System ............................. 369
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 135
POWER Button .......................................... 131
Power System
Turning on .............................................. 325
POWER SYSTEM Indicator .......................... 78
Power Windows ........................................ 129
Precautions While Driving In Snow and Ice ....................................... 328
Rain ......................................................... 328
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 437
R
Radio (FM)................................................ 192
Radio (SiriusXM ®) ..................................... 196
Radio Data System (RDS) ......................... 195
Range ........................................................ 105
RDS (Radio Data System) ......................... 195
Readiness Codes (Emissions Testing) ....... 477
READY Indicator ......................................... 78
Rear Defogger/Heated Door Mirror Button ..................................................... 140
Rearview Mirror ....................................... 145
Refueling .................................................. 375
Fuel Gauge................................................ 99
Gasoline .......................................... 375, 472
Low Fuel Indicator ..................................... 81
Regenerative Energy and Regenerative Braking ...................................................... 14
Regulations ............................... 358, 414, 475
Remote Transmitter ................................. 116
Replacement Battery .................................................... 422
Bulbs ....................................................... 405
Fuses ....................................... 461, 463, 464
Tires ........................................................ 417
Wiper Blade Rubber ................................ 408
Reporting Safety Defects ......................... 476
Resetting a Trip Meter ............................. 104
Reverse Tilt Door Mirror .......................... 147
Right Selector Wheel ............................... 102
21 ACURA NSX PMC-31T6N6400.book 489 ページ ２０２０年１０月８日　木曜日　午後３時７分
