2020 YAMAHA TRACER 900 light

Instrument and control functions
3-4
3
EAU11061
Neutral in dicator li ght “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11259
Oil level warnin g li ght “ ”
This warning light comes on when the
engine oil level is low. To prevent en-
gine damage, replenish the engine oil
as soon as possible.
Even if the oil level is sufficient, the
warning light may flicker when riding
on a slope or during sudden accelera-
tion or deceleration, but this is not a
malfunction. If a problem is detected in
the oil level detection circuit, the oil lev-
el warning light will flash repeatedly. If
this occurs, have a Yamaha dealer
check the vehicle.TIPWhen the vehicle is turned on, this light
will come on for a few seconds and
then go off. If the light does not come on, or if the light remains on after con-
firming that the oil level is correct (see
page 6-11), have a Yamaha dealer
check the vehicle.
EAU73172
En
gine trou ble warnin g li ght “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system.TIPWhen the vehicle is turned on, the light
will come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
EAU69892
ABS warnin g lig ht “ ”
This warning light comes on when the
vehicle is first turned on, and goes off
after starting riding. If the warning light
comes on while riding, the anti-lock
brake system may not work correctly.
(See page 3-21.)
TIPIf the light does not come at all, or if the
light does not go off after traveling 10
km/h (6 mi/h), have a Yamaha dealer
check the vehicle.
WARNING
EWA16041
If the ABS warning light does not go
off after travelin g at a speed of 10
km/h (6 mi/h) or hi gher, or if the
warnin g lig ht comes on or flashes
while ri din g, the b rake system re-
verts to conventional brakin g. If ei-
ther of the a bove occurs, or if the
warnin g lig ht does not come on at
all, use extra caution to avoi d possi-
b le wheel lock durin g emer gency
b rakin g. Have a Yamaha d ealer
check the brake system an d electri-
cal circuits as soon as possi ble.
EAU73272
Traction control system in dicator
li g ht “ ”
In normal operation, this indicator light
is off. When traction control has en-
gaged, this indicator light will flash for
a few seconds and then go off.
ABS
UB5CE1E0.book Page 4 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-5
3 When the traction control system is
turned off, this indicator light will come
on.
If the traction control system becomes
disabled while riding, or if a problem is
detected in the traction control system,
this indicator light and the engine trou-
ble warning light will come on. (See
page 3-22 for an explanation of the
traction control system.)
EAU73120
Immo
bilizer system in dicator
li g ht “ ”
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will flash steadily to indicate the
immobilizer system is enabled. After 24 hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
if the indicator light remains on, or if the
indicator light flashes in a pattern (if a
problem is detected in the immobilizer
system, the immobilizer system indica-
tor light will flash in a pattern), have a
Yamaha dealer check the vehicle.
TIPIf the immobilizer system indicator light
flashes in the pattern, slowly 5 times
then quickly 2 times, this could be
caused by transponder interference. If
this occurs, try the following. 1. Make sure there are no other im- mobilizer keys close to the main
switch. Other immobilizer system
keys may cause signal interfer-
ence and prevent the engine from
starting. 2. Use the code re-registering key to
start the engine.
3. If the engine starts, turn it off, and try starting the engine with the
standard keys.
4. If one or both of the standard keys do not start the engine, take the
vehicle and all 3 keys to a Yamaha
dealer to have the standard keys
re-registered.
1. Traction control system indicator light “ ”
2. Engine trouble warning light “ ”
1
2
UB5CE1E0.book Page 5 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-8
3

If a problem is detected in the fuel
meter electrical circuit, the fuel
meter will flash repeatedly. If this
occurs, have a Yamaha dealer
check the vehicle.
Eco in dicator
The eco indicator comes on when the
vehicle is being operated in an environ-
mentally friendly, fuel-efficient manner.
The indicator goes off when the vehicle
is stopped.TIPConsider the following tips to reduce
fuel consumption:  Avoid high engine speeds during
acceleration. 
Travel at a constant speed.
 Select the transmission gear that
is appropriate for the vehicle
speed.
Transmission gear display
The transmission gear display shows
the selected gear. This model is
equipped with 6 gears. The neutral po-
sition is indicated by the neutral indica-
tor light “ ” and by the transmission
gear display “ ”. Drive mo
de display
The drive mode display indicates
which drive mode has been selected:
“STD”, “A” or “B”. For more details on
the modes and on how to select them,
see pages 3-17 and 3-19.
1. Eco indicator “ECO”
1
1. Neutral indicator light “ ”
2. Transmission gear display
GEARN
25
A.TEMP °C
Lo
C.TEMP°C
0:00
TIME TRIP
1
2
1. Drive mode display
1
UB5CE1E0.book Page 8 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-13
3
Resetting the maintenance counters
1. Use the select switch to highlight“Maintenance”.
2. Push the menu switch, and then push the “RESET” button to select
the item to reset. 3. While the selected item is flashing,
push the “RESET” button for 2
seconds.
4. Push the menu switch to return to the setting mode menu.
Checking and resetting “TIME–2” and
“TIME–3”1. Use the select switch to highlight “Time Trip”. 2. Push the menu switch to display
“TIME–2” and “TIME–3”. To reset
a time trip, push the “RESET” but-
ton to select the item to reset.
3. While the selected item is flashing, push the “RESET” button for 2
seconds.
4. Push the menu switch to return to the setting mode menu.
Selecting the units
1. Use the select switch to highlight “Unit”.
This function allows you to
change the items shown in
3 information displays.
This function allows you to
adjust the brightness of
the multi-function meter
unit panel.
This function allows you to
set the clock.
This function allows you to
reset all items, except the
odometer and the clock.
DisplayBrightnessClockAll Reset
MENUMaintenanceTime TripUnitDisplayBrightnessClockAll Reset
20
OIL km
10
FREE-1km
10
FREE-2kmMaintenanceMENUMaintenanceTime TripUnitDisplayBrightnessClockAll Reset
TIME-2
0:07
TIME-3
0:07
Time Trip
UB5CE1E0.book Page 13 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-14
3
2. Push the menu switch. The unit setting display will be shown.
TIPKeep kilometers selected: Skip to
step 5.
 Select miles or kilometers: Contin-
ue with step 3.
3. Push the menu switch, then use
the select switch to toggle be-
tween “km” or “mile”, and then
push the menu switch to confirm
the selection.TIPWhen kilometers are selected,
“L/100km” or “km/L” can be set
as the fuel consumption display
units. Continue with step 4.
 When miles are selected, the fuel
consumption display units will be
set to “MPG”. Skip to step 6.4. Use the select switch to move
from “km or mile” to “km/L or
L/100km”. 5. Push the menu switch, then use
the select switch to toggle be-
tween “km/L” and “L/100km”, and
then push the menu switch to
confirm the selection.
6. Use the select switch to highlight “ ”, and then push the
menu switch to return to the set-
ting mode menu.
Selecting the display items
1. Use the select switch to highlight “Display”.
MENUMaintenanceTime TripUnitDisplayBrightnessClockAll ResetUnitkm or mile
km
km/L or L/100km
km/L
Unitkm or mile
km
km/L or L/100km
km/L
Unitkm or mile
km
km/L or L/100km
km/L
UB5CE1E0.book Page 14 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-15
3

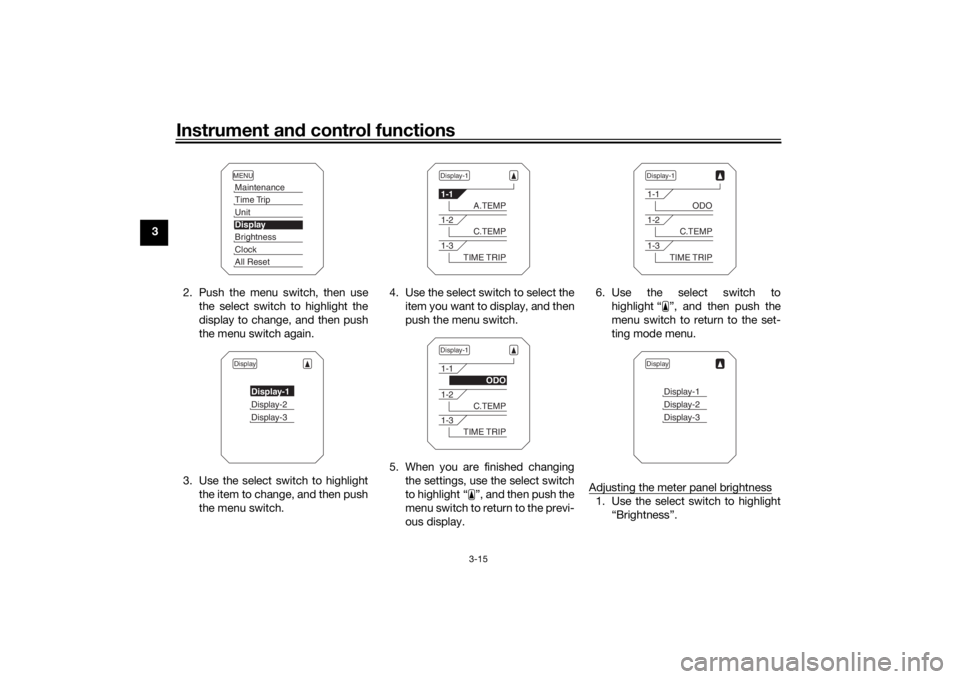

2. Push the menu switch, then usethe select switch to highlight the
display to change, and then push
the menu switch again.
3. Use the select switch to highlight the item to change, and then push
the menu switch. 4. Use the select switch to select the
item you want to display, and then
push the menu switch.
5. When you are finished changing the settings, use the select switch
to highlight “ ”, and then push the
menu switch to return to the previ-
ous display. 6. Use the select switch to
highlight “ ”, and then push the
menu switch to return to the set-
ting mode menu.
Adjusting the meter panel brightness
1. Use the select switch to highlight “Brightness”.
MENUMaintenanceTime TripUnitDisplayBrightnessClockAll ResetDisplay
Display-1Display-2Display-3
Display-11-1
A.TEMP
1-2
C.TEMP
1-3
TIME TRIP
Display-11-1
ODO
1-2
C.TEMP
1-3
TIME TRIP
Display-11-1
ODO
1-2
C.TEMP
1-3
TIME TRIP
Display
Display-1Display-2Display-3
UB5CE1E0.book Page 15 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-16
3
2. Push the menu switch.
3. Use the select switch to select the desired brightness level, and then
push the menu switch to return to
the setting mode menu.
Setting the clock
1. Use the select switch to highlight “Clock”. 2. Push the menu switch.
3. When the hour digits start flash-
ing, use the select switch to set
the hours.
4. Push the menu switch and the minute digits start flashing.
5. Use the select switch to set the minutes. 6. Push the menu switch to return to
the setting mode menu.
Resetting all of the display items
1. Use the select switch to highlight “All Reset”.
2. Push the menu switch.
3. Use the select switch to highlight “YES”, and then push the menu
switch.
MENUMaintenanceTime TripUnitDisplayBrightnessClockAll ResetBrightness
MENUMaintenanceTime TripUnitDisplayBrightnessClockAll ResetClock
5
55
AM
MENUMaintenanceTime TripUnitDisplayBrightnessClockAll ResetAll Reset
YESNO
UB5CE1E0.book Page 16 Monday, August 6, 2018 1:13 PM

Instrument and control functions
3-18
3
EAU1234M
Han dle bar switchesLeft Ri
ght
EAU85531
Dimmer/Pass switch “ / /PASS”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
To flash the high beam, press the
switch down to “PASS” while the
headlights are on low beam.TIPWhen the switch is set to low beam,
only the left headlight comes on.
When the switch is set to high beam,
both headlights come on.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU54212
Stop/Run/Start switch “ / / ”
To crank the engine with the starter,
set this switch to “ ”, and then push
the switch down towards “ ”. See
page 5-1 for starting instructions prior
to starting the engine.
Set this switch to “ ” to stop the en-
gine in case of an emergency, such as
when the vehicle overturns or when the
throttle cable is stuck.
1. Select switch “ / ”
2. Menu switch “MENU”
3. Dimmer/Pass switch “ / /PASS”
4. Turn signal switch “ / ”
5. Horn switch “ ”
2
1
345
1. Stop/Run/Start switch “ / / ”
2. Drive mode switch “MODE”
3. Hazard switch “ ”
1
23
UB5CE1E0.book Page 18 Monday, August 6, 2018 1:13 PM
