Operation and important ri din g points
7-2
7
EAU88770
Startin g the en gineThe ignition circuit cut-off system will
enable starting when the sidestand is
be up.
To start the engine1. With the smart key turned on, ap-
proach the vehicle.
2. Push the “ON/ ” switch and set the engine stop switch to the run
position.
Upon authentication of the smart
key, the beeper will sound twice
and the centerstand and steering
locks (if applied) will be released.
3. Confirm the indicator and warning light(s) come on for a few sec-
onds, and the go off. (See page
5-2.)TIPDo not start the engine if the mal-
function indicator light remains on.
 The ABS warning light should
come on and stay on until the ve-
hicle reaches a speed of 10 km/h
(6 mi/h).
NOTICE
ECA24110
If a warnin g or in dicator li ght does
not work as d escribed a bove, have a
Yamaha dealer check the vehicle.4. Close the throttle completely.
5. While applying the front or rear
brake, push the “ON/ ” switch.
6. Release the “ON/ ” switch when the engine starts, or after 5 sec-
onds. Wait 10 seconds before
pressing the switch again to allow
battery voltage to restore.NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
EAU88780
TIPThis model is equipped with:
 a lean angle sensor. This sensor
stops the engine in case of a vehi-
cle turnover. If this happens, the
malfunction indicator light will
come on, but this is not a malfunc-
tion. Turn the vehicle power off
and then back on again to cancel
the indicator light. Failing to do so
will prevent the engine from start-
ing even though the engine will
crank when pushing the start
switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start
switch to restart the engine.
UB3TE0E0.book Page 2 Tuesday, September 17, 2019 9:35 AM

Operation and important ri din g points
7-4
7
Front
Rear
EAU16821
Tips for re
ducin g fuel con-
sumptionFuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
 Avoid high engine speeds during
acceleration.
 Avoid high engine speeds with no
load on the engine.
 Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU77962
Parkin gWhen parking, turn the vehicle power
off and then turn the smart key off.
If the sidestand is lowered when the
engine is running, the engine will stop
and the beeper will sound to prevent
you from forgetting to turn off the vehi-
cle power. To stop the beeper, turn the
vehicle power off or raise the side-
stand.
When leaving the vehicle, make sure
you apply the steering lock and center-
stand lock. Take the smart key with
you.
UB3TE0E0.book Page 4 Tuesday, September 17, 2019 9:35 AM

Operation and important rid ing points
7-5
7
TIP After parking, if the smart key is
not turned off and is within operat-
ing range, other people may be
able to start the engine and oper-
ate the vehicle.
 The sidestand alarm beeper can
be set to not activate. Contact
your Yamaha dealer.
WARNING
EWA10312
Since the en gine an d exhaust
system can become very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them and b e burne d. 
Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flammab le materials which
mi ght catch fire.
UB3TE0E0.book Page 5 Tuesday, September 17, 2019 9:35 AM

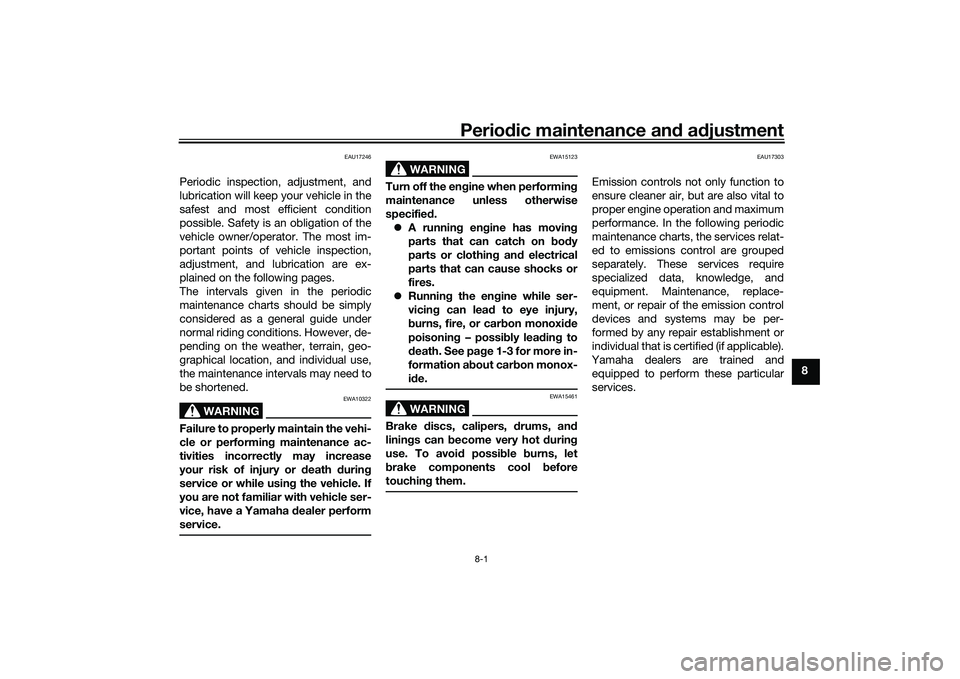

Periodic maintenance an d a djustment
8-1
8
EAU17246
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
WARNING
EWA15123
Turn off the en gine when performin g
maintenance unless otherwise
specified .
 A runnin g en gine has movin g
parts that can catch on b ody
parts or clothin g an d electrical
parts that can cause shocks or
fires.
 Runnin g the eng ine while ser-
vicin g can lead to eye injury,
b urns, fire, or car bon monoxi de
poisonin g – possi bly lea din g to
d eath. See pag e 1-3 for more in-
formation a bout car bon monox-
i d e.
WARNING
EWA15461
Brake discs, calipers, drums, an d
linin gs can b ecome very hot during
use. To avoi d possi ble burns, let
b rake components cool before
touching them.
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replace-
ment, or repair of the emission control
devices and systems may be per-
formed by any repair establishment or
individual that is certified (if applicable).
Yamaha dealers are trained and
equipped to perform these particular
services.
UB3TE0E0.book Page 1 Tuesday, September 17, 2019 9:35 AM

Periodic maintenance an d a djustment
8-3
8
EAU71033
Perio dic maintenance chartsTIP Items marked with an asterisk should be performed by your Yamaha dealer because these items require special tools,
data, and technical skills.
 From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
 The annual checks must be performe d every year, except if a distance- based maintenance is performe d in-
stea d.
EAU71051
Perio dic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line • Check fuel hoses for cracks or
damage.
• Replace if necessary. √√√√√
2 *Spark plu gs • Check condition.
• Adjust gap and clean.
√√
•Replace. √√
3 *Valve clearance • Check and adjust. Every 40000 km (24000 mi)
4 *Fuel injection • Check engine idle speed.
√√√√√√
• Check and adjust synchroniza- tion. √√√√√
5 *Exhaust system • Check for leakage.
• Tighten if necessary.
• Replace gaskets if necessary. √√√√√
UB3TE0E0.book Page 3 Tuesday, September 17, 2019 9:35 AM

Periodic maintenance an d a djustment
8-7
8
21 *Front fork • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
22 *Shock a
bsor ber as-
sem bly • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
23 *Rear suspension re-
lay arm an
d con-
nectin g arm
pivotin g points • Check operation.
√√√√
24 En gine oil • Change (warm engine before
draining).
• Check oil level and vehicle for oil leakage. At the initial interval and when the oil change indicator flashes or
comes on. √
25 En
gine oil filter car-
tri dg e •Replace.
√√√
26 *Coolin g system • Check coolant level and vehicle
for coolant leakage. √√√√√
• Change. Every 3 years
27 *V-belt • Replace. When the V-belt replacement indicator flashes [every 20000 km (12000 mi)]
28 *Front an
d rear
b rake switches • Check operation.
√√√√√√
29 *Movin
g parts an d
ca bles • Lubricate.
√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 4000
0 km
(24000 mi)
UB3TE0E0.book Page 7 Tuesday, September 17, 2019 9:35 AM

Periodic maintenance an d a djustment
8-8
8
EAU72781
TIPAir filters
 The engine air filter uses a disposable oil-coated paper element. This element cannot be cleaned with compressed air,
doing so will only damage it.
 If you often ride in the rain or in dusty areas, have the engine air filter and V-belt air filter elements serviced more fre-
quently.
Hydraulic brake service  Regularly check the brake fluid levels in the reservoirs, and refill as necessary.
 Replace the internal components of the brake master cylinders and calipers, and change the brake fluid every 2 years.
 Replace the brake hoses every 4 years, or sooner if cracked or damaged.30 *Throttle
grip hous-
in g an d cab le • Check operation and free play.
• Adjust the throttle cable free play
if necessary.
• Lubricate the throttle grip housing and cable. √√√√√
31 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)UB3TE0E0.book Page 8 Tuesday, September 17, 2019 9:35 AM

Periodic maintenance an d a djustment
8-11
8
To install the panel
Place the panel in the original position,
and then install the screws.
EAU19643
Checkin
g the spark plu gsThe spark plugs are important engine
components, which should be
checked periodically, preferably by a
Yamaha dealer. Since heat and depos-
its will cause any spark plug to slowly
erode, they should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of each spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally), and all spark plugs installed
in the engine should have the same
color. If any spark plug shows a dis-
tinctly different color, the engine could
be operating improperly. Do not at-
tempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced. Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
1. Screw
2. Panel C
1
2
Specified spark plu g:
NGK/LMAR7G
1. Spark plug gap
Spark plu g g ap:
0.7–0.8 mm (0.028–0.031 in)
Ti ghtenin g torque:
Spark plug: 13 N·m (1.3 kgf·m, 9.6 lb·ft)
