2020 YAMAHA NMAX 125 check engine

Periodic maintenance and adjustment
9-6
9
EAU72790
TIPEngine air filter and V-belt air filter
• This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned
with compressed air to avoid damaging it.
• The engine air filter element needs to be replaced and the V-belt air filter element needs to be serviced more fre-
quently when riding in unusually wet or dusty areas.
Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake fluid
levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
• Replace the brake hoses every four years and if cracked or damaged.
UBALE0E0.book Page 6 Wednesday, September 30, 2020 1:37 PM

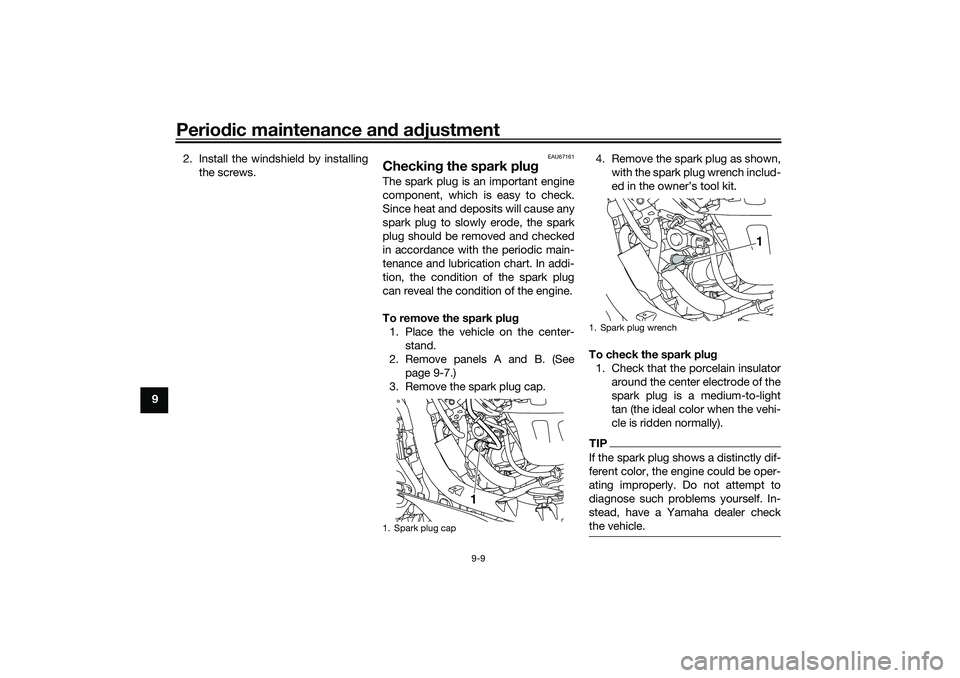

Periodic maintenance and adjustment
9-9
92. Install the windshield by installing
the screws.
EAU67161
Checking the spark plugThe spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic main-
tenance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
To remove the spark plug
1. Place the vehicle on the center-
stand.
2. Remove panels A and B. (See
page 9-7.)
3. Remove the spark plug cap.4. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
1. Spark plug cap
1
1. Spark plug wrench
1
UBALE0E0.book Page 9 Wednesday, September 30, 2020 1:37 PM

Periodic maintenance and adjustment
9-11
9
EAU36112
CanisterThis model is equipped with a canister
to prevent the discharging of fuel vapor
into the atmosphere. Before operating
this vehicle, make sure to check the
following:
Check each hose connection.
Check each hose and canister for
cracks or damage. Replace if
damaged.
Make sure that the canister
breather is not blocked, and if
necessary, clean it.
EAU66994
Engine oil and oil strainerThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil strainer
cleaned at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the engine oil filler
cap, wipe the engine oil dipstick
clean, insert it back into the oil fill-
er hole (without screwing it in), and
then remove it again to check the
oil level. WARNING! The muffler
and muffler protector become
very hot during use. To avoid
possible burns, let the muffler
and protector cool before re-
moving the oil filler cap.
[EWA17810]
TIPThe engine oil should be between the
tip of the dipstick and the maximum
level mark.4. If the engine oil is not between the
tip of the dipstick and the maxi-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
1. Canister
2. Canister breather
2
1
1. Oil filler hole
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Tip of the engine oil dipstick
3245
1
UBALE0E0.book Page 11 Wednesday, September 30, 2020 1:37 PM

Periodic maintenance and adjustment
9-12
9 To change the engine oil and clean
the oil strainer
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and engine oil drain bolts A and B
to drain the oil from the crankcase.
NOTICE: When removing the
engine oil drain bolt B, the O-
ring, compression spring, and
oil strainer will fall out. Take
care not to lose these parts.
[ECAT1022]
4. Clean the engine oil strainer with
solvent, and then check it for
damage and replace it if neces-
sary.
5. Install the engine oil strainer, com-
pression spring, new O-ring and
engine oil drain bolt B.TIPMake sure that the O-ring is properly
seated.
6. Install engine oil drain bolt A and
its new gasket, and then tighten
both drain bolts to their specified
torques.
7. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA24060
Make sure that no foreign material
enters the crankcase.
1. Engine oil drain bolt A
2. Gasket
3. Oil strainer
4. Compression spring
5. O-ring
6. Engine oil drain bolt B
23
4
5
6
1
Tightening torque:
Engine oil drain bolt A:
20 N·m (2.0 kgf·m, 15 lb·ft)
Engine oil drain bolt B:
20 N·m (2.0 kgf·m, 15 lb·ft)
Recommended engine oil:
See page 11-1.
Oil quantity:
0.90 L (0.95 US qt, 0.79 Imp.qt)
UBALE0E0.book Page 12 Wednesday, September 30, 2020 1:37 PM

Periodic maintenance and adjustment
9-13
98. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
9. Turn the engine off, and then
check the oil level and correct it if
necessary.
10. Reset the oil change tripmeter and
oil change indicator “OIL”. (See
page 6-7 for reset procedures.)
EAU85450
Why YamalubeYAMALUBE oil is a Genuine YAMAHA
Part born of the engineers’ passion
and belief that engine oil is an impor-
tant liquid engine component. We form
teams of specialists in the fields of me-
chanical engineering, chemistry, elec-
tronics and track testing, and have
them develop the engine together with
the oil it will use. Yamalube oils take full
advantage of the base oil’s qualities
and blend in the ideal balance of addi-
tives to make sure the final oil clears
our performance standards. Thus,
Yamalube mineral, semisynthetic and
synthetic oils have their own distinct
characters and value. Yamaha’s expe-
rience gained over many years of re-
search and development into oil since
the 1960’s helps make Yamalube the
best choice for your Yamaha engine.
EAU67822
Final transmission oilThe final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair your
motorcycle. In addition, the final trans-
mission oil must be changed as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine and warm up the
final transmission oil by riding the
motorcycle for several minutes.
2. Stop the engine and then place
the motorcycle on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and its O-ring from the fi-
nal transmission case.
UBALE0E0.book Page 13 Wednesday, September 30, 2020 1:37 PM

Periodic maintenance and adjustment
9-15
9
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUN2930
To check the coolant level
1. Place the vehicle on the center-
stand.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
right floorboard mat by pulling it
up.
4. Remove the coolant reservoir cov-
er.5. Remove the coolant reservoir cap,
add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15162]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
1. Maximum level mark
2. Minimum level mark
1. Floorboard mat
1
2
1
1. Coolant reservoir cover
1
UBALE0E0.book Page 15 Wednesday, September 30, 2020 1:37 PM

Periodic maintenance and adjustment
9-16
9 added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
6. Install the coolant reservoir cover.
7. Place the right floorboard mat in
the original position and push it
downward to secure it.
EAU33032
Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic main-
tenance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10382]EAU67174
Air filter and V-belt case air fil-
ter elementsThe air filter element should be re-
placed and the V-belt case air filter el-
ement should be cleaned at the
intervals specified in the periodic main-
tenance and lubrication chart. Service
the air filter elements more frequently if
you are riding in unusually wet or dusty
areas. The air filter check hose and V-
belt case air filter check hose must be
frequently checked and cleaned if nec-
essary.
Cleaning the air filter check hose
1. Coolant reservoir capCoolant reservoir capacity (up to
the maximum level mark):
0.13 L (0.14 US qt, 0.11 Imp.qt)
1
1. Air filter check hose
1
UBALE0E0.book Page 16 Wednesday, September 30, 2020 1:37 PM

Periodic maintenance and adjustment
9-17
91. Check the hose on the rear side of
the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove
the hose from the clamp, clean it,
and then install it.
TIPIf dirt or water was found in the check
hose, be sure to check the air filter ele-
ment for excessive dirt or damage and
replace it if necessary.Replacing the air filter element
1. Place the vehicle on the center-
stand.
2. Remove the air filter case cover by
removing the screws.3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
be operated without the air filter
element installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
NOTICE
ECA21220
The air filter element must be
replaced at the intervals speci-
fied in the periodic maintenance
chart.The air filter element should be
replaced more frequently if you
often ride in the rain or dusty ar-
eas.
The air filter cannot be cleaned
by blowing it with compressed
air. It must be replaced.
5. Install the air filter case cover by
installing the screws.
Cleaning the V-belt case check hose
1. Check the hose on the rear side of
the V-belt case for accumulated
dirt or water.
2. If dirt or water is visible, remove
the hose from the clamp, clean it,
and then install it.
1. Air filter case cover
2. Screw
21
2
2
1. Air filter element
11
1. V-belt case check hose
1
UBALE0E0.book Page 17 Wednesday, September 30, 2020 1:37 PM
