EBU17421
TABLE OF CONTENTS
VEHICLE IDENTIFICATION ............................ 1-1Identification numbers ................................ 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS .............................. 2-1
SAFETY INFORMATION ................................ 3-1
DESCRIPTION................................................ 4-1 Left view ...................................................... 4-1
Right view.................................................... 4-1
Controls and instruments............................ 4-2
INSTRUMENT AND CONTROL
FUNCTIONS ................................................... 5-1 Main switch ................................................. 5-1
Indicator lights and warning lights .............. 5-2
Multi-function display ................................. 5-5
Handlebar switches .................................. 5-11
Throttle lever ............................................. 5-16
Speed limiter ............................................. 5-16
Front brake lever ....................................... 5-17
Brake pedal and rear brake lever .............. 5-17
Drive select lever ....................................... 5-18 Fuel tank cap ............................................ 5-19
Fuel ........................................................... 5-20
Seat .......................................................... 5-21
Storage compartments ............................. 5-22
Front carrier .............................................. 5-26
Rear carrier ............................................... 5-26
Front and rear shock absorbers .............. 5-26
Winch (equipped models) ......................... 5-28
Trailer hitch .............................................. 5-28
Auxiliary DC jack....................................... 5-29
PRE-OPERATION CHECKS .......................... 6-1 Fuel ............................................................. 6-3
Engine oil .................................................... 6-3
Final gear oil ............................................... 6-3
Differential gear oil ...................................... 6-3
Coolant ....................................................... 6-3
Front and rear brakes ................................. 6-3
Throttle lever ............................................... 6-4
Tires ............................................................ 6-4
Chassis fasteners ....................................... 6-8
Instruments, lights and switches ................ 6-8UBDE60E0.book Page 1 Monday, April 22, 2019 4:12 PM

OPERATION ................................................... 7-1Starting the engine ...................................... 7-1
Operating the drive select lever and driving in reverse ....................................... 7-2
Engine break-in ........................................... 7-4
Parking ........................................................ 7-4
Parking on a slope ...................................... 7-5
Accessories and loading ............................. 7-5
RIDING YOUR ATV ........................................ 8-1 GETTING TO KNOW YOUR ATV ................ 8-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 8-2
BE CAREFUL WHERE YOU RIDE ............. 8-10
TURNING YOUR ATV................................ 8-13
CLIMBING UPHILL ................................... 8-14
RIDING DOWNHILL .................................. 8-16
CROSSING A SLOPE................................ 8-18
CROSSING THROUGH SHALLOW WATER .................................................... 8-19
RIDING OVER ROUGH TERRAIN ............. 8-21
SLIDING AND SKIDDING.......................... 8-22
WHAT TO DO IF... ..................................... 8-23
PERIODIC MAINTENANCE AND
ADJUSTMENT................................................ 9-1 Owner’s Manual and tool kit ....................... 9-2 Periodic maintenance chart: Emission
control system .......................................... 9-3
Periodic maintenance chart: General maintenance and lubrication .................... 9-5
Removing and installing panels ................ 9-10
Checking the spark plug........................... 9-18
Engine oil and oil filter cartridge ............... 9-20
Why Yamalube ......................................... 9-24
Final gear oil ............................................. 9-25
Differential gear oil .................................... 9-27
Coolant ..................................................... 9-29
Cleaning the air filter element ................... 9-37
Cleaning the spark arrester ...................... 9-40
V-belt case drain plug............................... 9-41
Adjusting the throttle lever free play ......... 9-42
Valve clearance......................................... 9-42
Brakes....................................................... 9-42
Checking the front and rear brake pads... 9-43
Checking the brake fluid level .................. 9-44
Changing the brake fluid .......................... 9-45
Checking the front and rear brake lever free play .................................................. 9-46
Adjusting the brake pedal free play .......... 9-47
Axle boots................................................. 9-48
Checking and lubricating the cables ........ 9-49
Checking and lubricating the front and rear brake levers ..................................... 9-49UBDE60E0.book Page 2 Monday, April 22, 2019 4:12 PM

4-1
4
EBU17681

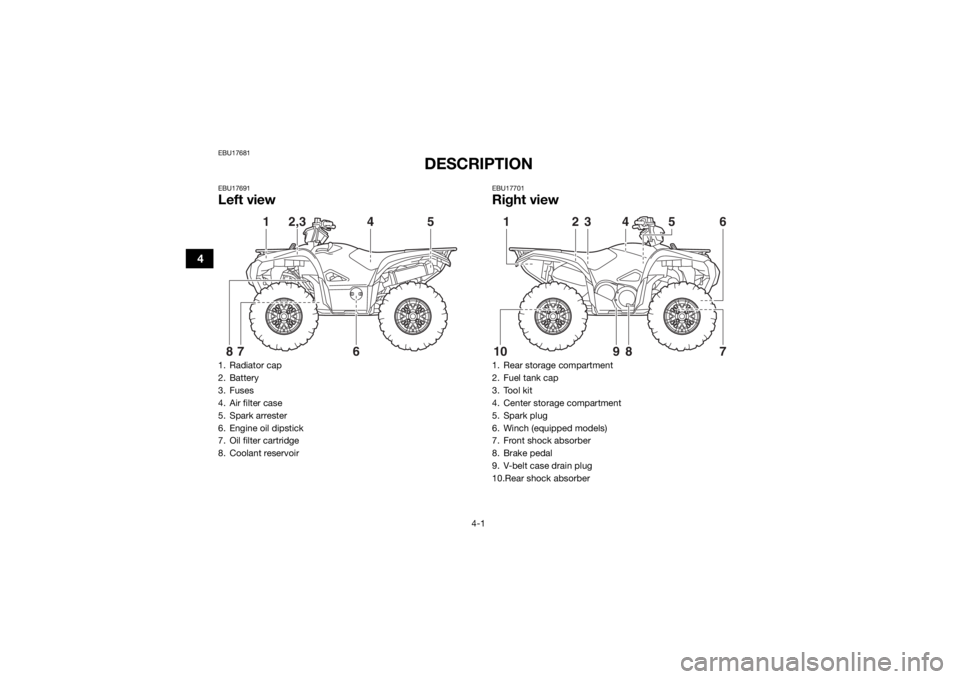

DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
5
1
2,3
4
6
7
8
1. Rear storage compartment
2. Fuel tank cap
3. Tool kit
4. Center storage compartment
5. Spark plug
6. Winch (equipped models)
7. Front shock absorber
8. Brake pedal
9. V-belt case drain plug
10.Rear shock absorber
5
6
1
7
10
2
3
489
UBDE60E0.book Page 1 Monday, April 22, 2019 4:12 PM

5-2
5
EBU26699Indicator lights and warning lights
EBU17992Low-range indicator light “ ”
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17982High-range indicator light “ ”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17861Neutral indicator light “ ”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17831Reverse indicator light “ ”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU38080Park indicator light “ ”
This indicator light comes on when the transmis-
sion is in the park position.EBU27982High beam indicator light “ ”
This indicator light comes on when the high beam
of the headlight is switched on.
1. Differential gear lock indicator light “ ”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “ ”
7. Four-wheel drive icon “ ”
8. Differential gear lock icon “ ”
9. Electric Power Steering warning light “EPS”
10.High beam indicator light “ ”
11.Battery voltage warning light “ ”
12.Coolant temperature warning light “ ”
13.Engine trouble warning light “ ”1
7,8
23456
910111213
UBDE60E0.book Page 2 Monday, April 22, 2019 4:12 PM

5-3
5
EBU38261Battery voltage warning light “ ”
This warning light comes on if the detected battery
voltage is less than 10 volts, or greater than 18
volts.EBU38091Coolant temperature warning light “ ”
This warning light comes on in red when the en-
gine is overheating. If the red light comes on, stop
the vehicle as soon as it is safe to do so and allow
the engine to idle for about 10 minutes. If the
warning light does not go off, stop the engine and
allow it to cool. (See page 9-65.)TIPThe coolant temperature warning light can be
checked by turning the key to “ ” (on). The
warning light should come on in purple briefly and
then go off. If the warning light does not come on
initially when the key is turned to “ ” (on), or if
the warning light remains on, have a Yamaha deal-
er check the vehicle.
NOTICEECB02040The engine may overheat if the vehicle is
overloaded. If this happens, reduce the load
to specification.
 After restarting, make sure that the warning
light is out. Continuous use while this warn-
ing light is on may cause damage to the en-
gine. EBU30483Engine trouble warning light “ ”
This warning light comes on or flashes if a problem
is detected in the electrical circuit monitoring the
engine. When this occurs, the display will indicate
an error code (see page 5-10). Have a Yamaha
dealer check the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
vehicle.
UBDE60E0.book Page 3 Monday, April 22, 2019 4:12 PM

5-7
5Clock, hour meter, voltage display and coolant
temperature display
The clock displays time in 12-hour format. The
hour meter shows the total time the engine has
been running. The voltage display shows the bat-
tery voltage. The coolant temperature display
shows the temperature of the coolant.
Push the “MODE” button to switch between the
clock “CLOCK”, the hour meter “HOUR”, the volt-
age display “VOLT”, and the coolant temperature
display “ ” in the following order: CLOCK
→ HOUR → VOLT → → CLOCK
To set the clock
1. Set the display to the clock.
2. Push both the “SELECT” button and “RE- SET” button for 2 seconds. The hour digits
will start flashing.
3. Push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button, and then release it to start the clock.
1. Clock/Hour meter/Voltage display/Coolant temperature display
2. “MODE” button
3. “SELECT” button
4. “RESET” button1
2
3
4
UBDE60E0.book Page 7 Monday, April 22, 2019 4:12 PM

6-1
6
EBU19203
PRE-OPERATION CHECKS
EBU19226Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel • Check fuel level in fuel tank,
and add recommended fuel if neces-
sary.
• Check fuel line for leakage. Correct if necessary. 5-20, 6-3
Engine oil • Check oil level in engine, and add recommended oil to specified
level if necessary.
• Check ATV for oil leakage. Correct if necessary. 6-3, 9-20
Final gear oil • Check ATV for oil leakage. Correct if necessary. 6-3, 9-25
Differential gear oil • Check ATV for oil leakage. Correct if necessary. 6-3, 9-27
Coolant • Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
• Check cooling system for leakage. Correct if necessary. 6-3, 9-29
UBDE60E0.book Page 1 Monday, April 22, 2019 4:12 PM

6-3
6
EBU38000FuelMake sure there is sufficient gasoline in the tank
before starting off. Refuel if necessary. (See page
5-20.)EBU19561Engine oilMake sure that the engine oil is at the specified
level. Add oil as necessary. (See page 9-20.)EBU19591Final gear oilMake sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 9-25.)EBU19601Differential gear oilMake sure that the differential gear oil is at the
specified level. Add oil as necessary. (See page
9-27.)EBU19632CoolantMake sure that the coolant is at the specified level.
Add coolant as necessary. (See page 9-29.)
TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. EBU29083Front and rear brakesBrake levers and brake pedal
Check that there is no free play in the front and
rear brake levers. If there is free play, have a
Yamaha dealer check the brake system.
 Check for correct free play in the brake pedal. If
the free play is incorrect, adjust it. (See page
9-47.)
 Check the operation of the brake levers and
pedal. They should move smoothly and there
should be a firm feeling when the brakes are ap-
plied. If not, have a Yamaha dealer check the
brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 9-44.)
UBDE60E0.book Page 3 Monday, April 22, 2019 4:12 PM
