2020 VOLKSWAGEN UP! mirror controls

Roof aerial ⇒ Consumer information
High-mounted brake light
Rear window
- Rear window heating ⇒ Heating, ventilating, cooling
Rear wiper ⇒ Windscreen wiper and washer
Tailgate ⇒ Tailgate
Tail light cluster ⇒ Lights⇒ Changing bulbs
Grip with tailgate release button ⇒ Tailgate
Number plate lights ⇒ Changing bulbs
Rear number plate holder
ParkPilot sensors ⇒ ParkPilot
Vehicle interior
Overview of the driver door
Fig. 4 Overview of the controls in the driver door (left-hand drive vehiclesyf7KHFRQWUROVDUH
mirrored in right-hand drive vehicles
Key for ⇒ Fig. 4:
Button for operating the electric window in the driver door ⇒ Windows or stowage
compartment ⇒ Stowage area
Door release lever ⇒ Doors
Indicator lamp for SAFELOCK mechanism ⇒ Central locking system
Rotary knob for adjusting the electrical exterior mirrors ⇒ Mirrors
- Exterior mirror setting
- Exterior mirror heating
Central locking button for locking and unlocking the vehicle ⇒ Central locking
system
Handle for releasing the bonnet ⇒ Preparation for working in the engine compartment
Stowage compartment with drink holder ⇒ Stowage area⇒ Drink holder
Other available control elements
Depending on the level of equipment, the vehicle may have manual windows and/or manual
adjustment of the exterior mirrors ⇒ Mirrors.
Overview of the driver side

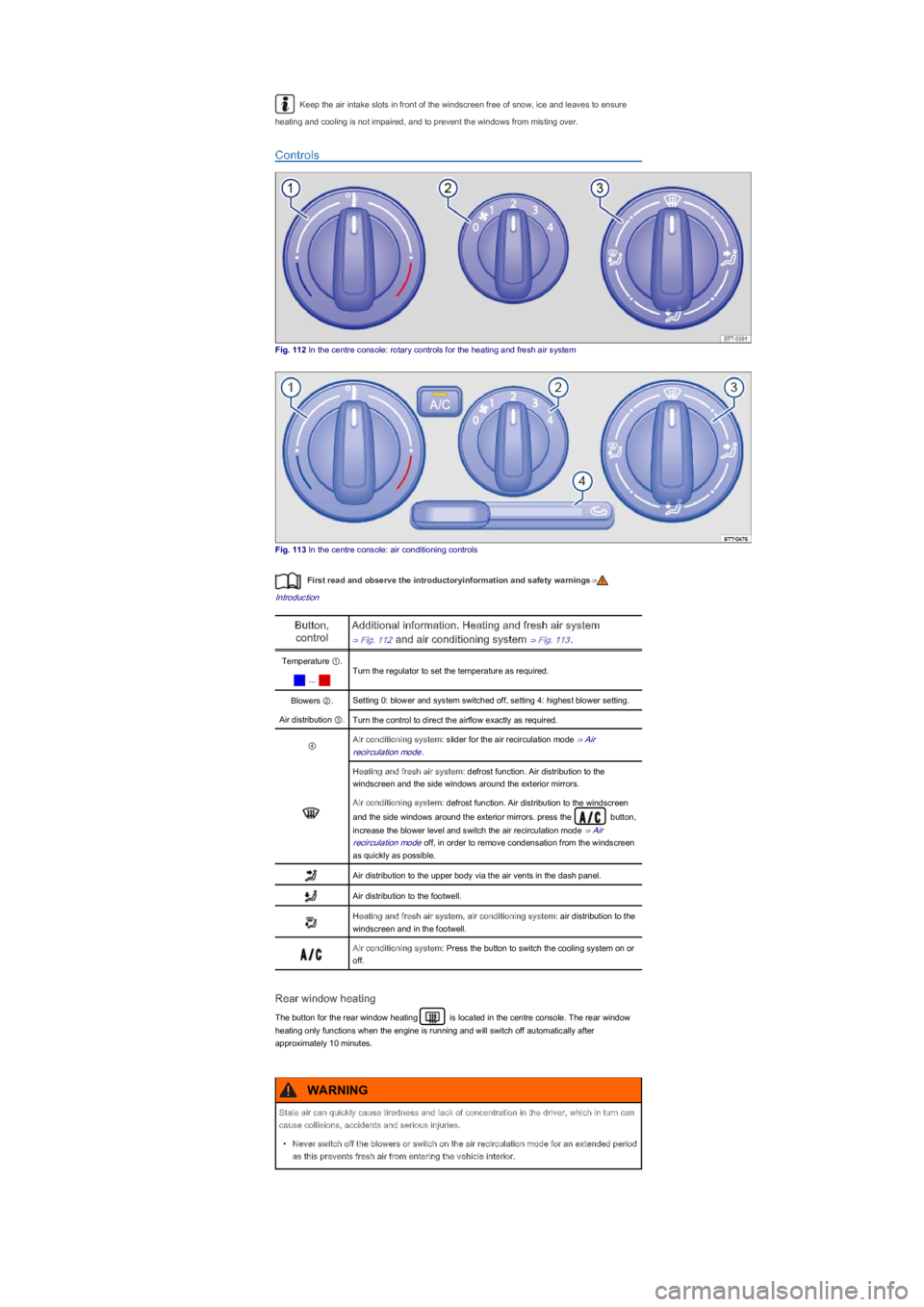

Keep the air intake slots in front of the windscreen free of snow, ice and leaves to ensure
heating and cooling is not impaired, and to prevent the windows from misting over.
Controls
Fig. 112 In the centre console: rotary controls for the heating and fresh air system
Fig. 113 In the centre console: air conditioning controls
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Button,
control
Additional information. Heating and fresh air system
⇒ Fig. 112 and air conditioning system ⇒ Fig. 113.
Temperature ①.
Turn the regulator to set the temperature as required.
 ...
Blowers ②.Setting 0: blower and system switched off, setting 4: highest blower setting.
Air distribution ③.Turn the control to direct the airflow exactly as required.
④Air conditioning system: slider for the air recirculation mode ⇒ Air
recirculation mode.
Heating and fresh air system: defrost function. Air distribution to the
windscreen and the side windows around the exterior mirrors.
Air conditioning system: defrost function. Air distribution to the windscreen
and the side windows around the exterior mirrors. press the button,
increase the blower level and switch the air recirculation mode ⇒ Air
recirculation mode off, in order to remove condensation from the windscreen
as quickly as possible.
Air distribution to the upper body via the air vents in the dash panel.
Air distribution to the footwell.
Heating and fresh air system, air conditioning system: air distribution to the
windscreen and in the footwell.
Air conditioning system: Press the button to switch the cooling system on or
off.
Rear window heating
The button for the rear window heating is located in the centre console. The rear window
heating only functions when the engine is running and will switch off automatically after
approximately 10 minutes.
Stale air can quickly cause tiredness and lack of concentration in the driver, which in turn can
cause collisions, accidents and serious injuries.
