2020 VOLKSWAGEN UP! lock

In some vehicles it is possible to set the screen of the portable navigation device (delivered
by Volkswagenyf ⇒ Accessories, modifications, repairs and renewal of parts to display whether the
tailgate is open or not properly closed.
Opening the tailgate
Fig. 27 In the vehicle key: tailgate release button
Fig. 28 Opening the tailgate from the outside
First read and observe the introductoryinformation and safety warnings⇒
Introduction
It will not be possible to open the tailgate if, for example, bicycles are mounted on a carrier attached
to it ⇒. Remove the load from the carrier and support the open tailgate.
Opening with the central locking system
\f

The windscreen wipers will only function when the ignition is switched on.
The interval wipe for the windscreen depends on the speed of the vehicle. The wipers will
wipe more frequently as the vehicle moves faster.
The rear window wiper is switched on automatically if the front windscreen wipers are
switched on and reverse gear is engaged.
Windscreen wiper functions
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Windscreen wiper response in various situations:
When the vehicle is
stationary:
When switched on, the wipers will temporarily be switched to the next
setting down.
When the interval wipe is
switched on:
The wiper intervals are adjusted depending on the vehicle speed.
The faster the vehicle is travelling, the shorter the interval.
The wiper will try to wipe away any obstacles that are on the windscreen. The wiper will stop
moving if the obstacle blocks its path. Remove the obstacle and switch the wiper back on again.
Service position for the front windscreen wipers
Fig. 67 Wiper blades in service position
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The windscreen wiper arms can be lifted off the windscreen when in the service position ⇒ Fig. 67.
Carry out the following steps to move the windscreen wipers to the service position:
\f

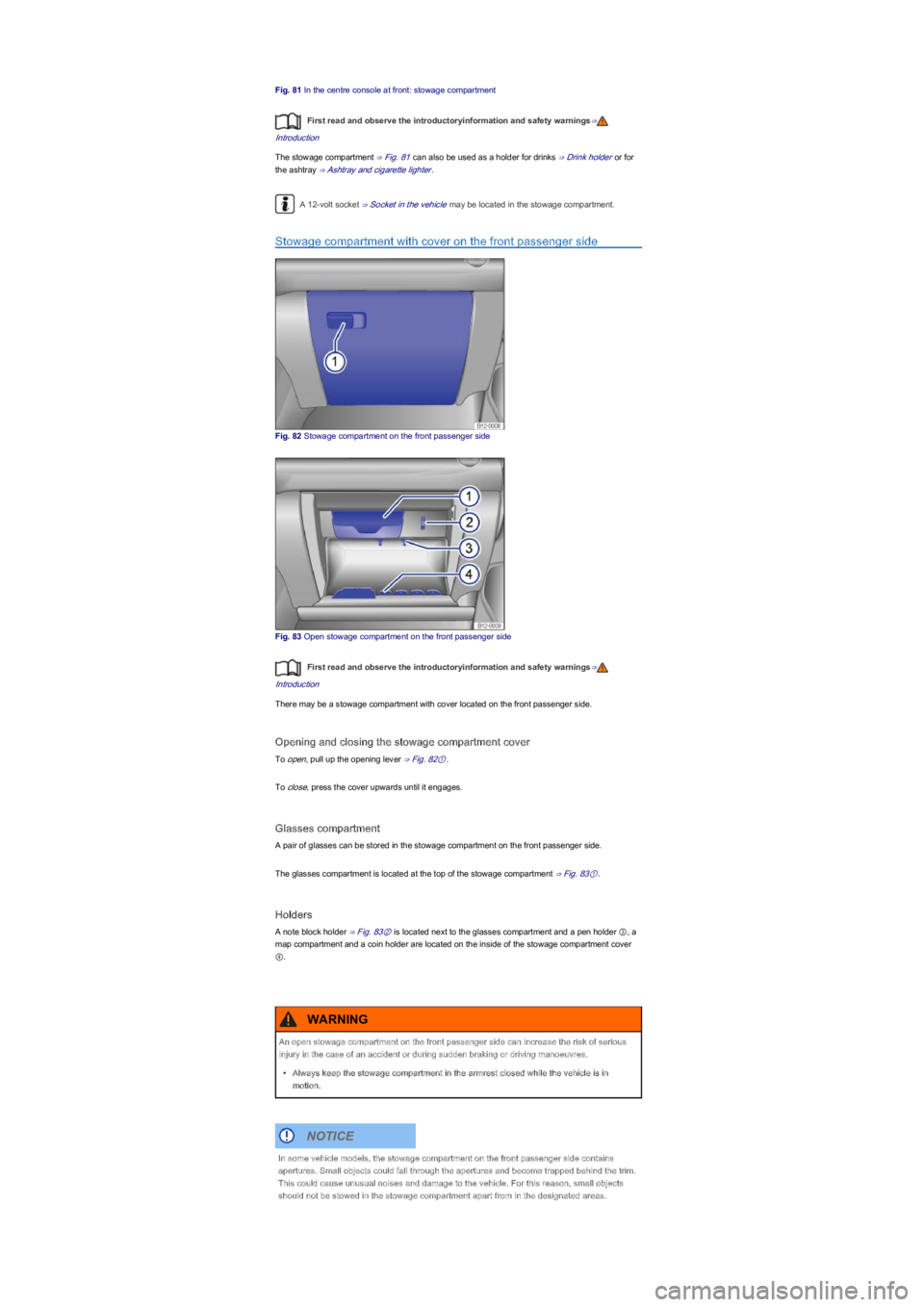

Fig. 81 In the centre console at front: stowage compartment
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The stowage compartment ⇒ Fig. 81 can also be used as a holder for drinks ⇒ Drink holder or for
the ashtray ⇒ Ashtray and cigarette lighter.
A 12-volt socket ⇒ Socket in the vehicle may be located in the stowage compartment.
Stowage compartment with cover on the front passenger side
Fig. 82 Stowage compartment on the front passenger side
Fig. 83 Open stowage compartment on the front passenger side
First read and observe the introductoryinformation and safety warnings⇒
Introduction
There may be a stowage compartment with cover located on the front passenger side.
Opening and closing the stowage compartment cover
To open, pull up the opening lever ⇒ Fig. 82①.
To close, press the cover upwards until it engages.
Glasses compartment
A pair of glasses can be stored in the stowage compartment on the front passenger side.
The glasses compartment is located at the top of the stowage compartment ⇒ Fig. 83①.
Holders
A note block holder ⇒ Fig. 83② is located next to the glasses compartment and a pen holder ③, a
map compartment and a coin holder are located on the inside of the stowage compartment cover
④.
An open stowage compartment on the front passenger side can increase the risk of serious
injury in the case of an accident or during sudden braking or driving manoeuvres.
\f

Starting the engine, changing gear and
parking
Starting and stopping the engine
 Introduction
This chapter contains information on the followingsubjects:
⇒ Ignition lock
⇒ Starting the engine
⇒ Stopping the engine
⇒ Electronic immobilizer
Immobilizer display
If the vehicle key is not valid or there is a fault in the system, then may be displayed in the
instrument cluster. The engine cannot be started ⇒ Electronic immobilizer.
Push-starting or towing
For technical reasons, your vehicle must not be push-started or tow-started. Use jump leads to
start the engine instead.
Additional information and warnings:
\f

Ignition lock
Fig. 93 Vehicle key positions
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The steering lock can be activated when there is no vehicle key in the ignition lock.
Vehicle key positions ⇒ Fig. 93
Ignition switched off. The vehicle key can be removed.
Ignition switched on. The steering lock can be released.
Engine is started. Release the vehicle key as soon as the engine starts. Once released,
the vehicle key moves back to position ①.
If the vehicle key is left in the ignition for a long period with the engine switched off, the
vehicle battery could discharge.
Switching the engine off while the vehicle is moving makes it more difficult to stop the vehicle.
This can lead to loss of control of the vehicle and to accidents and severe injuries.
\f

Starting the engine
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The steps should only be carried out in the specified order.
Manual gearboxAutomated manual gearbox
1.Depress the brake pedal and hold it until
step 5 has been completed.Turn the vehicle key to position ⇒ Fig. 93①.
2.Fully depress the clutch pedal until the
engine has been started.
Depress the brake pedal and hold it until
step 5 has been completed.
3.Shift the gear stick to a neutral position.Place the selector lever in position N.
4.Turn the vehicle key in the ignition lock to position ⇒ Fig. 93② \f

After the engine is switched off, the radiator fan in the engine compartment may run on for
some minutes, even if the ignition is switched off or the vehicle key has been removed. The radiator
fan will switch itself off automatically.
Electronic immobilizer
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The immobilizer helps to prevent the engine from being started and driven with an unauthorised
vehicle key.
There is a chip in the key. It automatically deactivates the immobilizer when the vehicle key is
inserted into the ignition lock.
The electronic immobilizer is automatically activated when the vehicle key is removed from the
ignition lock.
The engine can only be started using a genuine Volkswagen vehicle key with the correct code.
Coded vehicle keys are available from a Volkswagen dealership ⇒ Vehicle key set.
If a non-authorised vehicle key has been used, the display in the instrument cluster will show
. The vehicle cannot be used if this occurs. Remove the non-authorised vehicle key from
the ignition lock and used an authorised vehicle key.
The vehicle cannot be operated properly if you do not have a genuine Volkswagen key.
Changing gear
 Introduction
This chapter contains information on the followingsubjects:
⇒ Warning and indicator lamp
⇒ Pedals
⇒ Manual gearbox: selecting a gear
⇒ Automated manual gearbox: selecting a gear
⇒ Changing gear with Tiptronic
⇒ Driving with an automated manual gearbox
⇒ Fault in the automated manual gearbox
⇒ Gear-change indicator (manual gearboxyf
The following will occur if reverse gear is selected and the ignition is
switched on:
\f

Driving in the correct gear can reduce fuel consumption.
The display on the gear-change indicator will disappear when the clutch pedal is depressed.
In some vehicles the gear recommendation may be displayed on the screen of the portable
navigation device (delivered by Volkswagenyf ⇒ Accessories, modifications, repairs and renewal of
parts.
Braking, stopping and parking
 Introduction
This chapter contains information on the followingsubjects:
⇒ Warning and indicator lamps
⇒ Handbrake
⇒ Parking
⇒ Information on the brakes
⇒ Brake assist systems
⇒ Brake fluid
The brake assist systems are the electronic brake pressure distribution system (EBVyfDQWLORFN
brake system (ABSyfWKHEUDNHDVVLVWV\VWHP%$6\f, the electronic differential lock (EDSyfWUDFWLRQ
control (TCyfWKHWUDFWLRQFRQWUROV\VWHP7&6\f and the electronic stabilisation programme (ESCyf.
Additional information and warnings:
