2020 VAUXHALL COMBO E key

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 44
Storage ........................................ 69
Instruments and controls .............88
Lighting ...................................... 121
Climate control ........................... 130
Driving and operating .................142
Vehicle care ............................... 211
Service and maintenance ..........251
Technical data ........................... 256
Customer information ................266
Index .......................................... 272Contents

6In briefIn briefInitial drive informationVehicle unlocking
Press c to unlock the vehicle. Open
the doors by pulling the handles.
Tailgate
After unlocking, press the tailgate
button and open the tailgate.
Radio remote control 3 21.
Central locking system 3 24.
Electronic key system 3 22.
Load compartment 3 31.
Rear doors 3 30
Sliding door 3 29

18In briefStarting the engineIgnition switch
● turn key to position 1
● move the steering wheel slightly to release the steering wheel lock
● manual transmission: operate clutch and brake pedal
automatic transmission: operate
brake pedal and move selector lever to P or N
● do not operate accelerator pedal
● Diesel engine: wait until control indicator ! for preheating
extinguishes
● turn key to position 2 and release
after engine has been started
Starting the engine 3 145.Start power button
● manual transmission: operate
clutch and brake pedal
● automatic transmission: operate brake pedal and move selectorlever to P or N
● do not operate accelerator pedal
● press Start/Stop button
● release button after starting procedure begins

In brief19Stop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator D.
Manual transmission: to restart the
engine, depress the clutch pedal
again. Control indicator D
extinguishes.
Automatic transmission: to restart the
engine, release the brake pedal.
Control indicator D extinguishes.
Stop-start system 3 147.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P. On an uphill
slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P . Turn the front wheels
towards the kerb.
● Close the windows.
● Switch off the engine.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
● Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 34.
● The engine cooling fans may run
after the engine has been
switched off 3 213.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 20.
Laying-up the vehicle for a long
period of time 3 212.

20Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 20
Keys .......................................... 20
Radio remote control .................21
Electronic key system ................22
Central locking system ..............24
Automatic locking ......................27
Child locks ................................. 27
Doors ........................................... 29
Sliding door ............................... 29
Rear doors ................................. 30
Load compartment ....................31
Vehicle security ............................ 34
Anti-theft locking system ...........34
Anti-theft alarm system ..............34
Immobiliser ................................ 36
Exterior mirrors ............................ 37
Convex shape ........................... 37
Electric adjustment ....................37
Folding mirrors .......................... 37
Heated mirrors ........................... 38
Interior mirrors ............................. 38
Manual anti-dazzle ....................38
Automatic anti-dazzle ................39Child surveillance mirror ............39
Rear view display ......................39
Windows ...................................... 40
Windscreen ............................... 40
Power windows ......................... 40
Rear windows ............................ 42
Heated rear window ..................42
Sun visors .................................. 43
Roller blinds ............................... 43
Roof ............................................. 43
Glass panel ............................... 43Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 247.
Central locking 3 24.
Starting the engine 3 145.
Radio remote control 3 21.
Electronic key 3 22.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 238.

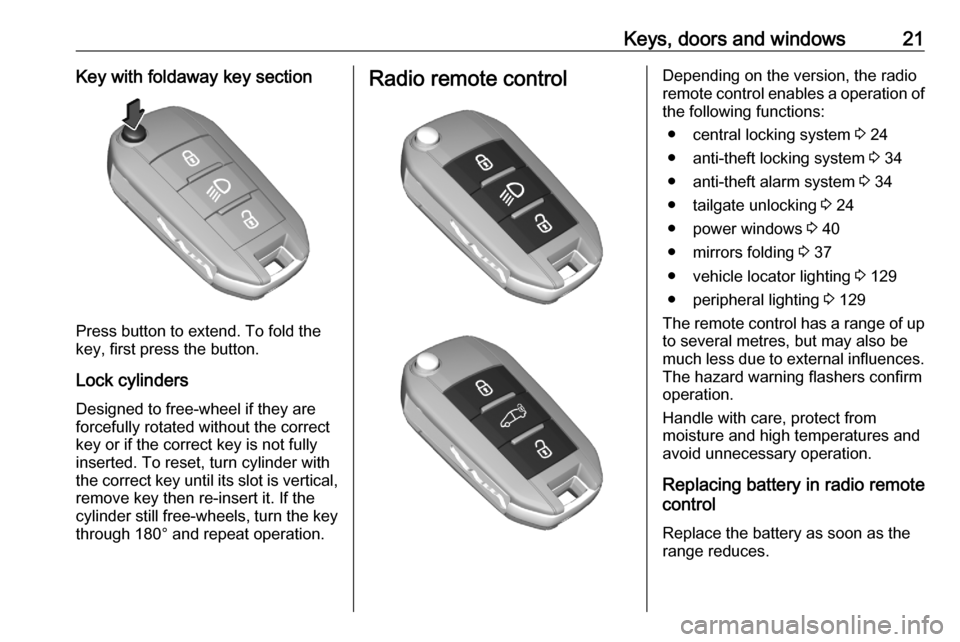

Keys, doors and windows21Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key then re-insert it. If the
cylinder still free-wheels, turn the key
through 180° and repeat operation.
Radio remote controlDepending on the version, the radio
remote control enables a operation of
the following functions:
● central locking system 3 24
● anti-theft locking system 3 34
● anti-theft alarm system 3 34
● tailgate unlocking 3 24
● power windows 3 40
● mirrors folding 3 37
● vehicle locator lighting 3 129
● peripheral lighting 3 129
The remote control has a range of up
to several metres, but may also be
much less due to external influences. The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.

22Keys, doors and windows
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. Remove the back cover from the remote control.
2. Extract the flat battery from its location.
3. Replace battery with a battery ofthe same type. Pay attention to
the installation position.
4. Clip the back cover in place.
Fault
If the central locking system cannot
be operated with the radio remote
control, the cause may be one of the
following:
● Fault in radio remote control.● Electronic key is out of reception range.
● The battery voltage is too low.
● Overload of the central locking system by operating at frequentintervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual unlocking 3 24.Electronic key system

Keys, doors and windows23Depending on the version, the
electronic key system enables a
keyless operation of the following functions:
● central locking system 3 24
● tailgate unlocking
● ignition switching on and starting the engine 3 145
● headlight activation
The electronic key simply needs to be
on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 21.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Notice
To save battery power, the keyless
functions are set to stand-by after 21 days of non-use. To reactivate the
functions, press a button on the
electronic key.Replacing battery in electronic
key
Replace the battery as soon as the
system no longer operates properly
or the range is reduced.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. Remove the cover.
2. Extract the flat battery from its location.
3. Replace battery with a battery of the same type. Pay attention to
the installation position.
4. Clip the cover in place.
Fault
If the central locking cannot be
operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception range.
● The battery voltage is too low. ● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 24.
