2020 TOYOTA SEQUOIA engine

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 33
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) 31
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Intuitive parking assist 33
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Rear seat entertainment system 28
Rear view monitor system 30
Seat adjustments-Front 16
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seat heaters/ventilators 25
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 31
USB charge-ports 26
USB media port 26
Vehicle Stability Control (VSC)
OFF switch 29
Window-Back door 22
Windows-Power 21
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 50-52
Floor mat installation
49
Rear door child safety locks 46
Safety Connect 46
Seat belts 45
Seat belts-Shoulder belt anchor 47
Spare tire & tools 47
Star Safety System
TM 48-49
Tire Pressure Monitoring
(warning) System (TPMS) 45
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 44
Dynamic Radar
Cruise Control (DRCC) 41-43
Lane Departure Alert (LDA) 37-40
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 35-37
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 34
Sensors 34
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

2
OVERVIEWInstrument panel
Meter control switches
Steering wheel controls
Windshield wiper and
washer control
Voice command switch
2
Tire pressure monitor (warning)
system (TPMS) reset switch
“ENGINE START STOP” switch
Outside rear view
mirror controls Audio remote
control switches
2
Telephone switches2
Dynamic Radar
Cruise Control
(DRCC) or cruise
control switch
Vehicle-to-vehicle
distance switch

and
Lane Departure Alert
(LDA) switch
Power tilt and telescopic
steering control switch
1
Parking brake
Hood lock release lever
Personal/interior
light main switch
Power back door button
1
Automatic High Beam (AHB) switch Tilt and telescopic
steering lock release lever
1
(below the steering wheel)
Headlights/turn signals/
fog light control
Meters and
Multi-information display
(MID)

5
Instrument cluster
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
See page 6 for indicator symbols.
Multi-information
display (MID) Outside
temperature
display
Speedometer
Fuel gauge
Odometer
and trip meter
display
Shift position
and shift range
display Voltmeter
Engine oil
pressure gauge
Engine coolant
temperature Odometer/trip meter and
trip meter reset button
Instrument panel
light control Tachometer
Service indicators and reminders

7
Parking brake indicator
Pre-Collision System (PCS)
warning
1,2
Power steering warning1
Malfunction/
Check Engine indicator1
Master warning1,2
Slip indicator1,3
Turn signal indicator
Security indicator
TOW/HAUL mode indicatorTraction Control OFF indicator
1
Low fuel level warning Lane Departure Alert (LDA) indicator
[green/yellow
3 indicator]
Vehicle Stability Control
(VSC) OFF indicator
1
Low outside temperature indicator
Low Tire Pressure Warning
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

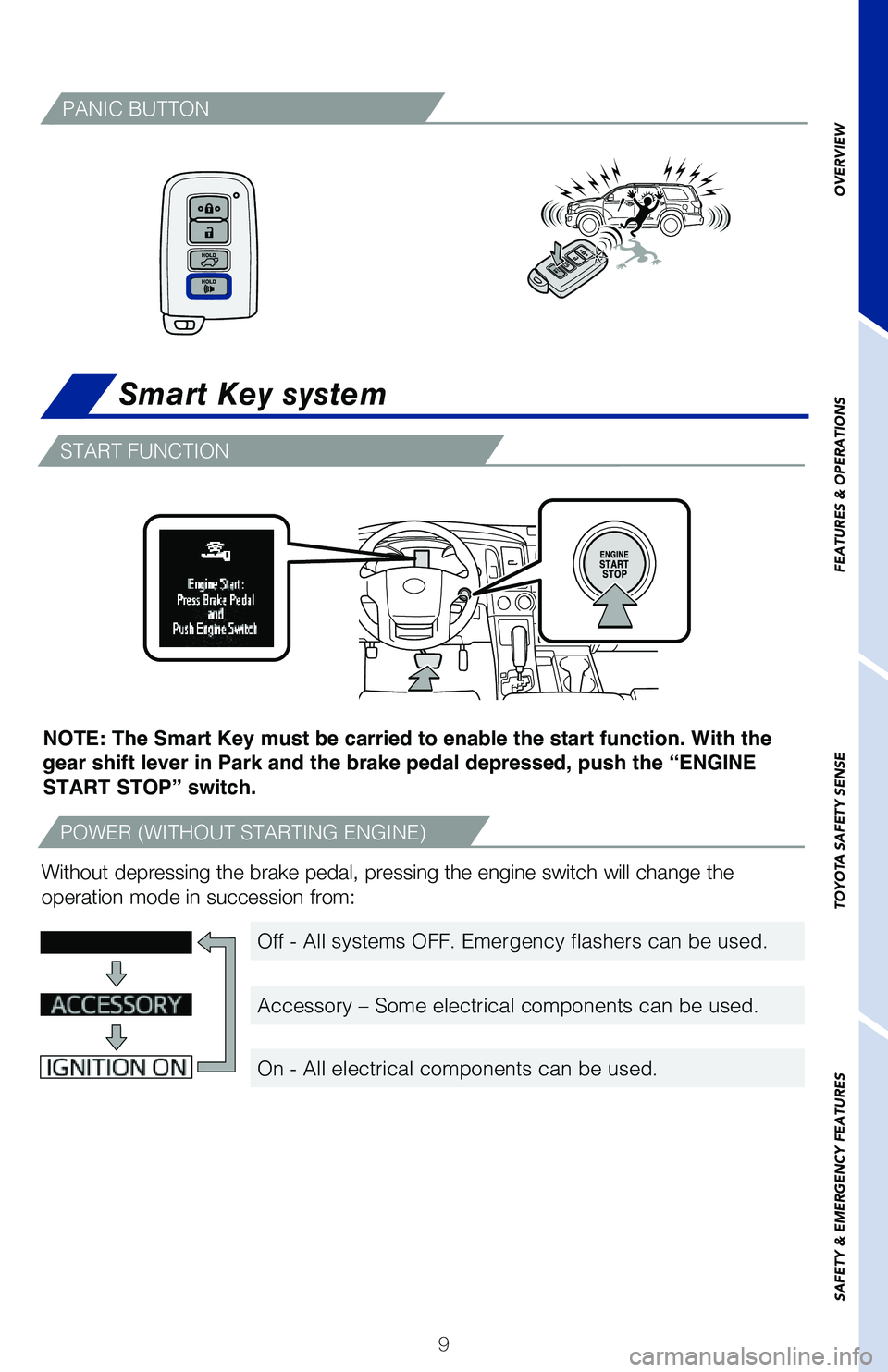

PANIC BUTTON
Without depressing the brake pedal, pressing the engine switch will chan\
ge the
operation mode in succession from:
POWER (WITHOUT STARTING ENGINE)
START FUNCTION
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.

10
OVERVIEW
NOTE: To close, tighten until one click is heard. If the cap is not locked or
tightened, Check Engine “
” indicator may illuminate.
Fuel tank door release & cap
Turn to openStore
Pull
Hood release
Pull up latch
and raise hoodPull

11
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Short press: 1 step change
Long press: continues change Change brightness level
Windshield washer fluid tank Engine oil level dipstick Engine coolant reservoir
Engine oil filler cap
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Instrument panel light control

12
FEATURES & OPERATIONSAutomatic transmission
* The engine switch must be in the “IGNITION ON” mode and the brak\
e pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
Park*
Reverse
Neutral
Drive
“S” mode“S”“D”
“S” (SEQUENTIAL) MODE
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 \
km/h).
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set from “ON” to “ACC”\
or “OFF” within 10 seconds of opening the driver’s door.
Refer to the Owner’s Manual for more details.
