2020 TOYOTA LAND CRUISER display

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
1544. Rear seat entertainment system operation
1Press the knob.
2Turn the knob clockwise to increase
the volume. Turn the knob counter-
clockwise to decrease the volume.
3Press the knob again.
■Communication system
Infrared rays
■Channel (frequency) specification
To listen to the audio of the right side
display
R channel: 3.8 MHz
L channel: 3.2 MHz
To listen to the audio of the left side
display
R channel: 2.8 MHz
L channel: 2.3 MHz
With some headphones generally avail-
able in the market, it may be difficult to
catch signals properly. Toyota recom-
mends the use of Toyota genuine wireless
headphones.
 Contact your Toyota dealer for further
details.
Headphone jacks
Adjust the volume when you connect
the headphones to the jack. Loud
sounds may have a significant impact
on the human body.
No.Function
To use the headphones, connect
them to the jack.
To adjust the volume.
Headphones
To listen to the rear audio, use head-
phones.
Using wireless headphones
The rear audio channels (frequencies)
that are output from the left and right
rear seat displays are different.
When using wireless headphones, use
headphones that comply with the fol-
lowing conditions.

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
Audio/visual system
4
1554. Rear seat entertainment system operation
A caution screen appears for a few sec-
onds when the engine switch is in
ACCESSORY or IGNITION ON mode.
1Press the button.
When the switch is moved to “R”, opera-
tions can be performed on the right screen.
When switch is moved to “L”, operations
can be performed on the left screen.
1Press the button.
To turn off the display, press the but-
ton again.
 While the display is off, some remote con-
trol buttons can be operated.
1Press the “SOURCE” button to display
the audio source selection screen.
Caution screen
Turning the rear display on/off
Changing the display to be
operated
Turning on/off the display
Changing the source
No.Function
Press to display the audio source
selection screen.
Press to select an icon.
Press to input the selected icon.

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
Audio/visual system
4
1574. Rear seat entertainment system operation
WARNING
●While driving
• Do not use headphones. Doing so
may cause an accident, resulting in
death or serious injury.
● To prevent accidents and electric shock
• Do not disassemble or modify the
remote control.
● When the remote control is not used
• Stow the remote control. Injuries may
result in the event of sudden braking,
sudden swerving or an accident.
● Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or startled when you change to a differ-
ent audio source. The louder sounds
may have a significant impact on the
human body or pose a driving hazard.
Keep this in mind when you adjust the
volume.
● Removed battery and other parts:
• Keep away from children. These
parts are small and if swallowed by a
child they can cause choking. Failure
to do so could result in death or seri-
ous injury.
NOTICE
● Cleaning the display
• Wipe the display with a dry soft cloth.
• If the screen is wiped with a rough
cloth, the surface of the screen may
be scratched.
● To prevent damage to the remote control
• Keep the remote control away from
direct sunlight, temperature heat and
high humidity.
• Do not drop or knock the remote con- trol against hard objects.
• Do not sit on or place heavy objects on the remote control.
● For normal operation after replacing the
battery, observe the following precau-
tions to prevent accidents:
• Always work with dry hands. Moisture
may cause the battery to rust.
• Do not touch or move any other com- ponents inside the remote control.
• Do not bend either of the battery ter- minals.

LC200_Navi_OM60R69U_(U)
19.05.29 15:08

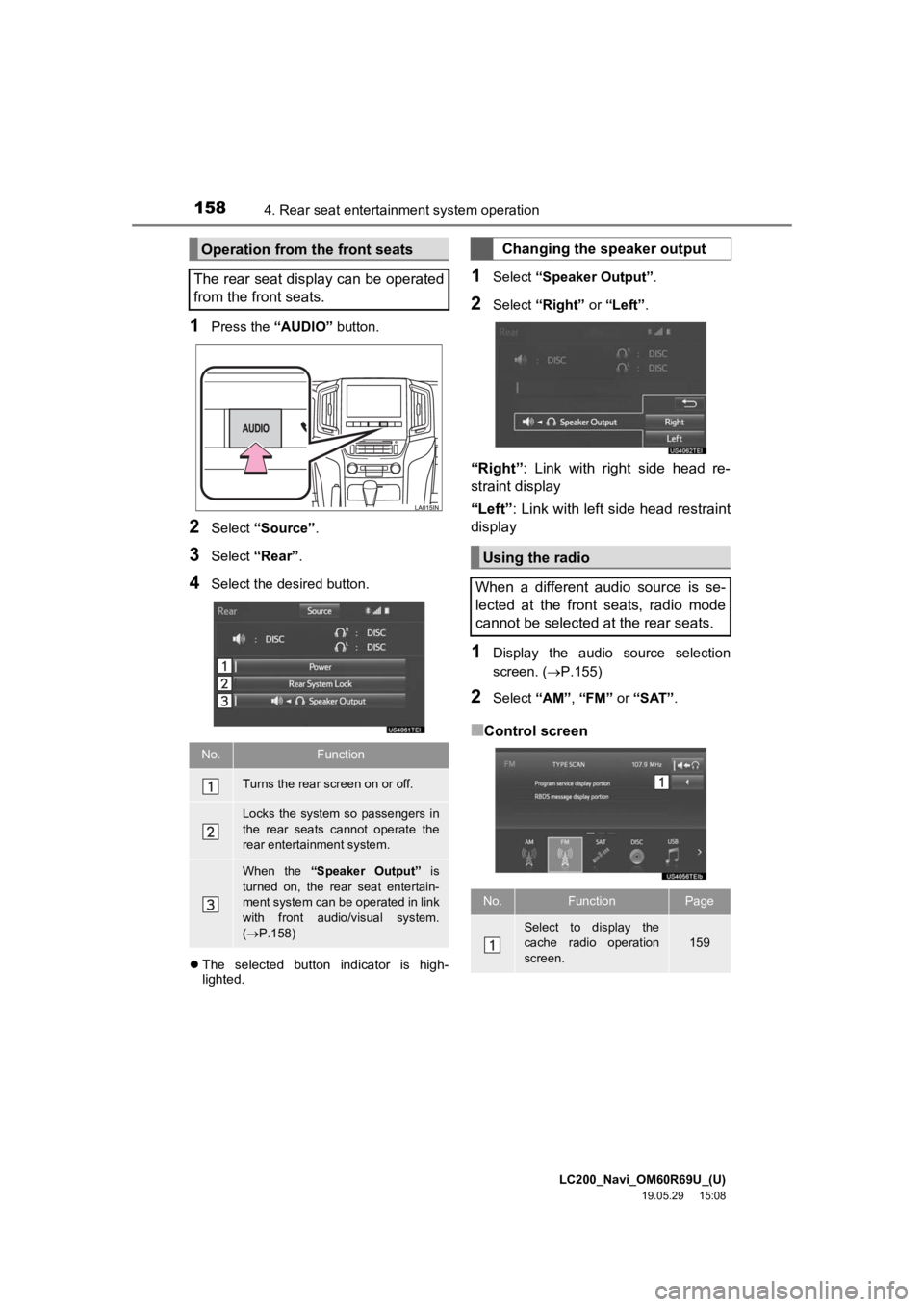

1584. Rear seat entertainment system operation
1Press the “AUDIO” button.
2Select “Source” .
3Select “Rear” .
4Select the desired button.
The selected button indicator is high-
lighted.
1Select “Speaker Output” .
2Select “Right” or “Left”.
“Right” : Link with right side head re-
straint display
“Left” : Link with left side head restraint
display
1Display the audio source selection
screen. ( P.155)
2Select “AM”, “FM” or “SAT”.
■Control screen
Operation from the front seats
The rear seat display can be operated
from the front seats.
No.Function
Turns the rear screen on or off.
Locks the system so passengers in
the rear seats cannot operate the
rear entertainment system.
When the “Speaker Output” is
turned on, the rear seat entertain-
ment system can be operated in link
with front audio/visual system.
(  P.158)
Changing the speaker output
Using the radio
When a different audio source is se-
lected at the front seats, radio mode
cannot be selected at the rear seats.
No.FunctionPage
Select to display the
cache radio operation
screen.159

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
1604. Rear seat entertainment system operation
1Select Apps mode on the source
screen to display the control screen.
■Control screen
1Display the audio source selection
screen. (P.155)
2Select “DISC” .
Even the “DISC” button is pressed, the
mode can be changed to the DISC mode.
■Control screen
■Controller
1Display the audio source selection
screen. ( P.155)
2Select “DISC” .
Even the “DISC” button is pressed, the
mode can be changed to the DISC mode.
■Control screen
Using the radio (internet radio
broadcast)
One of Apps’s features is the ability to
listen to internet radio. In order to use
this service, an Apps compatible
phone and the navigation system
needs to be set. ( P.250)
Playing an audio CD/a CD-TEXT
disc
No.Function
Select to set repeat playback.
Select to set random playback.
No.Function
Press to play/pause.
Press and hold to fast forward/re-
wind.
Press to select a track.
 Press and hold to fast forward/
rewind.
Playing MP3/WMA/AAC discs
No.Function
Select to set repeat playback.
Select to set random playback.

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
Audio/visual system
4
1614. Rear seat entertainment system operation
■Controller
1Display the audio source selection
screen. (P.155)
2Select “DISC” .
Even the “DISC” button is pressed, the
mode can be changed to the DISC mode.
■Controller
No.Function
Press to select a folder.
Press to play/pause.
Press and hold to fast forward/re-
wind.
 Press to select a file.
 Press and hold to fast forward/
rewind.
Playing DVD video
No.Function
Press to select an Icon.
Press to select a DISC mode.
Press to input the selected icon.
Press to play/pause.
Press and hold to fast forward a disc
during playback and forward slowly
during pause.
Press to stop the screen.
Press to display the menu screen.
Press to switch for display option
screen on/off.
Press to display the title selection
screen.
Selecting a chapter.
Press and hold to fast forward or re-
wind a chapter.
Press and hold to rewind a disc
during playback

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
1624. Rear seat entertainment system operation
1Press the “OPTION” button if no icons
are shown while watching a DVD video
and this screen appears.
 When there are two pages, select “ ” or
“” to change the page.
■Searching by title
1Select “Search” .
2Enter the title number and select
“OK”.
The player starts playing video for that title
number.
Option screen
No.FunctionPage
Select to display the ini-
tial setup screen.163
Select to turn off the
icons from the screen.
Select to display the
menu screen for DVD
video. (For the opera-
tion, see the manual that
comes with the DVD vid-
eo disc provided sepa-
rately.)

Press and hold to rewind
during playback.
Select to stop the video.
Select to play/pause the
video screen.
Press and hold to fast
forward during playback
and play in slow motion
when the player is
paused.

Select to display the title
search screen.162
Select to display the pre-
determined scene on the
screen and start playing.

Select to display the au-
dio selection screen.163
Select to display the sub-
title selection screen.163
Select to display the an-
gle selection screen.163
INFORMATION
●If appears on the screen when a
control is selected, the operation
relevant to the control is not permitted.
No.FunctionPage

LC200_Navi_OM60R69U_(U)
19.05.29 15:08
Audio/visual system
4
1634. Rear seat entertainment system operation
■Changing the subtitle language
1Select “Subtitle” .
2Each time “Subtitle” is selected, the
language the subtitles are displayed in
is changed.
 The languages available are restricted to
those available on the DVD disc.
 When “Hide” is selected, the subtitles can
be hidden.
■Changing the audio language
1Select “Audio” .
2Each time “Audio” is selected, the au-
dio language is changed.
 The languages available are restricted to
those available on the DVD disc.
■Changing the angle
1Select “Angle” .
2Each time “Angle” is selected, the an-
gle is changed.
 The angles available are restricted to
those available on the DVD disc.
1Display the option screen. ( P.162)
2Select “Setup” .
3Select the items to be set.
The angle can be selected for discs
that are multi-angle compatible when
the angle mark ( ) appears on the
screen.
Setup menu
The initial setting can be changed.
There are initial setting buttons on the
“Setup Menu 1” and “Setup Menu 2”
screens.
