2994-2. Driving procedures
4
Driving
HILUX_OM_OM0K321E_(EE)
■ Transmission protection function
If the tires spin continually when the vehicle becomes stuck in mud, dirt or
snow, or if the accelerator pedal is depressed and released repeatedly while
driving, the automatic transmission temperature may become too high and
the automatic transmission may be damaged.
To avoid damaging the automatic transmission, the system may temporarily
lock the gear.
If the automatic transmission temperature falls, the gear locking is canceled
and the automatic transmission is returned to the normal operation.
■ If the warning message is displayed
When the warning message goes out, the vehicle can be driven again.
If the warning message does not go out after waiting a while, have your vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
■ AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver per-
formance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in D. (Shifting the
shift lever to S cancels the function.)
If the automatic transmission fluid tem-
perature warning message is displayed
while driving, make sure to return to D
position driving and reduce speed by eas-
ing off the accelerator pedal. Stop the
vehicle in a safe place, shift the shift lever
to P and let the engine idle until the warn-
ing message goes out.
WARNING
■ When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.

4144-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)
■Operating conditions
● The Stop & Start system is operational when all of the following conditions
are met:
• Vehicles with automatic transmission: The brake pedal is being
depressed firmly
• Vehicles with manual transmission: The clutch pedal is not being
depressed.
• The engine is adequately warmed up.
• The outside temperature is -5 C (23 F) or higher
• Vehicles with automatic transmission: The shift lever is in D or S, or P
after driving in D or S.
• Vehicles with manual transmission: The shift lever is in N.
• Vehicles with automatic air conditioning system: is off.
• The hood is closed. ( P. 415)
• The driver’s seat belt is fastened.
• The driver’s door is closed.
• The accelerator pedal is not being depressed.
● In the following situations, the engine may not be stopped by the Stop &
Start system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is undergoing a periodic recharge.
• The battery is not sufficiently charged, such as if the vehicle has been
parked for a long time and the battery charge has decreased, the electric
load is large, the battery fluid temperature is excessively low or the bat-
tery has deteriorated.
• The brake booster vacuum is low.
• The vehicle is stopped on a steep incline.
• The steering wheel is being operated
• Due to traffic or other circumstances the vehicle is being stopped repeat-
edly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or tr ansmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• For a while after the battery terminals have been disconnected and
reconnected.
• For a while after the battery has been replaced.
• The front-wheel drive control switch is in the L4 position or the rear differ-
ential is locked.

6848-2. Steps to take in an emergency
HILUX_OM_OM0K321E_(EE)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
For vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
● Vehicles with automatic transmission: When a warning message for the
automatic transmission fluid temperature is displayed while attempting to
free a stuck vehicle, immediately remove your foot from the accelerator
pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 299)

7089-1. Specifications
HILUX_OM_OM0K321E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Automatic transmission
Fluid
capacity*
Gasoline engine8.5 L (9.0 qt., 7.5 Imp.qt.)
Diesel engine9.5 L (10.0 qt., 8.4 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Manual transmission
Oil capacity
5-speed models 2.2 L (2.3 qt., 1.9 Imp.qt.)
6-speed
models
4WD
models 2.5 L (2.6 qt., 2.2 Imp.qt.)
Pre
Runner 2.7 L (2.9 qt., 2.4 Imp.qt.)
Oil type
TOYOTA Genuine Manual
Transmission Gear Oil API
GL-3 (GL-4) or equivalent
Recommended oil viscosity SAE 75W-90
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil” to achieve optimal performance.

711
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
16 inch tires
17 inch tires (type A)
Steering
Free playLess than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Tire size205R16C 8PR 110/108S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
270 (2.7, 39)270 (2.7, 39)340 (3.4, 49)
Wheel size16  6J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size 225/70R17C 108/106S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
240 (2.4, 35)240 (2.4, 35)300 (3.0, 44)
Wheel size17  6J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)

733Alphabetical index
HILUX_OM_OM0K321E_(EE)
Automatic air conditioning
system
Air conditioning filter.............. 597
Automatic air conditioning
system ................................ 526
Automatic disconnecting
differential .............................. 398
Automatic light
control system ....................... 312
Automatic transmission .......... 293
If the shift lever cannot be
shifted from P ..................... 298
AUX port*................................. 480
Auxiliary boxes ........................ 544
Back-up lights
Replacing light bulbs ............. 618
Wattage................................. 714
Battery
Battery checking ................... 578
If the vehicle battery is
discharged .......................... 672
Preparing and checking
before winter....................... 438
Warning light ......................... 634
Bluetooth®*.............................. 508
Audio system ........................ 501
Hands-free system
(for cellular phone).............. 481
Registering/removing a
Bluetooth® device ............... 489
Selecting a Bluetooth®
device ......................... 490, 491
Wireless
communication ................... 481
Bluetooth® audio*................... 481
Bluetooth® phone*.................. 481
Deleting the call history......... 496
Making a call ......................... 503
Managing speed dials ........... 503
Managing the contacts.......... 498
Phone settings ...................... 494
Receiving a call..................... 505
Speaking on the phone ......... 503
Bottle holders .......................... 543
Brake
Fluid ...................................... 710
Override system warning
light..................................... 637
Parking brake........................ 307
Warning light ......................... 634
Brake assist ............................. 422
Break-in tips ............................. 257
Brightness control
Instrument panel light
control................................. 144
Care
Aluminum wheels.................. 557
Exterior ................................. 556
Interior................................... 560
Seat belts .............................. 561
CD player*................................ 455
Chains....................................... 439
Child restraint system ............... 67
Child restraint system
installation method ............... 91
Fixed with a seat belt .............. 92
Fixed with an ISOFIX lower
anchorage ............................ 94
Points to remember ................ 68
Riding with children................. 66
Using a top tether
anchorage ............................ 97
B
C
*: Refer to “Navigation and multimedia system Owner’s manual”.

736Alphabetical index
HILUX_OM_OM0K321E_(EE)
Engine switch
(ignition switch) ............. 282, 285
Auto power off function ......... 289
Changing the engine
switch modes...................... 288
Changing the engine
switch position .................... 283
If your vehicle has to be
stopped in an
emergency.......................... 625
Starting the engine ........ 282, 285
Engine switch light
(ignition switch light) ............ 537
ERA-GLONASS ........................ 100
EVAK ......................................... 100
Flat tire ...................................... 649
Floor mat .................................... 38
Fluid
Automatic transmission ......... 708
Brake..................................... 710
Clutch .................................... 709
Steering................................. 711
Transfer................................. 709
Washer.................................. 582
Fog lights
Replacing light bulbs ..... 615, 618
Switch ................................... 315
Wattage................................. 714
Four-wheel drive system
Front-wheel drive control
switch.................................. 398
Warning light ......................... 636
Front fog lights
Replacing light bulbs ............. 615
Switch ................................... 315
Wattage................................. 714
Front passenger occupant
classification system .............. 59
Front position lights
Light switch ........................... 308
Replacing light bulbs............. 611
Wattage ................................ 714
Front seats
Adjustment ............................ 234
Cleaning................................ 560
Correct driving posture ........... 40
Head restraints ..................... 239
Seat heaters ......................... 535
Front turn signal lights
Replacing light bulbs............. 612
Turn signal lever ................... 306
Wattage ................................ 714
Fuel
Capacity ................................ 695
Fuel filter ............................... 583
Fuel gauge ............................ 143
Fuel pump shut off system.... 633
If you run out of fuel
and the engine stalls .......... 682
Information ............................ 715
Refueling............................... 320
Type ...................................... 695
Warning light ......................... 637
Fuel consumption
information ............................ 160
Fuel filler door.......................... 320
Refueling............................... 320
Fuel filter .......................... 583, 637
Fuel pump shut off system ..... 633
Fuses ........................................ 602
F

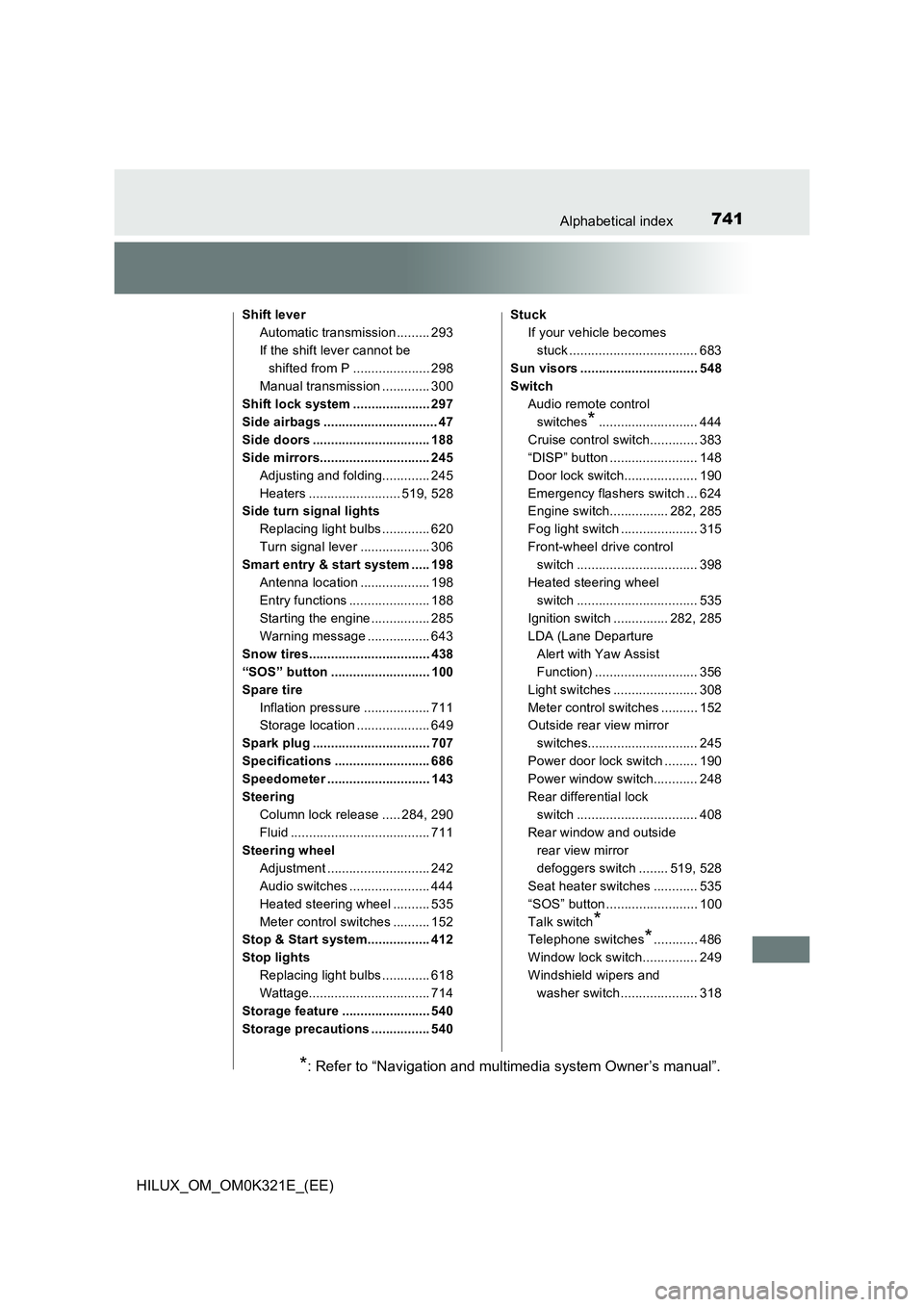

741Alphabetical index
HILUX_OM_OM0K321E_(EE)
Shift lever
Automatic transmission ......... 293
If the shift lever cannot be
shifted from P ..................... 298
Manual transmission ............. 300
Shift lock system ..................... 297
Side airbags ............................... 47
Side doors ................................ 188
Side mirrors.............................. 245
Adjusting and folding............. 245
Heaters ......................... 519, 528
Side turn signal lights
Replacing light bulbs ............. 620
Turn signal lever ................... 306
Smart entry & start system ..... 198
Antenna location ................... 198
Entry functions ...................... 188
Starting the engine ................ 285
Warning message ................. 643
Snow tires................................. 438
“SOS” button ........................... 100
Spare tire
Inflation pressure .................. 711
Storage location .................... 649
Spark plug ................................ 707
Specifications .......................... 686
Speedometer ............................ 143
Steering
Column lock release ..... 284, 290
Fluid ...................................... 711
Steering wheel
Adjustment ............................ 242
Audio switches ...................... 444
Heated steering wheel .......... 535
Meter control switches .......... 152
Stop & Start system................. 412
Stop lights
Replacing light bulbs ............. 618
Wattage................................. 714
Storage feature ........................ 540
Storage precautions ................ 540
Stuck
If your vehicle becomes
stuck ................................... 683
Sun visors ................................ 548
Switch
Audio remote control
switches*........................... 444
Cruise control switch............. 383
“DISP” button ........................ 148
Door lock switch.................... 190
Emergency flashers switch ... 624
Engine switch................ 282, 285
Fog light switch ..................... 315
Front-wheel drive control
switch ................................. 398
Heated steering wheel
switch ................................. 535
Ignition switch ............... 282, 285
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 356
Light switches ....................... 308
Meter control switches .......... 152
Outside rear view mirror
switches.............................. 245
Power door lock switch ......... 190
Power window switch............ 248
Rear differential lock
switch ................................. 408
Rear window and outside
rear view mirror
defoggers switch ........ 519, 528
Seat heater switches ............ 535
“SOS” button ......................... 100
Talk switch*
Telephone switches*............ 486
Window lock switch............... 249
Windshield wipers and
washer switch ..................... 318
*: Refer to “Navigation and multimedia system Owner’s manual”.
