2020 TOYOTA AVALON HYBRID warning light

1
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument Panel Light Control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
18
Audio 20
Auto lock/unlock
2 10
Bird’s Eye View Camera
with Perimeter Scan function 25
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 24
Clock 23
Cup holders 25
Door locks 23
Driving mode select 11
Electric parking brake 12
EV drive mode 11
Garage door opener (HomeLink
®)3 15
Head-up display 16
Hybrid Synergy Drive System 9
Hybrid transmission 10
Intelligent Clearance Sonar with Rear
Cross Traffic Braking (ICS w/RCTB) 26-27
Lights
1 & turn signals 17
Moonroof 14
Multi-Information Display (MID)
2 16
Power outlets-12V DC 21
Qi Wireless charger 21
Rear view monitor system 24
Seat adjustments-Front 15
Seat folding-Rear 15
Seat heaters/ventilators 19
Seats-Head restraints 14
Steering lock release 13Steering wheel switches &
telephone controls (Bluetooth
®) 22
Steering wheel-Heater 17
Tilt & telescopic steering wheel 13
Vehicle Stability Control (VSC)/
TRAC OFF Switch 26
USB charge-ports 19
USB media/AUX port 20
Windows-Power 14
Windshield wipers & washers 23
Floor mat installation 44
Rear door child safety locks 39
Safety Connect 39
Seat belts 40
Seat belts-Shoulder belt anchor 40
Spare tire & tools 41
Star Safety System
™ 43-44
Tire Pressure Monitoring
(warning) System (TPMS) 42
Trunk-Internal release 42
BLUETOOTH® DEVICE
PAIRING SECTION 46-48
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 38
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 35-37
Lane Departure Alert with
Steering Assist (LDA w/SA) 31-34
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 29-31
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 28
Sensors 28
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

4
OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
20 20 Owner’s
Manual.
Airbag SRS warning1
Arrow direction indicates fuel
tank door position
Auto Glide Control (AGC)
indicator
Automatic High Beam (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
“AIR BAG ON/OFF” indicator1
Blind Spot Monitor (BSM) indicator
Brake hold operated indicator1,2
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake hold standby indicator1
Brake Overrride System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4 warning
Brake system warning (yellow)1
Brake system warning (red)1
Charging system warning
Indicator symbols
Hybrid System Indicator Speedometer
Multi-Information Display
Engine coolant temperature gauge Outside temperature display Odometer and trip meter display
Shift position and shift range display Fuel gauge
Service indicators and reminders

5
Open door warning
Malfunction/Check Engine indicator1
Master warning1,2
Electric power steering system
warning1 (red/yellow)
“ECO MODE” indicator
EV drive mode indicator
EV indicator
Low engine oil pressure warning
Low Tire Pressure Warning1
Low fuel level warning
Pre-Collision System (PCS)
warning1,2
“READY” indicator
Turn signal indicator
Vehicle Stability Control (VSC)
OFF indicator1
Security indicator
SPORT mode indicator
Slip indicator/Hill-start Assist
Control indicator1,3
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Headlight low/high beam
indicators
High coolant temperature warning
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Intuitive parking assist indicator4
Low outside temperature indicator Parking brake indicator
Rear passengers’ seat belt
reminder indicatorDriver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Smart Key system indicator
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
Hybrid System, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Lane Departure Alert (LDA) with
steering assist indicator
(white/green/amber
3)

36
TOYOTA SAFETY SENSE™
ADJUSTING DISTANCE
This mode employs a radar sensor to detect the presence of a preceding v\
ehicle
up to approximately 328 ft (100 m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a preset following distance \
from the
vehicle ahead. These distances vary based on vehicle speed.
(1) (2) (3)
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-\
to-
vehicle distance can also be set by operating the vehicle-to-vehicle dis\
tance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears When a vehicle is detected running ahead of you, the system automaticall\
y
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the brake lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead
in order to maintain the vehicle-to-vehicle distance set by the driver. \
A warning
tone warns you when the system cannot decelerate sufficiently to prevent\
your
vehicle from closing in on the vehicle ahead.
Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
To change the vehicle-to-vehicle distance

Push the “
” button to cycle
through the settings, which will
change progressively. LONG
(default setting) MIDDLE
SHORT
Preceding vehicle
mark

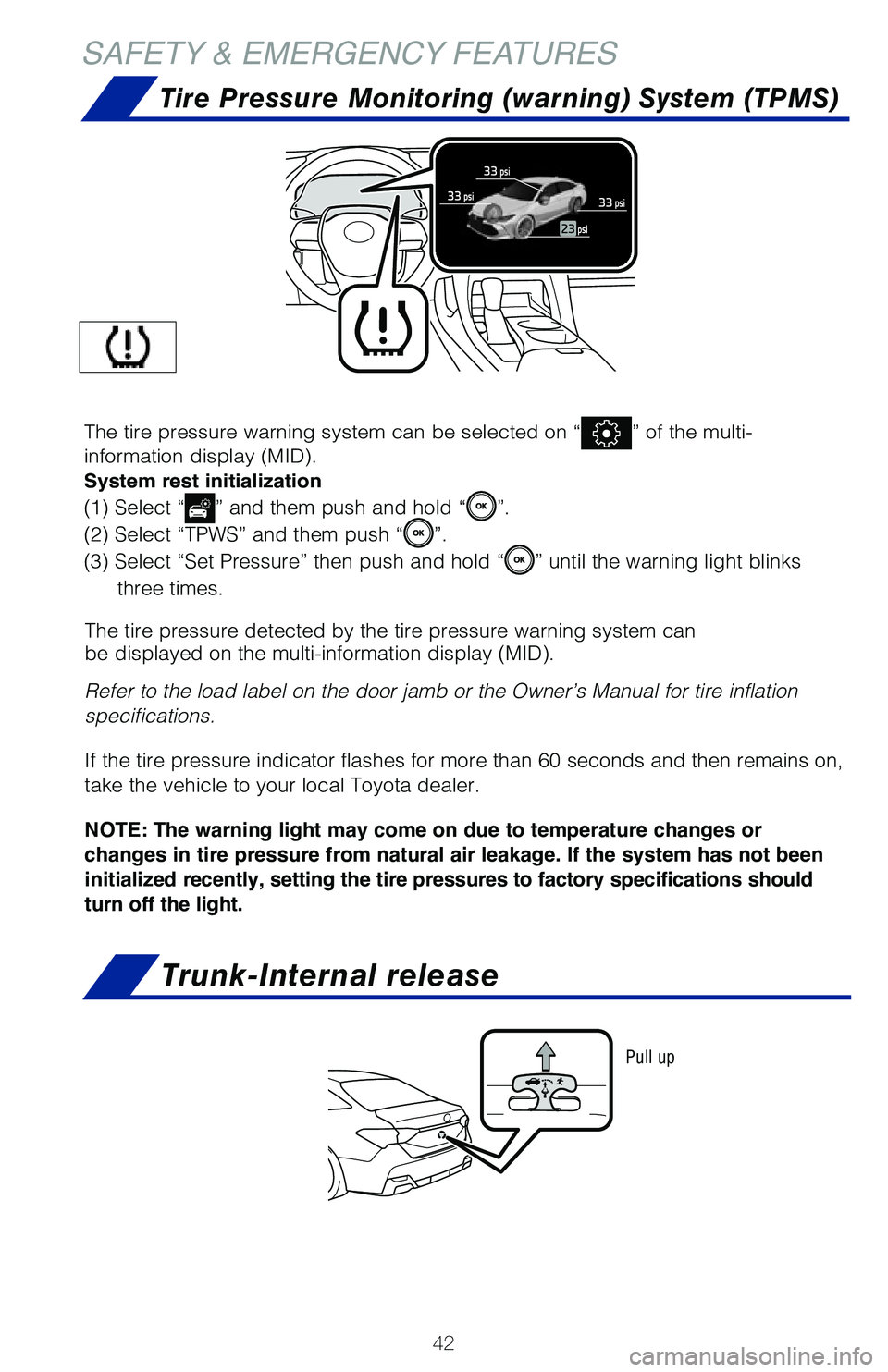

42
Trunk-Internal release
SAFETY & EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System rest initialization
(1) Select “” and them push and hold “”.
(2) Select “TPWS” and them push “
”.
(3) Select “Set Pressure” then push and hold “
” until the warning light blinks
three times.
Pull up
