2020 TOYOTA 86 clock

TABLE OF CONTENTSIndex
4
3-5. Other interior featuresSun visors .......................... 296
Vanity mirrors ..................... 297
Clock .................................. 298
Power outlets ..................... 299
Seat heaters ....................... 301
Floor mat ............................ 303
4-1. Maintenance and care Cleaning and protecting the vehicle exterior ........... 308
Cleaning and protecting the vehicle interior ............ 312
Cleaning and protecting the Alcantara
® area.......... 316
4-2. Maintenance Maintenance requirements .................... 318
General maintenance ......... 320
Emission inspection and maintenance (I/M)
programs .......................... 323 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ....................... 324
Hood ................................... 327
Positioning a floor jack........ 329
Engine compartment .......... 331
Tires.................................... 345
Tire inflation pressure ......... 353
Wheels................................ 357
Air conditioning filter ........... 360
Wireless remote control/ electronic key battery ....... 363
Checking and replacing fuses ................................. 367
Light bulbs .......................... 375
5-1. Essential information Emergency flashers ............ 384
If your vehicle needs to be towed ........................... 385
If you think something is wrong ............................ 393
Fuel pump shut off system .............................. 394
4Maintenance and care
5When trouble arises

11
Headlight switch
Turn signal lever
Fog light switch

P. 222
P. 188
P. 228
Gauges and meters
Multi-information display P. 191
P. 200, 207
Clock P. 298
Windshield wiper and washer switch P. 229
Emergency flasher
switch
P. 384
Tilt and telesco pic steering
lock release lever
P. 67
Floor mat P. 303
Hood lock release lever P. 327
Fuel filler door opener P. 75
AUX port
USB port P. 286
P. 286
Pictorial indexInstrument panel
Engine (ignition) switch (vehicles with a
smart key system)
P. 166
: If equipped

46

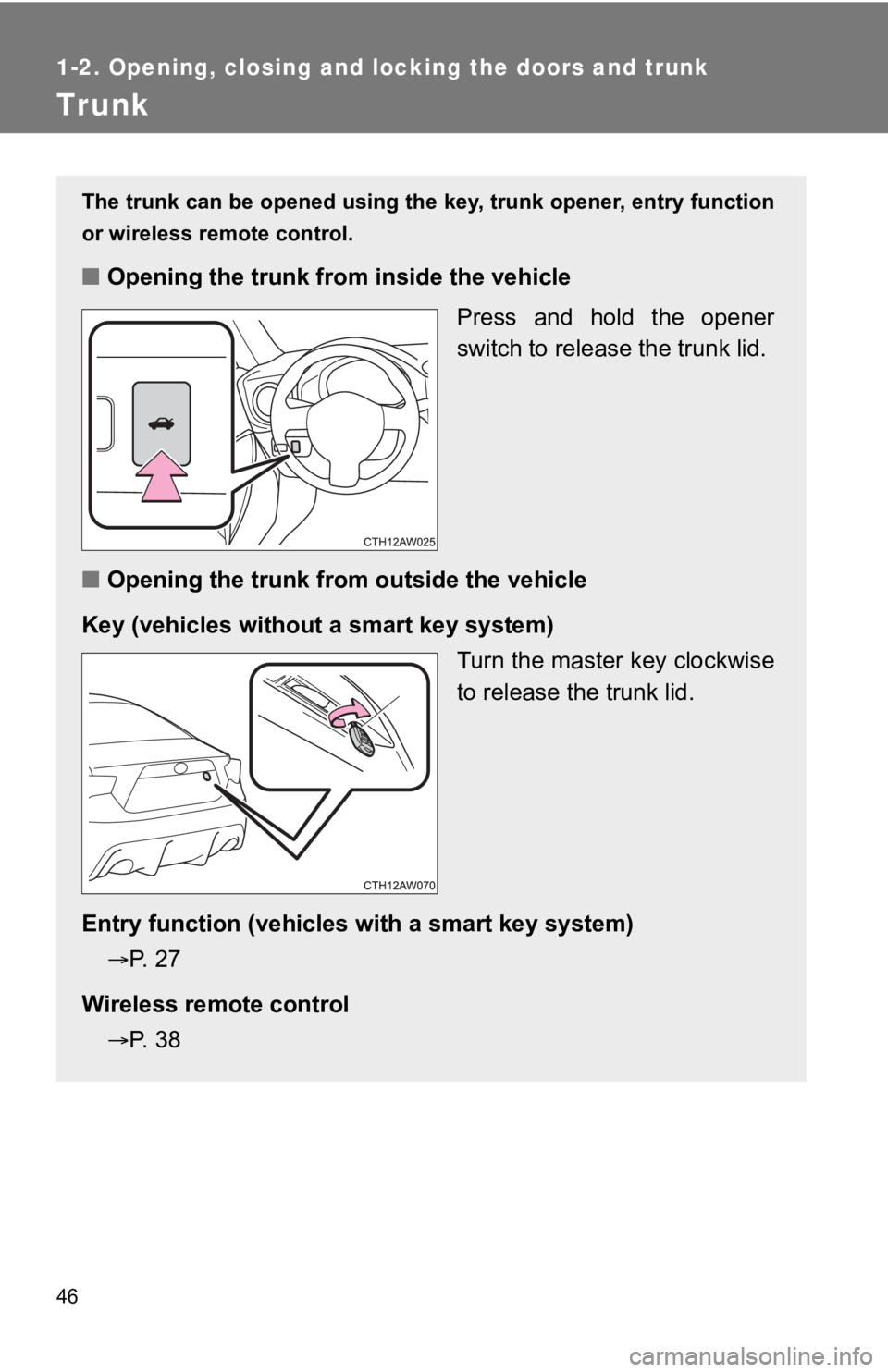

1-2. Opening, closing and locking the doors and trunk
Trunk
The trunk can be opened using the key, trunk opener, entry function
or wireless remote control.
■ Opening the trunk from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
■ Opening the trunk from outside the vehicle
Key (vehicles without a smart key system)
Turn the master key clockwise
to release the trunk lid.
Entry function (vehicles with a smart key system)
P. 27
Wireless remote control
P. 38

Interior features3
267
3-1. Using the air conditioning system
and defogger
Manual air conditioning system ........................... 268
Automatic air conditioning system ........................... 275
Rear window and outside rear view mirror
defoggers ....................... 284
3-2. Using the audio system Using the AUX/USB port ........................ 286
Steering wheel audio switches ......................... 287
Using the microphone ...... 288
3-3. Using the interior lights Interior lights list ............... 289
• Interior light .................... 290 3-4. Using the storage
features
List of storage features .... 291
• Glove box....................... 292
• Bottle holders ................. 293
• Cup holders/ console tray ................... 294
3-5. Other interior features Sun visors ........................ 296
Vanity mirrors ................... 297
Clock ................................ 298
Power outlets ................... 299
Seat heaters..................... 301
Floor mat .......................... 303

268
3-1. Using the air conditioning system and defogger
Manual air conditioning system
Adjusting the settingsTo adjust the fan speed, turn th e fan speed control dial clock-
wise (increase) or counter clockwise (decrease).
Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
: If equipped
Fan speed control dial
Air outlet selection dial
Air conditioning on/off buttonTemperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
STEP 3

276 3-1. Using the air conditioning system and defogger
Using the automatic air conditioning system
Press .
The dehumidification function begins to operate. Air outlets,
fan speed and the air conditioner compressor are automati-
cally adjusted according t o the temperature setting.
Turn temperature control dial clockwise to increase the tem-
perature and turn temperature cont rol dial counterclockwise to
decrease the temperatur e on the driver’s side.
When is pressed (the indicator on is on) or the pas-
senger’s side temperature control dial is turned, the temperatu re for
the driver and passenger seats can be adjusted separately.
■ Automatic mode indicator
If the fan speed setting or air flow modes are operated, the au to-
matic mode indicator goes off. However, automatic mode for func -
tions other than that operated is maintained.
STEP 1
STEP 2

277
3-1. Using the air condit
ioning system and defogger
3
Interior features
Adjusting the settings manually
To adjust the fan speed, turn th e fan speed control dial clock-
wise (increase) or counter -clock wise (decrease).
Press to turn the fan off.
To adjust the temperature sett ings, turn the temperature con-
trol dial clockwise (warm) o r counter-clock wise (cool).
To adjust the temperature control dial clockwise (warm) or coun ter-
clockwise (cool) on the passenger side to separately adjust the tem-
perature for the passenger and driver sides (dual mode).
Press (the indicator on turns off) to return the driver
and passenger side temperatures to the same setting (simultaneo us
mode).
The air conditioning system switches between dual and simultane -
ous modes each time is pressed.
To change the air outlets, press .
The air outlets used are switched each time either side of the button
is pressed.
STEP 1
STEP 2
STEP 3

298
3-5. Other interior features
Clock
■The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest
hour
*
*: e.g. 1:00 to 1:29  1:00 1:30 to 1:59  2:0000
