370 4-3. Do-it-yourself maintenance

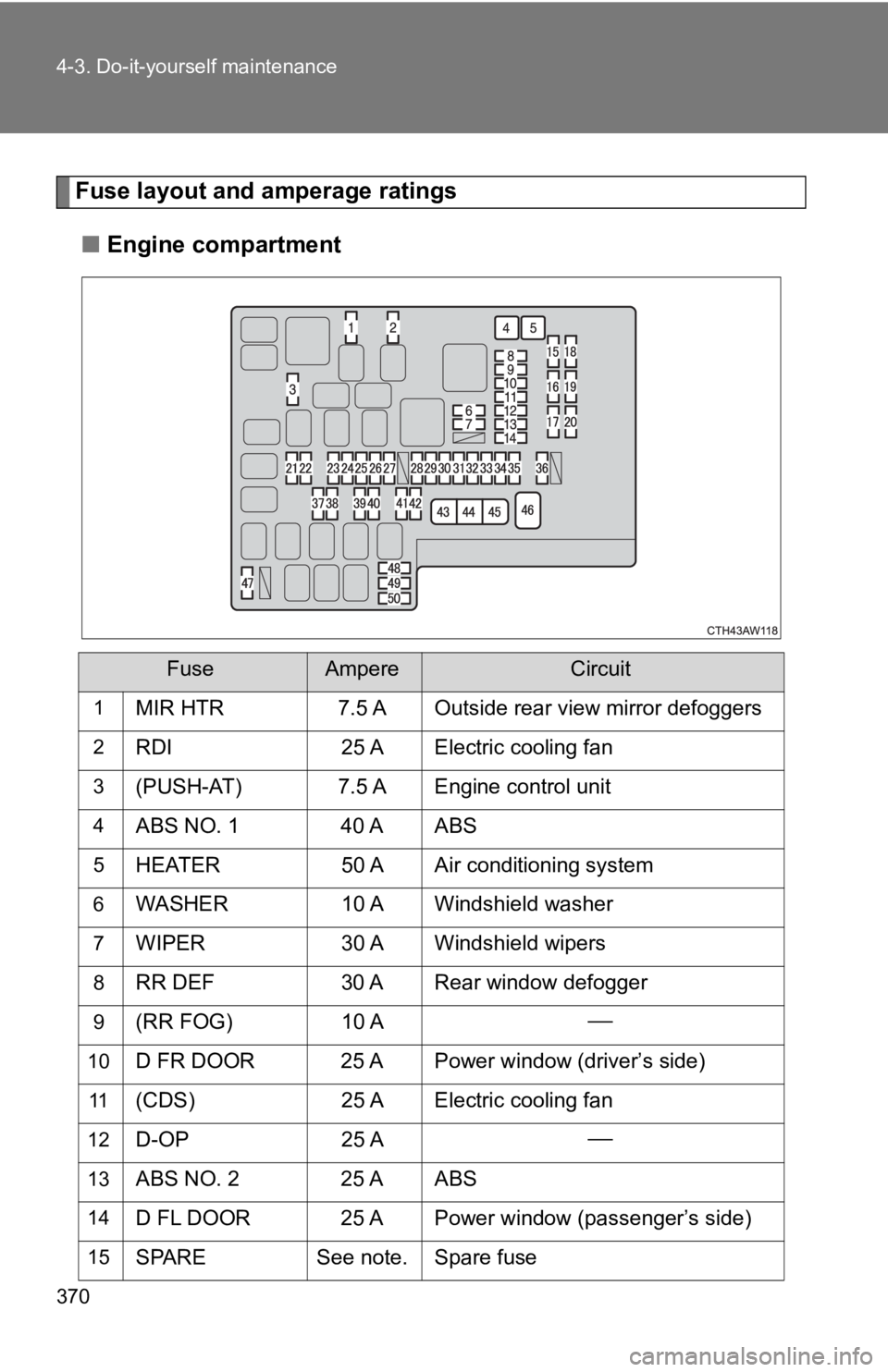

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1MIR HTR 7.5 A Outside rear view mirror defoggers
2RDI 25 A Electric cooling fan
3(PUSH-AT) 7.5 A Engine control unit
4ABS NO. 1 40 A ABS
5HEATER 50 A Air conditioning system
6WASHER10 A Windshield washer
7WIPER30 A Windshield wipers
8RR DEF30 A Rear window defogger
9(RR FOG) 10 A
10D FR DOOR 25 A Power window (driver’s side)
11(CDS)25 A Electric cooling fan
12D-OP 25 A
13ABS NO. 2 25 A ABS
14D FL DOOR 25 A Power window (passenger’s side)
15SPARESee note. Spare fuse

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Instrument panel
FuseAmpereCircuit
1ECU ACC 10 AMain body ECU, outside rear view
mirrors
2P/POINT No.2 15 A Power outlet
3PANEL
10 A Illumination
4TAIL10 A Tail lights
5DRL10 A Daytime running light system
6UNIT IG110 A Inside rear view mirror
7STOP7.5 A Stop lights
8OBD7.5 A On-board diagnosis system
9HEATER-S 7.5 A Air conditioning system
10HEATER 10 A Air conditioning system
11FR FOG LH 10 A Left-hand front fog light
12FR FOG RH 10 A Right-hand front fog light
13BK/UP LP7.5 A Back-up lights
14ECU IG1 10 A ABS, electric power steering
15AM17.5 A Starting system
16AMP 15 A Audio system
17AT UNIT 15 A Transmission
18GAUGE7.5 AGauge and meters, smart key sys-
tem
19ECU IG2
10 A Engine control unit
20SEAT HTR LH 10 A Left-hand seat heater
21SEAT HTR RH 10 A Right-hand seat heater
22RADIO7.5 A Audio system
23P/POINT No.1 15 A Power outlet

480 6-1. Specifications
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either s epa-
rately or in combination, can cause heat buildup and possible t ire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1
mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (i
n excess of those stan-
dard items which may be replaced) of auto-
matic transmission, po wer steering, power
brakes, power windows, power seats, radio
and heater, to the exten t that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a
motor vehicle with standard
equipment, including th e maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

522 Alphabetical index
Brake assist .............................. 245
Break-in tips ............................. 155
Brightness controlInstrument panel light control ................................. 192
Care Alcantara
®............................. 316
Aluminum wheels .................. 309
Exterior .................................. 308
Interior ................................... 312
Seat belts .............................. 313
Cargo capacity ......................... 256
Chains ....................................... 263
Child restraint system Booster seats,
definition ............................. 137
Booster seats, installation ........................... 141
Convertible seats, definition ............................. 137
Convertible seats,
installation ........................... 141
Front passenger occupant classification system ........... 128
Infant seats, definition ............................. 137
Infant seats,
installation ........................... 141
Installing CRS with LATCH anchors .................. 142
Installing CRS with seat belts ............................ 144
Installing CRS with
top tether straps .................. 147 Child safety
Airbag precautions ................ 120
Battery precautions ....... 342, 448
Child restraint system ........... 137
How your child should
wear the seat belt ................. 62
Installing child restraints........ 141
Power window lock switch ...... 72
Power window precautions ........................... 74
Removed key battery
precautions ......................... 365
Seat belt guide ........................ 61
Seat belt precautions .............. 64
Seat heater precautions ........ 302
Trunk precautions ................... 49
Cleaning
Alcantara
®............................. 316
Aluminum wheels .................. 309
Exterior.................................. 308
Interior ................................... 312
Seat belts .............................. 313
Clock ......................................... 298
Condenser ................................ 337
Console tray ............................. 294
Coolant
Capacity ................................ 464
Checking ............................... 335
Cooling system
Engine overheating ............... 450
Cruise control .......................... 232
Cup holders .............................. 294
Curtain shield airbags ............... 89
Customizable features ............ 487
Daytime running light system .................................... 224
Defogger Rear window ......................... 284
Side mirror ............................ 284
C
D

524 Alphabetical index
Floor mat................................... 303
FluidBrake ..................................... 337
Washer .................................. 343
Fog lights
Switch.................................... 228
Front fog lights Switch.................................... 228
Front passenger occupant classification system ............ 128
Front passenger's seat belt
reminder light......................... 400
Front seats Adjustment ..............................53
Front side marker light Replacing light bulbs ............. 375
Wattage ................................. 469
Front turn signal lights Switch.................................... 188
Fuel
Capacity ................................ 461
Fuel gauge ............................ 191
Fuel pump shut off system .... 395
Gas station information ......... 532
Information ............................ 470
Refueling .................................75
Fuel door.....................................75
Fuel filler door ............................75
Fuel pump shut off system ..... 395
Fuses......................................... 367
Gauges ...................................... 191
Glove box.................................. 292 Hazard lights
Switch ................................... 384
Head restraints Adjusting ................................ 58
Headlights
Automatic headlight leveling ............................... 226
Switch ................................... 222
Heaters Seat heaters.......................... 301
Side mirror ............................ 284
Hill-start assist control ............ 252
Hood.......................................... 327
Horn .......................................... 190
I/M test ...................................... 323
Identification Engine ................................... 459
Vehicle .................................. 459
Ignition switch.................. 166, 175
Ignition switch light Ignition switch light ................ 289
Illuminated entry system......... 289
Immobilizer system ................... 79
Indicator lights ......................... 194
Inside rear view mirror .............. 68
Interior light Interior light ........................... 290
Switch ................................... 290
Wattage................................. 469
Jack Positioning a floor jack .......... 329
Vehicle-equipped
jack ..................................... 425
Jack handle .............................. 425
Jam protection function
Power windows ....................... 73F
G
H
I
J

525
Alphabetical index
Keyless entry ............................. 38
Keys
Electronic key ......................... 22
Engine switch ............... 166, 175
If you lose your keys............. 440
If your electronic key battery is discharged .......... 441
Key number ............................ 22
Keyless entry .......................... 38
Keys ....................................... 22
Mechanical key....................... 23
Wireless remote
control key............................ 38
Language (multi-information display) .................................. 217
License plate lights Replacing light bulbs ............ 375
Wattage ................................ 469
Light bulbs Replacing ............................. 375
Wattage ................................ 469
Lights Emergency flasher switch .... 384
Engine switch light................ 289
Fog light switch..................... 228
Hazard light switch ............... 384
Headlights switch ................. 222
Interior light switch................ 290
Replacing light bulbs ............ 375
Trunk light............................... 48
Turn signal lever ................... 188
Wattage ................................ 469
Load capacity .......................... 260
Maintenance
Do-it-yourself maintenance ...................... 324
General maintenance ........... 320
Maintenance data ................. 458
Maintenance requirements ... 318 Manual air conditioning
system ....................................268
Manual transmission ...............185
Meter Indicators...............................194
Instrument panel
light control .........................192
Meters ...................................191
Multi-information
display.........................200, 207
Settings .........................200, 217
Warning lights .......................396
Warning messages ...............408
Microphone...............................288
Mirrors
Inside rear view mirror.............68
Side mirror heater .................284
Side mirrors .............................69
Vanity mirrors ........................297
Multi-information display
Drive information ...................210
G-force display ......................212
Language ..............................217
Multi-information display.........................200, 207
Settings .................................217
Trip information .............202, 208
Warning messages ...............408
Noise from under vehicle ..........15
Odometer ..................................191
Oil Engine oil ..............................332
Opener Fuel filler door .........................75
Hood......................................327
Trunk .......................................46
Outside rear view mirrors
Adjusting and folding ...............69K
L
M
N
O

526 Alphabetical index
Outside temperature display ............................ 200, 219
Overheating, Engine ................450
Paddle shift switches .............. 181
Parking brake ........................... 189
Parking lights Switch.................................... 222
Power outlets ........................... 299
Power windows ..........................72
Radiator .................................... 337
Rear seats ...................................56
Rear side marker lights Switch.................................... 222
Rear turn signal lights Switch.................................... 188
Rear view mirror
Inside rear view mirror.............68
Outside rear view mirrors ........69
Rear view monitor system ...... 237
Rear window defogger ............ 284
Replacing Fuses .................................... 367
Key battery ............................ 363
Light bulbs ............................. 375
Tires ...................................... 425
Reporting safety defects for U.S. owners ...................... 492
REV indicator ........................... 156
Seat belts
Adjusting the seat belt .............60
Automatic Locking Retractor (ALR).....................62
Child restraint system installation ........................... 141
Cleaning and maintaining
the seat belts ...................... 313 Emergency Locking
Retractor (ELR) .................... 62
How to wear your seat belt ..... 60
How your child should wear the seat belt ................. 62
Pregnant women, proper seat belt use .............. 64
Reminder light ....................... 400
Seat belt guide ........................ 61
Seat belt pretensioners ........... 61
Seat heaters ............................. 301
Seating capacity ...................... 260
Seats Adjustment .............................. 53
Adjustment precautions .......... 55
Child seats/child restraint system installation .............. 141
Cleaning ................................ 312
Head restraint ......................... 58
Properly sitting in the seat....... 87
Seat heaters.......................... 301
Service reminder indicators .............................. 194
Shift lever Automatic transmission ......... 178
If the shift lever cannot be shifted from P ................ 439
Manual transmission ............. 185
Shift lock system ..................... 439
Side airbags ............................... 89
Side maker lights Replacing light bulbs ............. 375
Switch ................................... 222
Wattage................................. 469
Side mirror
Adjusting and folding............... 69
Smart key system Antenna location ..................... 27
Entry function .......................... 25
Starting the engine ................ 166
P
R
S
