2020 TOYOTA 86 glove box

299
3-5. Other interior features
3
Interior features

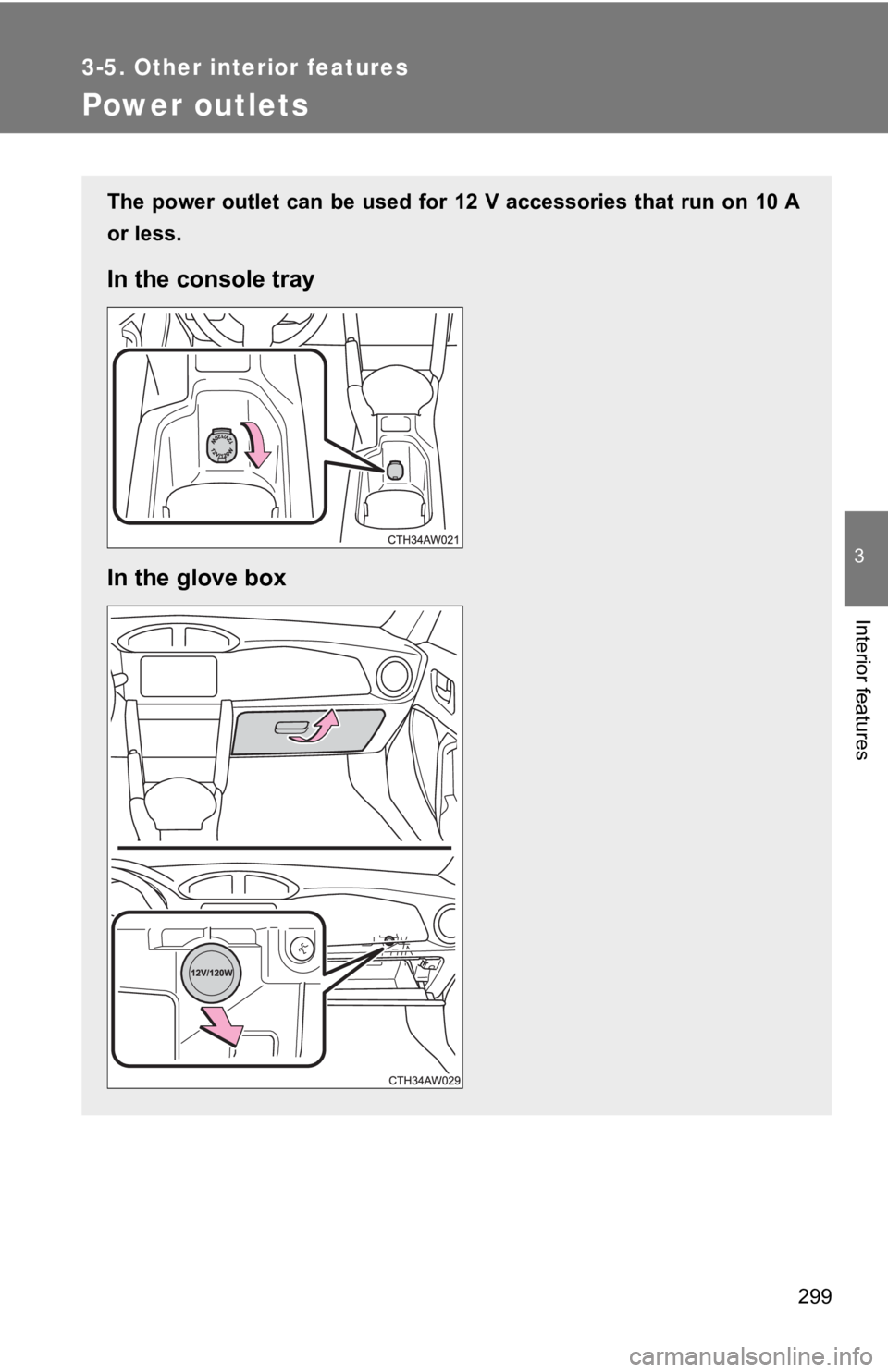

Power outlets
The power outlet can be used for 12 V accessories that run on 10 A
or less.
In the console tray
In the glove box

360
4-3. Do-it-yourself maintenance
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box and pull the glove box
toward you to disconnect the
claws.
STEP 1
STEP 2
STEP 3

361
4-3. Do-it-yourself maintenance
4
Maintenance and care
Lower the glove box slowly
until surface is horizontal
with the floor, then pull it out.
(Simply pulling with gentle
force will dis
engage the lower
claws.)
Lower claw
Lower claw engagement
point
Do not forcibly pull the glove
box. Otherwise, the lower
claws or the lower claw
engagement points may be
deformed, making it difficult to
reinstall or close the glove box.
Remove the filter cover.
Remove the air conditioning
filter and replace it with a new
one.
The “ UP” marks shown on
the filter should be pointing up.
When installing, reverse the steps listed.
STEP 4
STEP 5
STEP 6
STEP 7

362 4-3. Do-it-yourself maintenance
■Checking interval
Inspect and replace the air conditioning filter according to th e maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Scheduled Maintenance Gui de” or “Owner’s Manual Supplement ”.)
■ If air flow from the ven ts decreases dramatically
The filter may be clogged. Check the filter and replace if nece ssary.
NOTICE
■When removing the glove box
Do not forcibly pull the glove box. Otherwise, the lower claws or the lower
claw engagement points may be deformed, making it difficult to reinstall or
close the glove box.
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause da mage to the
system.

524 Alphabetical index
Floor mat................................... 303
FluidBrake ..................................... 337
Washer .................................. 343
Fog lights
Switch.................................... 228
Front fog lights Switch.................................... 228
Front passenger occupant classification system ............ 128
Front passenger's seat belt
reminder light......................... 400
Front seats Adjustment ..............................53
Front side marker light Replacing light bulbs ............. 375
Wattage ................................. 469
Front turn signal lights Switch.................................... 188
Fuel
Capacity ................................ 461
Fuel gauge ............................ 191
Fuel pump shut off system .... 395
Gas station information ......... 532
Information ............................ 470
Refueling .................................75
Fuel door.....................................75
Fuel filler door ............................75
Fuel pump shut off system ..... 395
Fuses......................................... 367
Gauges ...................................... 191
Glove box.................................. 292 Hazard lights
Switch ................................... 384
Head restraints Adjusting ................................ 58
Headlights
Automatic headlight leveling ............................... 226
Switch ................................... 222
Heaters Seat heaters.......................... 301
Side mirror ............................ 284
Hill-start assist control ............ 252
Hood.......................................... 327
Horn .......................................... 190
I/M test ...................................... 323
Identification Engine ................................... 459
Vehicle .................................. 459
Ignition switch.................. 166, 175
Ignition switch light Ignition switch light ................ 289
Illuminated entry system......... 289
Immobilizer system ................... 79
Indicator lights ......................... 194
Inside rear view mirror .............. 68
Interior light Interior light ........................... 290
Switch ................................... 290
Wattage................................. 469
Jack Positioning a floor jack .......... 329
Vehicle-equipped
jack ..................................... 425
Jack handle .............................. 425
Jam protection function
Power windows ....................... 73F
G
H
I
J
