2020 TOYOTA 86 light

301
3-5. Other interior features
3
Interior features
Seat heaters
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When not in use
Turn the seat heater off. The indicator light goes off.
Press the switch to warm the
seats.
The indicator light comes on
when a seat heater is turned
on.
Rapid heating
Normal heating
: If equipped

Maintenance and care4
307
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 308
Cleaning and protecting the vehicle interior.......... 312
Cleaning and protecting the Alcantara
® area ....... 316
4-2. Maintenance Maintenance requirements .................. 318
General maintenance....... 320
Emission inspection and maintenance (I/M)
programs........................ 323 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 324
Hood ................................ 327
Positioning a floor jack ..... 329
Engine compartment ........ 331
Tires ................................. 345
Tire inflation pressure ...... 353
Wheels ............................. 357
Air conditioning filter......... 360
Wireless remote control/ electronic key battery ..... 363
Checking and replacing fuses .............................. 367
Light bulbs........................ 375

311
4-1. Maintenance and care
4
Maintenance and care
NOTICE
■
Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a h ard brush.
This may damage the surfaces of the lights.
● Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■ To prevent damage to th e windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
■ When using a high pressure car wash
●Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be dam aged if
they come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts
● Keep the cleaning nozzle at least 11.9 in. (30 cm) away from the vehicles
body. Otherwise resin section, such as moldings and bumpers, ma y be
deformed and damaged. Also, do not continuously hold the nozzle in the
same place.
● Do not spray the lower part of the windshield continuously.
If water enters the air conditioning system intake located near the lower
part of the windshield, the air conditioning system may not ope rate cor-
rectly.

314 4-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use organic substances such as benzene or gasoline, acid ic or
alkaline solutions, dye, bleach or other detergent. Doing so may discolor
the vehicle interior or cause streaks or damage to painted surfaces.
● Do not use polish wax or polish cleaner. The instrument panel's or other
interior part’s painted surface may be damaged.
● Do not use a chemical agent containing silicone (highly-polymerized sili-
con compound) when cleaning any of the electrical appliances su ch as the
air conditioning, all switches and their surrounding areas.
If silicon (highly-polymerized silicon compound) contacts these compo-
nents, it may cause the electrical appliances to malfunction.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deteri oration of
leather surfaces.
● Remove any dust, dirt, sand, oil spots etc. on leather surfaces immedi-
ately.
● Do not expose the vehicle to direct sunlight for extended perio ds of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or that contain wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if wate r comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.

316
4-1. Maintenance and care

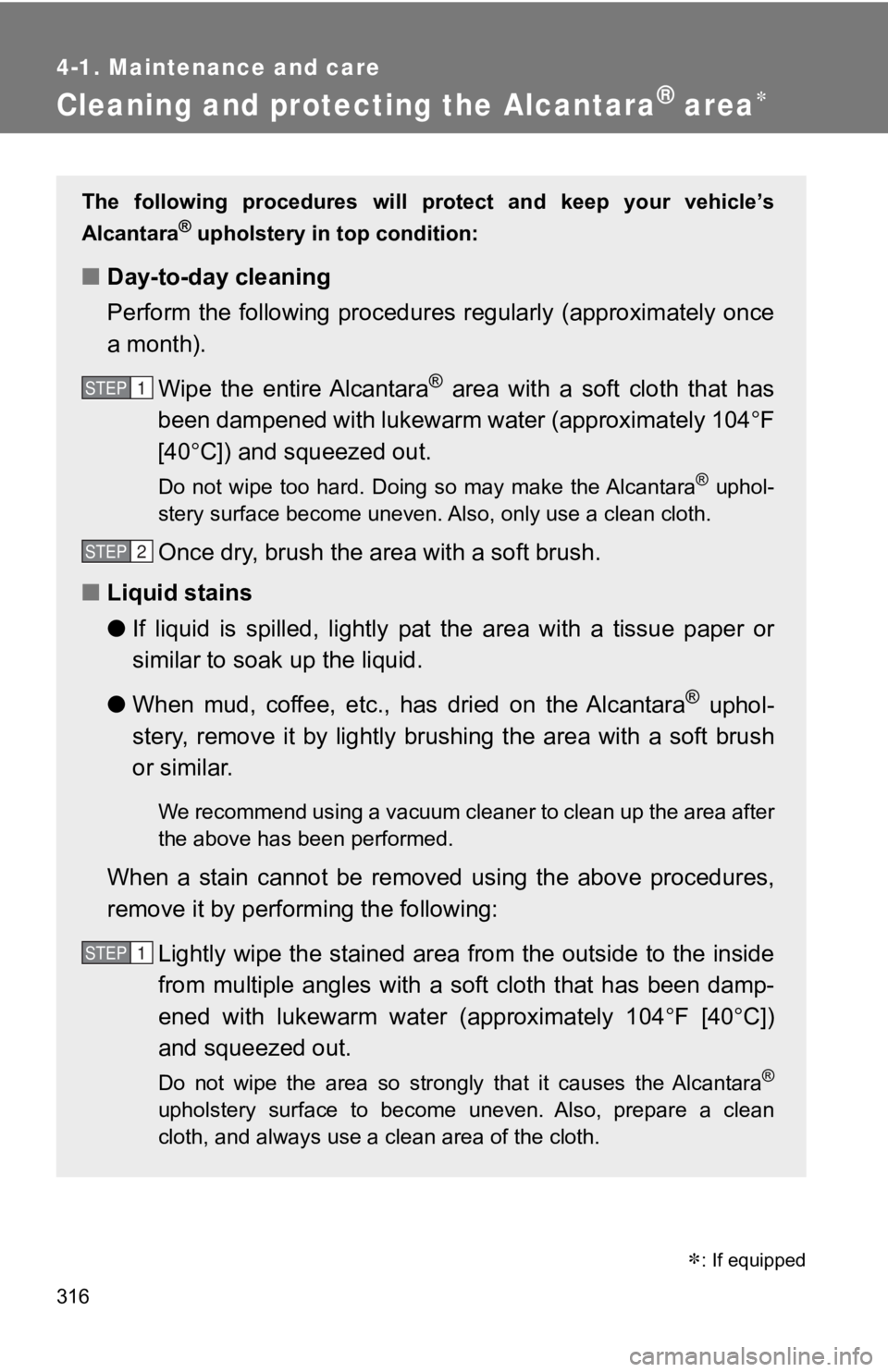

Cleaning and protecting the Alcantara® area
: If equipped
The following procedures will protect and keep your vehicle’s
Alcantara
® upholstery in top condition:
■ Day-to-day cleaning
Perform the following procedure s regularly (approximately once
a month).
Wipe the entire Alcantara
® area with a soft cloth that has
been dampened with lukewarm water (approximately 104 F
[40 C]) and squeezed out.
Do not wipe too hard. Doing so may make the Alcantara® uphol-
stery surface become uneven. Also, only use a clean cloth.
Once dry, brush the area with a soft brush.
■ Liquid stains
●If liquid is spilled, lightly pat the area with a tissue paper or
similar to soak u p the liquid.
● When mud, coffee, etc., has dried on the Alcantara
® uphol-
stery, remove it by lightly brushing the area with a soft brush
or similar.
We recommend using a vacuum cleaner to clean up the area after
the above has been performed.
When a stain cannot be removed using the above procedures,
remove it by performing the following:
Lightly wipe the stained area from the outside to the inside
from multiple angles with a soft cloth that has been damp-
ened with lukewarm water (approximately 104 F [40C])
and squeezed out.
Do not wipe the area so strongly that it causes the Alcantara®
upholstery surface to become uneven. Also, prepare a clean
cloth, and always use a clean area of the cloth.
STEP 1
STEP 2
STEP 1

317
4-1. Maintenance and care
4
Maintenance and care
■
When removing dirt or dust from the Alcantara® areas
Remove dirt or dust from the Alcantara
® areas by lighting brushing with a
soft brush. If this does not remove the dirt or dust, remove it using adhesive
tape.
NOTICE
■ When soaking up spilled liquids
Do not press down too firmly with the cloth, tissue paper etc., as doing so
may cause the liquid to further penetrate the material, making soaking up
the liquid more difficult.
If the Alcantara® upholstery surface becomes uneven,
lightly brush it with a soft brush.
Allow the surface to dry completely.
■ Oil stains
You will need the following items:
●A cloth that has bee n dampened with benzene
● A dry cloth
Using a dry cloth or tissue paper, wipe away as much of the
oil as possible to prevent t he stained area from expanding.
After patting the area from the outside to the inside from
multiple angles using the cloth dampened with benzene,
soak up the oil and benzene that floats up by patting the
area with a dry cloth.
If the Alcantara
® upholstery surface becomes uneven,
lightly brush it with a soft brush.
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

321
4-2. Maintenance
4
Maintenance and care
Vehicle interior
ItemsCheck points
Accelerator pedal • Moves smoothly (without uneven
pedal effort or catching)?
Automatic transmission “Park”
mechanism • Can the vehicle be held securely
on an incline with the shift lever in
P?
Brake pedal • Moves smoothly?
• Does it have appropriate clear-
ance and correct amount of free
play?
Brakes • Not pull to one side when
applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Clutch pedal • Moves smoothly?
Head restraints • Move smoothly and lock
securely?
Indicators/buzzers • Function properly?
Lights • Do all the lights come on?
Parking brake • Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts • Does the seat belt system oper-
ate smoothly?
• Are the belts undamaged?
Seats • Do the seat controls operate
properly?
Steering wheel • Moves smoothly?
• Has correct free play?
• No strange noises?

325
4-3. Do-it-yourself maintenance
4
Maintenance and care
ItemsParts and tools
Fuses ( P. 367)• Fuse with same amperage rating
as original
Light bulbs ( P. 375)• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
Radiator and condenser (P. 337)

Tire inflation pressure ( P. 353) • Tire pressure gauge
• Compressed air source
Washer fluid
(P. 343) • Water washer fluid containing
antifreeze (for winter use)
• Funnel
