759K,76G,844-74E
2

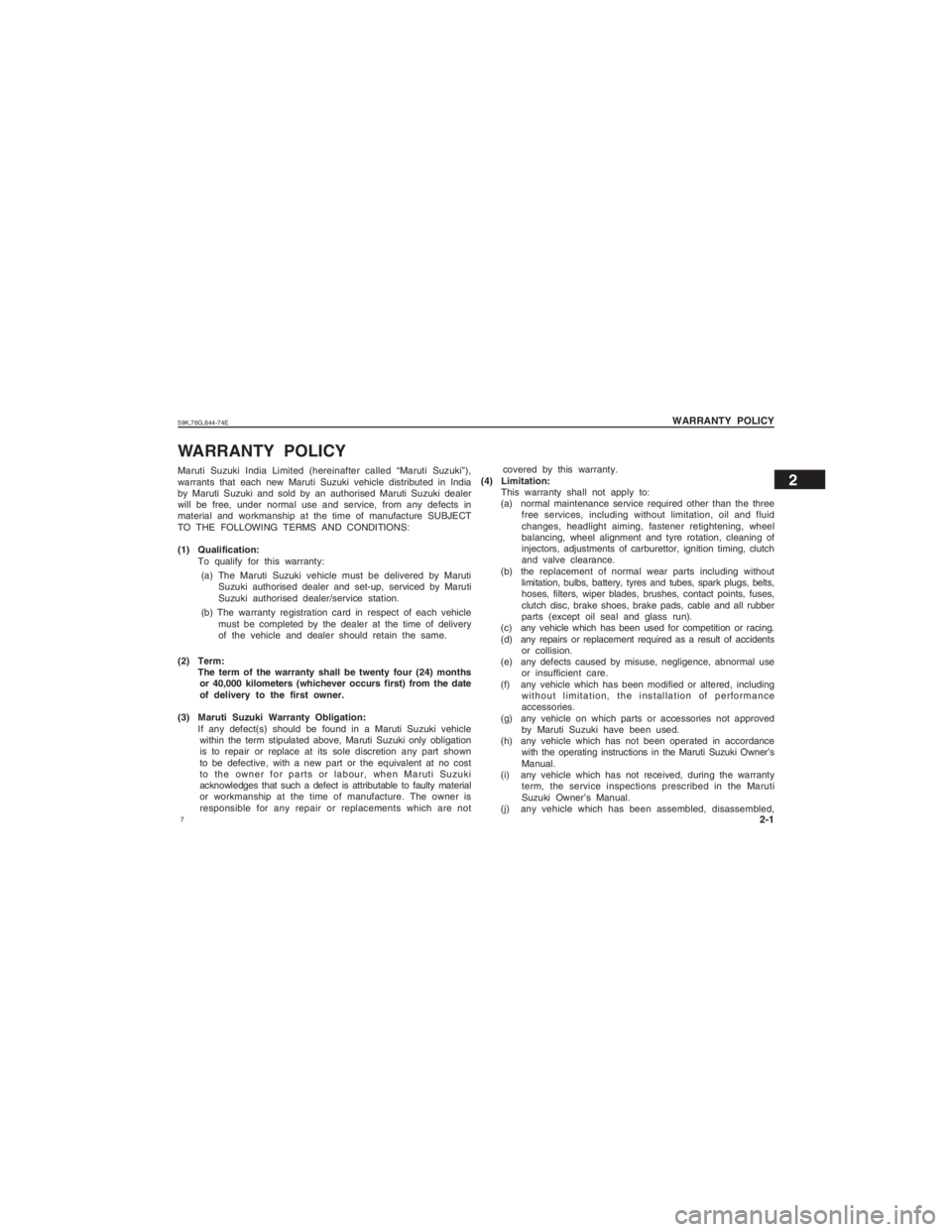

WARRANTY POLICYMaruti Suzuki India Limited (hereinafter called “Maruti Suzuki”)\
,
warrants that each new Maruti Suzuki vehicle distributed in India
by Maruti Suzuki and sold by an authorised Maruti Suzuki dealer
will be free, under normal use and service, from any defects in
material and workmanship at the time of manufacture SUBJECT
TO THE FOLLOWING TERMS AND CONDITIONS:
(1) Qualification:To qualify for this warranty:
(a) The Maruti Suzuki vehicle must be delivered by Maruti Suzuki authorised dealer and set-up, serviced by Maruti
Suzuki authorised dealer/service station.
(b) The warranty registration card in respect of each vehicle must be completed by the dealer at the time of delivery
of the vehicle and dealer should retain the same.
(2) Term: The term of the warranty shall be twenty four (24) monthsor 40,000 kilometers (whichever occurs first) from the date
of delivery to the first owner.
(3) Maruti Suzuki Warranty Obligation: If any defect(s) should be found in a Maruti Suzuki vehiclewithin the term stipulated above, Maruti Suzuki only obligation
is to repair or replace at its sole discretion any part shown
to be defective, with a new part or the equivalent at no cost
to the owner for parts or labour, when Maruti Suzuki
acknowledges that such a defect is attributable to faulty material
or workmanship at the time of manufacture. The owner is
responsible for any repair or replacements which are not covered by this warranty.
(4) Limitation:
This warranty shall not apply to:
(a) normal maintenance service required other than the three free services, including without limitation, oil and fluid
changes, headlight aiming, fastener retightening, wheel
balancing, wheel alignment and tyre rotation, cleaning of
injectors, adjustments of carburettor, ignition timing, clutch
and valve clearance.
(b) the replacement of normal wear parts including without limitation, bulbs, battery, tyres and tubes, spark plugs, belts,
hoses, filters, wiper blades, brushes, contact points, fuses,
clutch disc, brake shoes, brake pads, cable and all rubber
parts (except oil seal and glass run).
(c) any vehicle which has been used for competition or racing.
(d) any repairs or replacement required as a result of accidents or collision.
(e) any defects caused by misuse, negligence, abnormal use or insufficient care.
(f) any vehicle which has been modified or altered, including without limitation, the installation of performance
accessories.
(g) any vehicle on which parts or accessories not approved by Maruti Suzuki have been used.
(h) any vehicle which has not been operated in accordance
with the operating instructions in the Maruti Suzuki Owner’s
Manual.
(i) any vehicle which has not received, during the warranty term, the service inspections prescribed in the Maruti
Suzuki Owner’s Manual.
(j) any vehicle which has been assembled, disassembled,
WARRANTY POLICY
2-1

8376G-74E
INSPECTION AND MAINTENANCE
9
INSPECTION AND MAINTENANCE
Periodic Maintenance Schedule ........................................................................\
. 9-1
Alto ........................................................................\
..................................... 9-2
Alto K-10 ........................................................................\
............................ 9-6
Drive Belt ........................................................................\
.................................... 9-10
Engine Oil and Filter ........................................................................\
.................. 9-11
Gear Oil ........................................................................\
....................................... 9-14
Engine Coolant ........................................................................\
........................... 9-15
Windscreen Washer Fluid ........................................................................\
......... 9-18
Air Cleaner ........................................................................\
.................................. 9-18
Spark Plugs ........................................................................\
................................ 9-19
Fuel Filter Replacement ........................................................................\
............ 9-21
Brakes ........................................................................\
......................................... 9-21
Parking Brake ........................................................................\
............................. 9-23
Steering ........................................................................\
.............................. ......... 9-23
Clutch Pedal ........................................................................\
............................... 9-24
Tyres ........................................................................\
.......................................... 9-24
Tubeless Tyre (if equipped) ........................................................................\
...... 9-27
Battery ........................................................................\
......................................... 9-28
Fuses ........................................................................\
.......................................... 9-29
Bulb Replacement ........................................................................\
...................... 9-32
Wiper Blades ........................................................................\
.............................. 9-35

8576G-74E
INSPECTION AND MAINTENANCE
9-2
A....Adjust. I....Inspect and correct or replace if necessary.
T....Tighten to specified torque. C....Clean.
R....Replace or change. O....Rotate
L....Lubricate.
Note:
This table includes services as scheduled up to 80,000 km mileage. Beyon\
d 80,000 km, carry out the same services at the sameintervals respectively.Interval: This interval should be judged
FREE INSPECTIONS
PERIODIC MAINTENANCE SERVICE AT COST
by odometer reading or months, km (x 1,000) 1 5 10 20 30 40 50 60 70 80
whichever comes first. months 1 6 12 24 36 48 60 72 84 96
ENGINE
1. Water pump drive belt (tension, wear) A I I I I I I R A I
2. Engine coolant (level, leakage) I I I R I R I R I R
3. Engine oil (API GRADE SF, SG, SH) & Oil filter R I R R R R R R R R
4. Cooling system hoses and connections (leakage, damage) I I I I I I I I I I
5. Engine bolts (All cylinder head and manifold fixings) – – T – T – T – T –
6. Engine mounting (loose, damage) – – T – T – T – T –
7. Valve clearance – A – A – A – A – A
8. Camshaft timing belt (damage, wear) – – – I – I – I – I
Replace every 1,00,000 km
9. Exhaust system (noise, leakage or otherwise defective) – I – I – I – I – I
10. Positive crankcase ventilation System (Hoses, connections and valve) – I – I – I – I – I
IGNITION
1. Ignition wiring, (damage, deterioration) – – – I – I – I – I
2. Spark plugs (clean and adjust the gap) – – I R I R I R I R
3. Distributor cap and rotor (wear and deterioration)* – – – I – I – I – I
*For LX only
ALTO

102
76G-74E
The air cleaner element should be
replaced every 40,000 km. More
frequent replacement is necessary
when you drive under dusty
conditions.
CAUTION
SPARK PLUGS
You should inspect spark plugs periodically
for carbon deposits. When carbon
accumulates on a spark plug, a strong
spark may not be produced. Remove
carbon deposits with a wire or pin and
adjust the spark plug gap.
76G-09-01876G-09-019
ALTO K10
INSPECTION AND MAINTENANCE9-19
ALTO

104
76G-74E
INSPECTION AND MAINTENANCE9-21NOTE:If you experience some firing problem of
spark plugs, such as, hard engine-starting,misfire etc., the cause may be located notonly on spark plugs but also on deteriorated
ignition wiring (generally, used for more than80,000 km or five years). If spark plugreplacement does not solve the problem,
have the ignition wiring and other ignitionsystem inspected by your MARUTI SUZUKIdealer.
76G-09-022
BRAKESBrake Fluid
Check the brake fluid level by looking at the
reservoir in the engine compartment. Check
that the fluid level is between the “MAX”
and “MIN” lines. If the brake fluid level is
near the “MIN” line, fill it up to the “MAX”
line with MARUTI GENUINE brake fluid.
Failure to follow the guidelines below
can result in personal injury or
serious damage to the brake system.
If the brake fluid in the reservoir drops below a certain level, the
brake warning light on the
instrument panel will come on (the
ww ww
w WARNING
VV
VV
V
76G-09-023
EXAMPLE EXAMPLE
FUEL FILTER REPLACEMEMTTrust this replacement job to your MARUTI
SUZUKI authorised workshop.
