2020 SKODA SUPERB engine

194Exhaust control system194Fuel filter195Fuel filler flap195AdBlue196Petrol197Diesel198Vehicle battery and fuses198Vehicle battery199Using the jump-starting cable200Fuses201Fuses in the dash panel202Fuses in the engine compartment203Wheels203Tyres and rims204All-season or winter tires205Snow chains205SEAL tyres205Spare and emergency spare wheel205Changing the wheel and raising the vehicle207Breakdown kit208Tyre pressure208Tyre pressure monitor209Tyre pressure monitoring system210Wheel bolt cover caps210Full wheel frame211Storage space and interior equipment211Equipment in the boot211Emergency equipment212Storage compartment for the reflective vest212Fasteners in the boot213Bag hooks in the boot213Storage compartment with cargoelements in
the luggage compartment213Storage net213Fastening nets213Multifunctional pocket214Net partition215Floor covering in the boot215Rigid boot cover216Roll-up luggage compartment cover216Variable loading floor in the boot217Storage compartment under the variable
loading floor217Partition in the boot218Partition with fastening element in the
luggage compartment218Through-loading bag219Overview of passenger compartment220Storage pockets on the inner sides of the
front seats220Parking ticket holder220Bottle tray in the storage compartment of the
front door220Bottle tray in the storage compartment of the
rear door221USBConnections221Hook on the middle body pillar222Glasses compartment222Pen holder222Storage compartment for cards, coins and SD
card222Storage compartment for cards in the storage
area on the driver

Warning lightsFunctionality
WARNING
Disregarding the lighting up of the warning lights and
the associated messages on the display of the instru-
ment cluster can lead to accidents, serious injuries or
damage to the vehicle.
The warning lights in the instrument cluster indicate
certain functions or faults.
The illumination of some of the indicator lights may
be accompanied by acoustic signals and messages in
the instrument cluster display.
Colour display of the indicator lights
Depending on the vehicle equipment, the colour
scheme of the indicator lights may vary. The coolant
indicator light can, e.g. be shown in colour as follows.
- colour display
- black and white display
Additional indicator lights
Depending on the meaning, the additional indicator
light will also light up in the display along with some
of the indicator lights.
- Hazard
- Warning
Warning lights overview
After switching on the ignition, some indicator lights
light up briefly as a function test of the vehicle sys-
tems. If the tested systems are in order, the respec-
tive indicator lights go out a few seconds after the
ignition is switched on or after the engine has been
started.
For further details

Interior rear-view mirrorservice
Interior mirror with manual darkening
A
Mirror is not dark-
ened
B
Mirror darkens
Interior mirror with automatic darkening
Darkening of the mirror is automatically controlled
through the sensors in the mirror once the engine is
started.
CAUTION
Risk of accident!
A glowing display e.g. a mobile phone or navigation
device may a

Starting issues
Troubleshooting
NOTICE
Risk of engine damage!

When the system is deactivated, the symbol lights
up in the button .
If a system-related engine switch-o

Driver assist systems
Braking and stabilising systems Overview
Stabilisation control (ESC)
ESC helps to stabilize the vehicle in borderline situa-
tions (e.g. when the vehicle starts to skid). ESC
brakes the individual wheels to maintain the direc-
tion of travel.
flashes - ESC is engaged
ESC Sport
ESC Sport allows for a sportier driving style.
lit up - ESC Sport is activated
Traction control (TCS)
ASR helps to stabilize the vehicle when accelerating
or driving on low-grip roads. ASR reduces the drive
power transmitted to the wheels when the wheels
spin.
flashes - ASR is engaged
Antilock braking system (ABS)
ABS helps maintain control of the vehicle during
emergency braking. An ABS intervention is noticea-
ble by pulsating movements of the brake pedal.
Motor Slip Regulation (MSR)
MSR helps to maintain control of the vehicle in the
event of a sudden reduction in speed, e.g. on icy
roads. If the drive wheels lock, MSR increases the
engine speed. This reduces the braking e

Engine electronics
Troubleshooting
Petrol engine control faulty illuminates
Driving in emergency mode is possible - a
noticeable reduction in engine performance may oc-
cur.

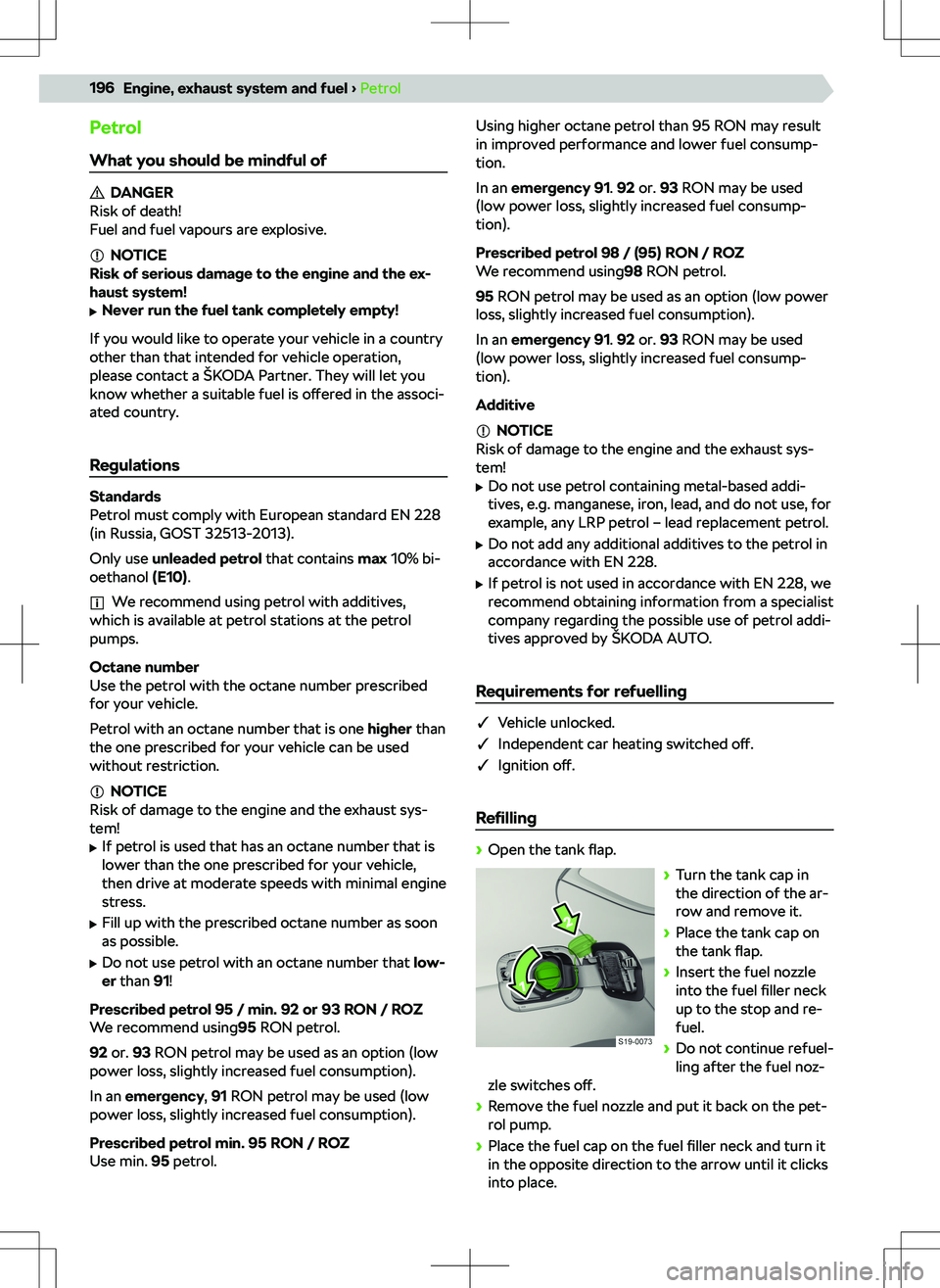

Petrol
What you should be mindful of
DANGER
Risk of death!
Fuel and fuel vapours are explosive.
NOTICE
Risk of serious damage to the engine and the ex-
haust system!
