2020 SKODA KODIAQ trailer

Set the maximum speed for trailer operation to cor-
rectly calculate the route time.

The system warns of an approaching vehicle through
the warning light in the exterior mirror cover on
the side of the vehicle where the vehicle is recog-
nized.
Driving situations in which a system warning is
given
Your vehicle will be overtaken by vehicle
A.
The fast-
er the vehicle
A
approaches, the earlier the warning
light comes on.
Vehicle
B
is overtaken by your vehicle at a speed
that is faster by max. 10 km/h. If the speed is higher
during the overtaking process, no warning will be
provided by the indicator light.
Indicator light
illuminates - there is another vehicle behind your
vehicle
flashes - there is another vehicle behind your ve-
hicle, and the turn signal on the same side is switch-
ed on
For vehicles with Lane Assist The indicator light
flashes even if your vehicle crosses the boundary line
in the direction of the approaching vehicle. The sys-
tem will trigger a steering wheel vibration in this
case.
For this, Lane Assist must be activated and the boun-
dary line between the vehicles recognized.
Operating conditions
q The driving speed is higher than 15 km/h.
q No accessories are connected to the trailer sock-
et.
Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.

Area View environment overview
Usage
The area view assists the driver in parking and ma-
noeuvring by displaying the vehicle area.
Overview
General overview
A3D views:
Top view
View obliquely from above
View from the side
General overview
By moving your finger across the screen, you can
change the viewing angle.
Camera rear view
AMode for transverse parkingBMode for parallel parkingCMode for driving up to a trailer/distance moni-
toringDMode for monitoring the area behind the vehicle
(wide view)Front camera viewAMode for transverse parking
The orientation lines are used for estimating dis-
tance as well as for displaying the route, which is
controlled at the current steering angle.BMode for monitoring the area in front of the ve-
hicle (wide view)
The area right in front of the vehicle is marked
by the blue lines.CDistance monitoring mode
Side camera view
ALeft sideBRight sideCLeft and right side
The yellow line is shown at a distance of about
40 cm from the vehicle.
Operating conditions
q The ignition is switched on.
q The driving speed is lower than 15 km/h.
Operation
Switching on

ACurrent trailer posi-
tionB
Target trailer posi- tion
C
Manoeuvring angle

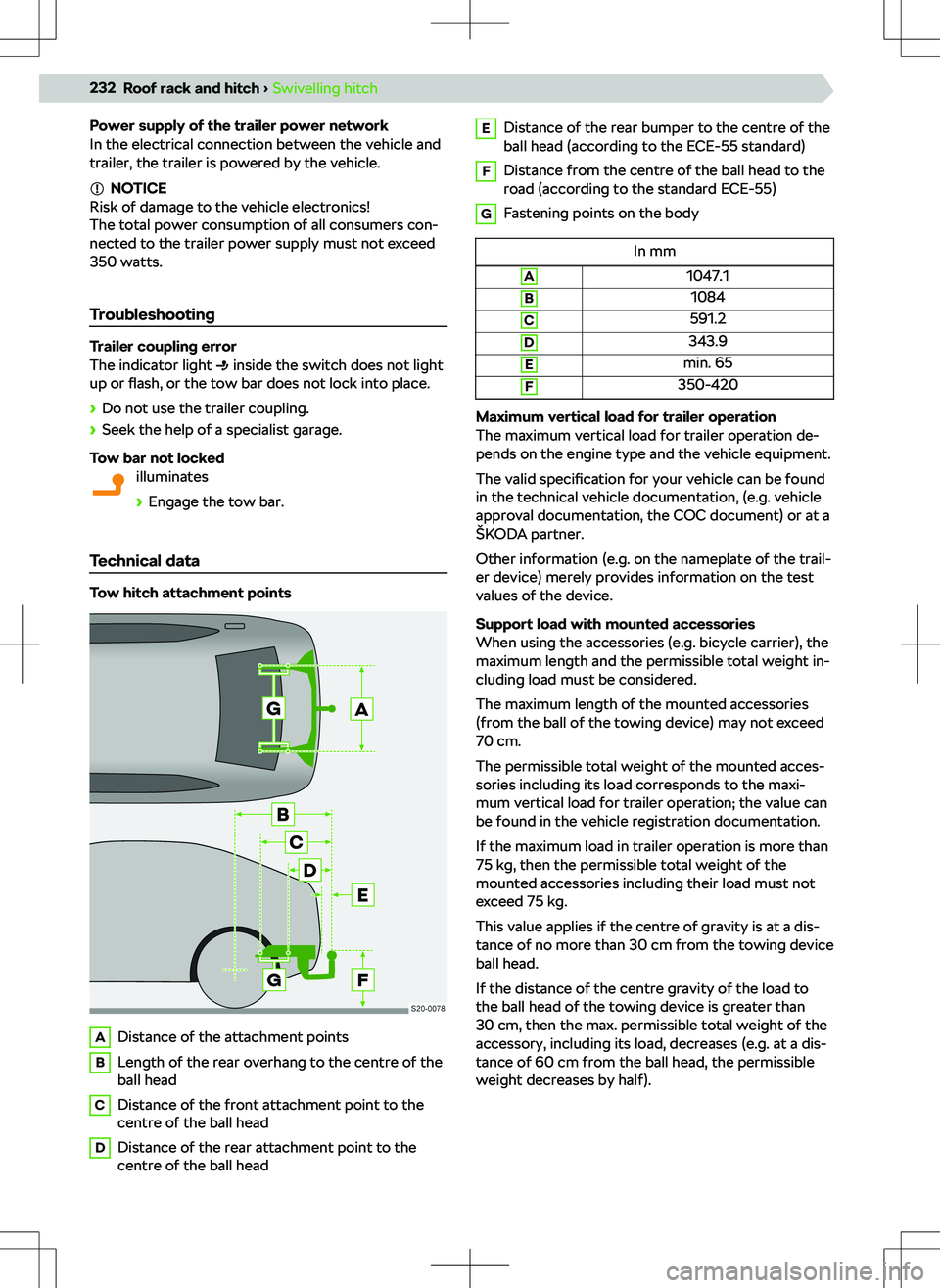

Power supply of the trailer power network
In the electrical connection between the vehicle and
trailer, the trailer is powered by the vehicle.
NOTICE
Risk of damage to the vehicle electronics!
The total power consumption of all consumers con-
nected to the trailer power supply must not exceed
350 watts.
Troubleshooting
Trailer coupling error
The indicator light inside the switch does not light
up or flash, or the tow bar does not lock into place.

VIN display
The display of VIN takes place in the infotainment
under the following menu item.
Menu item for the Service
Or:
Menu item for the Service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di

Trailer manoeuvring systemsee Trailer Assist194
Trailer stability assist177
Transport Transporting objects safely
21
Transporting tow hitch
231
Transporting the roof rack
231
Travel Assist184
TSA see trailer stability assist
177
Turn signal50
Type plate237
Tyre control display214
Tyre pressure monitor214, 215
tyres208
Breakdown set212
Tyres209
Pressure213
Snow chains209
Tyre control display214
U Umbrella
226
Unlock26
Unlocking27
Update Infotainment
Infotainment Amundsen
107
Infotainment Bolero85
Infotainment Columbus132
Infotainment Swing71
Updating the system and the Infotainment system see digital version of the manual
5
USB222, 223
User Account162
User Management160
User registration157
V
Variable loading floor in the boot
220
Vehicle battery202
Charging202
Checking the condition202
Discharge protection202
Disconnecting and connecting203
Error203
Safety19
Vehicle cleaning interior space
235
Vehicle dimensions239
Vehicle driving mode171
Eco171
Individual171
Normal171
O
