2020 SKODA KAROQ engine

Some warning lights can be accompanied by acoustic signals and messages in
the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-
tion test. If the tested systems are OK, the corresponding warning lights go
out a few seconds after switching on the ignition or after starting the engine.
Warning lights in the display
Depending on the significance, the warning light

Driving
Starting-off and Driving
Starting and stopping the engine

Note
vThe engine running noises may be louder at first for a short time after start-
ing the cold engine.
v
You should not switch on any major electrical components during the heating
period, otherwise the vehicle battery will be drained unnecessarily.

v
After switching off the ignition, the radiator fan may intermittently continue
to run for approx. 10 minutes (also continuously).
Problems with the engine start - vehicles with starter button
Fig. 241
Engine start - hold key on but-
ton

WARNING (Continued)
vIf the vehicle stalls, with engine running, in the D, S , R or Tiptronic mode,
then the vehicle must be prevented from rolling away using the brake ped- al, or using the Auto Hold function. Even when the engine is idling, the pow-
er transmission is never interrupted - the vehicle creeps.
v
When leaving the vehicle, the selector lever must always be set to P .
Otherwise, the vehicle could start to move - risk of accident.
CAUTION

v If you want to move the selector lever from position N to position D / S
whilst driving, the engine must be running at idling speed.
v
When stopping on a slope, never try to hold the vehicle using the accelerator
pedal

This is only possible within the range which is permitted by the power output
and braking power of the engine.WARNINGIf the engine power and engine braking effect is insufficient in order to
maintain the set speed, the acceleration and brake pedals must be taken
over!
Operation description
Fig. 274
Cruise control system controls

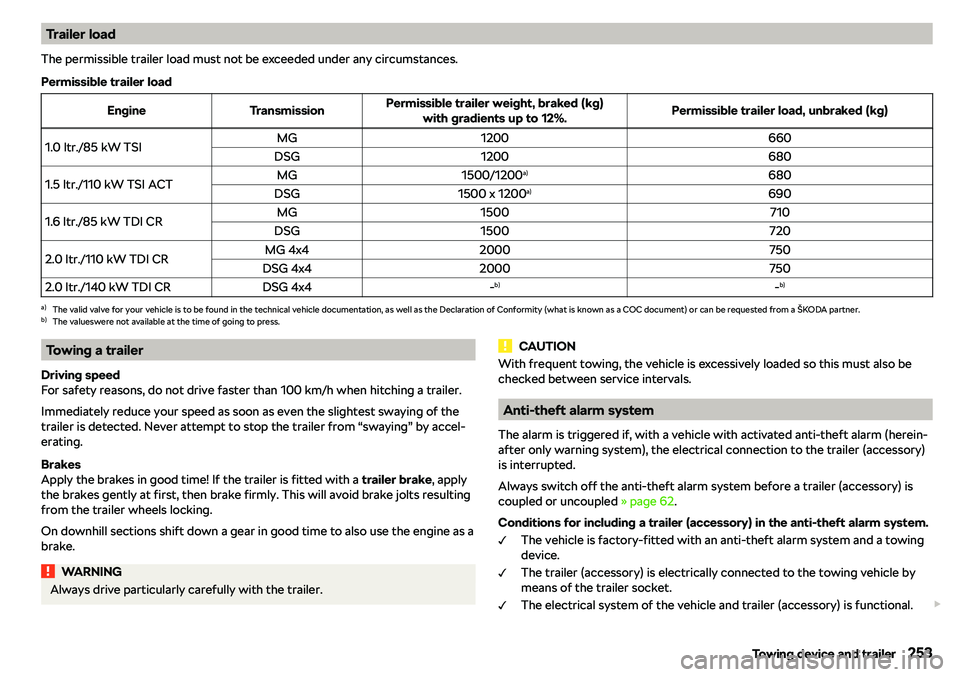

Trailer loadThe permissible trailer load must not be exceeded under any circumstances.Permissible trailer loadEngineTransmissionPermissible trailer weight, braked (kg)with gradients up to 12%.Permissible trailer load, unbraked (kg)1.0 ltr./85 kW TSIMG1200660DSG12006801.5 ltr./110 kW TSI ACTMG1500/1200 a)680DSG1500 x 1200 a)6901.6 ltr./85 kW TDI CRMG1500710DSG15007202.0 ltr./110 kW TDI CRMG 4x42000750DSG 4x420007502.0 ltr./140 kW TDI CRDSG 4x4-b)-b)a)
The valid valve for your vehicle is to be found in the technical vehicle documentation, as well as the Declaration of Conformity\
(what is known as a COC document) or can be requested from a

WARNING (Continued)
vAllow the engine to cool.
vNever open the bonnet if you can see steam or coolant flowing out of the
engine compartment

WARNING (Continued)
vTo protect against coolant splashes, cover the cap with a cloth when
opening.
v
Coolant and coolant fumes are harmful - avoid contact with the coolant.
If your eyes or skin come into contact with the coolant, immediately wash
the affected area for a few minutes long with a lot of water and seek medi-
cal advice if required.
CAUTION
Do not cover the radiator or fit any parts (e.g. auxiliary lights) in front of the air
intakes - there is a risk of the engine overheating.
Checking and refilling
Fig. 305
Coolant expansion reservoir
