6

Fuses and bulbs
No. Consumers/Amps
12 Right lights 40
13 Central locking 40
14 Beats Audio CAN and MOST. 30
16 Airbag 7.5
17 SCR, engine relay, 1.5 10
18 KESSY 7.5
19 Instrument panel 7.5
20 Connectivity Box 7.5
21 Rear camera 7.5
24 4x4 Haldex Control Unit 15
25 RGS+EBSS front seat belts 25
26 Right door 30
27 RGS+EBSS front seat belts 25
28 PHEV. Switching off the high voltage
syst
em f
or rescue tasks. Identified
by a yellow label. 10
29 Trailer 15
30 Radio 30
31 Trailer 25
34 230V socket 30
35 Left lights 40
36 Air conditioner fan 40 No. Consumers/Amps
37 Electric rear lid 30
39 Heated steering wheel 10
40 Alarm horn 7.5
41 Gateway 7.5
42 Automatic gearbox lever 7.5
43 Air conditioning and heating con-
tr
ol panel

, rear window heating, AA
compressor 10
44 Diagnosis, handbrake switch, light
s
wit

ch, reverse light, interior light-
ing, lit-up door sill 7.5
45 Steering column 7.5
46 Radio display 7.5
47 Driving mode. 10
48 USB 7.5
52 12V socket 20
58 Parking sensors, parking assist
control unit, fr

ont camera, radar 7.5
59 Reverse switch, clima sensor, elec-
trochr

omic mirror 7.5
60 Diagnosis, headlight control unit,
headlight adjuster 7.5
61

Starter motor; clutch sensor 7.5
65 Sound amplifier 10 No. Consumers/Amps
66 Rear window wiper 15
67 Heated rear window 30 In-line fuse/Amps
230 V rear power sockets 30
Electric driver

Emergencies
No. Consumers/Amps
16 PHEV, Automatic gearbox unit 5017 PTC 40
18 PTC 40
20 Front electronic differential 15 21 Engine control unit 7.5
22 Starter motor 30
23 Engine control unit (diesel/pet-
r
ol) 15
2
4 Engine sensors 7.5/10
25 Engine sensors 7.5/10
26 Engine power supply 7.5/10
27 Lambda probe 10/15
28 Engine 10/20
29 Fuel pump control unit 15/20/30
30 Pressure pump 1.0 10
33 PTC 40Note

Operation
Unlock and lock the vehicle with
K eyl
ess Access Fig. 87
Keyless Access: proximity zones. Fig. 88
Door handle: sensor surfaces ›››
Fig. 88
Unl ocking sensor surf

ace on the inside of
the door handle.
Locking sensor surface on the outside of
the door handle.
A B Depending on the equipment, the vehicle
may hav
e the K

eyless Access system.
Configure the Keyless Access system
The behaviour of the Keyless Access system
can be adjusted in the Vehicle settings
menu of the Infotainment system.
If the Keyless Access function is disabled, its
operation is limited.
Keyless Access is a key-free locking and igni-
tion system to unlock and lock the vehicle
without actively using its key. For this, it is only
necessary that there is a valid vehicle key in
the detection area corresponding to the at-
tempted access to the vehicle.
Unlock the vehicle

Opening and closing
unauthorised vehicle entry by means of ultra-
sound.
The v ehicl
e interior monitoring and anti-tow
sensor (tilt sensor) are automatically switch-
ed on when the anti-theft alarm is switched
on. In order to activate it, all the doors and
the rear lid must be closed.
If the “Safe” security system* ››› page 107
is
switched off, the vehicle interior monitoring
and the tow-away protection are automati-
cally disconnected.
Activation

Lights
In the vehicle settings menu of the infotain-
ment syst em you can adjust the dur
ation of
the light switch-off delay, and activate and
deactivate the function.
Activating the “Coming Home” function
For vehicles with light and rain sensors.

Infotainment system
Copyright
As a gener al rul
e, audio and video files stored
on data media and audio sources are subject
to intellectual property protection in accord-
ance with the national and international pro-
visions applicable in each case. Please bear
in mind all legal provisions!
Technical data Radio with integrated hardware (8.25 ")
1)
The f act

ory-mounted radio in the vehicle with
integrated hardware includes country-specif-
ic components and software for connectivity
and for the execution of vehicle, comfort and
infotainment functions.
The corresponding indications are shown on
the radio screen and partly on the instrument
panel.

v Capacitive colour screen:

v 8.25 inch version, TFT, WVGA: 1082 x 480
pixels.

v Touch operation via the device screen, ro-
tary push-button, menu button and buttons
on the multifunction steering wheel. Central computer with control and display
unit (10")
2)
The f act

ory-mounted central computer in the
vehicle includes country-specific compo-
nents and software for connectivity and for
the execution of vehicle, comfort and infotain-
ment functions.
The corresponding indications are shown on
the control and display unit screen and partly
on the instrument panel.

v Capacitive colour screen:

v Using the equipment with:

v Touch zones Touch operation.

v Buttons on the multifunction steering
wheel.

v Proximity sensors and gesture control.
Vehicle and comfort functions

v Driver assistance system settings.

v Heating and air conditioning settings.

v Lights and visibility function settings.

v Vehicle comfort settings.

v Parking and manoeuvring settings. Sound system Basic equipment:
The inf
ot

ainment system that is supplied from
the factory is equipped as follows:

v Speakers in different locations and with dif-
ferent power levels (watts).

v Internal amplifier depending on the system:

v 4 speakers: 2 x 20 W

v 7 speakers: 5 x 20 W

v Setting options:

v Equaliser, depending on the system:

v 4 speakers: treble, mid and bass.

v 7 speakers: 5 frequency bands or pre-
defined settings.

v Sound distribution, depending on the sys-
tem:

v4 speakers: Balance (left / right)

v 7 speakers: Balance + Fader (left /
right / front / rear).

v Sound optimisation by zones (valid for 7
speaker system):

v Manual (Driver and All)

v Automatic depending on the seats oc-
cupied. 1)
Equipment name: Media System
2) Equipment name: Connect System.
182

Infotainment system

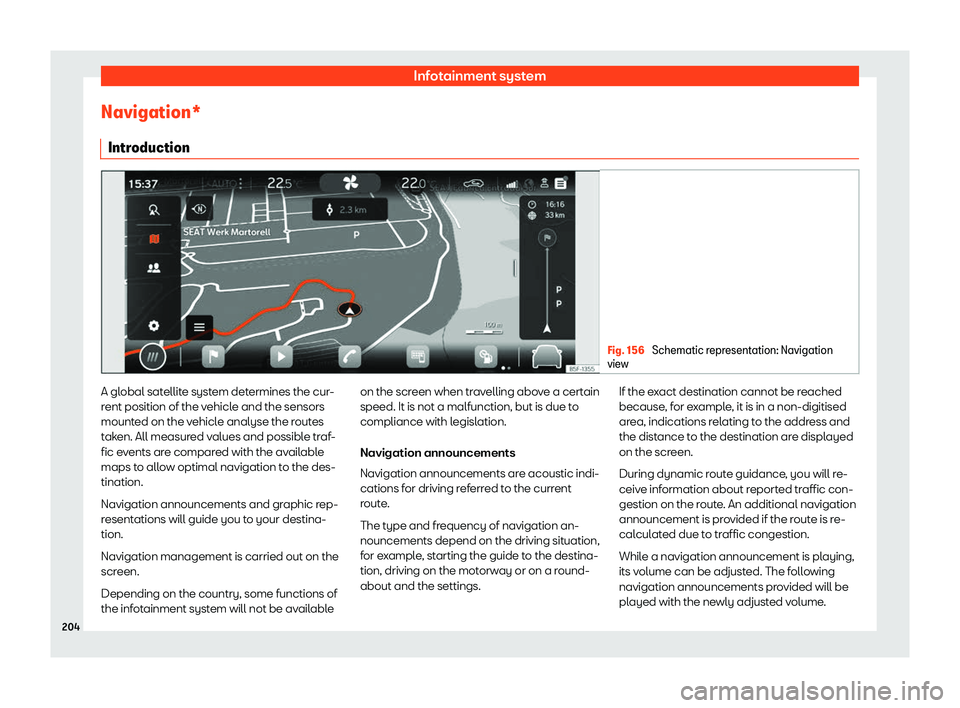

Navigation* Intr oduction Fig. 156
Schematic representation: Navigation
vie w A global satellite system determines the cur-
r
ent position of the v
ehicle and the sensors
mounted on the vehicle analyse the routes
taken. All measured values and possible traf-
fic events are compared with the available
maps to allow optimal navigation to the des-
tination.
Navigation announcements and graphic rep-
resentations will guide you to your destina-
tion.
Navigation management is carried out on the
screen.
Depending on the country, some functions of
the infotainment system will not be available on the screen when travelling above a certain
speed. It is not a malfunction, but is due to
compliance with l
egislation.
Navigation announcements
Navigation announcements are acoustic indi-
cations for driving referred to the current
route.
The type and frequency of navigation an-
nouncements depend on the driving situation,
for example, starting the guide to the destina-
tion, driving on the motorway or on a round-
about and the settings. If the exact destination cannot be reached
because, f
or example, it is in a non-digitised
area, indications relating to the address and
the distance to the destination are displayed
on the screen.
During dynamic route guidance, you will re-
ceive information about reported traffic con-
gestion on the route. An additional navigation
announcement is provided if the route is re-
calculated due to traffic congestion.
While a navigation announcement is playing,
its volume can be adjusted. The following
navigation announcements provided will be
played with the newly adjusted volume.
