2020 Ram ProMaster City check engine light

96 GETTING TO KNOW YOUR INSTRUMENT PANEL
Your vehicle has a simple ignition actuated test, which you
can use prior to going to the test station. To check if your
vehicle's OBD II system is ready, you must do the following:
1. Cycle the ignition switch to the ON position, but do notcrank or start the engine.
NOTE:
If you crank or start the engine, you will have to start this test
over.
2. As soon as you cycle the ignition switch to the ON posi -
tion, you will see the “Malfunction Indicator Light (MIL)”
symbol come on as part of a normal bulb check.
3. Approximately 15 seconds later, one of two things will happen:
• The MIL will flash for about 10 seconds and then return to being fully illuminated until you turn OFF the igni -
tion or start the engine. This means that your vehicle's
OBD II system is not ready and you should not proceed
to the I/M station.
• The MIL will not flash at all and will remain fully illumi
-
nated until you place the ignition in the off position or
start the engine. This means that your vehicle's OBD II
system is ready and you can proceed to the I/M station.

If your OBD II system is not ready, you should see an autho -
rized dealer or repair facility. If your vehicle was recently
serviced or had a battery failure or replacement, you may
need to do nothing more than drive your vehicle as you
normally would in order for your OBD II system to update.
A recheck with the above test routine may then indicate that
the system is now ready.
Regardless of whether your vehicle's OBD II system is ready
or not, if the MIL is illuminated during normal vehicle
operation you should have your vehicle serviced before
going to the I/M station. The I/M station can fail your
vehicle because the MIL is on with the engine running.
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 96

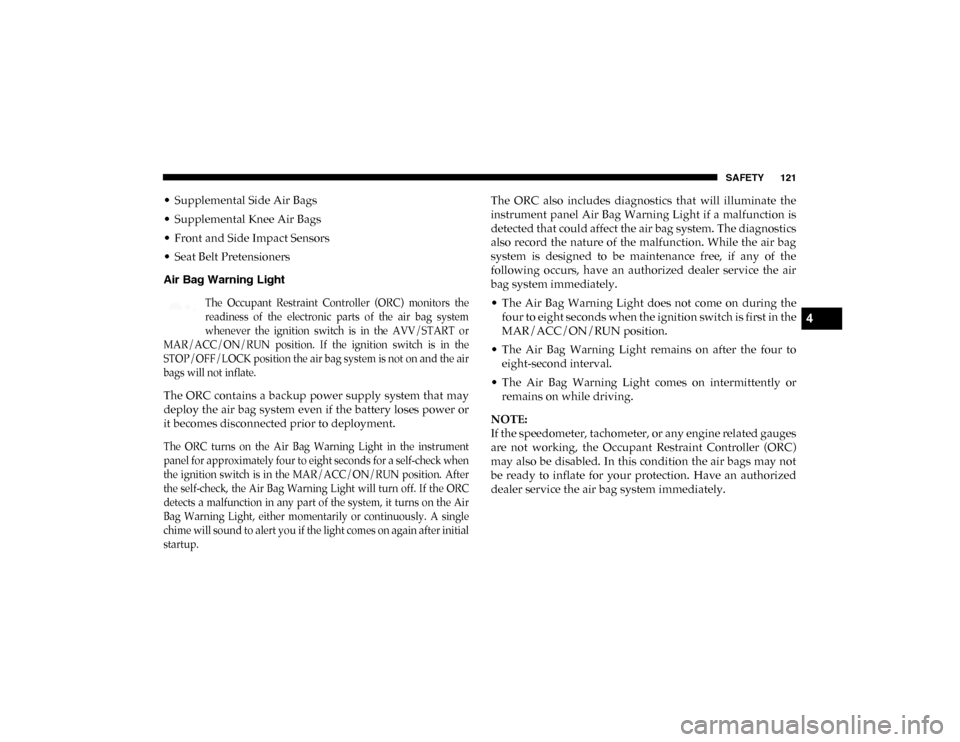

SAFETY 121
• Supplemental Side Air Bags
• Supplemental Knee Air Bags
• Front and Side Impact Sensors
• Seat Belt Pretensioners
Air Bag Warning Light
The Occupant Restraint Controller (ORC) monitors the
readiness of the electronic parts of the air bag system
whenever the ignition switch is in the AVV/START or
MAR/ACC/ON/RUN position. If the ignition switch is in the
STOP/OFF/LOCK position the air bag system is not on and the air
bags will not inflate.

The ORC contains a backup power supply system that may
deploy the air bag system even if the battery loses power or
it becomes disconnected prior to deployment.

The ORC turns on the Air Bag Warning Light in the instrument
panel for approximately four to eight seconds for a self-check when
the ignition switch is in the MAR/ACC/ON/RUN position. After
the self-check, the Air Bag Warning Light will turn off. If the ORC
detects a malfunction in any part of the system, it turns on the Air
Bag Warning Light, either momentarily or continuously. A single
chime will sound to alert you if the light comes on again after initial
startup.
The ORC also includes diagnostics that will illuminate the
instrument panel Air Bag Warning Light if a malfunction is
detected that could affect the air bag system. The diagnostics
also record the nature of the malfunction. While the air bag
system is designed to be maintenance free, if any of the
following occurs, have an authorized dealer service the air
bag system immediately.
• The Air Bag Warning Light does not come on during the
four to eight seconds when the ignition switch is first in the
MAR/ACC/ON/RUN position.
• The Air Bag Warning Light remains on after the four to eight-second interval.
• The Air Bag Warning Light comes on intermittently or remains on while driving.
NOTE:
If the speedometer, tachometer, or any engine related gauges
are not working, the Occupant Restraint Controller (ORC)
may also be disabled. In this condition the air bags may not
be ready to inflate for your protection. Have an authorized
dealer service the air bag system immediately.
4
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 121

SAFETY 131
Enhanced Accident Response System
In the event of an impact, if the communication network
remains intact, and the power remains intact, depending on
the nature of the event, the ORC will determine whether to
have the Enhanced Accident Response System perform the
following functions:
• Cut off fuel to the engine (if equipped)
• Cut off battery power to the electric motor (if equipped)
• Flash hazard lights as long as the battery has power
• Turn on the interior lights, which remain on as long as thebattery has power or for 15 minutes from the intervention
of the Enhanced Accident Response System
• Unlock the power door locks
Your vehicle may also be designed to perform any of these
other functions in response to the Enhanced Accident
Response System:
• Turn off the Fuel Filter Heater, Turn off the HVAC Blower Motor, Close the HVAC Circulation Door • Cut off battery power to the:
• Engine
• Electric Motor (if equipped)
• Electric Power Steering
• Brake booster
• Automatic transmission gear selector
• Horn
• Front wiper
NOTE:
After an accident, remember to cycle the ignition to the STOP
(OFF/LOCK) position and remove the key from the ignition
switch to avoid draining the battery. Carefully check the
vehicle for fuel leaks in the engine compartment and on the
ground near the engine compartment and fuel tank before
resetting the system and starting the engine. If there are no
fuel leaks or damage to the vehicle electrical devices (e.g.
headlights) after an accident, reset the system by following
the procedure described below. If you have any doubt,
contact an authorized dealer.
4
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 131

SAFETY 155
(Continued)
(Continued)
Floor Mat Safety Information
Always use floor mats designed to fit your vehicle. Only use
a floor mat that does not interfere with the operation of the
accelerator, brake or clutch pedals. Only use a floor mat that
is securely attached using the floor mat fasteners so it cannot
slip out of position and interfere with the accelerator, brake
or clutch pedals or impair safe operation of your vehicle in
other ways.
WARNING!
An improperly attached, damaged, folded, or stacked
floor mat, or damaged floor mat fasteners may cause
your floor mat to interfere with the accelerator, brake, or
clutch pedals and cause a loss of vehicle control. To
prevent SERIOUS INJURY or DEATH:
• ALWAYS securely attach your floor mat using the floor mat fasteners. DO NOT install your floor mat
upside down or turn your floor mat over. Lightly pull to
confirm mat is secured using the floor mat fasteners on
a regular basis.
• ALWAYS REMOVE THE EXISTING FLOOR MAT FROM THE VEHICLE before installing any other
floor mat. NEVER install or stack an additional floor
mat on top of an existing floor mat.
• ONLY install floor mats designed to fit your vehicle.NEVER install a floor mat that cannot be properly
attached and secured to your vehicle. If a floor mat
needs to be replaced, only use a FCA approved floor
mat for the specific make, model, and year of your
vehicle.
• ONLY use the driver’s side floor mat on the driver’s side floor area. To check for interference, with the
vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch pedal
(if present) to check for interference. If your floor mat
interferes with the operation of any pedal, or is not
secure to the floor, remove the floor mat from the
vehicle and place the floor mat in your trunk.
• ONLY use the passenger’s side floor mat on the passenger’s side floor area.
• ALWAYS make sure objects cannot fall or slide into the driver’s side floor area when the vehicle is moving.
Objects can become trapped under accelerator, brake,
or clutch pedals and could cause a loss of vehicle
control.
WARNING! (Continued)
4
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 155

STARTING AND OPERATING 161
NOTE:
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered a normal part of the break-in and not interpreted
as a problem. Please check your oil level with the engine oil
indicator often during the break in period. Add oil as
required.
PARKING BRAKE
Before leaving the vehicle, make sure that the parking brake
is fully applied. Also, be certain to leave an automatic trans-
mission in PARK, or manual transmission in REVERSE or
first gear.
The parking brake lever is located in the center console. To
apply the parking brake, pull the lever up as firmly as
possible. To release the parking brake, pull the lever up
slightly, press the center button, then lower the lever
completely. Parking Brake
When the parking brake is applied with the ignition switch
in the ON position, the “Brake Warning Light” in the instru-
ment cluster will illuminate.
5
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 161

241
SERVICING AND MAINTENANCE
SCHEDULED SERVICING

Your vehicle is equipped with an automatic oil change indicator
system. The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.

Based on engine operation conditions, the oil change indi-
cator message will illuminate. This means that service is
required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extended engine idle time,
extremely hot or cold ambient temperatures will influence
when the “Oil Change Required” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km) since
last reset. Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).

Your authorized dealer will reset the oil change indicator message
after completing the scheduled oil change. If a scheduled oil change
is performed by someone other than your authorized dealer, the
message can be reset by referring to the steps described under “Oil
Change Reset” in “Instrument Cluster Display” in “Getting To
Know Your Instrument Panel” for further information.
NOTE:
Under no circumstances should oil change intervals exceed
10,000 miles (16,000 km), 350 hours of engine run time or
12 months, whichever comes first. The 350 hours of engine run
or idle time is generally only a concern for fleet customers.

Severe Duty All Models

Change Engine Oil at 4,000 miles (6,500 km) or 350 hours of engine
run time if the vehicle is operated in a dusty and off road environ -
ment or is operated predominantly at idle, or only very low engine
RPM. This type of vehicle use is considered Severe Duty.

Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or damage. Rotate tires at the first sign of irregular wear, even if it
occurs before the oil indicator system turns on.
• Check the fluid levels of the coolant reservoir and brake master cylinder, fill as needed.
• Check function of all interior and exterior lights.
7
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 241

335
INDEX
A
Adding Engine Coolant (Antifreeze) ................................... 256
Additives, Fuel ........................................................................ 299
Air Bag Air Bag Operation ............................................................... 124Driver Knee Air Bag ........................................................... 125
Enhanced Accident Response ................................... 131, 240
Event Data Recorder (EDR) ............................................... 240
Front Air Bag ....................................................................... 122If Deployment Occurs ........................................................ 130
Knee Impact Bolsters .......................................................... 124Maintaining Your Air Bag System.................................... 132
Maintenance......................................................................... 132
Transporting Pets ................................................................ 153
Air Bag Light ..................................................................... 84, 154
Air Cleaner, Engine (Engine Air Cleaner Filter) ................ 250
Air Conditioner Maintenance ............................................... 251
Air Conditioner Refrigerant .................................................. 251
Air Conditioner System ......................................................... 251
Air Conditioning Filter ............................................................ 59
Air Conditioning, Operating Tips .................................... 57, 59 Air Filter ................................................................................... 250 Air Pressure
Tires .......................................................................................277
Alarm Security Alarm .......................................................................21
Alterations/Modifications Vehicle.....................................................................................12
Antifreeze (Engine Coolant) ..........................................256, 301 Disposal ................................................................................258
Anti-Lock Brake System (ABS) ...............................................97 Anti-Lock Warning Light.........................................................88
Assist, Hill Start .......................................................................101
Audio Systems (Radio)........................................................... 305
Auto Down Power Windows ..................................................61
Auto Up Power Windows .......................................................61Automatic Transmission ................................................163, 164 Adding Fluid................................................................263, 304
Fluid And Filter Change ....................................................263
Fluid Change........................................................................263Fluid Level Check........................................................261, 262
Fluid Type ....................................................................261, 304
Special Additives .................................................................262
Auxiliary Electrical Outlet (Power Outlet) ............................70
Axle Fluid .................................................................................304
11
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 335

336
B
Battery................................................................................. 86, 247 Charging System Light......................................................... 86
Keyless Key Fob Replacement ............................................ 15
Belts, Seat ................................................................................. 154
Body Builders Guide ................................................................ 12
Body Mechanism Lubrication ............................................... 252
B-Pillar Location...................................................................... 272
Brake Assist System .................................................................. 98
Brake Fluid ............................................................................... 304
Brake System ................................................................... 260, 295 Anti-Lock (ABS) .................................................................... 97
Fluid Check .................................................................. 260, 304
Master Cylinder................................................................... 260 Parking.................................................................................. 161
Warning Light ....................................................................... 85
Brake, Parking ......................................................................... 161
Brake/Transmission Interlock .............................................. 164
Bulb Replacement ................................................................... 200
Bulbs, Light ...................................................................... 156, 200 C
Camera, Rear ........................................................................... 179
Capacities, Fluid...................................................................... 301
Caps, Filler Fuel ........................................................................................ 181Oil (Engine) .................................................................. 245, 249 Power Steering .....................................................................171
Radiator (Coolant Pressure)...............................................257
Car Washes ..............................................................................291
Carbon Monoxide Warning ...........................................153, 300
Cargo Area Cover .....................................................................66
Cargo Area Features .................................................................66
Cargo Compartment .................................................................66
Cargo Tie-Downs ......................................................................66
Cellular Phone .........................................................................320
Certification Label ...................................................................182
Chains, Tire ..............................................................................287
Changing A Flat Tire ......................................................212, 266
Chart, Tire Sizing .................................................................... 268
Check Engine Light (Malfunction Indicator Light)..............95
Checking Your Vehicle For Safety ........................................153
Checks, Safety ..........................................................................153
Child Restraint.........................................................................133
Child Restraints Booster Seats ........................................................................137Child Seat Installation.................................................147, 151
How To Stow An unused ALR Seat Belt .........................144Infant And Child Restraints...............................................136
Locating The LATCH Anchorages ...................................142
Lower Anchors And Tethers For Children .....................139Older Children And Child Restraints ..............................136Seating Positions..................................................................138
2020_RAM_PROMASTER_CITY_OM_USA=GUID-7B6A7FCA-79B0-423F-95C5-ED2A949C3D13=1=en=.book Page 336
