2020 Ram 1500 Latch

122 GETTING TO KNOW YOUR VEHICLE
Rear Console Storage — If Equipped
If vehicle is equipped with “Smart Fold”, the center portion
of the 40/20/40 rear seat will fold forward for rear seat
cupholders and a storage compartment. Lift up on the
console latch to access.Rear Console Latch Location Seatback Storage
Located in the back of both the driver and passenger front
seats are pockets that can be used for storage.
Driver’s Side Seatback Storage
2020_DT_1500_OM_US.book Page 122

GETTING TO KNOW YOUR VEHICLE 123
Second Row In-Floor Storage Bin — If Equipped
In-floor storage bins are located in front of the second row
seats and can be used for extra storage. The storage bins have
removable liners that can be easily removed for cleaning.
To open the in-floor storage bin, lift upward on the handle of
the latch and open the lid.In-Floor Storage Bin Latch NOTE:
The front seat may have to be moved forward to fully open
the lid.
Opened Storage Bin
2
2020_DT_1500_OM_US.book Page 123

124 GETTING TO KNOW YOUR VEHICLE
Each storage bin also contains two hooks for securing cargo.
These hooks should be used to secure loads safely when the
vehicle is moving.In-Floor Storage Bin Hooks
NOTE:
The maximum load limit for each hook is 250 lbs (113 kg). Below Rear Seat Storage — If Equipped
1. For additional storage below the rear seats, unlatch the
lock mechanism in the center of the seat base by rotating
it to either side, and fold the front of the base forward.
Rotate Lock Mechanism
2020_DT_1500_OM_US.book Page 124

GETTING TO KNOW YOUR VEHICLE 135
Overhead Sunglass Storage
At the front of the overhead console, a compartment is
provided for the storage of one pair of sunglasses.
From the closed position, push the door latch to open the
compartment.Overhead Sunglass Door
The door will slowly rotate to the full open position.
PICKUP BOX
The pickup box has many features designed for utility and
convenience.
Pick Up Box Features
1 — Upper Load Floor Indents
2 — Bulk Head Dividers
3 — Cleats
2
2020_DT_1500_OM_US.book Page 135

GETTING TO KNOW YOUR VEHICLE 139
Locking And Unlocking RamBox
Push and release the lock or unlock button on the key fob to
lock and unlock all doors, the tailgate and the RamBox (if
equipped). Refer to “Keys” in this chapter for further details.
To unlatch the storage bin manually, insert the emergency
key into the keyhole and turn clockwise. Always return the
key to the upright (vertical) position before removing it from
the keyhole.RamBox Safety Warning
Carefully follow these warnings to help prevent personal
injury or damage to your vehicle:
CAUTION!
• Ensure cargo bin lids are closed and latched before moving or driving vehicle.
• Loads applied to the top of the bin lid should be mini -
mized to prevent damage to the lid and latching/
hinging mechanisms.
• Damage to the RamBox bin may occur due to heavy/ sharp objects placed in bin that shift due to vehicle
motion. In order to minimize potential for damage,
secure all cargo to prevent movement and protect inside
surfaces of bin from heavy/sharp objects with appro -
priate padding.
WARNING!
• Always close the storage bin covers when your vehicle is unattended.
• Do not allow children to have access to the storage bins. Once in the storage bin, young children may not be able
to escape. If trapped in the storage bin, children can die
from suffocation or heat stroke.
• In an accident, serious injury could result if the storage bin covers are not properly latched.
• Do not drive the vehicle with the storage bin covers open.
• Keep the storage bin covers closed and latched while the vehicle is in motion.
• Do not use a storage bin latch as a tie down.2
2020_DT_1500_OM_US.book Page 139

140 GETTING TO KNOW YOUR VEHICLE
RamBox Storage Bin Cover Emergency Release Lever —
If Equipped
As a security measure, a Storage Bin Cover Emergency
Release is built into the storage bin cover latching mecha-
nism.
Storage Bin Cover Emergency Release Lever NOTE:
In the event of an individual being locked inside the storage
bin, the storage bin cover can be opened from inside of the
bin by pulling on the glow-in-the-dark lever attached to the
storage bin cover latching mechanism.
Bed Divider — If Equipped
The bed divider has two functional positions:
• Storage Position
• Divider Position
Storage Position
The storage position for the bed divider is at the front of the
truck bed which maximizes the bed cargo area when not in
use.
2020_DT_1500_OM_US.book Page 140

GETTING TO KNOW YOUR VEHICLE 149
2. Unlatch the tailgate and remove the support cables byreleasing the lock tang from the pivot.
NOTE:
Make sure tailgate is supported when removing support
cables.
Locking Tang 3. Position the tailgate on a 45 degree angle.
4. Raise the right side of the tailgate until the right side pivot
clears the hanger bracket.
5. Without latching, rotate the tailgate to nearly closed, then slide the entire tailgate to the right to free the left side
pivot.
6. Remove the tailgate from the vehicle.
NOTE:
Do not carry the tailgate loose in the truck pickup box.
WARNING!
To avoid inhaling carbon monoxide, which is deadly, the
exhaust system on vehicles equipped with “Cap or
Slide-In Campers” should extend beyond the
overhanging camper compartment and be free of leaks.
2
2020_DT_1500_OM_US.book Page 149

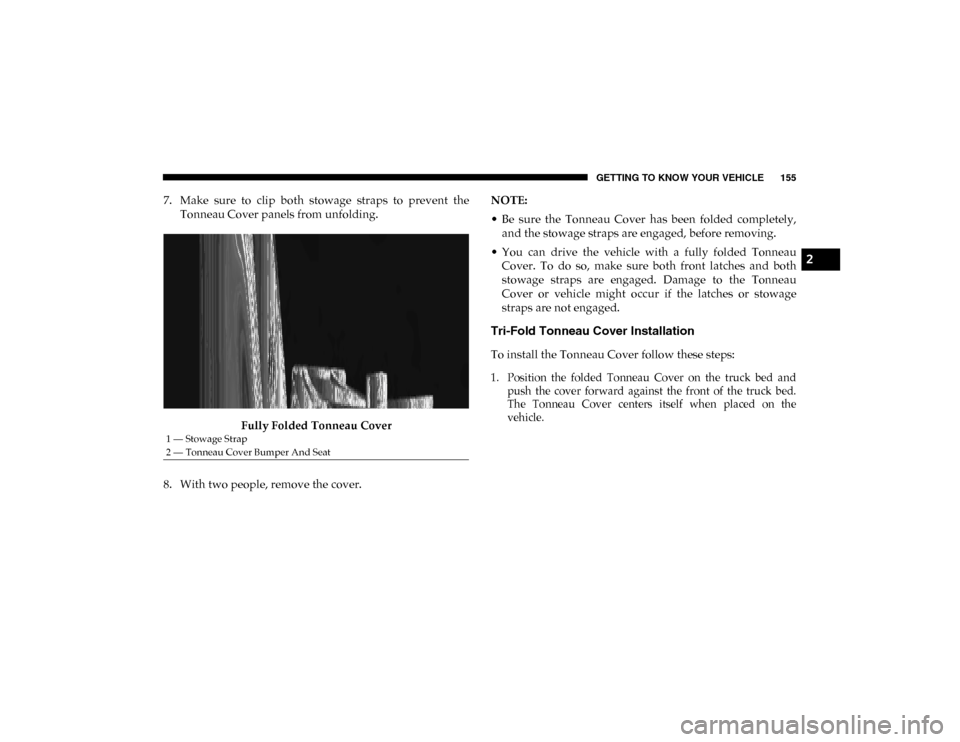

GETTING TO KNOW YOUR VEHICLE 155
7. Make sure to clip both stowage straps to prevent theTonneau Cover panels from unfolding.
Fully Folded Tonneau Cover
8. With two people, remove the cover. NOTE:
• Be sure the Tonneau Cover has been folded completely,
and the stowage straps are engaged, before removing.
• You can drive the vehicle with a fully folded Tonneau Cover. To do so, make sure both front latches and both
stowage straps are engaged. Damage to the Tonneau
Cover or vehicle might occur if the latches or stowage
straps are not engaged.
Tri-Fold Tonneau Cover Installation
To install the Tonneau Cover follow these steps:

1. Position the folded Tonneau Cover on the truck bed and push the cover forward against the front of the truck bed.
The Tonneau Cover centers itself when placed on the
vehicle.

1 — Stowage Strap
2 — Tonneau Cover Bumper And Seat
2
2020_DT_1500_OM_US.book Page 155
