2020 OPEL COMBO E height adjustment

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 48
Seat adjustment 3 49
Backrests inclination
Push the lever and adjust the
inclination. Do not lean on backrest
when adjusting.
Seat position 3 48
Seat adjustment 3 49
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 48
Seat adjustment 3 49

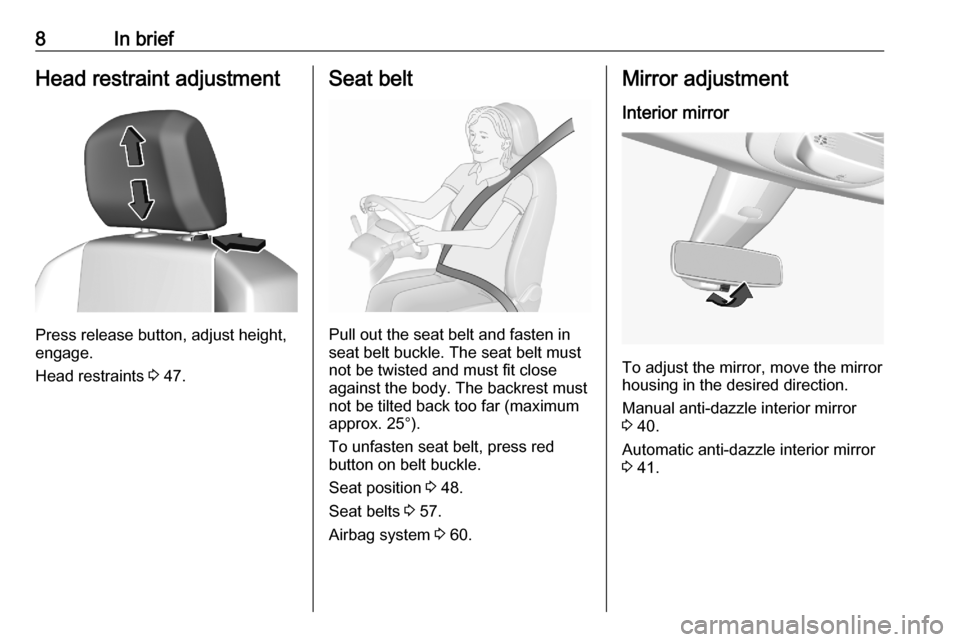

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 47.
Seat belt
Pull out the seat belt and fasten in
seat belt buckle. The seat belt must not be twisted and must fit close
against the body. The backrest must
not be tilted back too far (maximum
approx. 25°).
To unfasten seat belt, press red
button on belt buckle.
Seat position 3 48.
Seat belts 3 57.
Airbag system 3 60.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 40.
Automatic anti-dazzle interior mirror 3 41.

Seats, restraints47Seats, restraintsHead restraints............................ 47
Front seats ................................... 48
Seat position .............................. 48
Seat adjustment ........................49
Seat folding ............................... 50
Armrest ...................................... 52
Heating ...................................... 52
Rear seats ................................... 53
Second row seats ......................53
Third row seats .......................... 54
Seat belts ..................................... 57
Three-point seat belt .................58
Airbag system .............................. 60
Front airbag system ...................63
Side airbag system ....................63
Curtain airbag system ...............64
Airbag deactivation ....................65
Child restraints ............................. 66
Child restraint systems ..............66
Child restraint installation locations ................................... 69Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Head restraints on front seats
Height adjustment
Pull the head restraint upwards or
press catch and push it downwards.
Removal
Press catch, pull the respective head
restraint upwards and remove.

48Seats, restraintsHead restraints on rear seats
Height adjustment
Pull the head restraint upwards or
push it downwards.
Removal
Press catch, pull the respective head
restraint upwards and remove.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
9 Danger
Do not sit closer than 25 cm to the
steering wheel, to permit safe
airbag deployment.
9 Warning
Never store any objects under the
seats.
● Sit with buttocks as far back against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing the pedals. Slide the front
passenger seat as far back as
possible.
● Set seat height high enough to have a clear field of vision on allsides and of all display
instruments. There should be at
least one hand of clearance
between head and the roof
frame. Your thighs should rest
lightly on the seat without
pressing into it.
