2020 NISSAN VERSA NOTE window

1. Engine hood (P. 3-23)
2. Windshield (P. 8-17)
3. Wiper and washer switch (P. 2-41)
4. Power windows (P. 2-59)
5. Door locks (P. 3-4)NISSAN Intelligent Key®
(if so equipped) (P. 3-7)
Keys (P. 3-2)
6. Mirrors (P. 3-30)
7. Tire pressure (P. 8-28) Flat tire (P. 6-3)
Tire chains (P. 8-28)
8. Headlight and turn signal switch
(P. 2-43)
Daytime Running Lights (DRL)
system (if so equipped) (P. 2-43)
LED Daytime Running Lights (DRL)
system (if so equipped) (P. 2-43)
Replacing bulbs (P. 8-24)
9. Fog light switch (if so equipped)
(P. 2-43)
Refer to the page number indicated in
parentheses for operating details.
LII2598
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear window defroster switch(P. 2-42)
2. High mounted stop light
(if so equipped) (P. 8-24)
3. Trunk opener switch
(if so equipped) (P. 3-24)
4. License plate lights (P. 8-24)
5. Rearview camera (P. 4-9)
6. Parking sensor(s) (P. 5-121)
7. Replacing bulbs (P. 8-24)
8. Fuel-filler door (P. 3-26) Fuel-filler cap (P. 3-26)
Fuel recommendation (P. 10-2)
9. Child safety rear door locks (P. 3-4)
Refer to the page number indicated in
parentheses for operating details.
LII2593
EXTERIOR REAR
0-4Illustrated table of contents

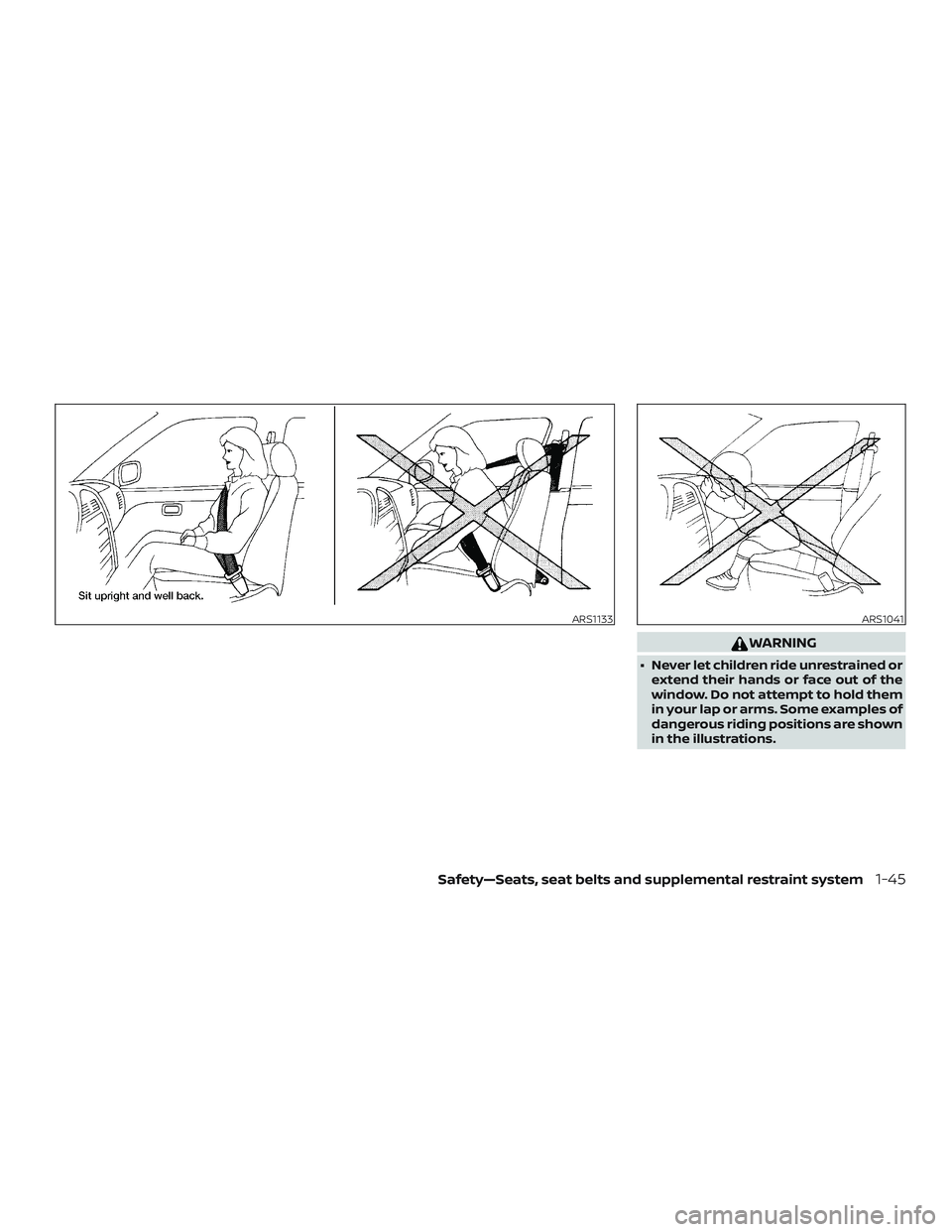

WARNING
∙ Never let children ride unrestrained orextend their hands or face out of the
window. Do not attempt to hold them
in your lap or arms. Some examples of
dangerous riding positions are shown
in the illustrations.
ARS1133ARS1041
Safety—Seats, seat belts and supplemental restraint system1-45

WARNING
∙ The seat belts, the side air bags andcurtain air bags are most effective
when you are sitting well back and
upright in the seat with both feet on
the floor. The side air bag and curtain
air bag inflate with great force. Do not
allow anyone to place their hand, leg
or face near the side air bag on the
side of the seatback of the front and
rear seat or near the side roof rails. Do
not allow anyone sitting in the front
seats or rear outboard seats to extend
their hand out of the window or lean
against the door. Some examples of
dangerous riding positions are shown
in the previous illustrations.
WARNING
∙ When sitting in the rear seat, do nothold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly restrained.
Some examples of dangerous riding
positions are shown in the
illustrations.
∙ Do not use seat covers on the front or rear seatbacks. They may interfere
with side air bag inflation.
WRS0032
Safety—Seats, seat belts and supplemental restraint system1-49

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-5
Tachometer ..................................2-8
Fuel gauge ...................................2-9
Distance To Empty (DTE) ......................2-9
Trip computer (if so equipped) ...............2-10
Warning lights, indicator lights and audible
reminders ...................................... 2-12
Checking lights .............................. 2-13
Warning lights ............................... 2-13
Indicator lights .............................. 2-19
Audible reminders ........................... 2-22
Vehicle information display (if so equipped) .....2-23
How to use the vehicle information
display ...................................... 2-24
Startup display .............................. 2-24
Settings ..................................... 2-24
Vehicle information display warnings
and indicators ............................... 2-33
Security system ................................ 2-39
NISSAN Vehicle Immobilizer System .........2-39
Wiper and washer switch .......................2-41
Switch operation ............................ 2-41Rear window and outside mirror
(if so equipped) defroster switch
................2-42
Headlight and turn signal switch ...............2-43
Headlight control switch .....................2-43
Daytime Running Lights (DRL) system
(Type A) (if so equipped) .....................2-47
LED Daytime Running Lights (DRL)
system (Type B) (if so equipped) .............2-47
Instrument brightness control ...............2-48
Turn signal switch ........................... 2-49
Fog light switch (if so equipped) .............2-49
Horn ........................................... 2-50
Heated seat switches (if so equipped) ..........2-50
Lane Departure Warning (LDW) switch
(if so equipped) ................................. 2-51
Automatic Emergency Braking (AEB) with
Pedestrian Detection OFF switch
(if so equipped) ................................. 2-52
Vehicle Dynamic Control (VDC) OFF switch
(if so equipped) ................................. 2-52
R e

ar Automatic Braking (RAB) OFF switch
(if so equipped) ................................. 2-53
Rear Sonar System (RSS) OFF switch
(if so equipped) ................................. 2-53

Rear Door Alert (if so equipped).................2-54
Power outlets .................................. 2-55
Extended storage switch .......................2-56
Storage ........................................ 2-57
Front-door pockets .......................... 2-57
Seatback pocket ............................ 2-57
Storagetray................................. 2-58
Glovebox.................................... 2-58Cup holders
................................. 2-58
Windows ....................................... 2-59
Power windows ............................. 2-59
Interior lights ................................... 2-62
Map lights ................................... 2-63
Personal Light ............................... 2-63
Trunk light ...................................... 2-64

NOTE:
If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.
The windshield wiper and washer operates
when the ignition switch is placed in the ON
position.
Push the lever down to operate the wiper
at the following speed:
1Intermittent — intermittent operation
can be adjusted by turning the knob in
the
Adirection (faster) orBdirection
(slower).
2Low — continuous low speed opera-
tion
3High — continuous high speed opera-
tion
Push the lever up
4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times. To defrost the rear window glass, start the
engine and push the rear window defroster
switch on. The rear window defroster indi-
cator light on the switch comes on. Push
the switch again to turn the defroster off.
To defrost the outside mirrors (if so
equipped), start the engine and push the
outside mirror defroster switch on. The
outside mirror defroster indicator light on
the switch comes on. Push the switch
again to turn the defroster off.
The rear window/outside mirror defroster
(if so equipped) automatically turns off af-
ter approximately 15 minutes.NOTE:
Use defroster and/or outside mirror de-
froster when engine is running to avoid
discharging the battery.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
Type A (if so equipped)
LIC3600
Type B (if so equipped)
LIC3570
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH
2-42Instruments and controls

CAUTION
∙ Do not use bottle holder for any otherobjects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
∙ Do not use bottle holder for open liq- uid containers.
POWER WINDOWS
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.

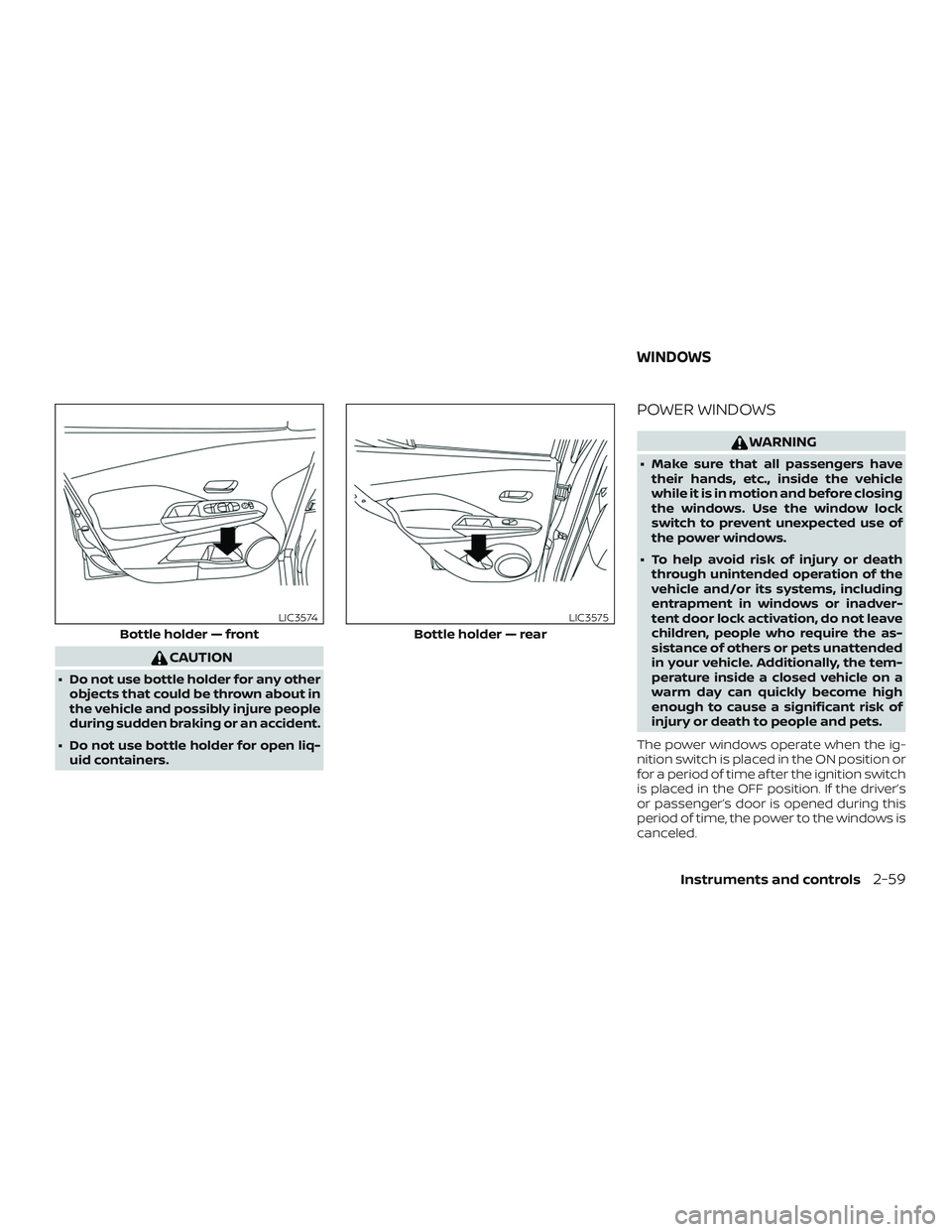

Bottle holder — front
LIC3574
Bottle holder — rear
LIC3575
WINDOWS
Instruments and controls2-59
