CAUTION
∙ Interference or malfunction can becaused by parking in close proximity
to radio or satellite towers.
∙ Intelligent Key interference could be caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional in-
formation, refer to “NISSAN Intelligent
Key®” in this section.
LIFTGATE RELEASE
WARNING
∙ Always be sure the lif tgate has beenclosed securely to prevent it from
opening while driving.
∙ Do not drive with the lif tgate open. This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of this
manual.
∙ To avoid personal injury, do not at- tempt to activate the power lif tgate if
one or both of the lif tgate struts are
removed.
CAUTION
∙ If the power lif tgate does not stayopen or if the lif tgate unexpectedly
closes at any time while a continuous
warning chime sounds, do not oper-
ate the lif tgate. There may be a pres-
sure loss in one or both of the lif tgate
struts. It is recommended that you
have the lif tgate inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.
∙ Do not activate the power lif tgate if one or both of the lif tgate struts are
removed. Damage to the lif tgate or
power lif tgate mechanisms may
occur.
Manual lif tgate release (if so
equipped)
The lif tgate release mechanism allows the
lif tgate to be opened in the event of a dis-
charged battery.
To release the lif tgate from the inside of the
vehicle, perform the following operations:
1. Fold the rear seats down. For additional information, refer to “Folding the rear
bench seat” in the “Safety—Seats, seat
belts and supplemental restraint sys-
tem” section of this manual.
LPD2375
Pre-driving checks and adjustments3-31

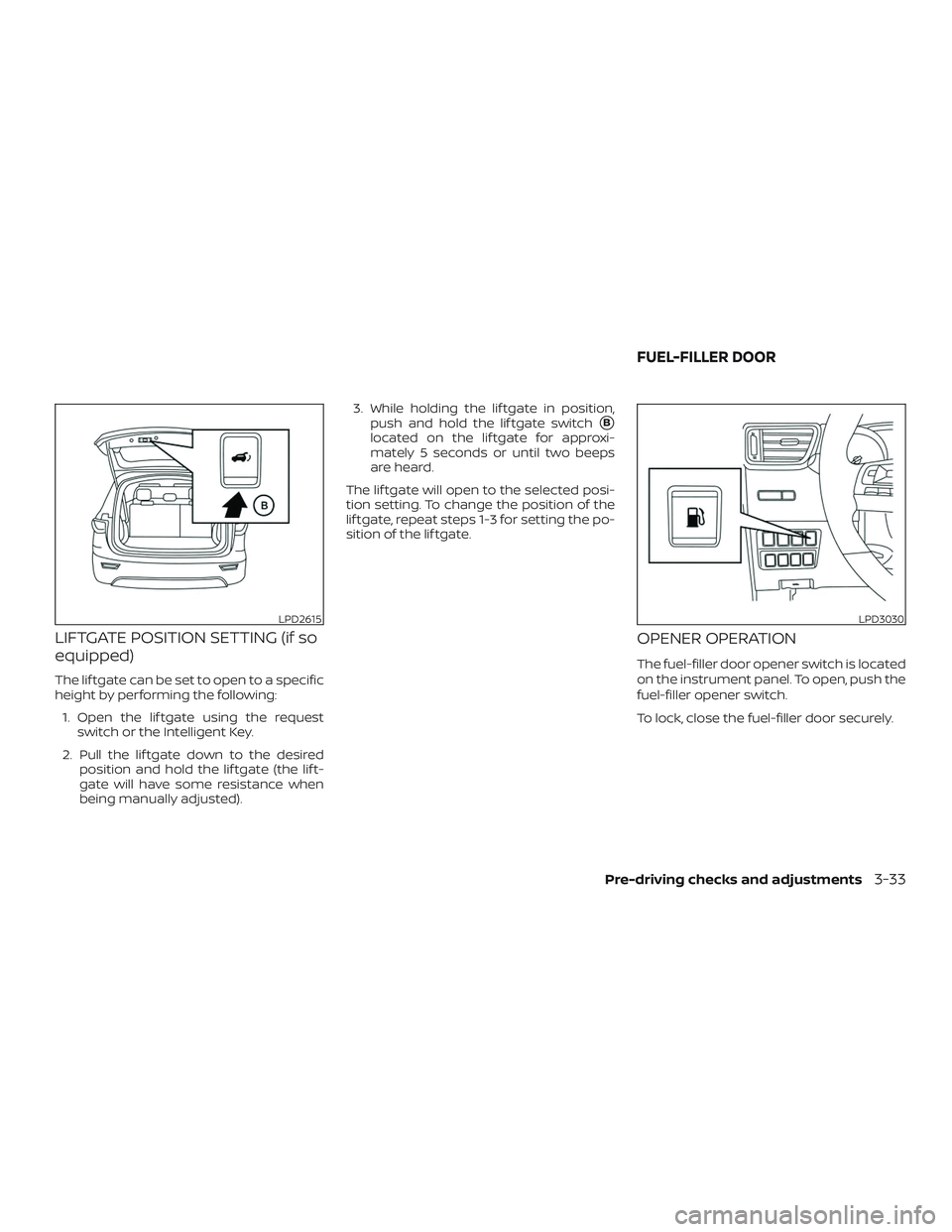

LIFTGATE POSITION SETTING (if so
equipped)
The lif tgate can be set to open to a specific
height by performing the following:1. Open the lif tgate using the request switch or the Intelligent Key.
2. Pull the lif tgate down to the desired position and hold the lif tgate (the lif t-
gate will have some resistance when
being manually adjusted). 3. While holding the lif tgate in position,
push and hold the lif tgate switch
B
located on the lif tgate for approxi-
mately 5 seconds or until two beeps
are heard.
The lif tgate will open to the selected posi-
tion setting. To change the position of the
lif tgate, repeat steps 1-3 for setting the po-
sition of the lif tgate.
OPENER OPERATION
The fuel-filler door opener switch is located
on the instrument panel. To open, push the
fuel-filler opener switch.
To lock, close the fuel-filler door securely.
LPD2615LPD3030
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-33

MEMORY STORAGE FUNCTION
Two positions for the driver’s seat and out-
side mirrors can be stored in the automatic
drive positioner memory. Follow these pro-
cedures to use the memory system.
NOTE:
The vehicle should be stopped while set-
ting the memory.1. Adjust the driver’s seat and outside mir- rors to the desired positions by manu-
ally operating each adjusting switch.
For additional information, refer to
“Seats” in the “Safety—Seats, seat belts and supplemental restraint system”
section of this manual and “Outside
mirrors” in this section.
2. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
The indicator light for the pushed
memory switch will come on and stay
on for approximately 5 seconds.
The chime will sound when the memory is
stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous
memory position will be overwritten by
the new stored position.
Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has not been stored in the switch (1 or 2) the indicator
light for the respective switch will come
ON for approximately 0.5 seconds.
∙ If a memory position has been stored in the switch (1 or 2) then the indicator light
for the respective switch will stay ON for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2)
with the following procedure.
1. Follow steps 1 and 2 in the “Memory storage function” section for storing
the memory position.
2. While the indicator light is on, press the
button on the key fob. The
indicator light of the linked memory
switch will blink. Af ter the indicator light
goes off, the key fob is linked to that
memory setting.
Once it is linked, when ignition switch is
placed in the OFF position, pressing
the
button on the key fob will move
the driver’s seat and outside mirrors to the
linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob
will link the new position and overwrites
the previous position.
LPD2531
3-42Pre-driving checks and adjustments

3. Slowly back up the vehicle adjustingthe steering wheel so that the pre-
dicted course lines
Benter the park-
ing space
C. 4. Maneuver the steering wheel to make
the vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, move the shif t lever to the
P (Park) position and apply the parking
brake.
ADJUSTING THE SCREEN
1. While on the main menu screen, touch
the “Settings” key.
2. Use the arrow to tab to the next screen and touch the “Camera” key.
3. Touch the “Display Settings” key.
4. Touch the “Brightness”, “Contrast”, Tint”, “Color”, or “Black Level” key.
5. Adjust the item by touching the “+” or “–” key on the touch-screen display.
LHA4770
LHA3522
4-8Monitor, climate, audio, phone and voice recognition systems

NOTE:
Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.
HOW TO TURN ON AND OFF
PREDICTED COURSE LINES
To toggle on and off the predicted course
lines while in the P (Park) position:1. Press the CAMERA button.
2. Touch the “Predicted Course Lines” key to turn the feature on or off.
To toggle on and off the predicted course
lines or center guide line while in the R (Re-
verse) position, press the CAMERA button.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death. ∙ The system cannot completely elimi-
nate blind spots and may not show
every object.
∙ Underneath the bumper and the cor- ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.
∙ Objects viewed in the RearView Moni- tor differ from actual distance be-
cause a wide-angle lens is used.
∙ Objects in the RearView Monitor will appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.
∙ Use the displayed lines as a reference. The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.
∙ Make sure that the lif tgate is securely closed when backing up. ∙ Do not put anything on the rearview
camera. The rearview camera is in-
stalled above the license plate.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.
∙ Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
The following are operating limitations and
do not represent a system malfunction: ∙ When the temperature is extremely high or low, the screen may not clearly
display objects.
∙ When strong light directly shines on the camera, objects may not be displayed
clearly.
∙ Vertical lines may be seen in objects on the screen. This is due to strong re-
flected light from the bumper.
∙ The screen may flicker under fluores- cent light.
Monitor, climate, audio, phone and voice recognition systems4-9

ADJUSTING THE SCREEN
1. While on the main menu screen, touchthe “Settings” key.
2. Use the arrow to tab to the next screen and touch the “Camera” key.
3. Touch the “Display Settings” key.
4. Touch the “Brightness”, “Contrast”, Tint”, “Color”, or “Black Level” key.
5. Adjust the item by touching the “+” or “–” key on the touch-screen display. NOTE:
Do not adjust any of the display settings
of the Intelligent Around View Monitor
while the vehicle is moving. Make sure
the parking brake is firmly applied.
INTELLIGENT AROUND VIEW
MONITOR SYSTEM LIMITATIONS
LHA5047
LHA3750
4-20Monitor, climate, audio, phone and voice recognition systems

5 Starting and driving
Precautions when starting and driving..........5-4
Exhaust gas (carbon monoxide) ..............5-4
Three-way catalyst ...........................5-5
Tire Pressure Monitoring System
(TPMS)........................................5-5
On-pavement and off-road driving
precautions ..................................5-9
Avoiding collision and rollover ................5-9
Off-roadrecovery ........................... 5-10
Rapid air pressure loss ......................5-10
Drinking alcohol/drugs and driving ...........5-11
Driving safety precautions ....................5-11
Ignition switch (if so equipped) ..................5-14
Continuously Variable Transmission .........5-14
Key positions ................................ 5-14
NISSAN Vehicle Immobilizer System .........5-15
Push-button ignition switch (if so equipped) ....5-15
Operating range ............................. 5-16
Push-button ignition switch positions .......5-17
Emergency engine shut off ..................5-17
NISSAN Intelligent Key® battery
discharge ................................... 5-18
NISSAN Vehicle Immobilizer System .........5-18
Before starting the engine ......................5-19Starting the engine (models without NISSAN
Intelligent Key® system)
........................5-19
Starting the engine (models with NISSAN
Intelligent Key® system) ........................5-20
Remote Engine Start (if so equipped) ........5-21
Driving the vehicle .............................. 5-21
Continuously Variable Transmission
(CVT) ........................................ 5-21
Parking brake .................................. 5-28
Pedal type ................................... 5-28
Switch type (models with electronic
parking brake system) .......................5-28
Automatic brake hold (if so equipped) ..........5-31
How to activate/deactivate the
automatic brake hold function ..............5-32
How to use the automatic brake hold
function ..................................... 5-33
SPORT mode switch ............................ 5-34
ECO mode switch .............................. 5-34
Lane Depar

ture Warning (LDW)
(if so equipped) ................................. 5-35
LDW system operation ......................5-36
How to enable/disable the LDW system .....5-37
LDW system limitations ......................5-38

WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock (for models with a
steering lock mechanism). This may
cause the driver to lose control of the
vehicle and could result in serious ve-
hicle damage or personal injury.
CONTINUOUSLY VARIABLE
TRANSMISSION
The ignition lock is designed so that the
ignition switch cannot be turned to the
LOCK position until the shif t lever is moved
to the P (Park) position.∙ When moving the ignition switch to the LOCK position, make sure the shif t lever
is in the P (Park) position.
∙ When removing the key from the igni- tion switch, make sure the shif t lever is
in the P (Park) position. When the ignition switch cannot be turned
to the LOCK position:
1. Move the shif t lever to the P (Park) posi- tion.
2. Turn the ignition switch slightly in the ON direction.
3. Turn the ignition switch to the LOCK position.
4. Remove the key if it is inserted in the ignition switch.
If the ignition switch is turned to the LOCK
position, the shif t lever cannot be moved
from the P (Park) position.
The shif t lever can be moved if the igni-
tion switch is placed in the ON position
and the foot brake pedal is depressed.
KEY POSITIONS
LOCK: Normal parking position (0)
Off position (1)
This position activates electrical accesso-
ries such as the radio when the engine is
not running.
ON: Normal operating position (2)
This position turns on the ignition system
and the electrical accessories.
LIC2717
IGNITION SWITCH (if so equipped)
5-14Starting and driving
