2020 NISSAN ALTIMA window

1. Power windows (P. 2-61)
2. Windshield (P. 8-19)
3. Wiper and washer switch (P. 2-43)
4. Engine hood (P. 3-22)
5. Front view camera (if so equipped)(P. 4-11)
6. Fog light switch (if so equipped)
(P. 2-45)
Turn signal switch (P. 2-45)
7. Headlight switch (P. 2-45) LED Daytime Running Lights (DRL)
system (if so equipped) (P. 2-50)
Replacing bulbs (P. 8-25)
8. Tire pressure (P. 8-29) Flat tire (P. 6-3)
Tire chains (P. 8-29)
9. Mirrors (P. 3-30) Side view camera (if so equipped)
(P. 4-11)
10. Door locks (P. 3-4) NISSAN Intelligent Key® (P. 3-7)
Keys (P. 3-2)
Refer to the page number indicated in
parentheses for operating details.
LII2559
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear window and outside mirror(if so equipped) defroster switch
(P. 2-44)
2. Trunk lid (P. 3-23)
3. Sonar sensors (if so equipped)
(P. 5-175)
4. Rearview camera (P. 4-3)
5. Replacing bulbs (P. 8-25)
6. Fuel-filler cap (P. 3-25) Fuel recommendation (P. 10-2)
Fuel-filler door (P. 3-25)
7. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in
parentheses for operating details.
LIC4027
EXTERIOR REAR
0-4Illustrated table of contents

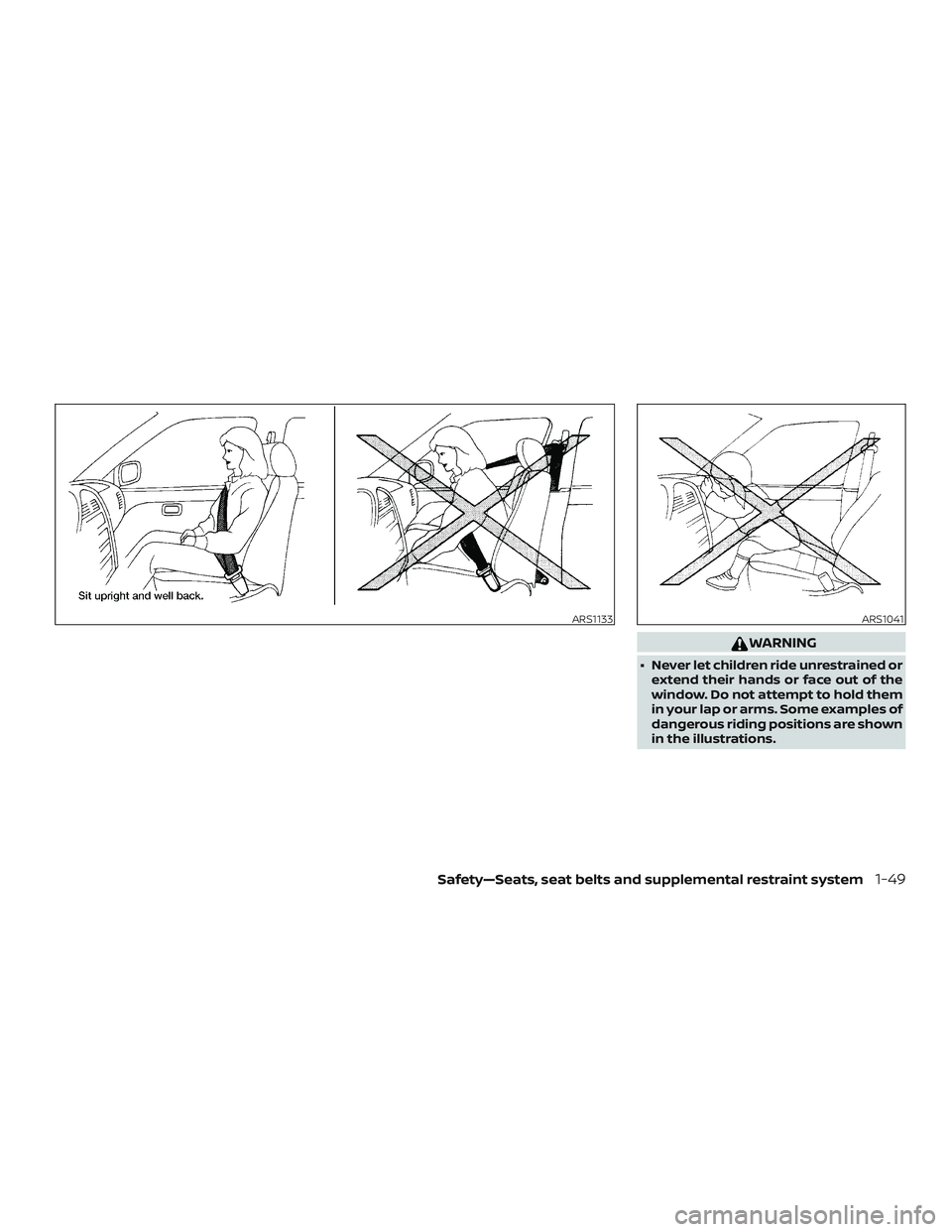

WARNING
∙ Never let children ride unrestrained orextend their hands or face out of the
window. Do not attempt to hold them
in your lap or arms. Some examples of
dangerous riding positions are shown
in the illustrations.
ARS1133ARS1041
Safety—Seats, seat belts and supplemental restraint system1-49

WARNING
∙ The seat belts, the side air bags andcurtain air bags are most effective
when you are sitting well back and
upright in the seat with both feet on
the floor. The side air bag and curtain
air bag inflate with great force. Do not
allow anyone to place their hand, leg
or face near the side air bag on the
side of the seatback of the front and
rear seat or near the side roof rails. Do
not allow anyone sitting in the front
seats or rear outboard seats to extend
their hand out of the window or lean
against the door. Some examples of
dangerous riding positions are shown
in the previous illustrations.
WARNING
∙ When sitting in the rear seat, do nothold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly restrained.
Some examples of dangerous riding
positions are shown in the
illustrations.
∙ Do not use seat covers on the front or rear seatbacks. They may interfere
with side air bag inflation.
LRS3119WRS0032
1-52Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-4
Tachometer ..................................2-6
Engine coolant temperature gauge ..........2-6
Fuel gauge ................................... 2-7
Distance To Empty (DTE) ...................... 2-7
Variable Compression Turbo
(if so equipped) ...............................2-8
Warning lights, indicator lights and audible
reminders .......................................2-9
Checking lights .............................. 2-10
Warning lights ............................... 2-10
Indicator lights .............................. 2-15
Audible reminders ........................... 2-18
Vehicle information display .....................2-19
How to use the vehicle information
display ...................................... 2-20
Startup display .............................. 2-20
Resetting the drive computer ................2-21
Oil control system (if so equipped) ...........2-21
Settings ..................................... 2-22
Vehicle information display indicators .......2-30
Vehicle information display warnings ........2-33 Security systems
............................... 2-40
Vehicle security system .....................2-40
NISSAN Vehicle Immobilizer System .........2-42
Wiper and washer switch .......................2-43
Switch operation ............................ 2-43
Rear window and outside mirror
(if so equipped) defroster switch ................2-44
Headlight and turn signal switch ...............2-45
Headlight control switch .....................2-45
LED Daytime Running Lights (DRL)
system (if so equipped) ......................2-50
Instrument brightness control ...............2-50
Turn signal switch ........................... 2-50
Fog light switch (if so equipped) .............2-51
Horn ........................................... 2-52
Heated seat switches (if so equipped) ..........2-52
Heated steering wheel switch (if so equipped) . . 2-53
S
teering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ................2-54
E-call (SOS) button (if so equipped) .............2-54
Rear Door Alert ................................. 2-55
Power outlet .................................... 2-56
Extended storage switch .......................2-57
Storage ........................................ 2-58

Front-door pockets.......................... 2-58
Seatback pockets ........................... 2-58
Glovebox.................................... 2-59
Console box ................................. 2-59
Overhead sunglasses storage ...............2-59
Cup holders ................................. 2-60
Windows ....................................... 2-61
Power windows ............................. 2-61
Moonroof (if so equipped) ......................2-64
Power moonroof ............................ 2-64
Interior lights ................................... 2-66
Map lights ................................... 2-66
Personal lights .............................. 2-67Trunk light
...................................... 2-67
HomeLink® Universal Transceiver
(if so equipped) ................................. 2-67
Programming HomeLink® ...................2-68
Programming HomeLink® for Canadian
customers and gate openers ................2-69
Operating the HomeLink® Universal
Transceiver .................................. 2-70
Programming trouble-diagnosis ............2-70
Clearing the programmed information ......2-71
Reprogramming a single HomeLink®
button....................................... 2-71
If your vehicle is stolen ....................... 2-71

The system helps deter vehicle thef t but
cannot prevent it, nor can it prevent the
thef t of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various thef t protection
features.
How to arm the vehicle security
system
1. Close all windows and the moonroof.The system can be armed even if the
windows and moonroof are open.
2. Remove the Intelligent Key from the ve- hicle. 3. Close all doors, hood and trunk. Lock all
doors. The doors can be locked with
the Intelligent Key, door handle request
switch, or power door lock switch..
4. Confirm that the
indicator light
comes on. The
indicator stays il-
luminated for a period of time indicat-
ing that the system is in the pre-armed
phase.
The
indicator light will blink every
3 seconds once the security system is
armed.
If during the pre-armed phase one of
the following occurs, the system will
not arm:
∙ Any door is unlocked with the Intelli- gent Key or door request switch.
∙ The ignition switch is placed in the AUTO ACC or ON position.
∙ Even when the driver and/or passen-
gers are in the vehicle, the system will
activate when all the doors, hood and
trunk are locked with the ignition
switch placed in the LOCK position.
When placing the ignition switch in
the AUTO ACC or ON position, the sys-
tem will be released.
Vehicle security system activation
The vehicle security system will give the
following alarm:
∙ The headlights blink and the horn sounds intermittently.
∙ The alarm automatically turns off af ter a period of time. However, the alarm
reactivates if the vehicle is tampered
with again. The alarm can be shut off by
pressing the
button on the Intelli-
gent Key.
The alarm is activated by:
∙ opening the door or trunk without using Intelligent Key (even if the door is un-
locked by releasing the door inside lock
knob switch).
How to stop an activated alarm
The alarm stops only by unlocking a door
by pressing the
button on the Intelli-
gent Key or pushing the request switch on
the driver’s or passenger’s door with the
Intelligent Key in range of the door handle.
Instruments and controls2-41

NOTE:
If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.
The windshield wiper and washer operates
when the ignition switch is placed in the ON
position.
Push the lever down to operate the wiper
at the following speed:
1Intermittent — intermittent operation
can be adjusted by turning the knob
toward
A(faster) orB(slower).
2Low — continuous low speed opera-
tion
3High — continuous high speed opera-
tion
Push the lever up
4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times. To defrost the rear window glass and out-
side mirrors (if so equipped), place the igni-
tion switch in the ON position and push the
rear window defroster switch on. The rear
window defroster indicator light on the
switch comes on. Push the switch again to
turn the defroster off.
The rear window defroster automatically
turns off af ter approximately 15 minutes.CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.NOTE:
The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio sys-
tem.
LIC4039
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH
2-44Instruments and controls
