2020 MITSUBISHI OUTLANDER cluster

Instruments and controls 1-1
1
Overview
N00100202919
Instruments and controls
Combination headlights an
d dimmer switch P.5-199
Automatic high beam system switch (if so equipped) P.5-203 Turn signal lever P.5-208 Front fog light switc
h (if so equipped)
P.5-209
Steering wheel remote control switches [Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-41 Horn switch P.5-218
Instrument cluster P.5-156
Windshield wiper and washer switch P.5-210 Rear window wiper and washer switch P.5-214
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-60
Engine switch (if so equipped) P.5-19
Driver’s vents P. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-73, 5-81
Driver’s vents P.7-2
Multi information display switch (if so equipped) P.5-158
Driver’s side power liftgate switch (if so equipped) P.5-43
Fuses P.9-27
Lane Departure Warning (LDW) switch (if so equipped) P.5-137 Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-123
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-66
Camera switch (if so equipped) P. 5-147
BK0278200US.book 1 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

5
Features and controlsBreak-in recommendations ..............................................................5-3 Keys .................................................................................................5-3 Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ..........................................................................5-15Door locks ......................................................................................5-36 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-38
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-40
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-40
Power liftgate (if so equipped) .......................................................5-42 Inside liftgate release .....................................................................5-48Theft-alarm system ........................................................................5-49 Power window control ...................................................................5-51 Sunroof (if so equipped) .................................................................5-54Parking brake .................................................................................5-56 Steering wheel height and reach adjustment ..................................5-60 Inside rearview mirror ...................................................................5-60Outside rearview mirrors ...............................................................5-63 Ignition switch (if so equipped) ......................................................5-66 Steering wheel lock (if so equipped) ..............................................5-68Starting the engine .........................................................................5-68 Automatic transaxle (if so equipped)..............................................5-70 Continuously variable transmission
(CVT) (if so equipped)..........5-76
Electronically controlled
4WD system (if so equipped).................5-83
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-85
4-wheel drive operation .................................................................5-88Inspection and maintenance followi
ng rough road operation ........5-91
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-91
Service brake ................................................................................. 5-92 Brake auto hold (if so equipped) .................................................... 5-93Hill start assist (if so equipped) ...................................................... 5-96 Brake assist system ........................................................................ 5-97 Anti-lock braking system .............................................................. 5-97Electric power steering system (EPS) ........................................... 5-99 Active stability control (ASC) ..................................................... 5-100 Cruise control (if so equipped) ..................................................... 5-103Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-107
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-118
Blind Spot Warning (BSW) (w
ith Lane Change Assist)
(if so equipped) ........................................................................ 5-127 Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-133 Lane Departure Warning System (LDW
) (if so equipped)........... 5-137
Tire pressure monitoring system ................................................. 5-140 Rear-view camera (if so equipped)............................................... 5-145 Multi Around Monitor (if so
equipped)..................
...........
........... 5-147
Instrument cluster ........................................................................ 5-156 Multi Information display ............................................................ 5-157 Indicator light, warning light, and information screen display list ..................................................................... 5-176 Indicators ..................................................................................... 5-195 Warning lights .............................................................................. 5-196Information screen display .......................................................... 5-198 Combination headlights and dimmer switch ............................... 5-199 Turn signal lever .......................................................................... 5-208Hazard warning flasher switch .................................................... 5-209
BK0278200US.book 1 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Parking brake 5-56 Features and controls
5
N00511401514
To park the vehicle, fi
rst bring it to a com-
plete stop, firmly apply the parking brake,and then move the sele
ctor lever to the “P”
(PARK) position. Make sure the brake warning light is illumi-nated.
N00593100046
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from
the curb on an uphill.
NOTE
When leaving the ve
hicle unattended, be
sure to close the sunr
oof and carry the key.
 Do not try to operate the sunroof if it is fro- zen closed (after snowfall or during extreme cold).  Do not sit on or plac
e heavy luggage on the
sunroof or roof opening edge.  Do not apply any forc
e that may cause dam-
age to the sunroof.  Release the switch when the sunroof has reached a completely open or completelyclosed position.  If the sunroof does not operate when the sun- roof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, have thesunroof checked at an authorized Mitsubishi Motors dealer.  Be careful when tilting up the sunroof if a ski carrier or a roof carrie
r is installed. Depend-
ing on the model of ski carrier or roof carrier,the sunroof may contact
the carrier when the
sunroof is tilted up.  Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.  Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. Ifit is waxed, the weat
herstrip cannot maintain
a weatherproof seal with the sunroof.  After washing the vehicle or after rain be sure to wipe off any water that is on the sun- roof before operating it.
 Operating the sunroof repeatedly with the engine turned off will run down the battery.Operate the sunroof only while the engine isrunning.
Parking brake
NOTE
Lever type parking brake
(if so
equipped)To a p p l y

1- Pull the lever up without pushing the
button at the end of hand grip. When the parking brake is set and the ignition switch is in
the “ON” position,
the brake warning light in the instru- ment cluster will come on.
BK0278200US.book 56 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Parking brake 5-58 Features and controls
5
When the parking brake is applied, the brake warning light in the instrument cluster andthe indicator light (A) on the Electric parking brake switch will come on. When parking on a hill, set the parking brake, and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
CAUTIONWhile the vehicle is in
motion, do not apply
the Electric parking
brake. Doing so may
cause overheating and/or
premature wear of
brake parts, reducing brake performance. NOTE
 In the following condi
tions, the brake warn-
ing light will illuminate for approximately15 seconds and then go off. • While the Electric pa
rking brake is applied,
the ignition switch is turned to the “OFF” position or the opera
tion mode is put in
OFF. • While the ignition switch is in the “OFF” position or the operation mode is in OFF,the Electric pa
rking brake switch is pulled
up.
 If the Electric parking
brake must be applied
in an emergency situation, pull and hold theElectric parking brake
switch to apply the
Electric parking brake. At that time, the fol- lowing warning display will appear in the multi-information disp
lay and a buzzer will
sound, however you shoul
d continue to pull
and hold the Electric
parking brake switch.
 When parking on steep grades, pull up the Electric parking brak
e switch twice (once
more after the operati
on is completed once).
The maximum effect of the parking brakewill be obtained.  If the parking brake does not hold the vehicle stationary after the foot brake is released, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice.  When the ignition switch or the operation mode is other than ON, if the Electric park-ing brake is applied, the Electric parking brake indicator light comes on for a while.NOTE
 If the Electric parking brake switch is repeat- edly operated in a short time, the followingwarning display will
appear in the multi-
information display and
the Electric parking
brake will temporarily
stop working. In such
case, wait for approxi
mately 1 minute until
the warning display di
sappears, and operate
the Electric parki
ng brake switch again.
 The brake warning light
and the indicator
light on the Electric
parking brake switch
may blink. This does not
indicate a malfunc-
tion, the lights go off when/if the Electricparking brake is released.  Depending on the situat
ion, the Electric
parking brake may be
applied automatically.
Refer to “Brake auto hold” on page 5-93.NOTE
BK0278200US.book 58 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Brake auto hold (if so equipped) 5-94 Features and controls
5
If the brake auto hold switch is pressed while all of the following conditions are met, the system will change to the standby state and the indicator light (A) on the switch comeson.  The ignition switch or
the operation mode
in ON. The driver’s seat belt is fastened.  The driver’s door is closed.
When the vehicle is
stopped by depressing
the brake pedal with the selector lever in any position other than “P” (PARK) or “R”(REVERSE), the brake auto hold activates and the vehicle will be
held stationary.
The brake auto hold indicator light in theinstrument cluster will come on while the system activates.
How to use brake auto hold

To turn on brake auto hold

NOTE
 When the brake auto hold system cannot be used, a buzzer will sound and the following warning will appear on the information screen in the multi information display.
• If this warning appear
s, confirm that all of
the conditions for system operation are metand that there is no malfunction in the sys-tem. • If this warning appear
s, fasten the driver’s
seat belt.
 If any of the following occur while the sys- tem is standby state, the brake auto hold sys-tem will be turned off automatically and the indicator light on the switch goes off. A buzzer will sound a
nd the message will
appear on the information screen in the multi information display. • When the driver’s seat
belt is unfastened.
• When the driver’s door is opened.• When there is a malfunction in the systemNOTE
 If keeping pressing the brake auto hold switch after setting
the brake auto hold to
ON (stand by), the brake auto hold willreturn to OFF as a protection function is operated. After returning to OFF, the brake auto holdwill not be switched to
ON (Stand by) even if
the brake auto hold switch is pressed. To set the brake auto hold to
ON, restart the engine
and press the brake auto hold switch again.
To activate brake auto hold

NOTE
or
BK0278200US.book 94 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

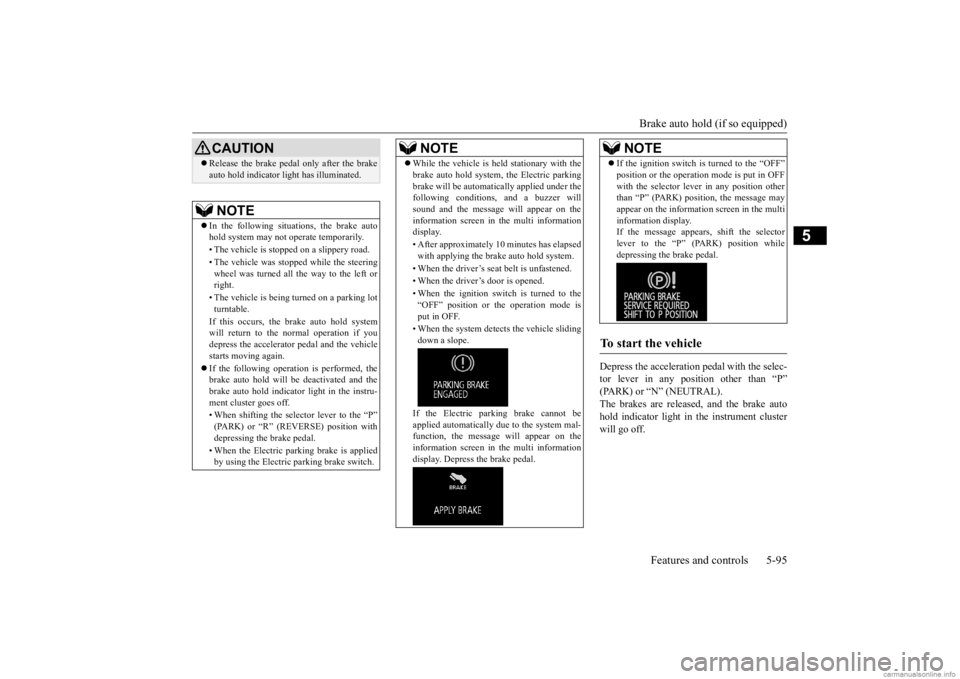

Brake auto hold (if so equipped)
Features and controls 5-95
5
Depress the acceleration
pedal with the selec-
tor lever in any position other than “P” (PARK) or “N” (NEUTRAL). The brakes are released, and the brake autohold indicator light in
the instrument cluster
will go off.
CAUTION Release the brake pedal only after the brake auto hold indicator li
ght has illuminated.
NOTE
In the following situations, the brake auto hold system may not
operate temporarily.
• The vehicle is stoppe
d on a slippery road.
• The vehicle was stoppe
d while the steering
wheel was turned all the way to the left or right. • The vehicle is being turned on a parking lot turntable. If this occurs, the brake auto hold system will return to the normal operation if youdepress the accelerator
pedal and the vehicle
starts moving again.  If the following operation is performed, the brake auto hold will be
deactivated and the
brake auto hold indicator light in the instru-ment cluster goes off. • When shifting the selector lever to the “P” (PARK) or “R” (REVERSE) position with depressing the brake pedal. • When the Electric park
ing brake is applied
by using the Electric
parking brake switch.
While the vehicle is held stationary with the brake auto hold system, the Electric parkingbrake will be automati
cally applied under the
following conditions, and a buzzer will sound and the message will appear on the information screen in the multi informationdisplay. • After approximately 10 minutes has elapsed with applying the brake auto hold system. • When the driver’s seat
belt is unfastened.
• When the driver’s door is opened. • When the ignition switch is turned to the “OFF” position or th
e operation mode is
put in OFF. • When the system detect
s the vehicle sliding
down a slope. If the Electric park
ing brake cannot be
applied automatically due to the system mal- function, the message
will appear on the
information screen in the multi informationdisplay. Depress the brake pedal.NOTE
 If the ignition switch is turned to the “OFF” position or the operation mode is put in OFFwith the selector leve
r in any position other
than “P” (PARK) position, the message may appear on the information screen in the multi information display.If the message appears, shift the selector lever to the “P” (PARK) position while depressing the brake pedal.
To start the vehicle

NOTE
BK0278200US.book 95 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Cruise control (if so equipped) 5-104 Features and controls
5
N00518401500
1. With the operation mode in ON, press the CRUISE CONTROL ON/OFF switch (A) to turn on the cruise control. The indicatordisplay in the meter cluster will come on. Indicator display
2. Accelerate or decele
rate to your desired
speed, then push down and release the“SET -” switch (B) when the indica- tor/indicator display is illuminated. The vehicle will then maintain the desiredspeed. The “SET” indicator appears on the infor- mation screen in the meter cluster.
N00518501413
There are two ways to increase the set speed.
Push up and hold the “RES +” switch (C) while driving at the se
t speed, and your speed
will then gradually increase. When you reach your desired speed, releasethe switch. Your new
cruising speed is now
set. To increase your speed in small amounts, push up the “RES +” switch (C) for less than approximately 1 second and release it.Each time you press the “RES +” switch (C), your vehicle will go approximately 1 mph (1.6 km/h) faster.
To activate

NOTE
 When you release the “SET -” switch (B), the vehicle spee
d will be set.
To increase the set speed

“RES +” switch

BK0278200US.book 104 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Adaptive Cruise Control System (ACC) (if so equipped)
Features and controls 5-107
5
Also, the set speed dr
iving may be deacti-
vated as follow:  When the engine speed rises and approaches the tachom
eter’s red zone (the
red-coloured part of the tachometer dial).
N00518901433
If the set speed driving is deactivated by thecondition described in “To deactivate” on page 5-106, you can resume the previouslyset speed by push up the “RES +” switch (C) while driving at a speed of approximately 25 mph (40 km/h) or higher.The “SET” indicator appears on the informa- tion screen in the meter cluster. Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In thesesituations, repeat the
speed setting procedure:
 The CRUISE CONTROL ON/OFF switch is pressed.  The operation mode is put in OFF.  Indicator goes off.
N00576800048
ACC maintains a set speed with no need for you to use the accelera
tor pedal. Using a sen-
sor (A), the system also measures the relative speed and distance betw
een your vehicle and
a vehicle in front, and
maintains a set follow-
ing distance between
your vehicle and the
vehicle in front by au
tomatically decelerating
your vehicle if it becomes too close to the vehicle in front. The cruising set speed can be set from 25mph (40 km/h) to 110 mph (180 km/h). The distance can be select
ed from three levels.
If the vehicle in front decelerates, the ACCwill automatically apply limited braking to maintain the distance, a
nd if the front vehicle
then accelerates, the ACC will automaticallyaccelerate your vehicle
up to the set speed. If
your vehicle is approa
ching too close to the
front vehicle, a buzzer will sound and a warn-ing is shown in the multi information display. When the ACC detects no vehicle ahead, the set speed will be maintained.Conventional cruise cont
rol mode without the
distance control can
also be selected.
Stop lights are illuminated during automaticbraking.
CAUTION When the set speed driving is deactivated automatically in any
situation other than
those listed above, th
ere may be a system
malfunction. Press the CRUISE CONTROL ON/OFF switch to turn off the cruise control and haveyour vehicle inspected by an authorized Mit- subishi Motors dealer or
a repair facility of
your choice.
To resume the set speed

Adaptive Cruise Control System (ACC)
(if so equipped)
