2020 MITSUBISHI ECLIPSE CROSS turn signal bulb

Indicators
Features and controls 5-183
5
The rest time can be set.
N00519900127 N00520000216
The arrows will flash in
time with the corre-
sponding exterior turn signals when the turn signal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520201273
This indicator comes on while the front foglights are on.
N00551301094
This indicator light illuminates while theparking lights are on.
Screen
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide fo
r taking rests during a long drive.
The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings” on page 5-155. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds approx
imately every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is reset and the display returns to the previous display screen. After this, when the set time is reached again, the display and buzzer encourage you to take a rest. • The buzzer sounds three times. • The ignition switch is turned to the “OFF
” position or the operation mode is put in
OFF. • The multi-information display switches ar
e held (for approximately 2 seconds or
more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator
Front fog light indicator Position indicator
BK0277700US.book
183 ページ ２０１９年３月８日　金曜日　午前９時２３分

Hazard warning flasher switch 5-200 Features and controls
5
tion (1). It will return to the neutral position when you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn iscomplete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel isturned only slightly. You can easily return the lever by hand. Also, when you move the lever to (1) slightlythen release it, the turn signal lights and theindicator light in the instrument cluster will flash three times.
N00522701344
If you press the flasher switch, the front and rear turn signals will flash intermittently, and so will the hazard warn
ing lights. This is an
emergency warning system and should not beused when the vehicle is in motion, except foremergencies. If you need to leave your vehicle, the flashers will keep working after the ignition switch isremoved or the operation mode is put in OFF.
NOTE
 A light in the instrument panel flashes to show when the front and rear turn signal lights are working properly. If this light flashes faster than usual, check for a burned out turn signal light bulb or mal-functioning connection in the signal. If the panel light does not come on when the lever is moved, check for a blown fuse or aburned out bulb in the panel. Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  It is possible to modify functions as follows: • Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function. See your authorized Mitsubishi Motors dealer for details.For vehicles equipped with the Smartphone Link Display Audio, adjustments can be made using screen operations. For furtherdetails, refer to the separate owner’s manual.  It is possible to change the tone of a sound- ing buzzer as the turn signal lights flash. Refer to “Changing the turn signal sound” on page 5-161.
Hazard warning flasher switch
NOTE
 If the flashers are used for several hours, the battery will run down. This could make it difficult or impossible to restart your vehicle.
BK0277700US.book
200 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs 9-28 Vehicle care and maintenance
9
N00950302173
Outside
Item
Wa t t - age
ANSI Tr a d e No. or Bulb type
1 - Headlight Halogen
bulb
55 W HIR2
LED — —
2 - Parking light/
Daytime running light
——
3 - Front side-marker
light
——
Front
4 - Front turn signal light 21 W PY21W 5 - Front fog light 35 W H86 - Side turn signal light — —
NOTE
 The following lights use an LED type bulb. Check with an authorized Mitsubishi Motorsdealer or a repair
facility of your choice
when either light needs to be repaired or replaced. • Headlight (LED type) • Parking light • Daytime running light• Front side-marker light • Side turn signal light
Item
Wa t t - age
ANSI Tr a d e No. or Bulb type
Item
Wattage
ANSI trade No. or Bulb type
1 - High-mounted
stop light
——
2 - Tail light — — 3 - Back-up light 16 W W16W4 - License plate
light
5 W W5W
5 - Rear turn sig-
nal light
21 W WY21W
6 - Stop light — — 7 - Rear side-
marker light
——
Rear
BK0277700US.bo
ok 28 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00943401508

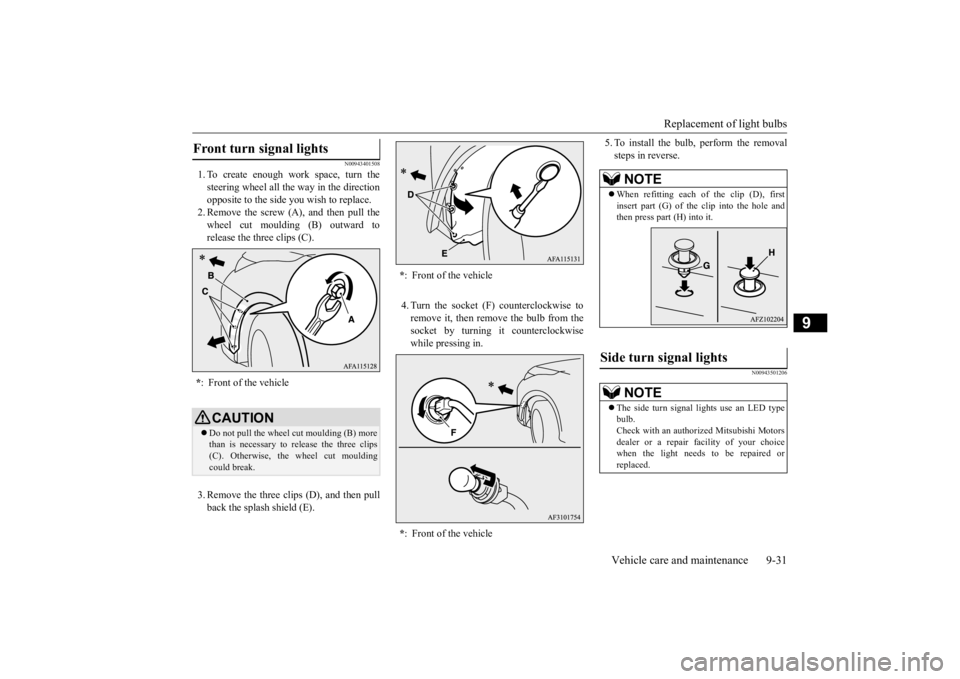

1. To create enough work space, turn the steering wheel all the way in the directionopposite to the side you wish to replace. 2. Remove the screw (A), and then pull the wheel cut moulding (B) outward torelease the three clips (C). 3. Remove the three clips (D), and then pull back the splash shield (E).
4. Turn the socket (F) counterclockwise to remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in.
5. To install the bulb, perform the removal steps in reverse.
N00943501206
Front turn signal lights * : Front of the vehicleCAUTIONDo not pull the wheel cut moulding (B) more than is necessary to release the three clips(C). Otherwise, the wheel cut moulding could break.
* : Front of the vehicle * : Front of the vehicle
NOTE
When refitting each of the clip (D), first insert part (G) of the clip into the hole andthen press part (H) into it.
Side turn signal lights
NOTE
 The side turn signal lights use an LED type bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired or replaced.
BK0277700US.bo
ok 31 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
2. After removing the two screws (A), move the light unit rearward and remove the three light unit pins (B).
3. Turn the rear turn-signal light socket counterclockwise and remove it, and then pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101093
1. Remove the three clips (A), and then pullback the splash shield (B).
2. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
NOTE
 It will be easier to remove the light unit if you insert a minus screwdriver with the end covered with a cloth or
other object into the
space under the light unit and remove thehighest pin, and then pull the light unit at an upward angle.
C- Rear turn-signal light D- Stop light (LED) - cannot be replaced
NOTE
 The rear side-marker light, tail light and stop light use an LED type bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Back-up lights
* : Rear of the vehicle
BK0277700US.bo
ok 33 ページ ２０１９年３月８日　金曜日　午前９時２３分
