▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 4.1 L (4.3 US qt, 3.6 Imp qt)
Coolant Manual transmission
6.0 L (6.3 US qt, 5.3 Imp qt)
Automatic transmission U.S.A. and Canada 5.7 L (6.0 US qt, 5.0 Imp qt)
Mexico
5.8 L (6.1 US qt, 5.1 Imp qt)
Manual transmission oil 2.0 L (2.1 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.2 L (7.6 US qt, 6.3 Imp qt)
Rear differential oil 0.6 L (0.6 US qt, 0.5 Imp qt)
Fuel tank 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
U.S.A. and Canada
Item Vehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,235 mm (48.6 in)
―
17 inch wheel vehicle 1,240 mm (48.8 in) 1,245 mm (49.0 in)
Front tread 1,496 mm (58.9 in) 1,496 mm (58.9 in)
Rear tread 1,503 mm (59.2 in) 1,503 mm (59.2 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)
Mexico
ItemVehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,225 mm (48.2 in)
―
17 inch wheel vehicle 1,230 mm (48.4 in) 1,235 mm (48.6 in)
Front tread 1,496 mm (58.9 in) 1,496 mm (58.9 in)
Rear tread 1,503 mm (59.2 in) 1,503 mm (59.2 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)
Specifications
Specifications
9-5
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

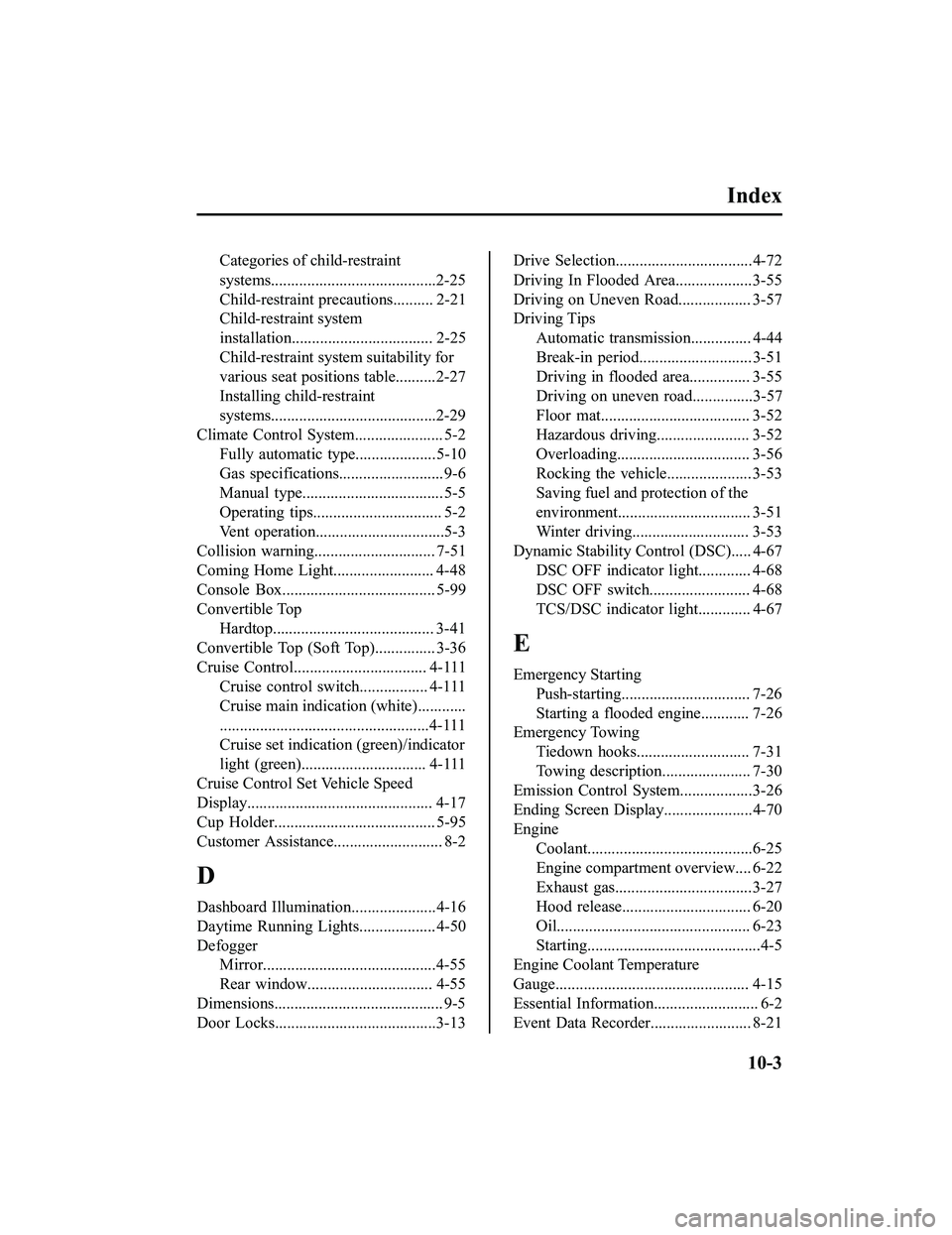

Index
Categories of child-restraint
systems.........................................2-25
Child-restraint precautions.......... 2-21
Child-restraint system
installation................................... 2-25
Child-restraint system suitability for
various seat positions table..........2-27
Installing child-restraint
systems.........................................2-29
Climate Control System...................... 5-2
Fully automatic type....................5-10
Gas specifications.......................... 9-6
Manual type................................... 5-5
Operating tips................................ 5-2
Vent operation................................5-3
Collision warning.............................. 7-51
Coming Home Light......................... 4-48
Console Box...................................... 5-99
Convertible Top
Hardtop........................................ 3-41
Convertible Top (Soft Top)............... 3-36
Cruise Control................................. 4-111
Cruise control switch................. 4-111
Cruise main indication (white)............
....................................................4-111
Cruise set indication (green)/indicator
light (green)............................... 4-111
Cruise Control Set Vehicle Speed
Display.............................................. 4-17
Cup Holder........................................ 5-95
Customer Assistance.... ....................... 8-2
D
Dashboard Illumination. ....................4-16
Daytime Running Lights................... 4-50
Defogger Mirror...........................................4-55
Rear window........... .................... 4-55
Dimensions.......................................... 9-5
Door Locks........................................3-13
Drive Selection..................................4-72
Driving In Flooded Ar ea...................3-55
Driving on Uneven Road.................. 3-57
Driving Tips
Automatic transmission............... 4-44
Break-in period............................ 3-51
Driving in flooded a rea............... 3-55
Driving on uneven road...............3-57
Floor mat..................................... 3-52
Hazardous driving.. ..................... 3-52
Overloading............. .................... 3-56
Rocking the vehicle. .................... 3-53
Saving fuel and protection of the
environment................................. 3-51
Winter driving............................. 3-53
Dynamic Stability Control (DSC)..... 4-67
DSC OFF indicator light............. 4-68
DSC OFF switch......................... 4-68
TCS/DSC indicator light............. 4-67
E
Emergency StartingPush-starting................................ 7-26
Starting a flooded engine............ 7-26
Emergency Towing Tiedown hooks........ .................... 7-31
Towing description...................... 7-30
Emission Control System..................3-26
Ending Screen Display......................4-70
Engine Coolant.........................................6-25
Engine compartment overview.... 6-22
Exhaust gas..................................3-27
Hood release................................ 6-20
Oil................................................ 6-23
Starting...........................................4-5
Engine Coolant Temperature
Gauge................................................ 4-15
Essential Information.......................... 6-2
Event Data Recorder......................... 8-21
