Door Locks
WA R N I N G
Always take all children and pets with you
or leave a responsible person with them:
Leaving a child or a pet unattended in a
parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle can
become high enough to cause brain
damage or even death.
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:
Leaving children in a vehicle with the key is
dangerous. This could result in someone
being badly injured or even killed.
Keep both doors locked when driving:
Unlocked doors in a moving vehicle are
dangerous. Passengers can fall out if a
door is accidentally opened and can more
easily be thrown out in an accident.
Always close both the windows and
convertible top, lock the doors and the
fuel-filler lid and take the key with you
when leaving your vehicle unattended:
Leaving your vehicle unlocked is dangerous
as children could lock themselves in a hot
vehicle, which could result in death. Also, a
vehicle left unlocked becomes an easy
target for thieves and intruders.
After closing the doors and the fuel-filler lid,
always verify that they are securely closed:
Doors and the fuel-filler lid not securely
closed are dangerous, if the vehicle is
driven with a door and the fuel-filler lid not
securely closed, the d oor and the fuel-filler
lid could open unexpectedly resulting in an
accident.
Always confirm the safety around the
vehicle before opening a door and the
fuel-filler lid:
Suddenly opening a door and the fuel-filler
lid is dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
CAUTION
 Always
confirm the conditions around
the vehicle before opening/closing the
doors and the fuel -filler lid and use
caution during strong winds or when
parked on an incline. Not being aware of
the conditions around the vehicle is
dangerous because fingers could get
caught in the door and the fuel-filler lid
or a passing pedestrian could be hit,
resulting in an unexpected accident or
injury.
 If the power window does not go up or
down automatically because the battery
is dead, slowly open/close the power
window while pressing the glass inward.
Otherwise, the power window may
contact the convertible top/roof and the
door cannot be opened/closed resulting
in damage to the window.
Before Driving
Doors and Locks
3-13
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

NOTE
Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside the
cabin.
If the key is left in the following areas
and you leave the vehicle, the doors may
be locked depending on the radio wave
conditions even if the key is left in the
vehicle.
Around the dashboard
In the storage compartments such as
the console box
Next to a communication device such
as a mobile phone
When the ignition is switched to ACC or
ON, the vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
Both doors and the fuel-filler lid will
automatically unlock if they are locked
using the power door locks with any
door open.
If both the doors are closed even though
the trunk lid is open, both the doors and
the fuel-filler lid will lock.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened from the
outside while the key is inside the
vehicle, the closed doors are locked.
Both the doors are automatically
unlocked by closing the open door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key
has been left in the vehicle.
(Without the advanced keyless
function)
The horn sound is heard twice to notify
the driver that the key has been left in
the vehicle.
(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors and the fuel-filler lid in the event
the vehicle is involved in an accident to
allow passengers to get out of the
vehicle immediately and prevent being
trapped inside. While the ignition is
switched ON and in the event the vehicle
receives an impact strong enough to
inflate the air bags, both the doors and
the fuel-filler lid are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors and the fuel-filler lid may not
unlock depending on how an impact is
applied, the force of the impact, and
other conditions of the accident.
If door-related systems or the battery is
malfunctioning, the doors and the
fuel-filler lid will not unlock.
When opening a door, the power
windows open a little automatically.
When closing the door, the power
windows close automatically. This is a
function for improving the sealability,
and it does not mean there is a problem.
If the vehicle battery is disconnected for
vehicle maintenance or other reasons,
the power windows will not open or
close automatically. If the power
windows do not open or close, the
automatic open/close mechanism for the
windows must be reset.
Refer to Auto-opening on page 3-35.
Before Driving
Doors and Locks
3-14
MX-5_8JA4-EA-19K_Edition1_old2019-8-29 16:18:06

▼Locking, Unlocking with Auxiliary
Key
Both doors and the fuel-filler lid lock
automatically when th
e driver's door is
locked using the auxiliary key.
Both doors and the fuel-filler lid unlock
when the driver's door is unlocked and the
auxiliary key is held i n the unlock position
for one second or longer.
Turn the auxiliary key toward the front to
lock, toward the back to unlock.
Ty p e A
Lock Unlock
Ty p e B
Lock
Unlock
NOTE
Holding the auxiliary key in the unlocked
position in the driver's door lock for about
a second unlocks both doors. To unlock
the driver's door and the fuel-filler lid,
insert the auxiliary key into the driver's
door lock and turn the auxiliary key
briefly to the unlock position and then
immediately return it to the center
position.
▼Locking, Unlocking with Request
Switch (With the advanced keyless
function)
Both doors and the fu
el-filler lid can be
locked/unlocked by pressing the request
switch while the key is being carried.
Request switch
To l o c k
To lock the doors and the fuel-filler lid,
press the request switch and the hazard
warning lights will flash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door and the
fuel-filler lid, press the request switch. A
beep sound will be heard twice and the
hazard warning lights will flash twice.
Before Driving
Doors and Locks
3-15
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

To unlock both doors and the fuel-filler
lid, press the request switch again within 3
seconds and two more beep sounds will be
heard.
Front passenger door request switch
To unlock both doors and the fuel-filler
lid, press the request switch. A beep sound
will be heard twic e and the hazard
warning lights will flash twice.
NOTE
The system can be set to unlock both
doors and the fuel-filler lid by
performing a single operation.
Refer to Personalization Features on
page 9-9.
Use the following procedure to change
the setting.
1. Switch the ignition off and close both of the doors and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's door, press and hold the
UNLOCK button on the key for 5
seconds or longer (the sound of the
doors locking/unlocking can be
heard).
After this, the system switches the
setting of pressing the driver's
request switch once or twice to
unlock both doors each time the
UNLOCK button is pressed (the
sound of the doors locking/unlocking
can be heard).
4. The setting change is completed by
doing any one of the following:
Switching the igni tion to ACC or
ON.
Closing the driver's door.
Opening the trunk lid.
Not operating the key for 10
seconds.
Pressing any button except the
UNLOCK button on the key.
Pressing a request switch.
Confirm that both doors and the
fuel-filler lid are securely locked.
Both doors and the fuel-filler lid cannot
be locked when any door is open.
It may require a few seconds for the
doors to unlock after the request switch
is pressed.
A beep sound is heard for confirmation
when the doors and the fuel-filler lid are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Personalization
Features on page 9-9.
Use the following procedure to change
the setting.
1. Switch the ignition off and close both
of the doors and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer (Both of the doors
and the fuel-filler lid are locked and
unlocked when the LOCK button on
the key is pressed and held for five
seconds.).
Before Driving
Doors and Locks
3-16
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

The beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by doing any one of the following:
Switching the ignition to ACC or
ON.
Closing the driver's door.
Opening the trunk lid.
Not operating the key for 10
seconds.
Pressing any button except the
LOCK button on the key.
Pressing a request switch.
(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-49.
The setting can be changed so that the
doors and the fuel-filler lid are locked
automatically without pressing the
request switch.
Refer to Personalization Features on
page 9-9.
(Walk-away auto lock function)
A beep sound is heard when both doors
are closed while the advanced key is
being carried. Both doors and the
fuel-filler lid are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
flash once. (Even if the driver is in the
operational range, both doors and the
fuel-filler lid are locked automatically
after about 30 seconds.) If you are out of
the operational range before the doors
and the trunk lid are completely closed
or another key is left in the vehicle, the
walk-away auto lock function will not
work. Always make sure that both doors
and the trunk lid are closed and locked
before leaving the vehicle. The
walk-away auto lock function does not
close the power windows.
Before Driving
Doors and Locks
3-17
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

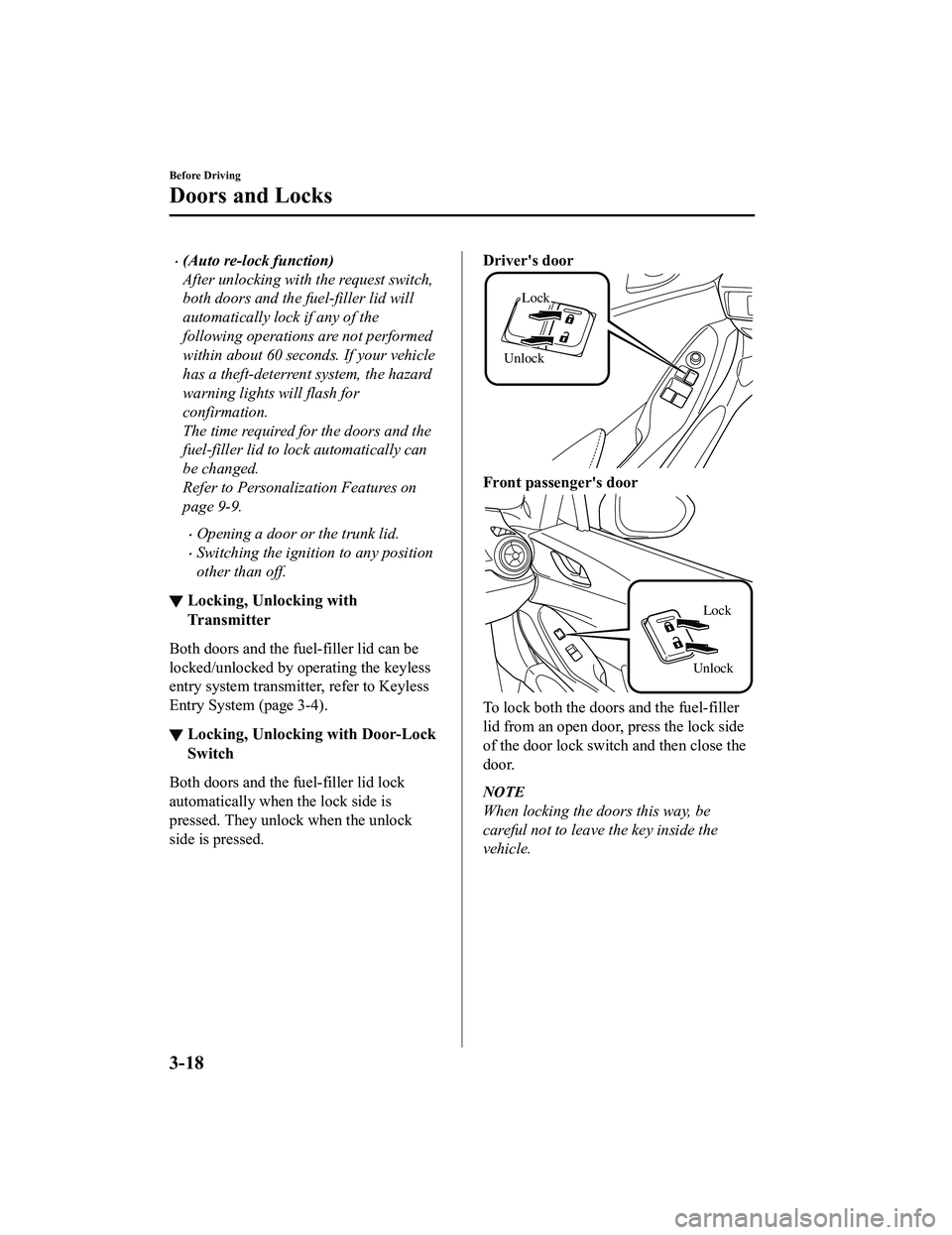

(Auto re-lock function)
After unlocking with the request switch,
both doors and the fuel-filler lid will
automatically lock if any of the
following operations are not performed
within about 60 seconds. If your vehicle
has a theft-deterrent system, the hazard
warning lights will flash for
confirmation.
The time required for the doors and the
fuel-filler lid to lock automatically can
be changed.
Refer to Personalization Features on
page 9-9.
Opening a door or the trunk lid.
Switching the ignition to any position
other than off.
▼Locking, Unlocking with
Transmitter
Both doors and the fuel-filler lid can be
locked/unlocked by operating the keyless
entry system transmitt
er, refer to Keyless
Entry System (page 3-4).
▼ Locking, Unlocking with Door-Lock
Switch
Both doors and the fuel-filler lid lock
automatically when the lock side is
pressed. They unlock when the unlock
side is pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock both the doors and the fuel-filler
lid from an open door, press the lock side
of the door lock switch and then close the
door.
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
Before Driving
Doors and Locks
3-18
MX-5_8JA4-EA-19K_Edition1_old
2019-8-29 16:18:06

(Automatic transmission vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Press 4 times
Function Number 3
Press 5 times
Function Number 4
Press 7 times
Function Number 5
Press 6 times
Function Number 6
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
NOTE
The doors and the fuel-filler lid cannot
be locked or unlocked while the setting
function is being performed.
The procedure can be cancelled by
pressing the lock side of the driver's
door-lock switch.
▼ Locking, Unlocking with Door-Lock
Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate t
he other door locks.

Lock
Unlock
Unlocked: Red indicator
Operation from outside
To lock any door using its door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door
(holding the door handle in the open
position is not required).
This does not operate t
he other door locks.

Door-lock knob
NOTE
When locking the door this way:
Be careful not to lea ve the key inside the
vehicle.
The doors cannot be locked using the
driver's door lock knob if any door is
open when the ignition is switched to
ACC or ON.
Before Driving
Doors and Locks
3-21
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Trunk Lid
WA R N I N G
Never allow a person to ride in the trunk:
Allowing a person to ride in the trunk is
dangerous. The person in the trunk could
be seriously injured or killed during sudden
braking or a collision.
Do not drive with the trunk lid open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open trunk lid in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous, and it can
cause loss of consciousness and death.
Moreover, an open trunk lid could cause
occupants to fall out in an accident.
CAUTION
Before opening the trunk lid, remove any
snow and ice accumulation on it.
Otherwise, the trunk lid could close
under the weight of the snow and ice
resulting in injury.
 Be careful when opening/closing the
trunk lid during strong winds. If a strong
gust blows against the trunk lid, it could
close suddenly resulting in injury.
 Fully open the trunk lid and make sure
that it stays open. If the trunk lid is only
opened partially, it could slam shut by
vibration or wind gusts resulting in
injury.
When loading or unloading luggage in
the trunk, turn off the engine. Otherwise,
you could get burned by the heat of the
exhaust gas.
▼ Opening and Closing the Trunk Lid
Opening the trunk lid
Using the remote release button
Push the release button.

The remote release button function can be
disabled by locking the doors using the
transmitter, auxiliary key, or a request
switch to prevent an in
truder in the vehicle
from opening the trunk.
To enable the remote release button
operation, unlock the doors by using the
transmitter, auxiliary key, or a request
switch, or switch the ignition ON.
Before Driving
Doors and Locks
3-22
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
