2020 MAZDA MODEL CX-30 light

Interior Equipment (View A)
▼Interior Equipment (View
A-type A)
ƒ
High Beam Control System (HBC) switch............................................ page 4-88
„ Lighting control................................................................................. page 4-42
… Turn and lane-change signals............................................................. page 4-47
† Audio remote control switches........................................................... page 5-20
‡ INFO switch...................................................................................... page 4-13
ˆ Mazda Radar Cruise Control (MRC C) switches................................. page 4-118
‰ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) switches........................................................................... page 4-127
Š TJA switches....................................................................................page 4-138
‹ Cruise control switches................................................................... page 4-201
ΠWiper and washer lever..................................................................... page 4-48
Pictorial Index
Interior Overview
1-2The equipment and installation position varies by vehicle
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Interior Equipment (View C)
▼Interior Equipment (View C)
ƒ
Head restraint................................................................................... page 2-15
„ Front seat........................................................................................... page 2-4
… Seat belt........................................................................................... page 2-20
† Bottle holder.....................................................................................page 5-39
‡ Vanity mirror..................................................................................... page 5-34
ˆ Sunvisor........................................................................................... page 5-34
‰ Overhead light (front)/Map lights...................................................... page 5-35
Š Overhead console............................................................................. page 5-41
‹ Moonroof switch...............................................................................page 3-40
ΠRearview mirror................................................................................ page 3-34
Vent................................................................................................... page 5-3
Ž Cup holder....................................................................................... page 5-38
Shift lever/Selector lever...........................................................page 4-29, 4-31
Drive selection switch........................................................................page 4-77
‘ Commander switch........................................................................... page 5-17
’ Electric Parking Brake (EPB) switch...................................................... page 4-60
“ AUTOHOLD switch........................................................................... page 4-67
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-5
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Interior Equipment (View D)
▼Interior Equipment (View D)
ƒ
Push knob........................................................................................ page 2-13
„ Head restraint................................................................................... page 2-15
… Child safety lock................................................................................page 3-18
† Rear coat hook..................................................................................page 5-40
‡ Overhead light (rear)......................................................................... page 5-35
ˆ Door-lock knob................................................................................ page 3-17
‰ Power window switch........................................................................ page 3-37
Š Assist grip......................................................................................... page 5-40
‹ Center console................................................................................. page 5-42
ΠAccessory socket............................................................................... page 5-37
External input terminal.......................................................................page 5-13
Ž Bottle holder.....................................................................................page 5-39
Rear seat.......................................................................................... page 2-13
Cup holder....................................................................................... page 5-38
‘ Armrest............................................................................................ page 2-14
’ ISOFIX lower anchors (Mexico)/LATCH lower anchors (Except Mexico) ...............
........................................................................................................page 2-44
“ Seat belt........................................................................................... page 2-20
Pictorial Index
Interior Overview
1-6The equipment and installation position varies by vehicle
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Interior Equipment (View E)
▼Interior Equipment (View E)
ƒ
Luggage compartment cover.............................................................. page 3-27
„ Anchor brackets................................................................................ page 2-38
… Luggage compartment light................................................................ page 5-35
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-7
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

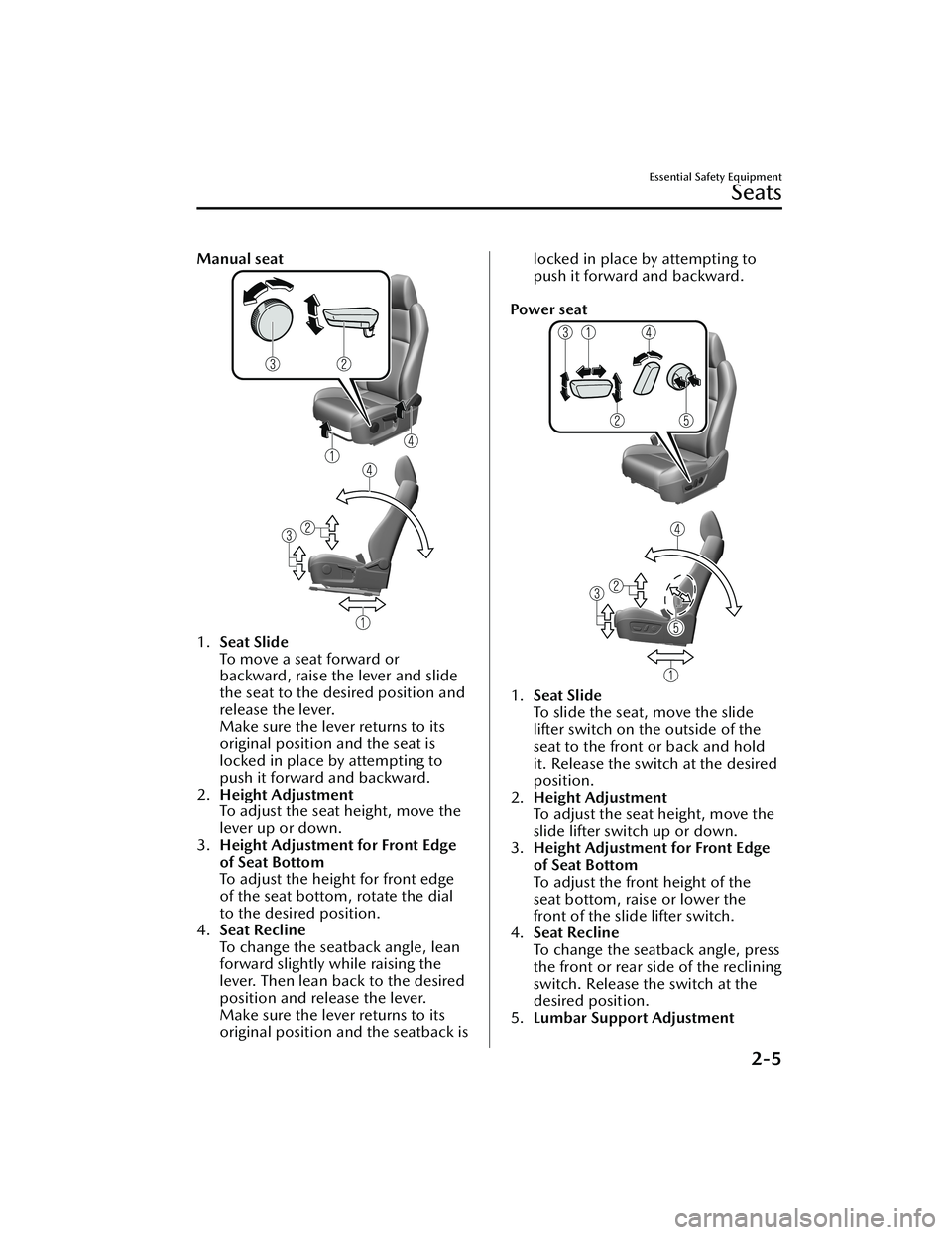

Manual seat
1.Seat Slide
To move a seat forward or
backward, raise the lever and slide
the seat to the desired position and
release the lever.
Make sure the lever returns to its
original position and the seat is
locked in place by attempting to
push it forward and backward.
2. Height Adjustment
To adjust the seat height, move the
lever up or down.
3. Height Adjustment for Front Edge
of Seat Bottom
To adjust the height for front edge
of the seat bottom, rotate the dial
to the desired position.
4. Seat Recline
To change the seatback angle, lean
forward slightly while raising the
lever. Then lean back to the desired
position and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to
push it forward and backward.

Po we r s eat
1. Seat Slide
To slide the seat, move the slide
lifter switch on the outside of the
seat to the front or back and hold
it. Release the switch at the desired
position.
2. Height Adjustment
To adjust the seat height, move the
slide lifter switch up or down.
3. Height Adjustment for Front Edge
of Seat Bottom
To adjust the front height of the
seat bottom, raise or lower the
front of the slide lifter switch.
4. Seat Recline
To change the seatback angle, press
the front or rear side of the reclining
switch. Release the switch at the
desired position.
5. Lumbar Support Adjustment
Essential Safety Equipment
Seats
2-5
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

To increase the seat firmness, press
and hold the front part of the
switch to the desired position, then
release it.
Press the rear part of the switch to
decrease firmness.

Before making adjustments to the
driving position recommended by
Mazda
Before making adjustments, move the
steering wheel and seat to their default
positions.
How to move the steering wheel to its
default position
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous. Moving
it can very easily cause the driver to
abruptly turn to the left or right. This
can lead to loss of control or an
accident.
After adjusting the steering wheel
position, make sure it is securely
locked by trying to move it up and
down:
Driving with the steering wheel not
securely locked in position is
dangerous. If the steering wheel moves
unexpectedly while driving, you could
lose control of the steering resulting in
an accident.
Lower the lever, move the steering
wheel to the lowest position, and then
push it down and all the way back.
How to move a driver’s seat to its
default position
1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Lower the front edge of the seat bottom to its lowest height.
4. Sit squarely in the seat and rest your back against the seatback.
Seat adjustment procedure for the
driving position recommended by
Mazda
Adjusting the seatback angle
(reclining)
Adjust the seatback to the angle
providing a comfortable seated
posture.
1. With your posture slightly slouched, move the seatback forward to the
Essential Safety Equipment
Seats
2-6
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

angle where your waist feels slightly
cramped.
1. Manual Seat
2. Power Seat

2. Move the seatback backward to a comfortable seated posture without
any feeling of cramping in your
waist.
1. Manual Seat
2. Power Seat

Adjusting the seat position forward
and back (sliding)
Adjust the seat to the position best for
operating the accelerator and brake
pedals.
1. Place your left foot on the footrest, your right foot between the
accelerator and brake pedals, and
position your heel to the position
allowing easy switching between
the pedals.
2. With your heel set on the floor, set your right foot on the brake pedal
and move the seat forward as far as
Essential Safety Equipment
Seats
2-7
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

possible until you feel a slight
cramping in your ankle.
1. Manual Seat
2. Power Seat

3. With your right foot set on the brake pedal, move the seat back
until you no longer feel cramping in
your ankle.
4. With your heel set on the floor,
make sure you can move your foot
between the brake pedal and
accelerator pedal smoothly.
5. Depress the accelerator pedal completely with your heel set on
the floor and make sure that your
ankle does not feel over-stretched.
1. Manual Seat
2. Power Seat

Adjusting the seat height
Adjust the seat height to a position
where you have a clear forward view
and you can drive the vehicle easily.
1. With your back resting against the seatback, raise the seat to the
height where you can see the rear
Essential Safety Equipment
Seats
2-8
