CAUTION
Do not use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly
fit and could damage both
tire and rim.
 The temporary spare tire has a tread
life of less than 5,000 km (3,000
miles). The tread life may be shorter
depending on driving conditions.
 The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tire with the same type of
temporary spare (page 6-30).
NOTE
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or
older. Heat caused by hot climates or
frequent high loading conditions can
accelerate the aging process. You
should replace the spare tire when you
replace the other road tires due to the
aging of the spare tire. The period in
which the tire was manufactured (both
week and year) is indicated by a 4-digit
number.
Refer to Tire Labeling on page 8-22.
▼ Replacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling could
be
affected, leading to loss of control
and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:
 Tire
fit
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tire Pressure Monitoring System
NOTE
When replacing a wheel, make sure
the new one is the same as the
original factory wheel in diameter,
rim width, and offset (inset/outset).
For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
6-31
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

Light Bulbs
▼Replacing Light Bulbs
All the light bulbs are the LED type.
The LED bulb cannot be replaced as a
single unit because it is an integrated
unit.
The LED bulb has to be replaced with
the unit. We recommend an
Authorized Mazda Dealer when the
replacement is necessary.
Fuses
▼ Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate
circuit protector. If a fuse has blown,
the inside element will be melted.

If the same fuse blows again, avoid
using that system and consult an
Authorized Mazda Dealer as soon as
possible.
▼Fuse Replacement
Replacing the fuses on the vehicle's
left side
If the electrical system does not work,
first inspect the fuses on the vehicle's
left side.

1. Make sure the ignition is switched
off, and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the
fuse puller provided on the fuse
Maintenance and Care
Owner Maintenance
6-32
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

block located in the engine
compartment.
4. Inspect the fuse and replace it if it isblown.
1. Normal
2. Blown

5. Insert a new fuse of the same amperage rating , and make sure it
fits tightly. If it does not
fit tightly,
have an expert install it. Consult an
Authorized Mazda Dealer.
If you have no spare fuses, borrow
one of the same rating from a
circuit not essential to vehicle
operation, such as the audio or
accessory socket circuit.
CAUTION
Always replace a fuse with a
genuine Mazda fuse or equivalent
of the same rating. Otherwise you
may damage the electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the
fuse block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched off, and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of
the same amperage rating .
1. Normal
2. Blown

Maintenance and Care
Owner Maintenance
6-33
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

No.FUSE RAT-
ING PROTECTED COMPONENT
F7 15 A
―
20 A Fuel pump
F8 15 A Engine control system
F9 15 A Transmission control system
*
F1015 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 15 A ―
F14 20 A
Front seat warmer
*
F15 20 A ―
F16 15 A For protection of various circuits
F17 ――
F18 15 A For protection of various circuits
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A Keyless system
F23 30 A ABS, Dynamic stability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windshield washer
F30 15 A Accessory sockets
F31 15 A Horn
F32 15 A Headlights
F33 ――
F34 ――
F35 50A ABS, Dynamic stability control system
F36 ――
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
Maintenance and Care
Owner Maintenance
6-36*Some models.
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

No.FUSE RAT-
ING PROTECTED COMPONENT
F39 ――
F40 40 A Air conditioner
F41 ――
F42 20 A Windshield wipers
F43 30 A Cooling fan
F44 30 A Starter
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 25 A Audio
F52 10 A
Moonroof
*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 50 A ―
F56 50 A ―
Maintenance and Care
Owner Maintenance
*Some models.6-37
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

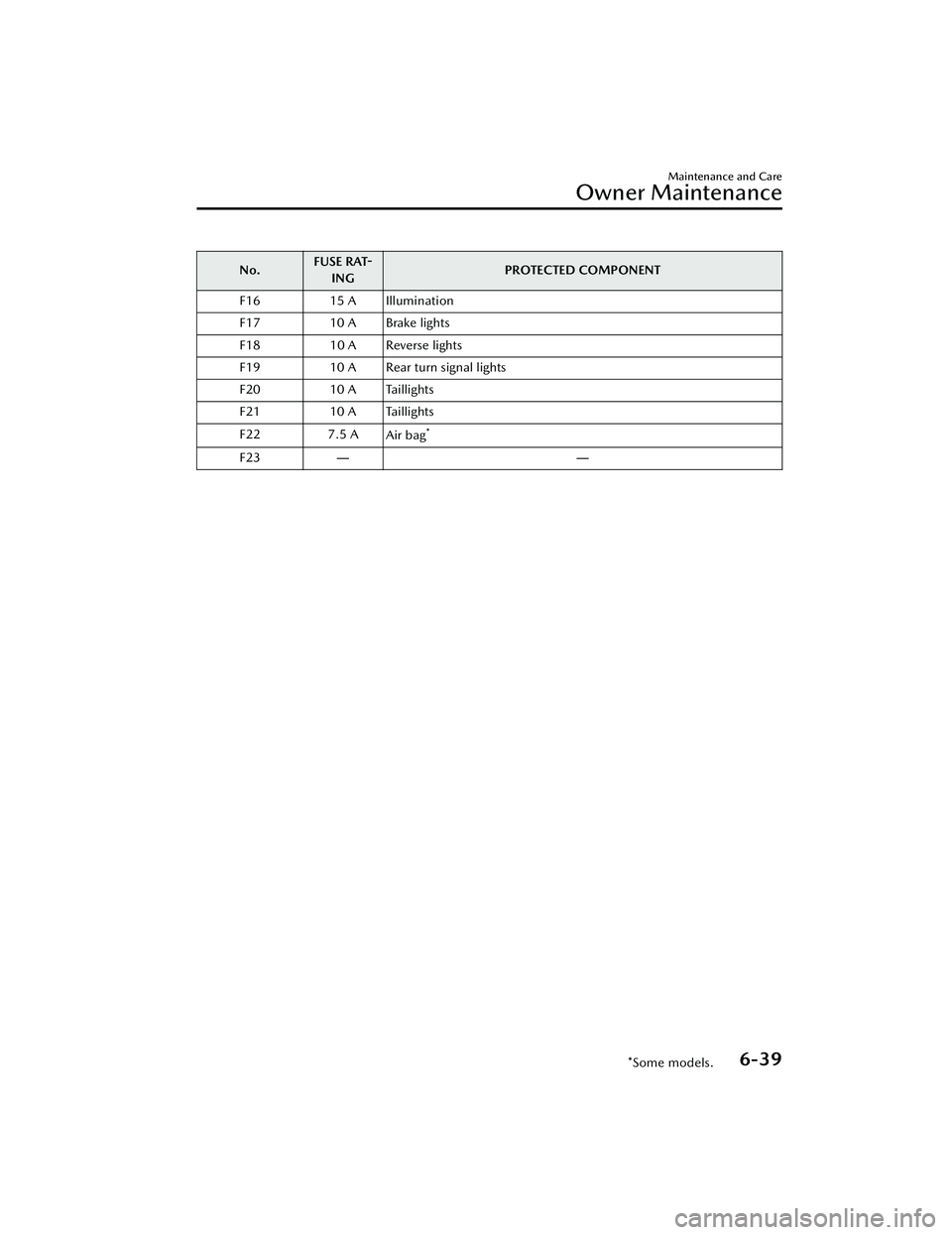

No.FUSE RAT-
ING PROTECTED COMPONENT
F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Reverse lights
F19 10 A Rear turn signal lights
F20 10 A Taillights
F21 10 A Taillights
F22 7.5 A
Air bag
*
F23 ――
Maintenance and Care
Owner Maintenance
*Some models.6-39
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

with plain water is ineffective, use a
mild soap made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots
from forming.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected.
When using an automatic car wash
Retract the door mirrors.The automatic car wash brushes
could reduce the paint lustre or
hasten paint deterioration.
When using a high water pressure car
wash
High water temperature and high
water pressure car washers are
available depending on the type of car
wash machine. If the car washer nozzle
is put too close to the vehicle, the
force of the spray could damage or
deform the molding, affect the
sealability of parts, and allow water to
penetrate the interior. Keep a sufficient
space (30 cm (12 in) or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle,
and be very careful when spraying
between gaps in doors and around
windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle
body, wax the metal trim to maintain
its luster.

1. Use wax which contains no
abrasives.
Wax containing abrasives will
remove paints and could damage
bright metal parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle does not need it.
▼ Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to
major repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
Maintenance and Care
Appearance Care
6-43
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

▼Bright-Metal Maintenance
Use tar remover to remove road tar
and insects. Never do this with a
knife or similar tool.
To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high
luster.
During cold weather or in coastal
areas, cover bright-metal parts with a
coating of wax or preservative
heavier than usual. It would also help
to coat them with noncorrosive
petroleum jelly or some other
protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
▼Underbody Maintenance
Road chemicals and salt used for ice
and snow removal and solvents used
for dust control may collect on the
underbody. If not removed, they will
speed up rusting and deterioration of
such underbody parts as fuel lines,
frame,
floor pan, and exhaust system,
even though these parts may be coated
with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try
also to do this every month.

Pay special attention to these areas
because they easily hide mud and dirt.
It will do more harm than good to wet
down the road grime without
removing it.

The lower edges of doors, rocker
panels, and frame members have drain
holes that should not be clogged.
Water trapped there will cause rusting.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected.
▼ Aluminum Wheel Maintenance*
A protective coating is provided over
the aluminum wheels. Special care is
needed to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
NOTE
Do not use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
Always use a sponge or soft cloth to
clean the wheels.
Maintenance and Care
Appearance Care
6-44*Some models.
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11
