▼Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue range of the gauge indicates that
the engine coolant temperature is low, and
the red range of the gauge indicates that
the engine coolant temperature is high and
overheating.

CAUTION
When the engine coolant temperature
gauge needle is in the red range, the engine
coolant temperature is extremely high.
Drive slowly to reduce engine load. If the
engine coolant temperature gauge needle
is in the red range, there is the possibility of
overheating. Park the vehicle in a safe
place immediately and take appropriate
measures.
Refer to Overheating on page 7-21.
NOTE
If the engine or engine coolant
temperature is high or low, the engine
output may be restricted to protect the
engine.
During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).
▼Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

1. Full
2. 1/4 Full
3. Empty

When Driving
Instrument Cluster and Display
4-17
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
If inconsistency in engine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Low Fuel Warning Indication/
Warning Light on page 7-34.
NOTE
After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
The direction of the arrow ()
indicates that the fuel -filler lid is on the
left side of the vehicle.
▼ Dashboard Illumination
When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
However, when the light sensor detects
that the surrounding area is bright such as
when the lights are turned on in the
daytime, the dashboard illumination does
not dim.
NOTE
When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects the
brightness of the surrounding area,
however, the dimming may cancel after
the brightness is detected.
When the lights are turned on, the
lights-on indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-44.
The brightness of the instrument panel and
dashboard illuminations can be adjusted
by pressing the dashboard illumination
switch while the dashbo ard illumination is
dimmed.
The brightness increases by pressing the
+ switch.
The brightness decreases by pressing
the - switch. If you press the - switch
while the instrument cluster is at
maximum dimness, a sound is activated
to notify you that the current dimmer
setting is at maximum dimness.

1. Bright
2. Dim
When Driving
Instrument Cluster and Display
4-18
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

Function for canceling illumination
dimmer
The illumination dimmer can be canceled
by pressing the + switch while the
instrument cluster is at maximum dimness
and while the ignition is switched ON. If
you press the + switch again while the
illumination dimmer is canceled, a sound
is activated to notify you that it is
canceled. If the instrument cluster's
visibility is reduced due to glare from
surrounding brightness, cancel the
illumination dimmer.
NOTE
When the illumina tion dimmer is
canceled, the instrument cluster cannot
be dimmed even if the lights are turned
on.
When the illumina tion dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.
▼ Outside Tempera
ture Display
When the ignition is switched ON, the
outside temperature is displayed.

NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
Significantly cold or hot temperatures.
Sudden changes in outside
temperature.
The vehicle is parked.
The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
When Driving
Instrument Cluster and Display
4-19
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

▼Distance-to-empty
This displays the approximate distance
you can travel on the remaining fuel based
on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.

NOTE
Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required
, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
The display will not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
▼ Average Fuel Economy
The average fuel economy is calculated
every minute from the total traveled
distance on the trip meter and the total fuel
consumption, and the average fuel
economy for either drive information
display is displayed.
The average fuel economy for TRIP A is
indicated by a red arrow in the
instantaneous fuel economy display.

The average fuel economy and trip meters
can be reset by pressi
ng the INFO switch
for 1.5 seconds or more while in each
mode. After the data is cleared, the fuel
consumption is recalculated and the - - -
km/L (- - - mpg) for the 1 minute prior to
it being displayed is indicated.
▼ Current Fuel Economy
This displays the current fuel economy by
calculating the amount of fuel
consumption and the distance traveled.
When Driving
Instrument Cluster and Display
4-20
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08

The average fuel economy for TRIP A is
indicated by a red arrow.

NOTE
Indicates the 0 position when the vehicle
speed is about 5 km/h (3 mph) or slower.
▼ i-ACTIVSENSE Display*
Displays the system status.

Refer to Lane Departure Warning
System (LDWS) on page 4-93.
Refer to Blind Spot Monitoring (BSM)
on page 4-97.
Refer to Traffic Sign Recognition
System (TSR) on page 4-102.
Refer to Distance & Speed Alert (DSA)
on page 4-107.
Refer to Driver Atte
ntion Alert (DAA)
on page 4-109.
Refer to Driver Monitoring (DM) on
page 4-110.
Refer to Front Cross Traffic Alert
(FCTA) on page 4-111.
Refer to Mazda Radar Cruise Control
(MRCC) on page 4-120.
Refer to Mazda Radar Cruise Control
with Stop & Go function (MRCC with
Stop & Go function) on page 4-129.
Refer to Traffic Jam Assist (TJA) on
page 4-141.
Refer to Lane-keep Assist System
(LAS) on page 4-154.
Refer to Smart Brake Support (SBS) on
page 4-156.
Refer to Smart Brake Support [Rear]
(SBS-R) on page 4-160.
Refer to Smart Brake Support [Rear
Crossing] (SBS-RC) on page 4-165.
Refer to Cruise Con trol on page 4-213.
▼Compass Display
The direction the vehicle is moving is
displayed in one of eight directions while
the vehicle is being driven.

Display
Direction
NN orth
SS outh
EE ast
WW est
NE Northeast
NW Northwest
SE Southeast
SW Southwest
When Driving
Instrument Cluster and Display
*Some models.4-21
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

▼Message Display
A message such as the system operation
status, a malfunction, or an abnormality is
indicated.
Warning/indicator
light in instrument
cluster turns on/flashes or symbol is
indicated on display at same time as
message
Check the information regarding the
warning/indicator light or indicated
symbol.
Refer to If a Warnin g Indication/Warning
Lights on page 4-23.
Refer to If a Indicatio n/Indicator Lights on
page 4-25.
Message only is indicated on display
Follow the instructions indicated on the
display. For the displ ay content, refer to
the next page.
Refer to If a Message Indicated on
Multi-information Disp lay on page 7-38.
▼Warning/Indicator Lights
Instrument Cluster varies depending on
model and specifications.
1. Instrument Cluster
2. Front Center of Headliner

Warning lights will a
ppear in any of the
highlighted areas
When Driving
Instrument Cluster and Display
4-22
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

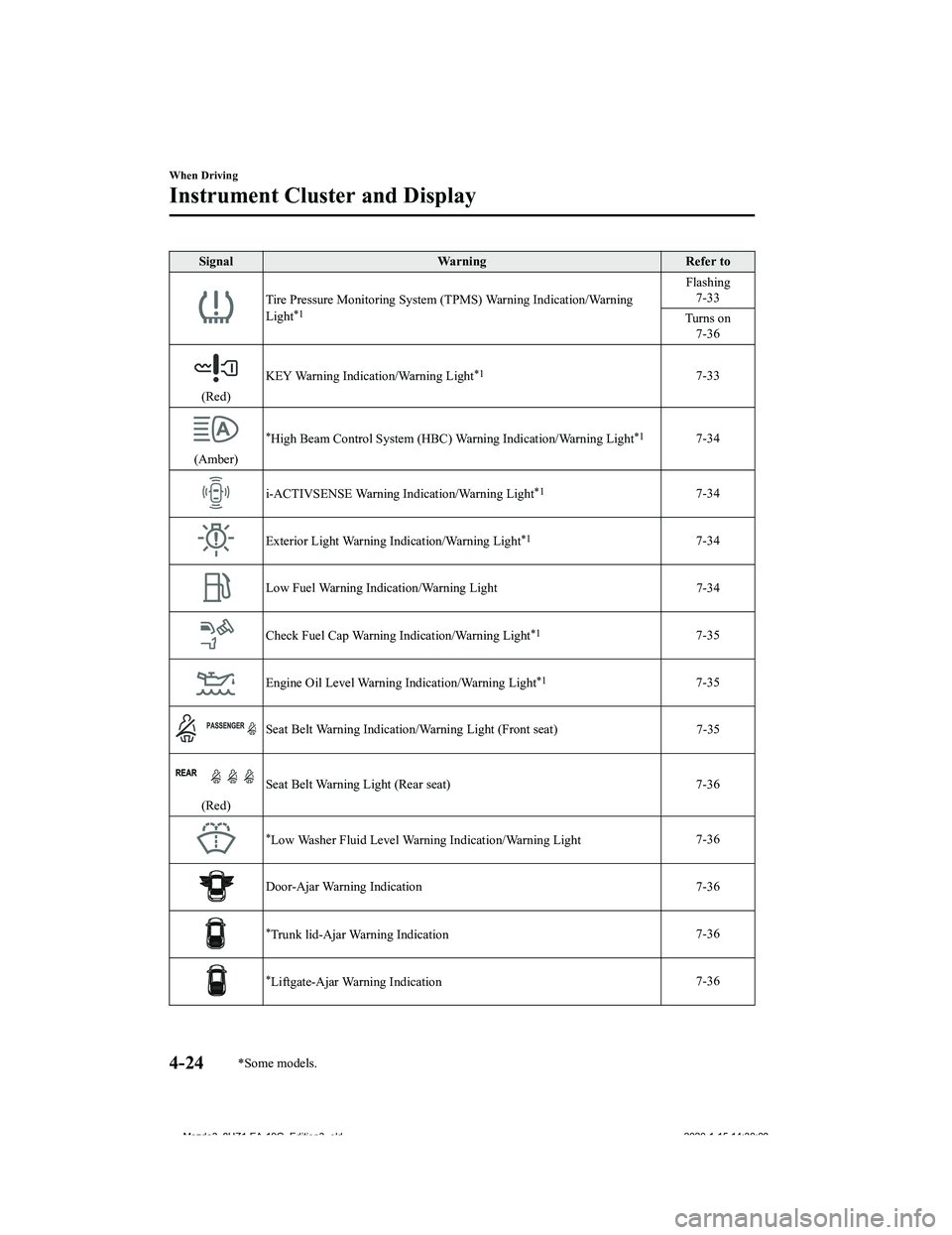

▼Warning Indication/Warning Lights
These lights turn on or flash to
notify the user of the system operation status or a system
malfunction.
Signal Warning Refer to
Brake System Warning Indication/Warning Light*17-27
ABS Warning Indication/Warning Light*1
Electronic Brake
Force Distribu‐ tion SystemWa r n i n g 7-28
ABS warning 7-30
Charging System Warning Indication/Warning Light*17-28
Engine Oil Warning Indication/Warning Light*17-28
High Engine Coolant Temperature Warning Indication 7-29
Power Steering Malfunction Indication/Indicator Light*17-29
Master Warning Indication 7-30
Brake Control System Warning Indication/Warning Light*17-30
Brake Override Warning Indication 7-31
Check Engine Indication/Light*17-31
*Automatic Transmission Warning Indication/Warning Light*17-31
*AWD Warning Indication/Warning Light*17-31
Air Bag/Front Seat Belt Pretensioner System Warning Indication/ Wa r n i n g
Light*17-32
When Driving
Instrument Cluster and Display
*Some models.4-23
Mazda3_8HZ1-EA-19G_Edition3_old 2020-1-15 14:30:08

SignalWarning Refer to
Tire Pressure Monitoring System (TPMS) Warning Indication/Warning
Light*1
Flashing 7-33
Turns on 7-36
(Red) KEY Warning Indication/Warning Light
*17-33
(Amber)
*High Beam Control System (HBC) W
arning Indication/Warning Light*17-34
i-ACTIVSENSE Warning Indication/Warning Light*17-34
Exterior Light Warning Indication/Warning Light*17-34
Low Fuel Warning Indication/Warning Light 7-34
Check Fuel Cap Warning Indication/Warning Light*17-35
Engine Oil Level Warning Indication/Warning Light*17-35
Seat Belt Warning Indication/Warning Light (Front seat) 7-35
(Red)Seat Belt Warning Light (Rear seat) 7-36
*Low Washer Fluid Level Warning Indication/Warning Light
7-36
Door-Ajar Warning Indication
7-36
*Trunk lid-Ajar Warning Indication7-36
*Liftgate-Ajar Warning Indication7-36
When Driving
Instrument Cluster and Display
4-24*Some models.
Mazda3_8HZ1-EA-19G_Edition3_old
2020-1-15 14:30:08
