2020 MASERATI GRANTURISMO CONVERTIBLE lights

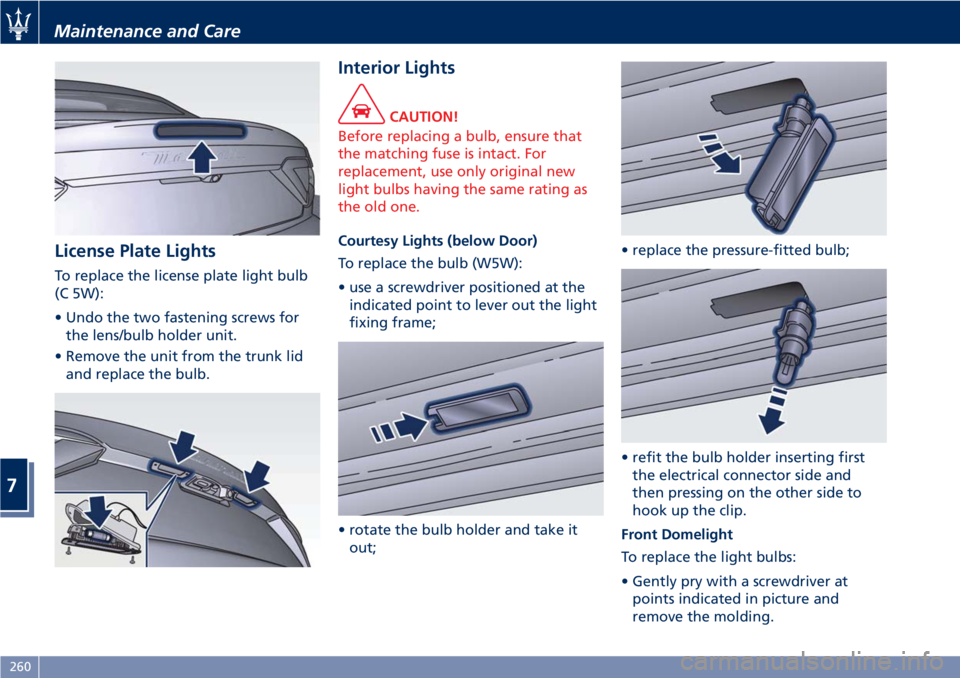

License Plate Lights
To replace the license plate light bulb
(C 5W):
• Undo the two fastening screws for
the lens/bulb holder unit.
• Remove the unit from the trunk lid
and replace the bulb.
Interior Lights
CAUTION!
Before replacing a bulb, ensure that
the matching fuse is intact. For
replacement, use only original new
light bulbs having the same rating as
the old one.
Courtesy Lights (below Door)
To replace the bulb (W5W):
• use a screwdriver positioned at the
indicated point to lever out the light
fixing frame;
• rotate the bulb holder and take it
out;• replace the pressure-fitted bulb;
• refit the bulb holder inserting first
the electrical connector side and
then pressing on the other side to
hook up the clip.
Front Domelight
To replace the light bulbs:
• Gently pry with a screwdriver at
points indicated in picture and
remove the molding.
Maintenance and Care
7
260

symbol with tape, to prevent it from
being detached by the revolving
brushes.
Glass Surfaces
All glass surfaces should be cleaned on
a regular basis with any commercial
household-type glass cleaner.
Never use an abrasive type cleaner.
Use caution when cleaning the inside
rear window equipped with electric
defrosters. Do not use scrapers or
other sharp instrument that may
scratch the electric elements.
When cleaning the rearview mirror,
spray cleaner on the towel or rag that
you are using. Do not spray cleaner
directly on the mirror.
Labels can be peeled off after soaking
with warm water.
Keep all objects a safe distance from
the window.
Cleaning Headlights
Your vehicle has plastic headlights that
are lighter and less susceptible to
stone breakage than glass headlights.
Plastic is not as scratch resistant as
glass and therefore different lens
cleaning procedures must be followed.
To minimize the possibility of
scratching the lenses and reducing
light output, avoid wiping with a drycloth. To remove road dirt, wash with
a mild soap solution followed by
rinsing.
Do not use abrasive cleaning
components, solvents, steel wool or
other aggressive material to clean the
lenses.
Moldings and Aluminum Trims
• For cleaning moldings and aluminum
trims, avoid the use of acidic or
alkaline cleaning agents that can
destroy the protecting surface
treatment.
• After washing aluminum trim with
warm water, apply the cleaning
agent with a clean tissue or a soft
sponge on the surface. Do not use
any other equipment such as
brushes, steel wool, abrasives or any
other equipment for cleaning.
• After cleaning, please rinse the
aluminum trim with a lot of clear
water.
• While cleaning in the car, please
make sure that the moldings and
aluminum trims only get in contact
with soft brushes or textiles.
Engine Compartment
At the end of each winter season,
carefully wash the engine
compartment, remembering to avoiddirecting the jet of water for too long
on the ECUs and other electric parts.
To perform this operation, you must
contact anAuthorized Maserati
Dealer.
Maintenance and Care
7
267

Jump Starting Procedure......225
ToolKit..................212
Towing a Disabled Vehicle.....228
Engine
Engine Air Filter Replacement . .245
Engine Coolant Level Check. . . .240
Engine Oil Level Check.......243
Engine Overheating.........214
Engine Start Failure.........159
Engine Turn Off............159
Hood, Open and Close........37
Normal Starting of the Engine . .158
Use of the Engine...........183
EPB (Electric Parking Brake)......174
ESC (Electronic Stability Control) . .177
Filters
A/C Air Filter Replacement.....263
Engine Air Filter Replacement . .245
Fuel
Carbon Monoxide Warning. . . .201
Emergency Fuel Filler Door
Release..................203
Fuel Consumption Data.......278
Fuel Requirements..........199
Fuel System Warnings........201
Gasoline/Oxygenate Blends. . . .200
Materials Added to Fuel......201
MMT in Gasoline...........200
Reformulated Gasoline.......200
Fuses Position and Replacement. . .251
HomeLink..................108Hood, Open and Close..........37
Indicator Lights
Air bag Warning Light........66
Indicator Lights/Warning Lights
TFT Display: Warning/Indicator
Lights...................126
Warning and Indicator Lights on
Analog Instrument..........119
Inertia Switch, Fuel Cut-out......229
Infotainment System..........130
Manual Controls and Devices . .132
Installing a LATCH-Compatible
Child Restraint System.........57
Instrument Cluster............118
Interior Components...........70
Interior Maintenance and Cure . . .268
Interiors Features.............102
Jump Start Procedure.........
.226
Keys
......................22
Level Checks................240
Adding Windshield/Headlight
Washer..................243
Brake Fluid Level Check.......242
Engine Coolant Level Check. . . .240
Engine Oil Level Check.......240
Power Steering Fluid Level
Check...................245
Transmission Oil Check.......245
Lights.....................82Adaptive Bi-Xenon Headlights . . .84
Automatic Headlights.........84
Bulb Replacement..........257
Cargo Light................88
DRL, Daytime Running Lights....83
Front Domelights............87
Hazard Warning Flasher.......88
Headlights................84
High Beams and Flashing......86
Light Switch...............82
Parking Lights..............84
Rear Fog Lights.............85
Turn Signals................86
Twilight Sensor.............85
Loading the Vehicle
Vehicle Load Carrying Capacity . .107
Maintenance
A/C System Maintenance......262
Bodywork Maintenance and
Care....................265
Interior Maintenance and Care . .268
Maintenance Procedures......239
Periodic Maintenance........237
Scheduled Maintenance
Service..................232
Scheduled Service Plan.......234
Wheels Maintenance........263
Maserati Roadside Assistance
Program...................15
MIL (Malfunction Indicator Light). .119
Mirrors
Folding Mirrors.............81
Index
9
287

Inside Rearview Mirror........81
Mirrors Positioning...........80
Outside Mirrors.............80
MTC+ “Controls” Screen........141
MTC+ Settings - Customer
Programmable Features.......141
MTC+ System (Maserati Touch
Control Plus), Controls........138
Onboard Computer (Trip).......167
Onboard Diagnostics System.....183
ORC
(Occupant Restraint Controller) . . .50
Park Assist...................60
Parking....................176
Parking Brake...............174
Emergency Release of Parking
Brake...................220
Parking (Camera)..............63
Part Service..................11
Pets, transporting.............59
Phone/Bluetooth
Phone and Voice Controls on
Steering Wheel.............155
Phone/Bluetooth, Customer
settings..................147
Phone Mode..............156
Voice Commands...........156
Pollution Control Devices.......207
Power Outlets...............102
Refillings...................276Refueling..................202
Reporting Safety Defects.........10
Restraint System
Child Restraint Systems........54
Occupant Restraint System......38
Roadside Assistance Program......15
Safety
Child Restraint Systems........54
Occupant Restraint System......38
Safety Tips.................65
Supplemental Restraint System -
Air bags..................46
Scheduled Maintenance Service . . .232
Scheduled Service Plan.........234
SD Memory Card, USB and AUX
Ports.....................132
Seat Belt
Load Limiting Devices.........44
Loking Retractor (ALR) Mode....43
Rear Passenger Seat Belts.......42
Seat Belt Reminder Light
.....
.121
Seat Belt Reminder System (SBR) . .45
Seat Belts and Pregnant Women . .45
Seat Belts Pretensioners........44
Three-Point Seat Belts.........40
Three-Point Seat Belts Untwisting
Procedure.................42
Seats, Front..................74
Front Seats Cupholders.......103
Power Lumbar..............75
Seat Adjustment.............74
Seatback Tilt...............75Seats, Rear..................78
Rear Armrest...............79
Rear Head Restraints..........78
Rear Seats Cupholders........104
Service and Warranty............8
Siri Smart Personal Assistant.....156
Skyhook Suspension...........114
Smoking Kit.................106
Snow Chains................193
SRS (Supplemental Restraint System) -
Air Bags...................46
Start the Engine
Engine Start Failure..........159
Normal Starting of the Engine . .158
Steering Wheel Adjustment.......79
Phone and Voice Controls on
Steering Wheel.............155
Stored, Vehicle...............269
Stuck Vehicle, Freeing..........223
Symbols....................12
Tank, Fuel Refill..............202
Technical Data...............279
Telltales
Telltales on Speedometer......119
Telltales on Tachometer.......121
TFT Display: Warning/Indicator
Lights...................124
TFT Display
Controls..................124
Menus and Settings..........124
Screen Pages..............125
Tire Repair Kit...............214
Index
9
288

Tires
Department of Transportation
Uniform Tire Quality Grades. . . .189
General Information.........187
Inflation Pressure...........284
Punctured Tire.............214
Replacement Tires..........192
Snow Chains..............193
Tire Pressure..............190
Tire Pressure Checkup........191
Tire Repair Kit.............214
Tire Safety Information.......187
Tires Durability.............192
TPMS - Tire Pressure Monitoring
System..................194
Tread Wear Indicators........191
Winter Tires...............193
ToolKit ...................212
Towing the Vehicle...........228
TPMS System................194
Transmission, Automatic
Automatic Transmission Lever . .160
Malfunction and Overheating
Conditions................166
Transmission Manual Release of
P (Park) Position............221
Trip - Onboard Computer.......167
Trunk
Trunk Safety...............37
Trunk Compartment Lid.........35Trunk Lid
Trunk Lid Emergency Release from
inside the Trunk.............37
Updating....................7
USB, AUX and SD Memory Card
Ports....................132
Vehicle Identification Data
Homologation Labels.........18
Vehicle Identification Number
(VIN)....................17
Warning and Information Labels .18
Voice Commands.............156
Warning Icons.................6
Warning/Indicator Lights on TFT
Display...................126
Warnings when Driving.........14
Warranty and Service............8
Warranty Information..........10
Wheels
Tires Maintenance..........263
Wheels Rims Maintenance....
.265
Windows
Auto Down/Auto Up Feature....34
Reset Auto-Up/Down.........35
Windshield Wipers and Washers . . .89
Adding Washer, Headlight Washer
Fluid....................243
Rain Sensing Wipers..........90
Windshield and Headlight
Washers..................91Windshield Wipers...........89
Wiper Maintenance and Blades
Replacement..............245
Index
9
289
