TOWING A TRAILER
WARNING: Do not exceed the
GVWR or the GAWR specified on the
certification label. WARNING:
Towing trailers
beyond the maximum recommended
gross trailer weight exceeds the limit
of your vehicle and could result in
engine damage, transmission damage,
structural damage, loss of vehicle
control, vehicle rollover and personal
injury.
Note: Your vehicle may have electrical
items, such as fuses or relays, related
to towing.
See Fuses (page 303).
Your vehicle's load capacity designation
is by weight, not by volume, so you
cannot necessarily use all available
space when loading a vehicle or trailer. Towing a trailer places an extra load on
your vehicle's engine, transmission, axle,
brakes, tires and suspension. Inspect
these components periodically during,
and after, any towing operation.
Load Placement
To help minimize how trailer movement
affects your vehicle when driving:
•
Load the heaviest items closest to
the trailer floor.
• Load the heaviest items centered
between the left and right side trailer
tires. •
Load the heaviest items above the
trailer axles or just slightly forward
toward the trailer tongue. Do not
allow the final trailer tongue weight
to go above or below 10-15% of the
loaded trailer weight.
• Select a ball mount with the correct
rise or drop. When both the loaded
vehicle and trailer are connected, the
trailer frame should be level, or
slightly angled down toward your
vehicle, when viewed from the side.
When driving with a trailer or payload, a
slight takeoff vibration or shudder may
be present due to the increased payload
weight. Additional information regarding
proper trailer loading and setting your
vehicle up for towing is located in the
Load Carrying chapter. See Load Limit
(page 273).
You can also find information in the
RV
& Trailer Towing Guide available at your
authorized dealer, or online.
278
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Towing

Protected Components
Fuse Rating
Fuse or Relay Number
Second row power seat.
30A 1
1
Starter relay.
—
2
Rear wiper.
15A 2
3
Rain sensor
Rear wash relay coil.
Blower motor relay.
—
4
Power point 3 - console bin.
20A 1
5
Not used.
—
6
Powertrain control module - vehicle power 1.
20A 2
7
Powertrain control module - vehicle power 2.
20A 2
8
Powertrain control module relay.
—
9
Power point 5-main bin.
20A 1
10
Powertrain control module - vehicle power 4.
15A 3
11
Powertrain control module - vehicle power 3.
15A 3
12
305
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
—
13
Not used.
—
14
Run-start relay.
—
15
Power point 2 - back of console.
20A 1
16
Power point 4 - luggage compartment.
20A 1
17
Not used (spare).
20A 2
18
Run-start electronic power assist steering.
10A 2
19
Run/start lighting.
10A 2
20
Not used (spare).
15A 2
21
Air conditioner clutch solenoid.
10A 2
22
Front split view camera.
15A 2
23
Rear view camera.
360 camera module.
Blind spot information system.
Voltage quality module (start/stop).
306
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Not used (spare).
10A 2
24
Run-start anti-lock brake system.
10A 3
25
Run-start powertrain control module.
10A 3
26
Not used (spare).
5A 2
27
Rear washer pump.
10A 2
28
Not used (spare).
5A 2
29
Not used.
—
30
Not used.
—
31
Electronic fan 1 relay.
—
32
A/C clutch relay.
—
33
Glove box release.
15A 2
34
Not used.
—
35
Not used.
—
36
307
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Transfer case cooling fan.
10A 2
37
Electronic fan 2 relay.
—
38
Electronic fan 3 relay.
—
39
Horn relay.
—
40
Not used.
—
41
Fuel pump relay.
—
42
Right high beam and stop lamp.
15A 2
43
Not used (spare).
20A 2
44
Not used.
—
45
Not used.
—
46
Not used.
—
47
Left high beam and stop lamp.
15A 2
48
Not used.
—
49
Horn.
20A 2
50
308
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
—
51
Not used.
—
52
Massaging seats.
10A 2
53
Brake on off switch.
10A 3
54
Alternator A-line.
10A 3
55
Not used.
—
86
1 M case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
309
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
—
56
Not used (spare).
20A 1
57
Fuel pump feed.
30A 1
58
Electronic fan 3.
40A 2
59
Electronic fan 1.
40A 2
60
Not used.
—
61
Body control module 1.
50A 2
62
Electronic fan 2.
25A 1
63
Not used (spare).
20A 1
64
Front heated seat.
20A 1
65
Heated wiper park.
15A 1
66
Body control module 2.
50A 2
67
312
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number

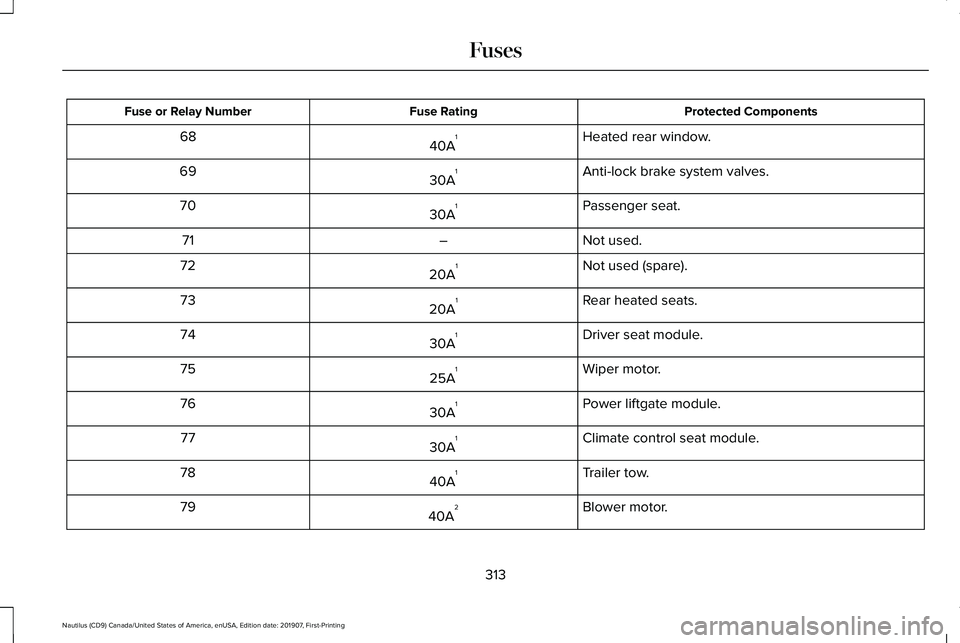

Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used.
–
71
Not used (spare).
20A 1
72
Rear heated seats.
20A 1
73
Driver seat module.
30A 1
74
Wiper motor.
25A 1
75
Power liftgate module.
30A 1
76
Climate control seat module.
30A 1
77
Trailer tow.
40A 1
78
Blower motor.
40A 2
79
313
