2020 LEXUS NX300h warning light

3716-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78530_en
6
Maintenance and care
Type A Normal fuse
Blown fuse
Type BNormal fuse
Blown fuse
Type CNormal fuse
Blown fuse
Type DNormal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure that the
tab is installed securely.
●If the lights do not turn on even after the
fuse has been replaced, a bulb may need
replacement. ( P.374)
●If the replaced fuse blows again, have the
vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting
the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine
Lexus products designed for this vehicle.
Because certain bulbs are connected to cir-
cuits designed to prevent overload, non-
genuine parts or parts not designed for this
vehicle may be unusable.
A
B
A
B
A
B
WARNING
■To prevent system breakdowns and
vehicle fire
Observe the following precautions.
Failure to do so may cause damage to
the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage
rating than that indicated, or use any
other object in place of a fuse.
A
B

3726-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78530_en
Type AAdjustment bolt A
Adjustment bolt B
Type BAdjustment bolt A
Adjustment bolt B
 Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.
 Park the vehicle on level ground.
 Make sure the tire inflation pressure
WARNING
●Always use a genuine Lexus fuse or
equivalent.
Never replace a fuse with a wire, even
as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as
there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock,
resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by your Lexus
dealer as soon as possible.
Headlight aim
Vertical movement adjusting
bolts
Before checking the headlight
aim
A
B
A
B

3766-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manual_USA_M78530_en
6Turn clockwise and set the bulb
base.
7 Attach the clip to the cover.
Push up on the center of the clip and attach
the clip .
8 Attach the cover.
Align the 2 tabs positions and close the
cover and fix the cover by pushing the
center of the clip .
9Install the engine compartment
cover. ( P.347)
A
A
B
WARNING
■Replacing light bulbs
●Be sure to stop the hybrid system and
turn off the lights. Do not attempt to
replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may
cause burns.
●Do not touch the glass portion of the
light bulb with bare hands. When it is
unavoidable to hold the glass portion,
use and hold with a clean dry cloth to
avoid getting moisture and oils on the
bulb.
Also, if the bulb is scratched or
dropped, it may blow out or crack.
●Fully install light bulbs and any parts
used to secure them. Failure to do so
may result in heat damage, fire, or
water entering the he adlight unit. This
may damage the headlights or cause
condensation to build up on the lens.
●Do not attempt to repair or disassem-
ble light bulbs, connectors, electric cir-
cuits or component parts.
Doing so may result in death or serious
injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and
locked.
●Check the wattage of the bulb before
installing to prevent heat damage.

377
LEXUS NX300h Owners Manual_USA_M78530_en
7
7
When trouble arises
When trouble arises
7-1. Essential informationEmergency flashers.................. 378
If your vehicle has to be stopped in an emergency .......................... 378
If the vehicle is trapped in rising water............................................ 379
7-2. Steps to take in an emergency If your vehicle needs to be towed......................................................... 381
If you think something is wrong ........................................................ 384
If a warning light turns on or a warning buzzer sounds ....... 386
If a warning message is displayed ........................................................ 396
If you have a flat tire.................. 400
If the hybrid system will not start ........................................................ 407
If you lose your keys ................. 409
If the fuel filler door cannot be opened........................................ 409
If the electronic key does not operate properly ..................... 410
If the 12-volt battery is discharged ......................................................... 412
If your vehicle overheats ......... 416
If the vehicle becomes stuck . 419

3867-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78530_en
■Brake system warning light (warning buzzer)
■Charging system warning light*
*: This light illuminates on the multi-information display.
■Output control warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
If a warning light turns on or a warning buzzer sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, bu t then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Actions to the warning lights or warning buzzers
Warning lightDetails/Actions
(U.S.A.)
(Red)
(Canada)
Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
 Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.
Warning lightDetails/Actions
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.
Warning lightDetails/Actions
Indicates the hybrid system has overheated
 Stop the vehicle in a safe place. Handling method
( P.418)

3877-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78530_en
7
When trouble arises
■Low engine oil pressure warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■High coolant temperature warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■Brake system warning light
■Malfunction indicator lamp
Warning lightDetails/Actions
Indicates that the engine oil pressure is too low
 Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.
Warning lightDetails/Actions
Indicates that the engine is overheating
 Immediately stop the vehicle in a safe place. Continu-
ing to drive the vehicle may be dangerous.
Handling method ( P.416)
Warning lightDetails/Actions
(Yellow)
Indicates a malfunction in:
The regenerative braking system;
 The electronically controlled brake system; or
 The electric parking brake
 Have the vehicle inspected by your Lexus dealer
immediately.
Warning lightDetails/Actions
(U.S.A.)
(Canada)
Indicates a malfunction in:
 The hybrid system;
 The electronic engine control system;
 The electronic throttle control system; or
 The emission control system
 Have the vehicle inspected by your Lexus dealer
immediately.

3887-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78530_en

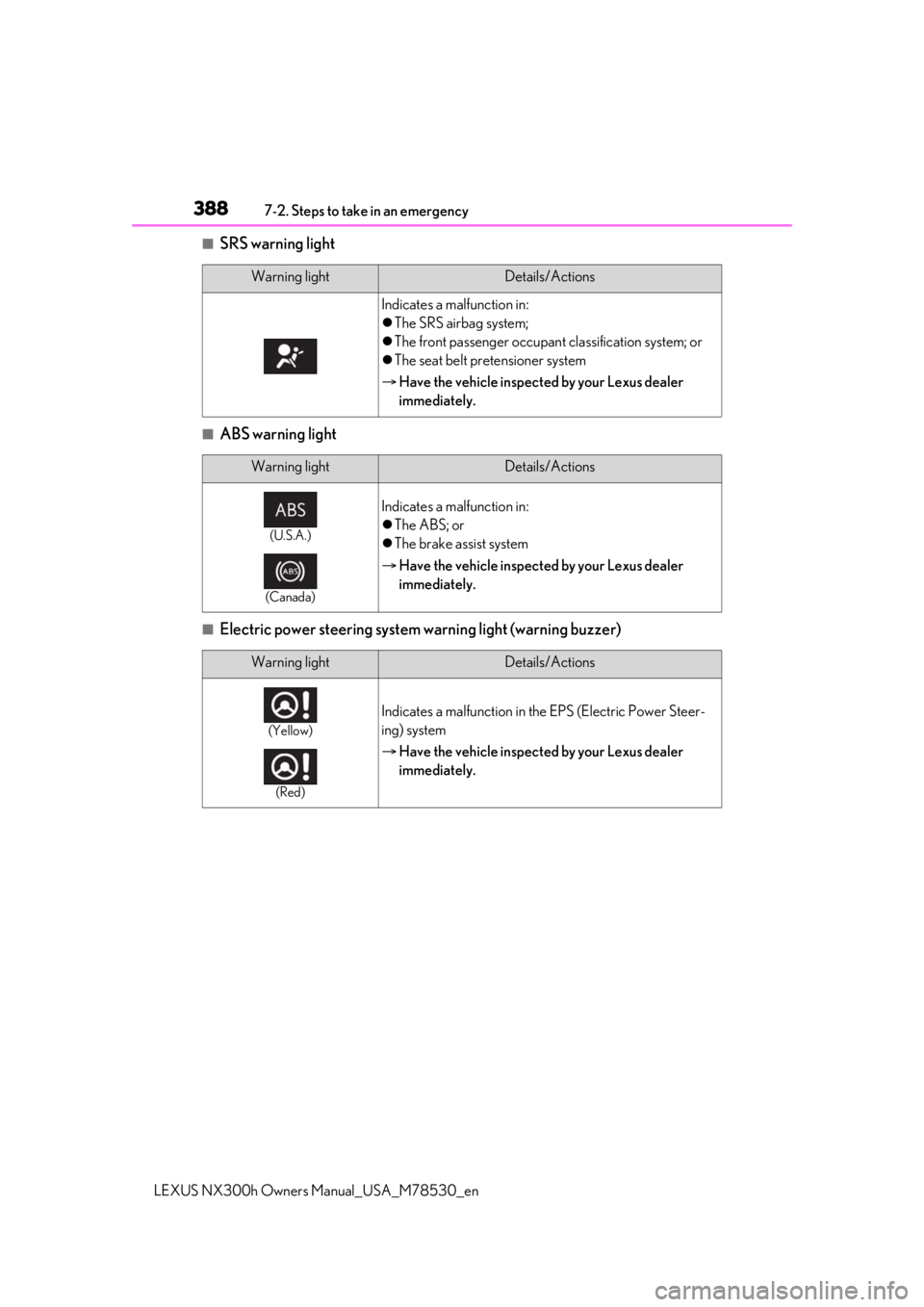

■SRS warning light
■ABS warning light
■Electric power steering system warning light (warning buzzer)
Warning lightDetails/Actions
Indicates a malfunction in:
The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer
immediately.
Warning lightDetails/Actions
(U.S.A.)
(Canada)
Indicates a malfunction in:
 The ABS; or
 The brake assist system
 Have the vehicle inspected by your Lexus dealer
immediately.
Warning lightDetails/Actions
(Yellow)
(Red)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Lexus dealer
immediately.

3897-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78530_en
7
When trouble arises
■PCS warning light
■LTA indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
■LDA indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
Warning lightDetails/Actions
(Flashes or illuminates)
When a buzzer sounds simultaneously: Indicates a mal-
function has occurred in the PCS (Pre-Collision System).
 Have the vehicle inspected by your Lexus dealer
immediately.
When a buzzer does not sound: The PCS (Pre-Collision
System) has become temporarily unavailable, corrective
action may be necessary.
 Follow the instructions displayed on the multi-informa-
tion display. ( P.208, 396)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P.216
Warning lightDetails/Actions
(Orange)
(If equipped)
Indicates a malfunction in the LTA (Lane Tracing Assist)
 Follow the instructions displayed on the multi-informa-
tion display. ( P.225)
Warning lightDetails/Actions
(Orange)
(If equipped)
Indicates a malfunction in the LDA (Lane Departure Alert
with steering control)
 Follow the instructions displayed on the multi-informa-
tion display. ( P.233)
