2020 Lexus GS350 light

228
GS350_GS F_OM_OM30J07U_(U)4-3. Operating the lights and wipers
■Temporarily lowering sensor sensitivity
The sensitivity of the sensor
can be temporarily lowered.
Turn the engine switch off while the following conditions are met.
• The headlight switch is in or .
• The headlight switch lever is in high beam position.
• Automatic High Beam switch is on.
Turn the engine switch to IGNITION ON mode.
Within 30 seconds after , repeat pulling th e headlight switch lever to the original
position then pushing it to the high beam position quickly 10 times, then leave the lever
in high beam position.
If the sensitivity is changed, the Automatic High Beam indicator is turn on and off 3
times.
Automatic High Beam (head lights) may turn on even the vehicle is stopped.
■Warning message
Warning messages are used to indicate a syst em malfunction or to inform the driver of
the need for caution. ( P. 442)
1
2
32
4

229
GS350_GS F_OM_OM30J07U_(U)4-3. Operating the lights and wipers
4
Driving
Windshield wipers and washer
Operating the lever operates the wipe
rs or washer as follows. The lever
will return to its original posi tion immediately after operation.
Intermittent windshield wipe rs with interval adjuster

(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 levels
Operating the wiper lever
1
2
3
4
or or or
OffTemporary operationTemporaryoperationIntermittent operationHigh speedoperation
Intermittent operationOffOffLow speedoperationHigh speed operation
Low speed operationOffIntermittent operationHigh speedoperationHigh speedoperation
High speed
operationOffLow speedoperationNo changeNo change
Status
before
operation
Operation

230
GS350_GS F_OM_OM30J07U_(U)4-3. Operating the lights and wipers
Wiper intervals can be adjusted when
intermittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Washer/wiper dual opera-
tion
Pulling the lever op erates the wipers
and washer.
Wipers will automatically operate a cou-
ple of times after the washer squirts.
Vehicles with headlight cleaners:
When the headlights are on and the
lever is pulled and held, the headlight
cleaners will operate once. After this,
the headlight cleaners will operate
every 5th time the lever is pulled.
Rain-sensing windshield wipers

(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 levels
AUTO mode on/off switch
5
6
7
AUTO mode
indicator
1
2
3
4
5

GS350_GS F_OM_OM30J07U_(U)
2314-3. Operating the lights and wipers
4
Driving
With AUTO mode selected, the wipers will operate automatically when the sensor
detects falling rain. The system automatically adjusts wiper timing in accordance with
rain volume and vehicle speed.
AUTO mode indicator will turn on when AUTO mode is selected.
*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
When AUTO mode is selected, the sensor sensitivity can be adjusted by turning
the switch ring.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Pulling the lever op erates the wipers
and washer.
Wipers will automatically operate a cou-
ple of times after the washer squirts.
Vehicles with headlight cleaners:
When the headlights are on and the
lever is pulled and held, the headlight
cleaners will operate once. After this,
the headlight cleaners will operate
every 5th time the lever is pulled.
or or
or
OffTemporary operationTemporary operationLow speedoperationHigh speed operation
Low speed operationOffOffHigh speed operationHigh speed operation
High speed
operationOffLow speedoperationNo changeNo change
AUTO modeIntermittent operation
Off
Temporary
operation
*1Low speed
operation
*2High speed
operation
*2
ContinuouslyNo change
Operation
Status
before
operation
6
7
8

232
GS350_GS F_OM_OM30J07U_(U)4-3. Operating the lights and wipers
The wipers can be used as intermittent windshield wipers, which operate regard-
less of vehicle speed or amount of rain
drops. The intermittent windshield wiper
operation can be switched wh en the vehicle is stopped and the wiper is off. The
wiper operation cannot be switched duri ng AUTO mode or while the intermit-
tent windshield wi pers are operating.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing
again, it will return to its previous state.
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more time
after a short delay to prevent dripping.
However, the last sweep will not happen while the vehicle is moving.
■Effects of vehicle speed on wiper operation
●Intermittent windshield wipers interval changes when the vehicle is stopped.
●With low speed operation selected, wiper oper ation will be switched from low speed to
intermittent operation only wh en the vehicle is stationary.
■Raindrop sensor
●If AUTO mode is selected while the engine switch is in IGNITION ON mode, the wip-
ers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 185°F (85°C) or higher, or -22°F
(-30°C) or lower, automatic operation ma y not occur. In this case, operate the
wipers in any mode other than AUTO mode.
Switching between the intermittent windshield wipers and rain-sensing
windshield wipers (vehicles with rain-sensing windshield wipers)
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is ad opted. It may not oper-
ate properly when sunlight from the rising or
setting of the sun inte rmittently strikes the
windshield, or if bugs etc. are present on the
windshield.

GS350_GS F_OM_OM30J07U_(U)
2334-3. Operating the lights and wipers
4
Driving
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield
washer fluid reservoir.
WARNING
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the wind-
shield is subject to vibration in AUTO mode. Take care that your fingers or anything
else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fl uid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be cau sed if the lever is pulled toward you and
held continually.
■When a nozzle becomes blocked
In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other object. The nozz le will be damaged.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. (P. 308)
Failure to do so may result in dama ge to the wipers and/or the hood.

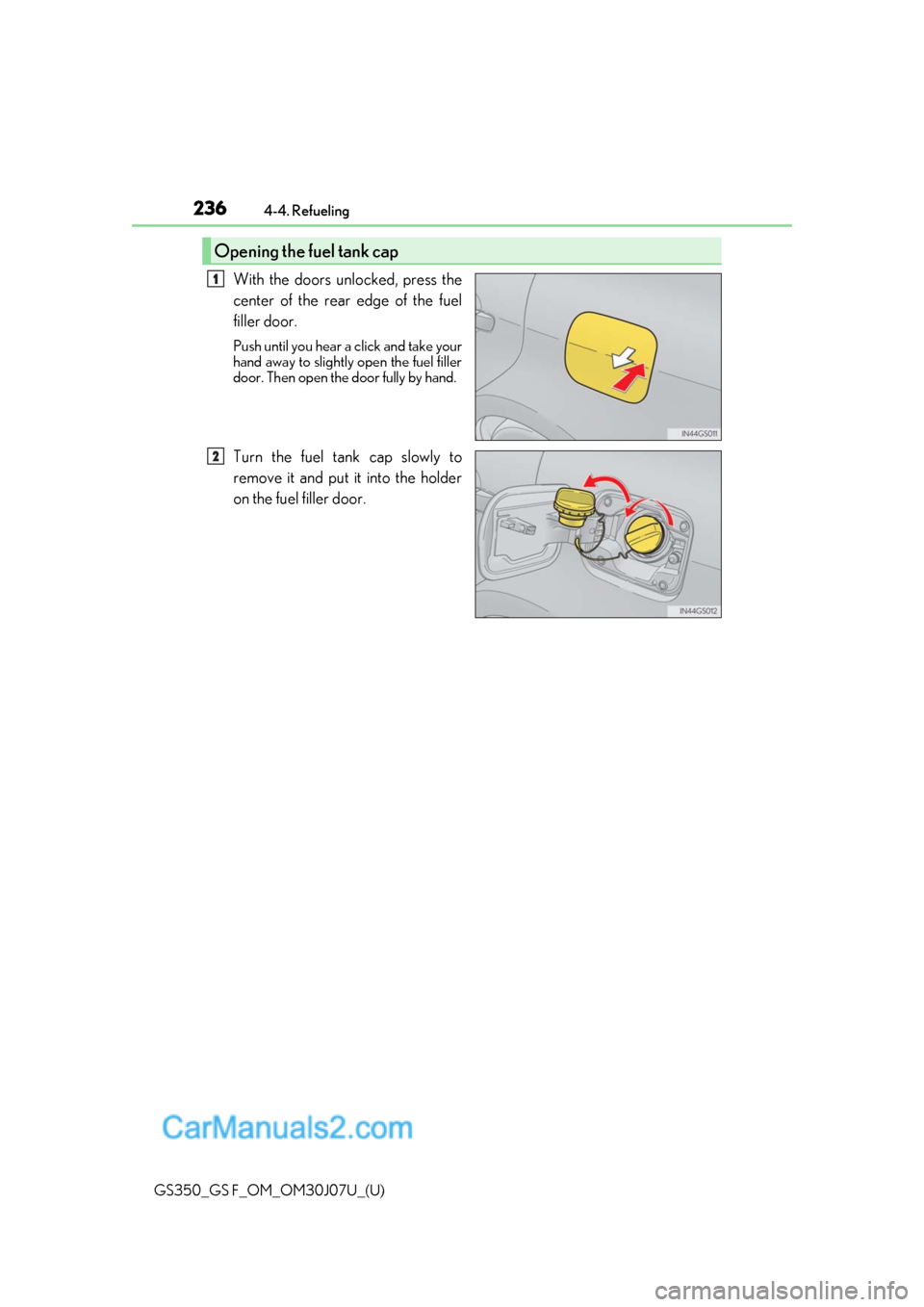

236
GS350_GS F_OM_OM30J07U_(U)4-4. Refueling
With the doors unlocked, press the
center of the rear edge of the fuel
filler door.
Push until you hear a click and take your
hand away to slightly
open the fuel filler
door. Then open the door fully by hand.
Turn the fuel tank cap slowly to
remove it and put it into the holder
on the fuel filler door.
Opening the fuel tank cap
1
2

GS350_GS F_OM_OM30J07U_(U)
2374-4. Refueling
4
Driving
■When the fuel filler door cannot be opened by pressing the rearward of the fuel filler
door
After refueling, turn the fuel tank cap
until you hear a click. Once the cap
is released, it will turn slightly in the
opposite direction.
Close the fuel filler door, and press
the center of the rear edge of the
fuel filler door until you hear a click.
When you lock the doors, the fuel filler
door will lock also.
Remove the cover inside the trunk and pull the
lever.
Closing the fuel tank cap
1
2
