3656-1. Maintenance and care
6
Maintenance and care
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes and rear bumper diffusers
Exhaust gases cause the exhaust pipes and rear bumper diffusers to become quite hot.
When washing the vehicle, be careful not to touch the pipes and rear bumper diffusers
until they have cooled sufficiently, as touc hing hot exhaust pipes and rear bumper dif-
fusers can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If
this occurs, consult your Lexus dealer.
Turn off AUTO mode of the wiper to preventthe wiper from operating. ( P. 229)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades.

376
GS350_GS F_OM_OM30J07U_(U)6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
*: Vehicles with sing
le-beam headlights
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
Battery condition
( P. 391)•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
( P. 390)
• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level
( P. 388)
•“Toyota Super Long Life Coolant” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Cool ant” is pre-mixed with 55%
coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(  P. 385)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 413)• Fuse with same amperage rating as original
Headlight aim*
(  P. 417)• Phillips-head screwdriver
Light bulbs
( P. 419)
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead sc rewdriver
•Wrench
Radiator and con-
denser (P. 389)
Tire inflation pres-
sure (P. 404)• Tire pressure gauge• Compressed air source
Washer fluid
( P. 393)• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

381
GS350_GS F_OM_OM30J07U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
GS350
Fuse boxes (
P. 413)
Battery ( P. 391)
Engine oil level dipstick (P. 385)
Engine coolant reservoir (P. 388)
Engine oil filler cap ( P. 386) Brake fluid reservoir
(P. 390)
Washer fluid tank ( P. 393)
Electric cooling fans
Condenser ( P. 389)
Radiator ( P. 389)1
2
3
4
5
6
7
8
9
10

382
GS350_GS F_OM_OM30J07U_(U)6-3. Do-it-yourself maintenance

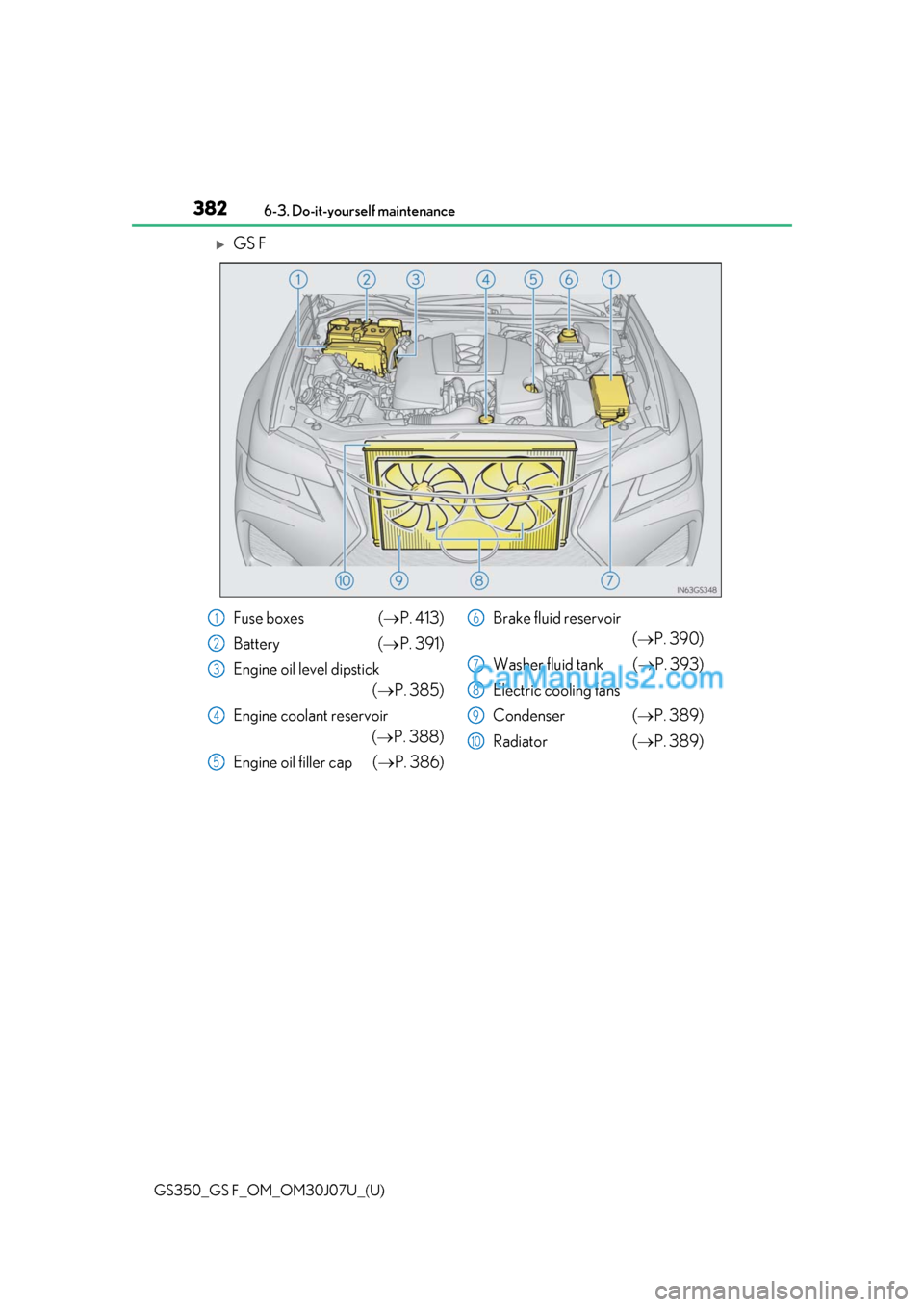

GS F
Fuse boxes (
P. 413)
Battery ( P. 391)
Engine oil level dipstick (P. 385)
Engine coolant reservoir (P. 388)
Engine oil filler cap ( P. 386) Brake fluid reservoir
(P. 390)
Washer fluid tank ( P. 393)
Electric cooling fans
Condenser ( P. 389)
Radiator ( P. 389)1
2
3
4
5
6
7
8
9
10

413
GS350_GS F_OM_OM30J07U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl
ace the fuses as necessary.
1
2
Engine compartment (type A fuse
box)Engine compartment (type B fuse
box)
Push the tab in and lift the lid off. Push the tab in and lift the lid off.
Driver’s side instrument panelPassenger’s side instrument panel
Remove the lid. Remove the lid.

414
GS350_GS F_OM_OM30J07U_(U)6-3. Do-it-yourself maintenance
Trunk
Push the tab in and lift the lid off.
Remove the lid.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed using
the pullout tool.
3
